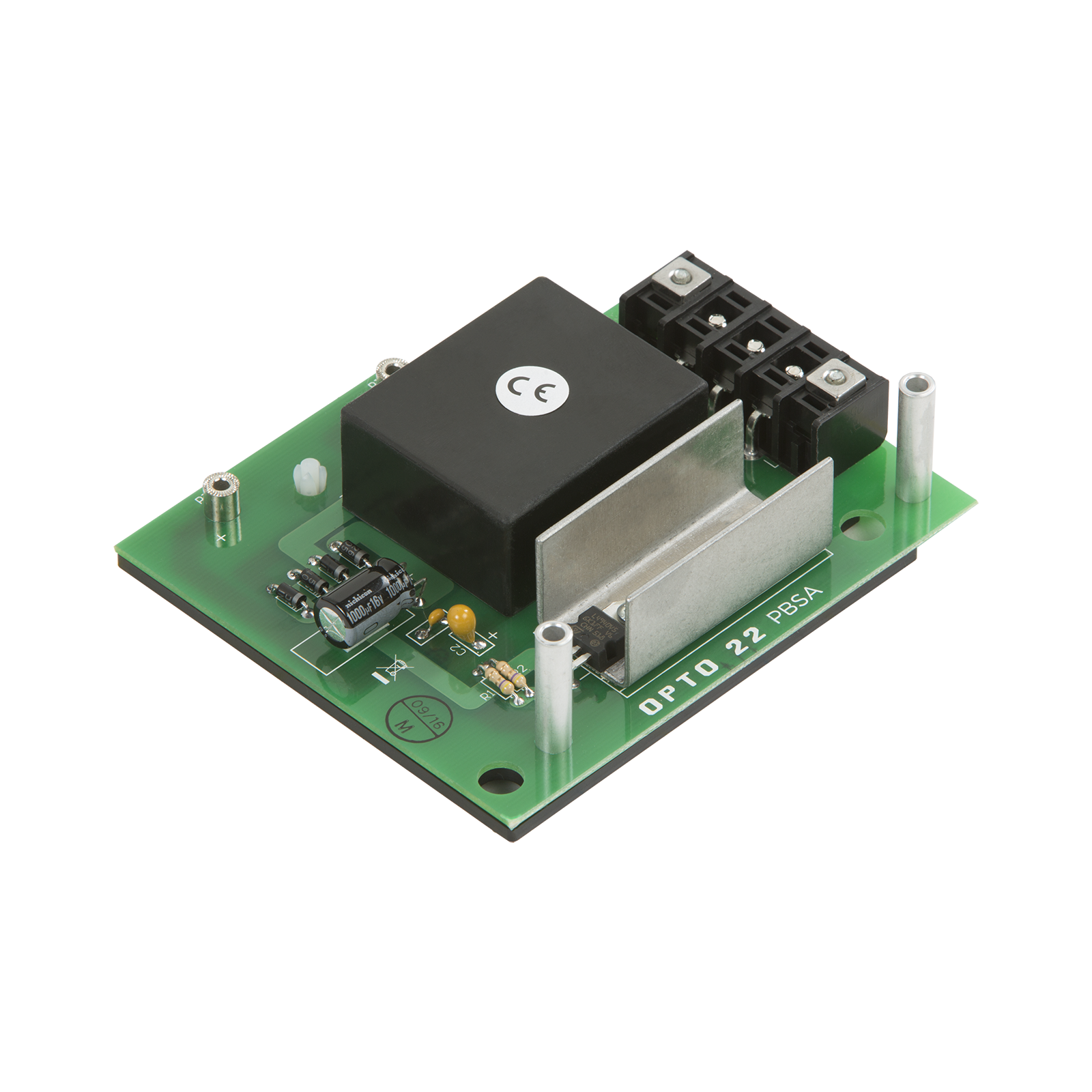

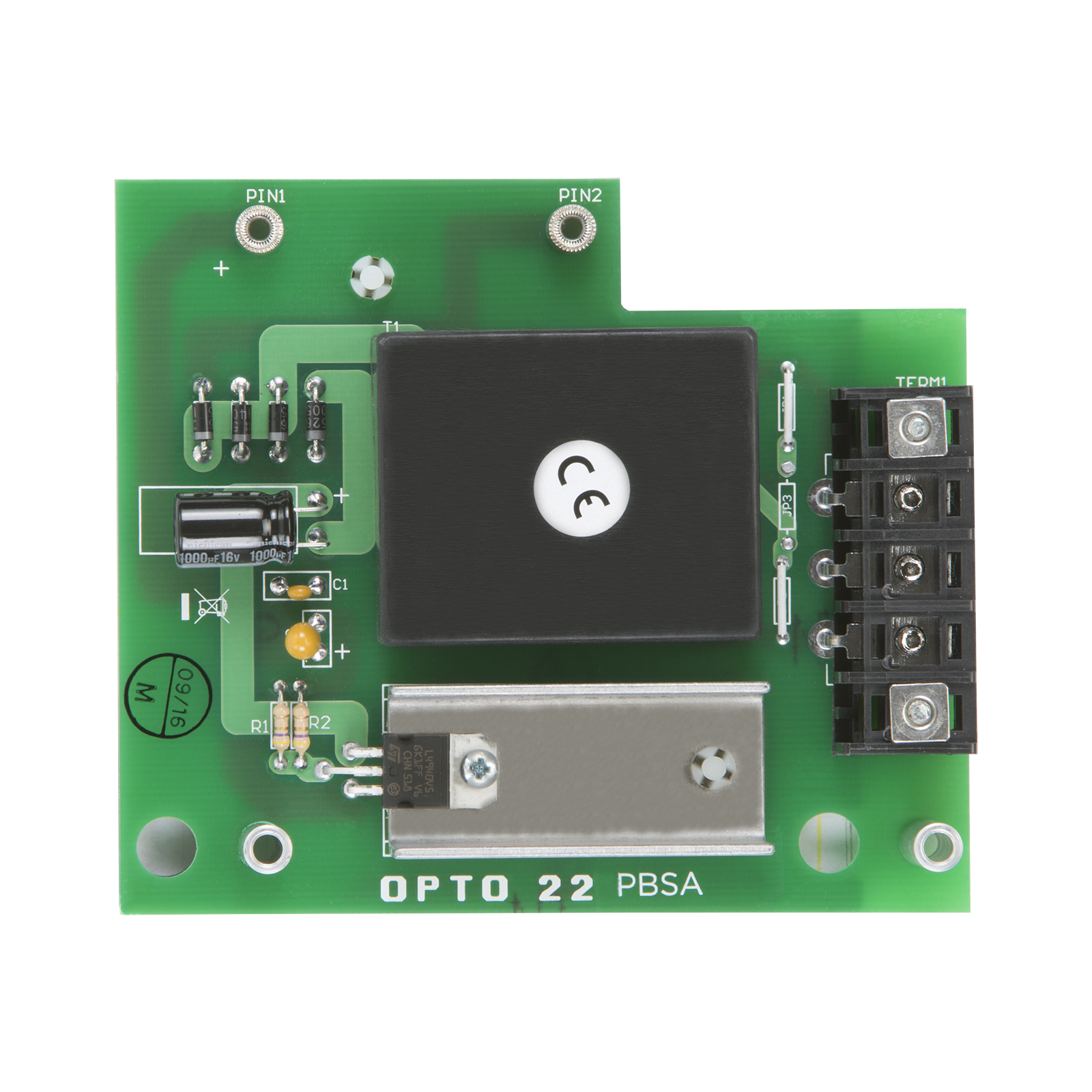

PBSA

Availability: Obsolete
OBSOLETE 5 VDC Power Supply for Digital I/O Mounting Racks, 120 VAC input

Production Specification

*** NOTE: This part is obsolete and no longer available once stock is depleted. ***

The PBSA 5 VDC power supplies is designed to work with an Opto 22 digital I/O mounting rack connected to an Optomux® E1 or B1 brain board, or a mistic™ B100 brain board.

The PBSA provides power for the brain board and logic power for 16 digital I/O modules. It requires 120 VAC input.

Other power supply options include:
  • PBSB (220 VAC input) [Obsolete]
  • PBSC (12/24 VDC input) [Obsolete]
  PBSA PBSB [Obsolete] PBSC [Obsolete]
Input Range 105-125 VAC 200-240 VAC 10-28 VDC
Output Voltage 5 VDC 5 VDC 5 VDC
Output Current 0.5 amps 0.5 amps 1.5 amps
Operating Temperature -25 to 65 °C -25° to 65 °C< -25° to 65 °C
Isolation Breakdown Voltage 2,500 VAC 2,500 VAC 500 VAC
Power Dissipation <3-9 Watts 3-9 Watts 3-10 Watts
Humidity (non-condensing) 0-95% 0-95% 0-95%
Compatible Brain Boards E1, B1, B100 E1, B1, B100 E1, B1, B5, B100, OPTO-P1-40P
Agency Approvals Compliant with CE, ROHS, DFARS; UKCA Compliant with CE, ROHS, DFARS; UKCA Compliant with DFARS
Compatible digital I/O mounting racks (All 3 power supplies are compatible with these racks) Standard: PB4H, PB8H, PB16H, PB16HC
Quad Pak: PB16HQ
G4: G4PB8H, G4PB16H, G4PB16HC
Warranty 30 months from date of manufacture



Digital Rack Power Supplies Data Sheet

*** The PBSA is Obsolete and no longer available when current strock is depleted. ***
*** The PBSB and PBSC are Obsolete and no longer available. ***


The PBSA, PBSB, and PBSC 5 VDC power supplies are designed to work with an Opto 22 digital I/O mounting rack connected to an Optomux® E1 or B1 brain board, or a mistic™ B100 brain board. Each power supply is sized to provide power for the brain board and logic power for 16 digital I/O modules.

The PBSC can also be used with a Pamux® B5 brain board and is sized to provide power for the brain, 16 modules, and a Term1 Pamux bus terminator.

The PSBC can also be used with a Raspberry Pi® and Opto 22’s Digital I/O Carrier Board for Raspberry Pi (part number OPTO-P1-40P) to monitor and control industrial devices.
