SNAP-B6

SNAP-B6

$670.00 (USA and Canada only)

Availability: Call for Availability
OBSOLETE SNAP 32-channel Pamux Protocol Analog Brain Board

Please call (800) 321-6786 to order.

Production Specification

The SNAP-B6 is obsolete and no longer available. There is no direct or similar replacement.

Our SNAP-PAC-R series family of controllers or SNAP-PAC-EB series brains are often used as part of a redesign, but both the hardware and software interfaces for these are completely different from those for the SNAP-B6.

Please contact our Opto 22 Pre-Sales engineers with details about the specific application so they can help recommend parts for a redesign.

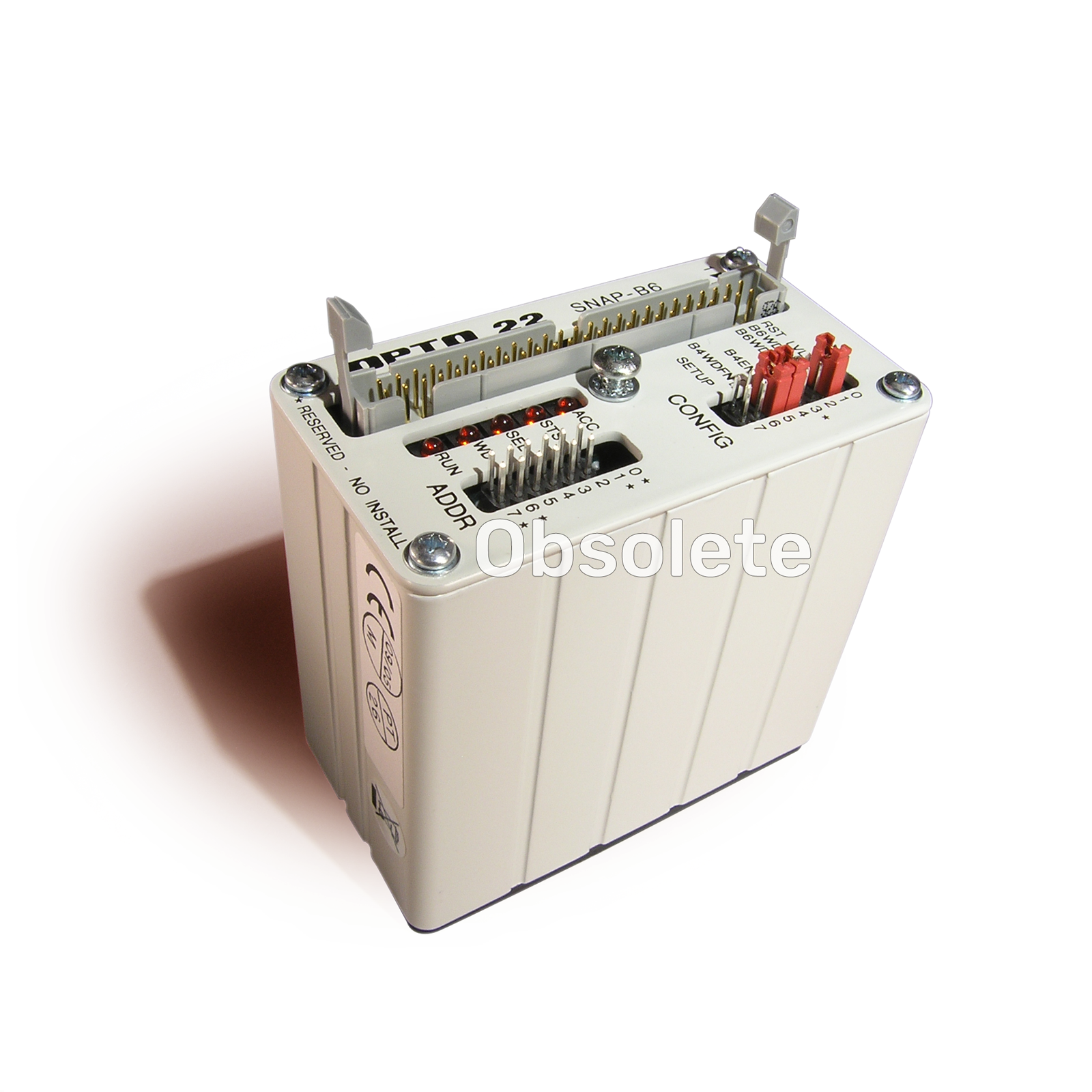

SNAP 32-channel Pamux Protocol Analog Brain Board

Power Requirements

5.0 - 5.2 VDC @ 1.0A max
(plus additional 0.5A if terminated)

Operating Temperature

0 ºC to 70 ºC, 95% humidity, non-condensing

Communications Interface

50-pin Pamux bus

Analog Read/Write Access Time

70 µsec per channel, 1.12 msec per 16 channels
(channels accessed individually)

Digital Read/Write Access Time

2 µsec per channel, 2 µsec per 8 channels
(channels accessed in banks of 8)

Update Time

With digital functionality enabled:
  Analog channels updated every 20 msec
  Digital channels updated every 1.25 msec
Without digital functionality:
  Analog channels updated every 2 msec

Range: Multidrop

Up to 500 feet

LED Indicators

ACC (Access), STS (Status), SEL (Address selected),
WD (Watchdog), and RUN (Power On)

Options: Jumper Selectable

Address
Watchdog
Reset
Enable digital (B4)
Analog configuration mode



SNAP High-Speed Analog/Digital Pamux Brain Data Sheet

The SNAP-B6 is a high-speed, addressable brain board that can remotely control a mix of both analog and digital I/O modules using the Pamux protocol.
