SNAP-ENET-S64

$475.00 (USA and Canada only)

Availability: In stock
OBSOLETE SNAP Simple Ethernet I/O Brain - Analog/Simple Digital/Serial

Please call (800) 321-6786 to order.

SNAP-ENET-S64

Production Specification

NOTE: The SNAP-ENET-S64 is no longer in production and has been replaced by the SNAP-PAC-EB2 brain which offers additional features, including a realtime clock, PID loop control, local events and reactions, and communication using SNMP, FTP, and SMTP for email.

--------------

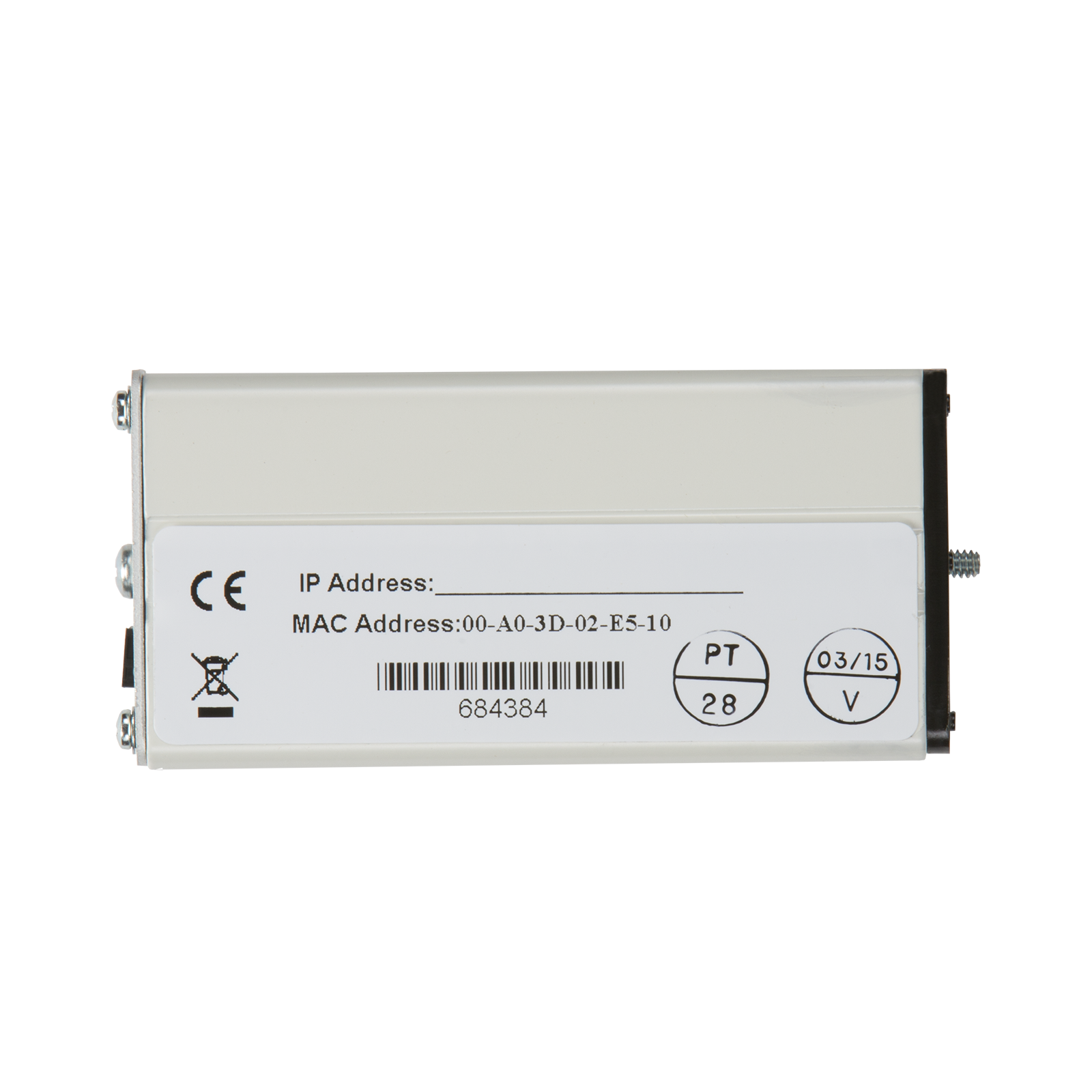

The SNAP Simple Ethernet I/O brain is a low-cost I/O and communications processor for high-density commercial and industrial applications on wired Ethernet networks.

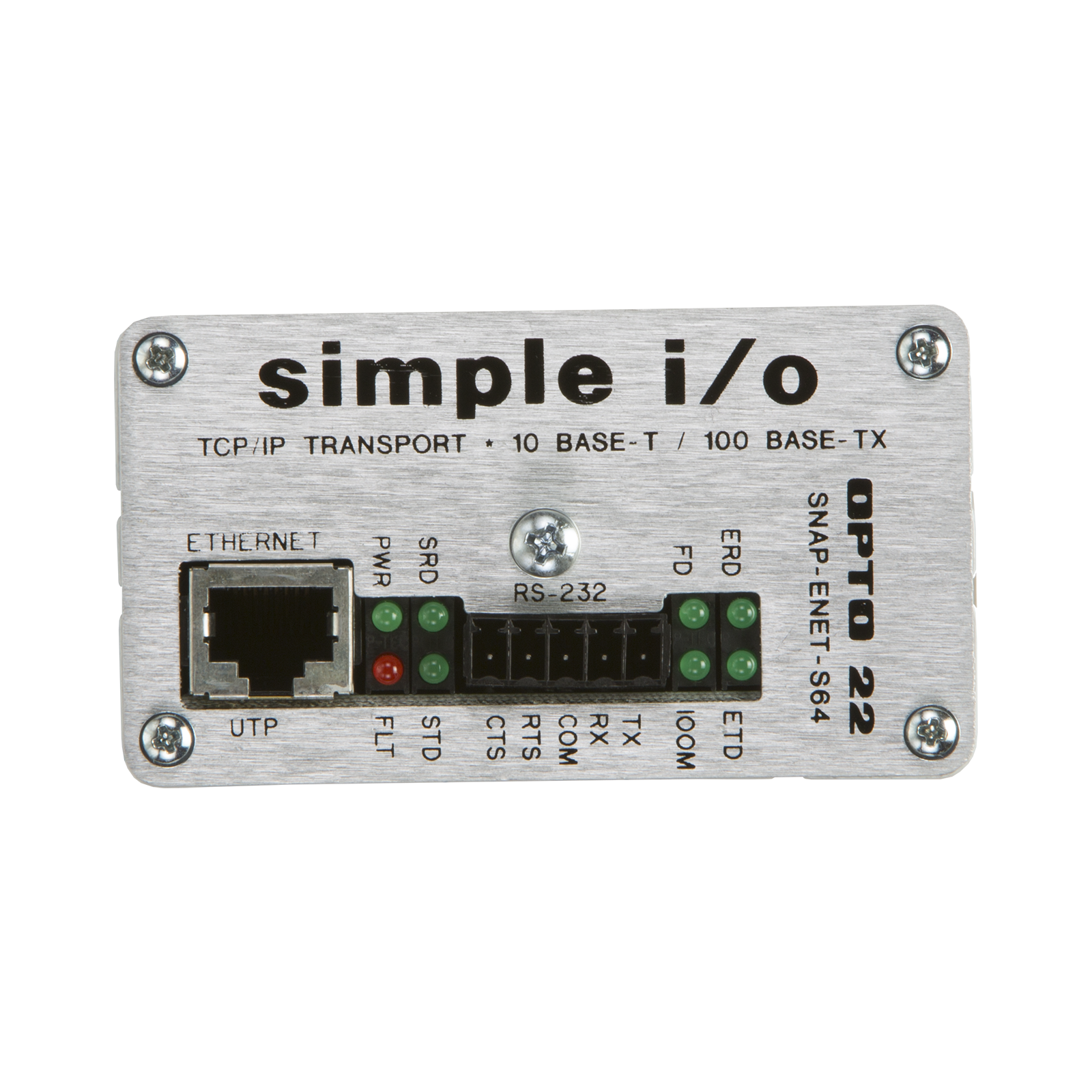

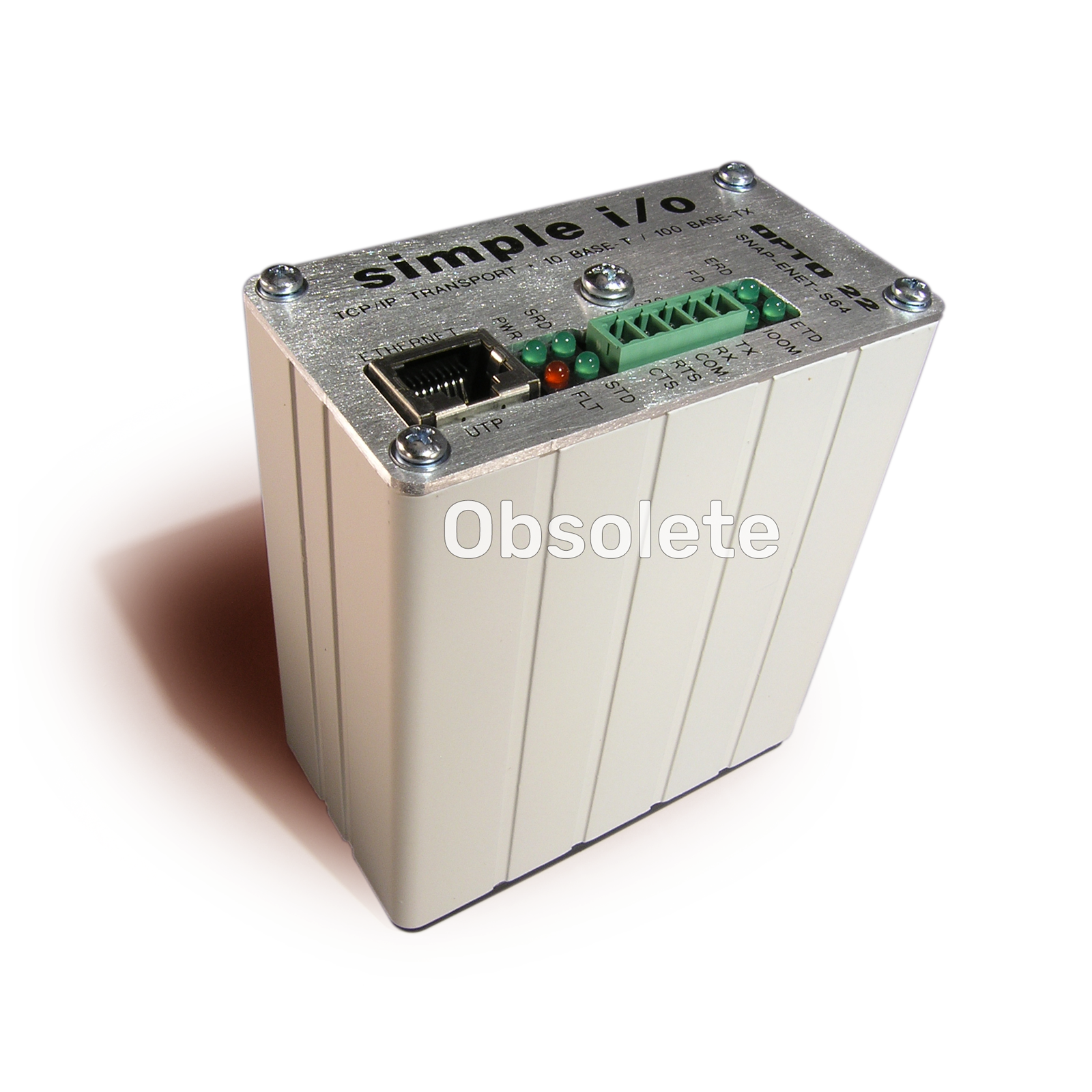

The SNAP-ENET-S64 brain can be mounted on any SNAP PAC mounting rack along with SNAP I/O modules. It provides local intelligence for analog, simple digital, and tunneling serial capability.

NOTE: Not all SNAP I/O modules are compatible with this brain. See Legacy and Current Product Comparison and Compatibility Charts to determine compatibility.

SNAP-ENET-S64

Power Requirements

5.0 VDC ± 0.1 VDC at 1.2 A maximum (does not include module power requirements)

Operating Temperature

0 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

0–95% humidity, non-condensing

Network Interface

IEEE 802.3 network, 10Base-T and 100Base-TX

Serial Port

RS-232 (for programming and diagnostics only)

Serial Data Rates

Default is 19,200 kBd; baud rate is soft-selectable from 2400 to 115,200 kBd.

Maximum Ethernet Segment Length

100 meters with Category 5 or superior UTP.
For 100 Mbps at this distance, use Category 5 or superior solid UTP.

Jumpers (Internal)

Boot to kernel/boot to loader
Reset to factory defaults

SNAP Simple Brain Data Sheet

NOTE: Although still fully supported and in production, the SNAP Simple brain is not recommended for new development. We recommend the SNAP-PAC-EB2 brain instead.

Opto 22 SNAP Simple I/O™ is a low-cost solution that offers Ethernet/TCP communications as well as analog, simple digital, and serial capability on the same mounting rack. Used for high-density commercial and industrial applications and for remote monitoring applications with high I/O point counts, a SNAP Simple I/O unit consists of a SNAP-ENET-S64 brain mounted on a SNAP M-series rack with standard SNAP I/O™ analog, digital, and serial modules.

SNAP Simple I/O Firmware README

This README file lists revision changes made to the SNAP Simple I/O firmware used in SNAP Simple I/O brains.

ioProject Readme Notes

Readme for ioProject Basic and Professional, the legacy versions of PAC Project. Includes information on features, enhancements, and bug fixes for each ioProject application: ioControl, ioDisplay, OptoOPCServer, ioManager, and ioUtilities.

SNAP Ethernet I/O Firmware README

This README file lists revision changes made to the SNAP Ethernet I/O firmware used in SNAP Ethernet brains.

SNAP Legacy Firmware README

This README file lists revision changes made to the firmware used in SNAP PAC family controllers before Version 8.0a, the SNAP-LCE controller, and SNAP Ultimate, Ethernet, and Simple brains.

Legacy Edition, PAC Manager User's Guide

This document is the Legacy Edition of the PAC Manager User's Guide. It includes information about both SNAP PAC hardware and older hardware.

Use this guide if you are using any legacy hardware (SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O, E1 and E2 brain boards) with PAC Manager.

If you are using SNAP PAC controllers and SNAP PAC brains only, use Form 1704, PAC Manager User's Guide instead of this guide.

Modbus/TCP Protocol Guide

This document shows you how to set up communication between Ethernet-based Modbus systems (using Modbus/TCP) and the groov EPIC system or SNAP PAC System.

In addition to groov I/O and the SNAP PAC System, the guide also covers Modbus/TCP communication with older Opto 22 Ethernet-based devices, including SNAP Ethernet, SNAP Simple, and SNAP Ultimate I/O; and E1 and E2 brain boards.

OptoMMP Protocol Guide

This guide is for programmers who are writing custom applications to communicate with Opto 22 memory-mapped devices. These devices include SNAP PAC controllers and SNAP PAC EB and SB brains; G4EB2 brains; SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O; E1 and E2 brain boards, and SNAP-LCE controllers.

The guide describes how to use the IEEE 1394-based OptoMMP memory-mapped protocol for programming. The guide also contains the complete memory map for all Opto 22 memory-mapped devices.

NOTE: This guide replaced previous individual programming guides for SNAP Ultimate I/O (form #1312) and SNAP Ethernet I/O (form #1227). This document was formerly called the "SNAP Ethernet-Based I/O Units Protocols and Programming Guide."

SNAP Ethernet-Based I/O Units User's Guide

NOTE:This document describes legacy products that are not recommended for new development. For new development, we recommend SNAP PAC brains and R-series controllers.

This guide shows you how to install, use, and troubleshoot I/O units that contain the following brains: SNAP-B3000-ENET, SNAP-ENET-S64, SNAP-UP1-M64, SNAP-UP1-ADS, SNAP-ENET-RTC, SNAP-ENET-D64, and SNAP-UP1-D64.

NOTE: This guide replaces previous individual user's guides for SNAP Ultimate I/O (form #1311) and SNAP Ethernet I/O (form #1112).
