SNAP-PS24U

$299.00 (USA and Canada only)

Availability: In stock

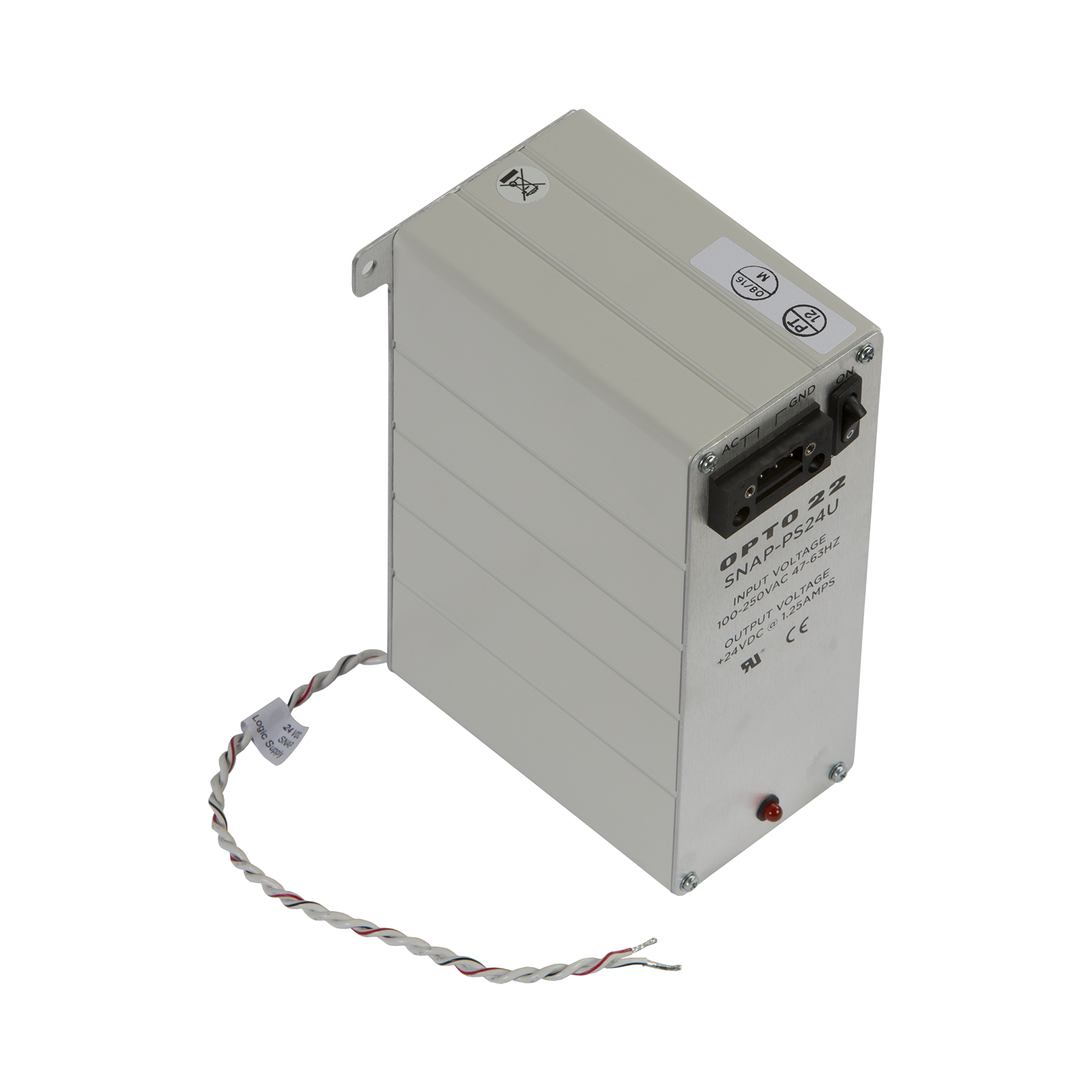

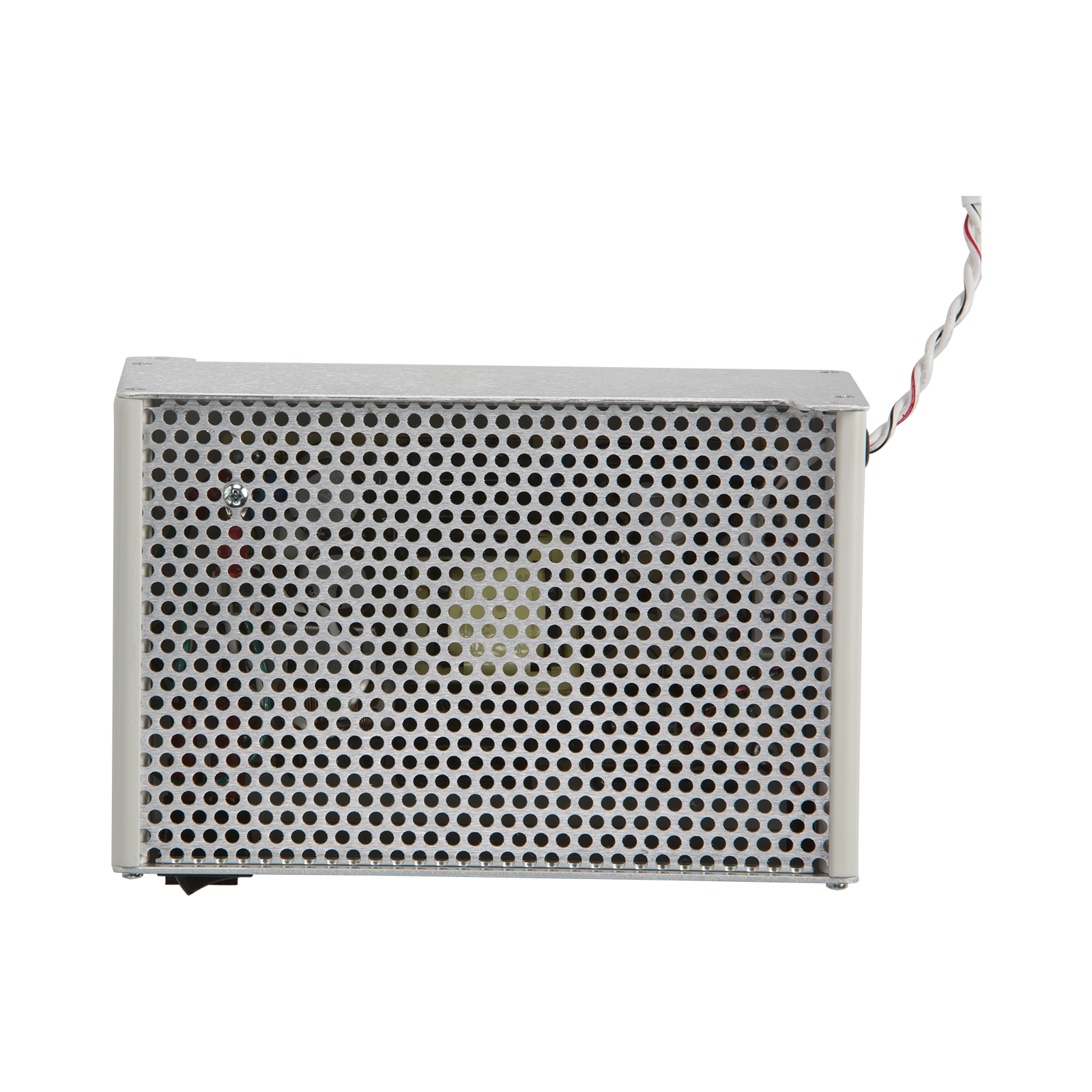

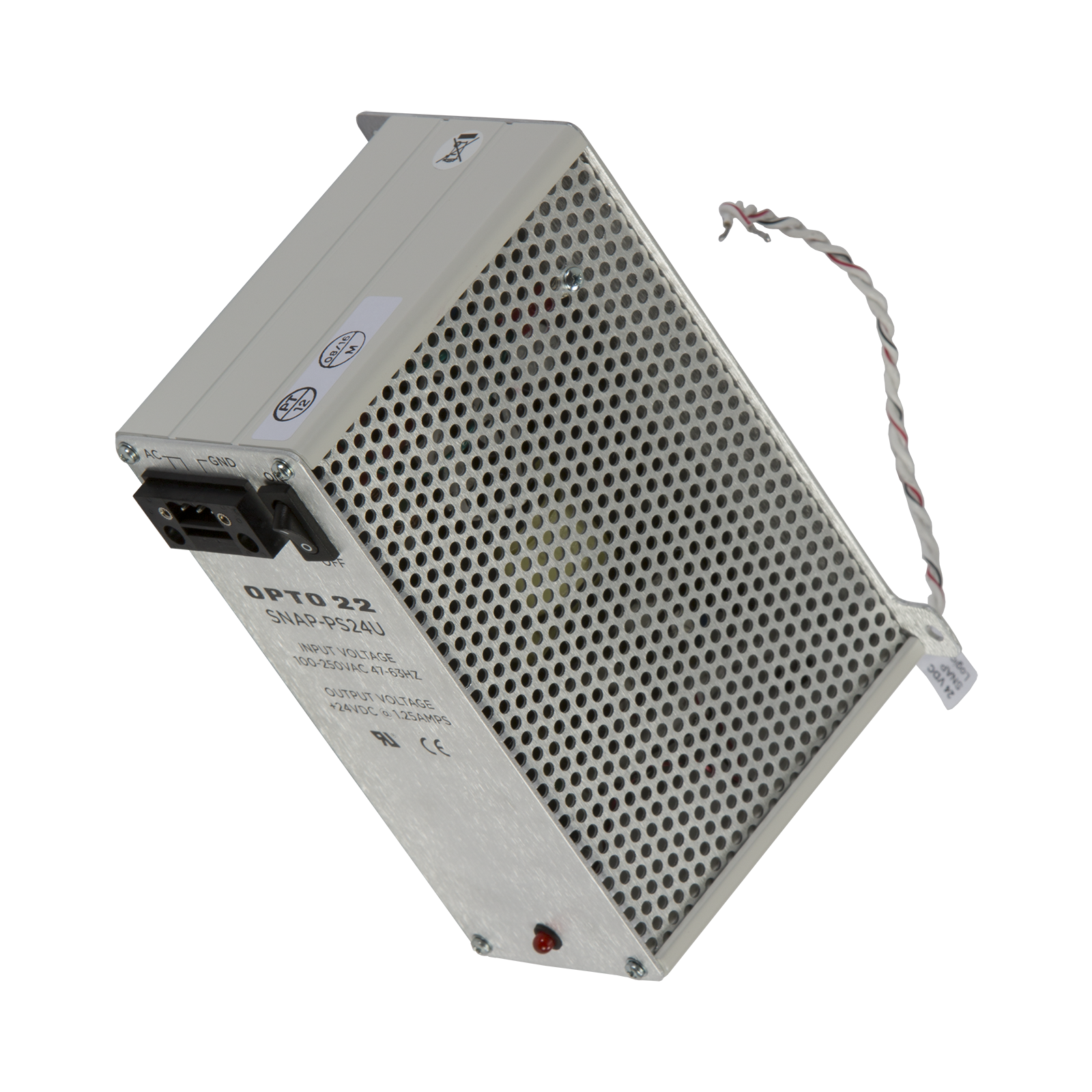

SNAP Power Supply, 100-250 VAC to 24 VDC

Please call (800) 321-6786 to order.

SNAP-PS24U

Production Specification

The SNAP-PS24U power supply provides 24 volts (1.25 amps) of DC power. This power supply is ideal for powering a SNAP PAC S-series controller (such as the SNAP-PAC-S1) or for providing loop power for SNAP analog modules mounted on a SNAP PAC rack.

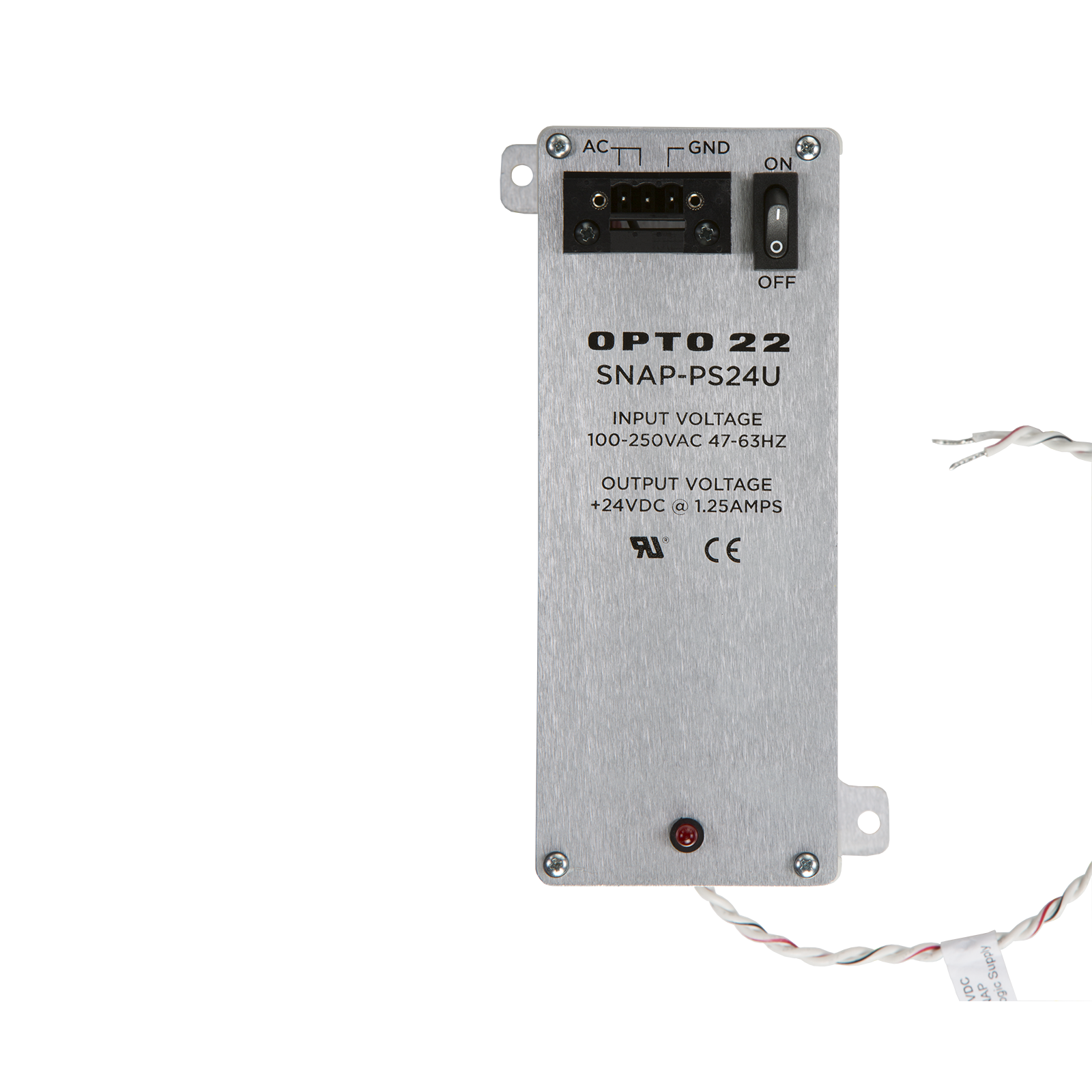

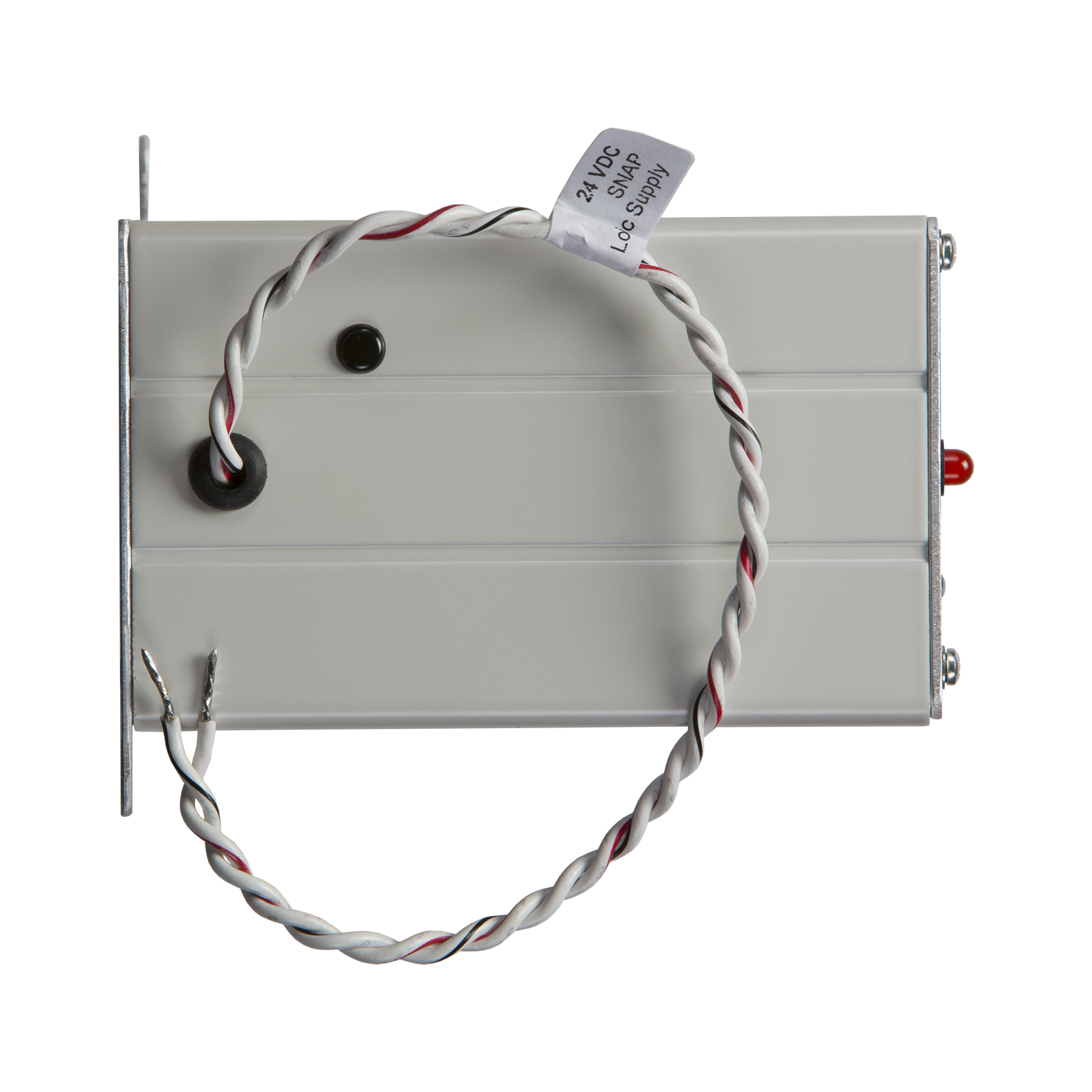

AC power connections are made to a removable terminal strip on top of the power supply. DC output power is hooked up using the attached wiring harness.

If you need fewer amps and can use a 120 VAC input, see the SNAP-PS24, which provides 0.75 A.

NOTE: The SNAP-PS24U can also be used to provide loop power for analog modules on a SNAP M-series or B-series rack.

Build your system in the SNAP I/O Configurator.



SNAP-PS24

SNAP-PS24U

Input Voltage

95–130 VAC, 47–63 Hz

100–250 VAC, 47–63 Hz

Output Voltage

24 ± 0.6 VDC

24 ± 0.1 VDC

Output Current

0.75 A

1.25 A

Maximum Input Current Draw

0.4 Amps @ 120 VAC

0.5 Amps @ 120 VAC

Dimensions

4.05˝ x 4.89˝ x 2.00˝

6.34˝ x 4.13˝ x 2.53˝

Weight

2.1 lbs (952.54 g)

1.9 lbs (863.63 g)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-30 to 85 °C

-30 to 85 °C

Torque, connector screws

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

Fuse

Opto 22 PN: SNAP-FUSE1AB Vendor PN: GDC-1A (Bussman)

Internal fuse

Agency Approvals

UL, FM, CE, RoHS, DFARS

UL, CE, RoHS, DFARS

Warranty

30 months

30 months
