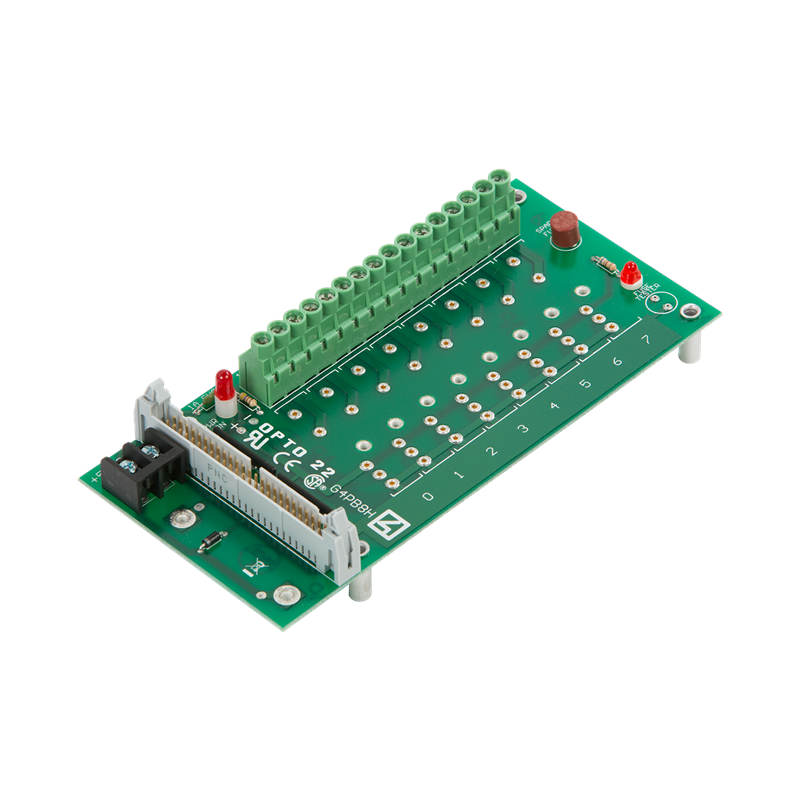

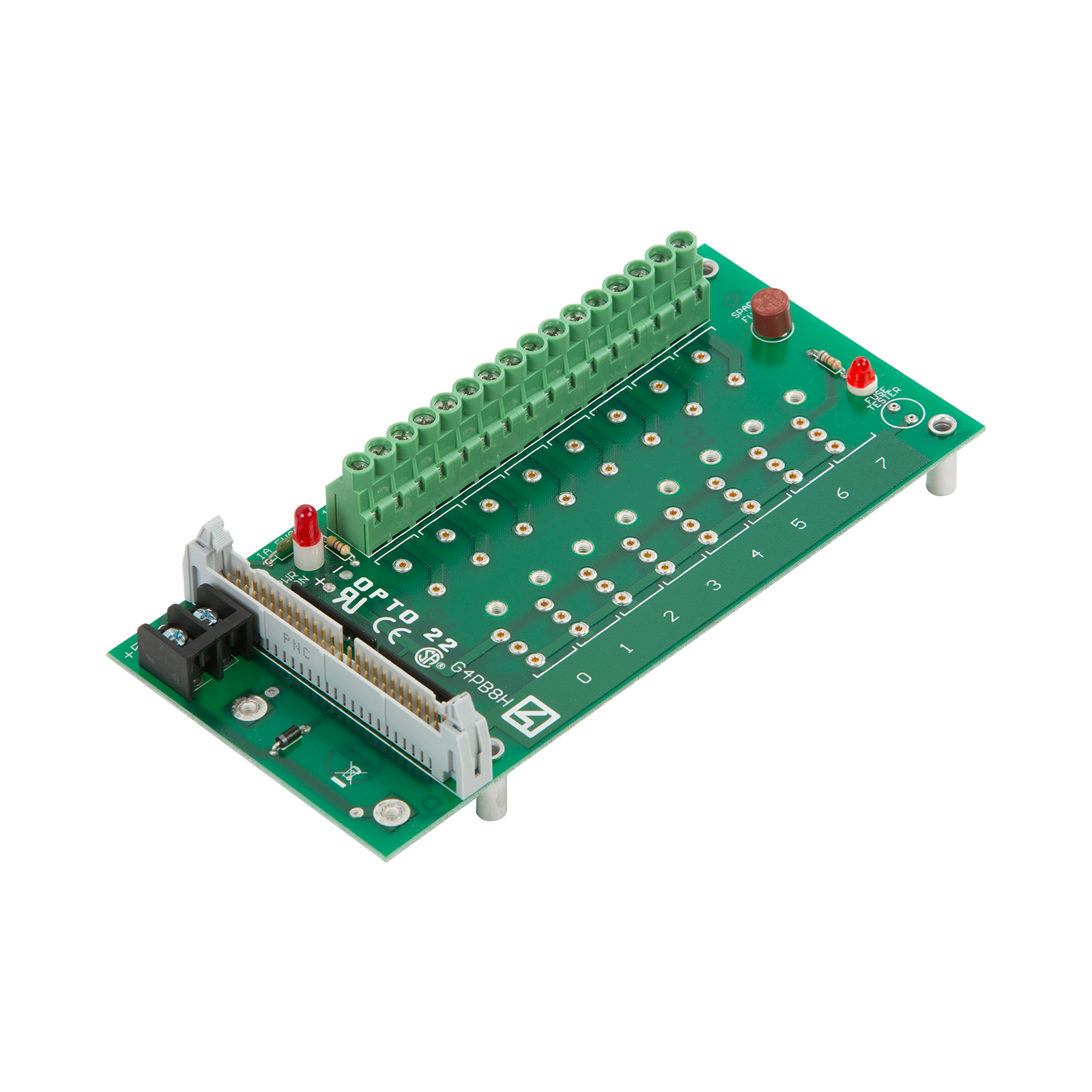

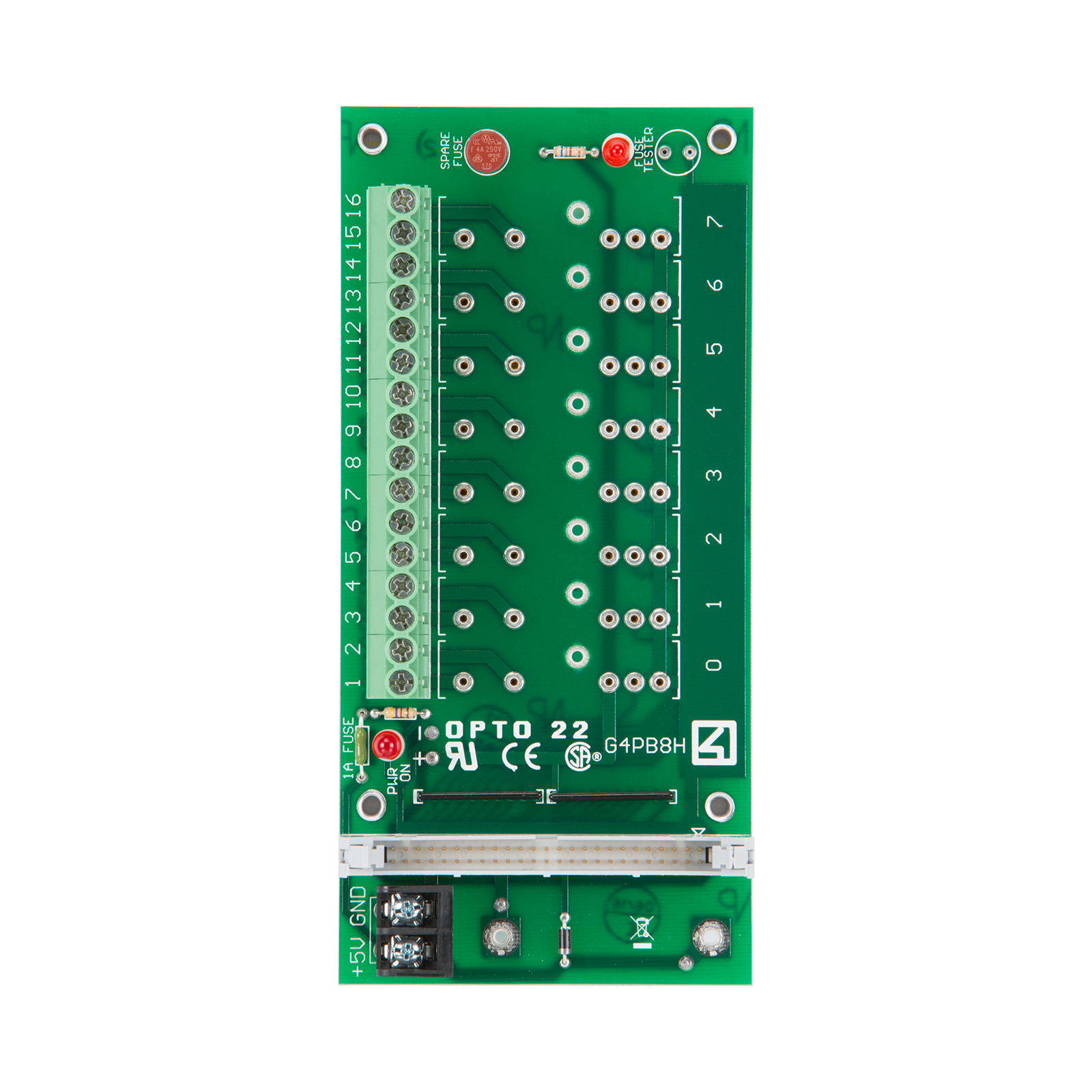

G4 8-channel Mounting Rack with Header Connector

Production Specification

G4 I/O family

The G4PB8H I/O mounting rack holds 8 G4 digital I/O modules, both AC and DC.

This rack is designed for use with Optomux B1 or E1, Pamux B5, and mistic B100 brain boards, attached through a standard 50-pin cable to a header connector. The rack is also compatible with the Digital I/O Carrier Board for Raspberry Pi® (part number OPTO-P1-40P).

A two-position screw terminal for 5 VDC connects to the power supply, and a power indicator light is included. The rack is compatible with Opto 22 PBSA/B/C power supplies. The logic supply is fused with a 1 A fuse, which, if desired, can be swapped out for a 5 A fuse (sold separately).

Single-channel G4 I/O gives you maximum flexibility. You can insert and remove modules easily and quickly without disturbing field wiring. Modules are securely attached with a threaded captive hold-down screw. This rack requires 5 VDC logic I/O modules (15 VDC and 24 VDC logic I/O modules cannot be used with this rack).

Barrier strips with screw terminals provide the field connections. A spare module fuse is included with the rack. For easier field wiring, use the G4STRAPB.

This rack supports negative-true logic only (zero voltage = ON, and Vcc = OFF).

Interface connectors
o Field

o Control

o Power


Screw-type barrier strip accommodates up to 10 AWG wire

50-conductor header connector

Two-position screw terminal or Opto 22 PBSA/B/C Power Supply
(Use with a 5.00 VDC +0.1 VDC power source.)
Operating Temperature 0 to 70 °C
Relative Humidity 95 percent, non-condensing
Agency Approvals UL, CSA, CE, RoHS, DFARS; UKCA
Warranty 30 months from date of manufacture
