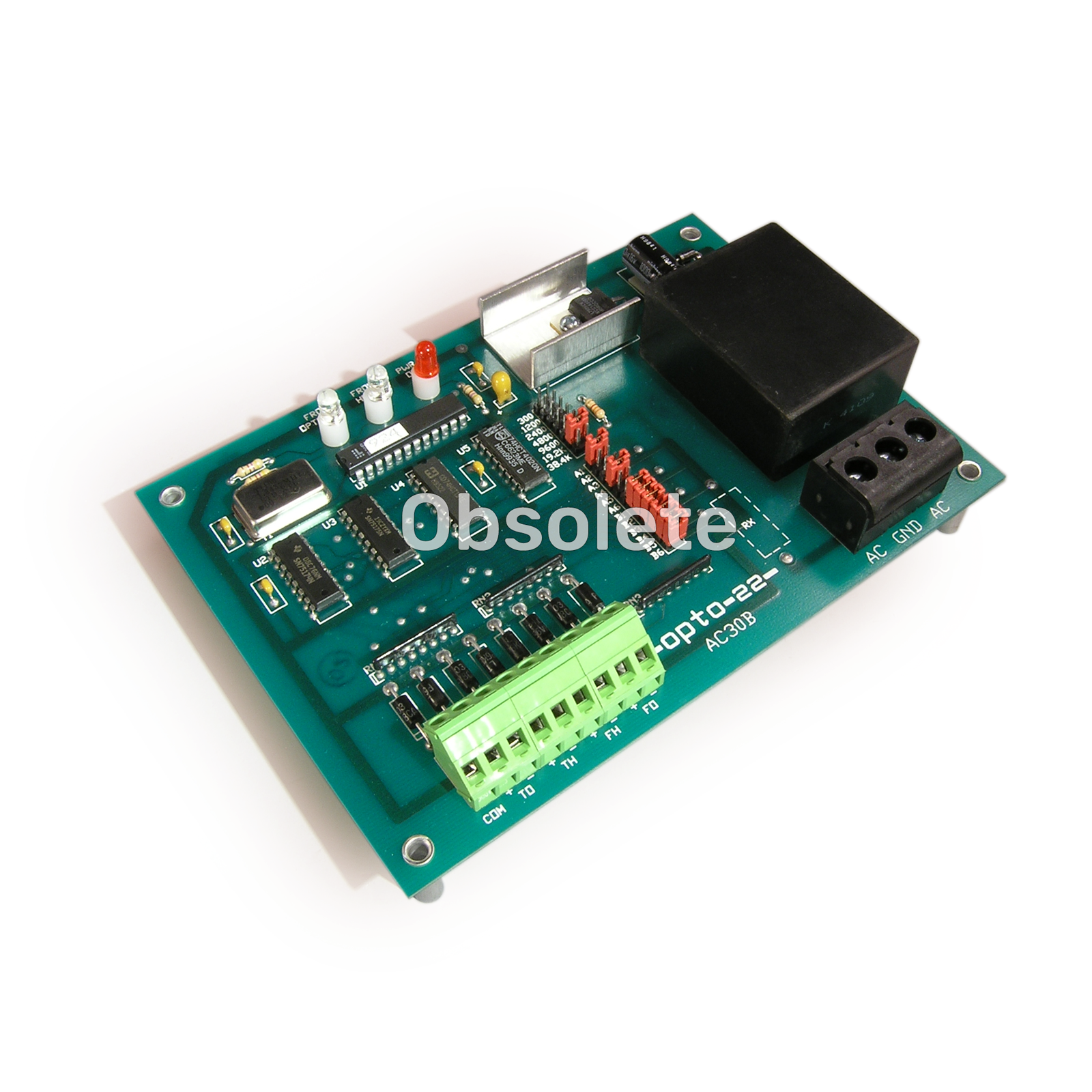

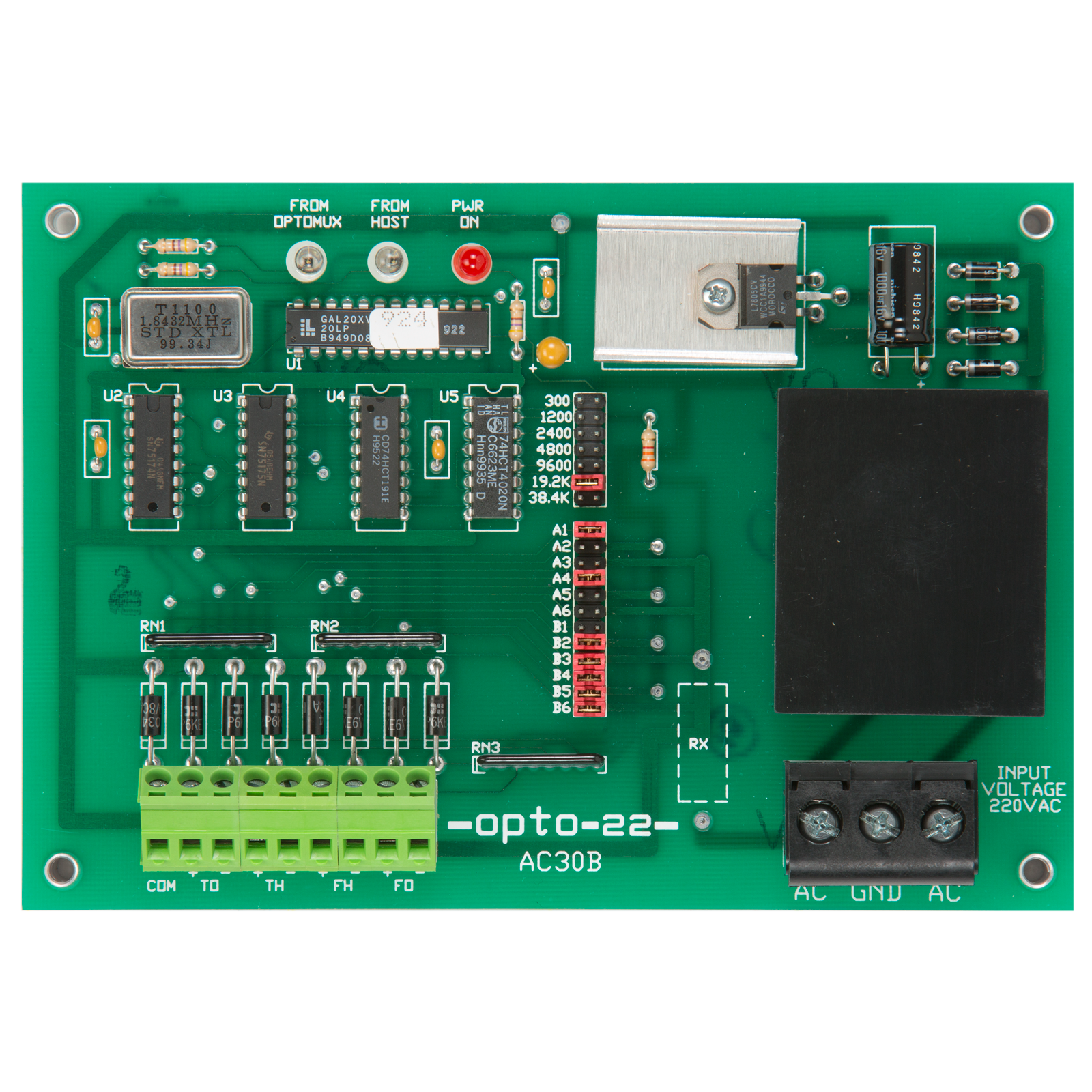

AC30B
Hover over image to zoom in

AC30B

Availability: Obsolete
OBSOLETE RS485 Multidrop Repeater 220 VAC

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***
Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

Power Requirements
  AC30A
  AC30B



115 VAC ± 10 VAC @ 50–60 Hz
220 VAC ± 20 VAC @ 50–60 Hz

Power Consumption

0.1 amps @ 115 VAC
5 watts (dissipation)

Operating
Temperature Range

0 to 70 °C
0 to 95% Humidity (non-condensing)

Isolation

None

Interface

RS-422/485 (4-40 screw terminals)

Baud Rate

Up to 38,400 baud

Distance

Up to 5,000 feet (RS-422/485)

Communications

Half-duplex over two twisted pairs plus a signal common
with automatic transmit enable for multidrop

Indicators

Transmit, receive, and power



RS422/RS485 Multidrop Repeater Data Sheet

The AC30A and AC30B adapter cards provide the ability to extend a multidrop RS-485 c30Aommunications link beyond 5,000 feet and also allow branching from an RS-422/RS-485 link.

*** NOTE: The AC30A part is obsolete and no longer available. The AC30B is obsolete and no longer available when current stock is depleted. ***
Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.
