*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22
Pre-Sales engineers to discuss options for your specific application.

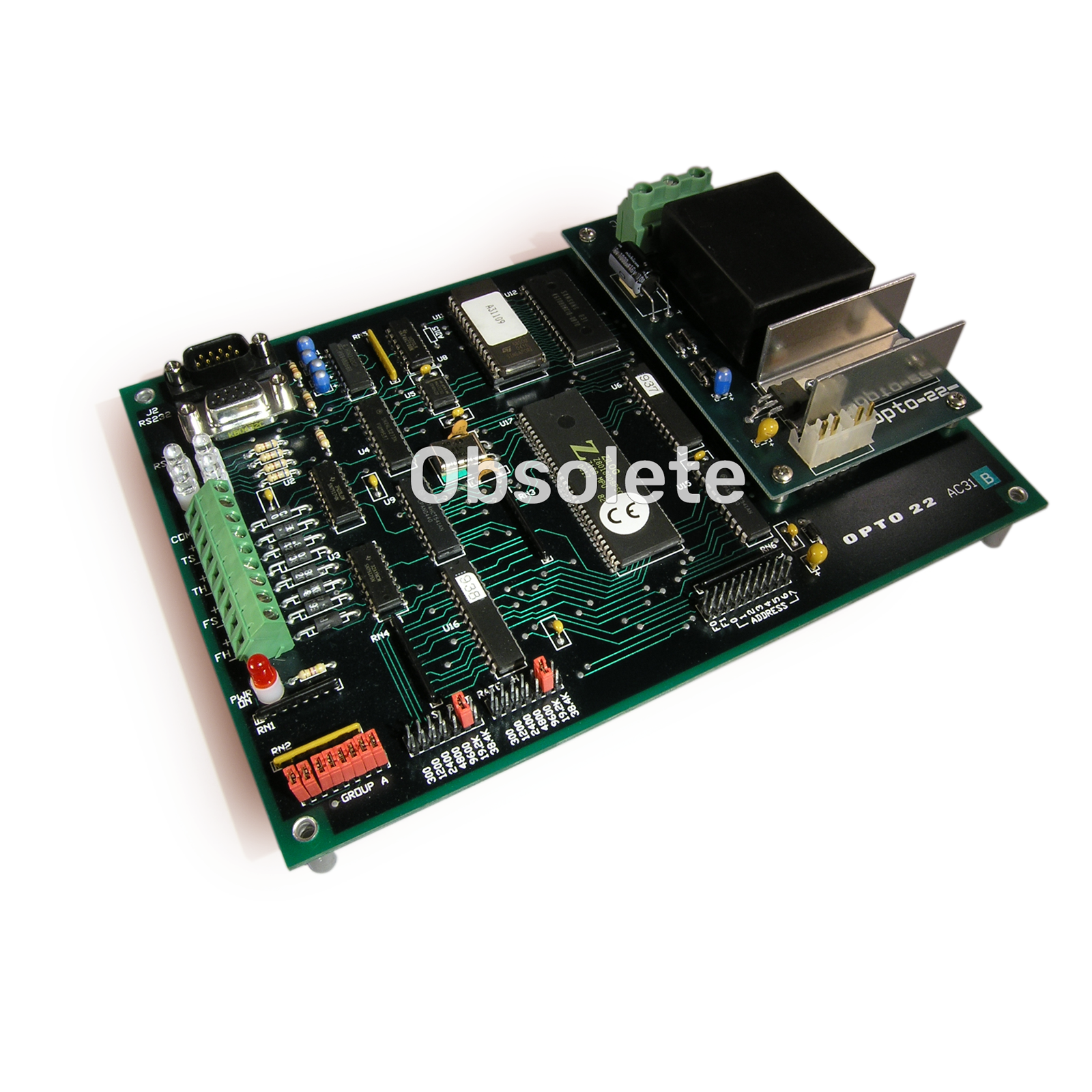

AC31A, AC31B, and AC31C - These products are OBSOLETE and no longer available.
|
Power Requirements
AC31A
AC31B
AC31C
|
115 VAC ± 10 VAC @ 60 Hz
220 VAC ± 20 VAC @ 50 Hz
10 - 28 VDC; 10 VDC @ 0.75 amps,
24 VDC @ 0.25 amps
|
|
Power Dissipation
|
Less than 4 watts @ 25 °C
|
|
Operating
Temperature Range
|
0 to 70 °C
0 to 95% Humidity (non-condensing)
|
|
Interface Slave
|
Full duplex selectable RS232 & RS485/422
serial port
|
|
Interface Host
|
Full duplex RS-485/422 serial port
|
|
Baud Rate
|
300, 1200, 2400, 4800, 9600, 19200,
and 38400 baud
|
|
CPU
|
64,180 8-bit microprocessor
|
|
CPU Clock Frequency
|
6.144 MHz
|
|
EPROM
|
32K bytes
|
|
RAM
|
32K bytes
|
|
Indicators
|
Transmit, receive, and power
|
|
Options
Jumper Selectable
|
Address (0 to 255)
Baud rates
Terminating and biasing resistors
|
*** NOTE: AC31A, AC31B and AC31C are obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

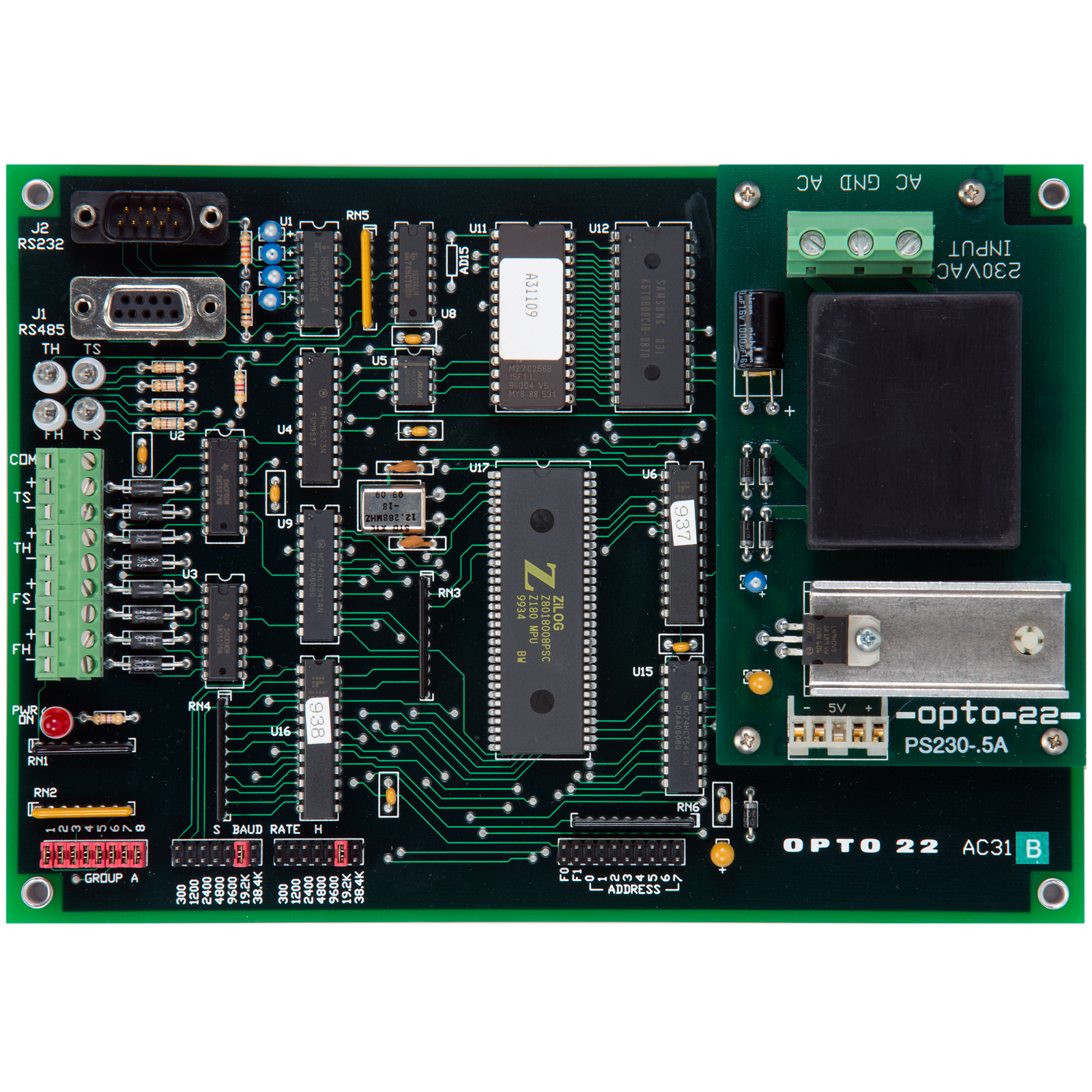

The AC31 adapter card is a general purpose addressable interface that allows any slave serial device that uses asynchronous serial communications (terminals, printers, barcode readers, etc.) to be addressed and attached to a multidrop network.
The AC31 is an addressable interface for the OPTOMUX bus. Many devices incompatible with the OPTOMUX bus protocol can be made compatible by using an AC31.
