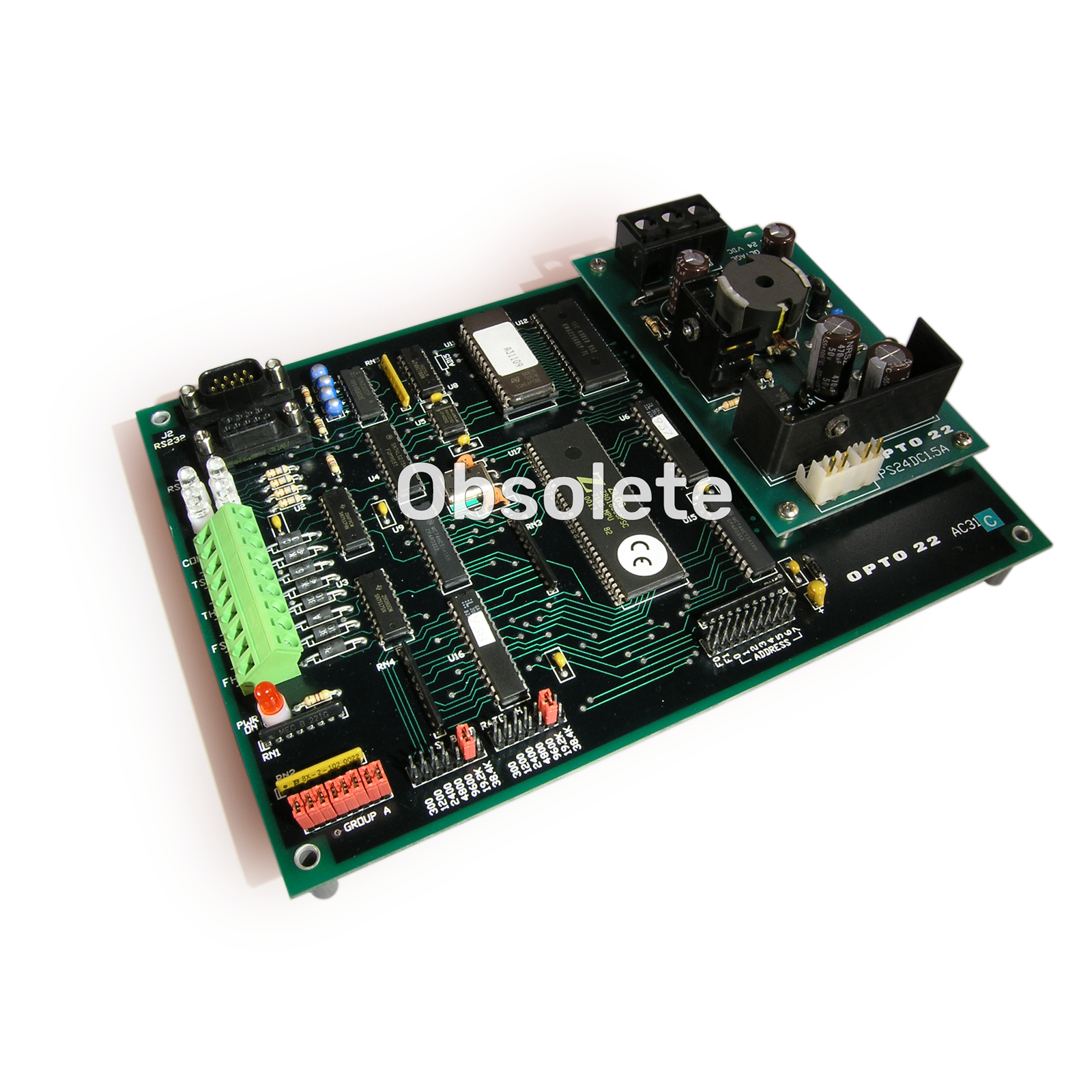

AC31C

$600.00 (USA and Canada only)

Availability: Call for Availability
OBSOLETE Addressable RS232 Interface DC

Please call (800) 321-6786 to order.

AC31C

Production Specification

*** This product is obsolete and no longer available. ***

Addressable RS232 Interface DC

AC31A, AC31B, and AC31C

Power Requirements
  AC31A
  AC31B
  AC31C


115 VAC ± 10 VAC @ 60 Hz
220 VAC ± 20 VAC @ 50 Hz
10 - 28 VDC; 10 VDC @ 0.75 amps,
24 VDC @ 0.25 amps

Power Dissipation

Less than 4 watts @ 25 °C

Operating
Temperature Range

0 to 70 °C
0 to 95% Humidity (non-condensing)

Interface Slave

Full duplex selectable RS232 & RS485/422
serial port

Interface Host

Full duplex RS-485/422 serial port

Baud Rate

300, 1200, 2400, 4800, 9600, 19200,
and 38400 baud

CPU

64,180 8-bit microprocessor

CPU Clock Frequency

6.144 MHz

EPROM

32K bytes

RAM

32K bytes

Indicators

Transmit, receive, and power

Options
Jumper Selectable


Address (0 to 255)
Baud rates
Terminating and biasing resistors



Addressable RS232-RS485 Interface Data Sheet

The AC31 adapter card is a general purpose addressable interface that allows any slave serial device that uses asynchronous serial communications (terminals, printers, barcode readers, etc.) to be addressed and attached to a multidrop network.

AC31 Users Guide

The AC31 is an addressable interface for the OPTOMUX bus. Many devices incompatible with the OPTOMUX bus protocol can be made compatible by using an AC31.
