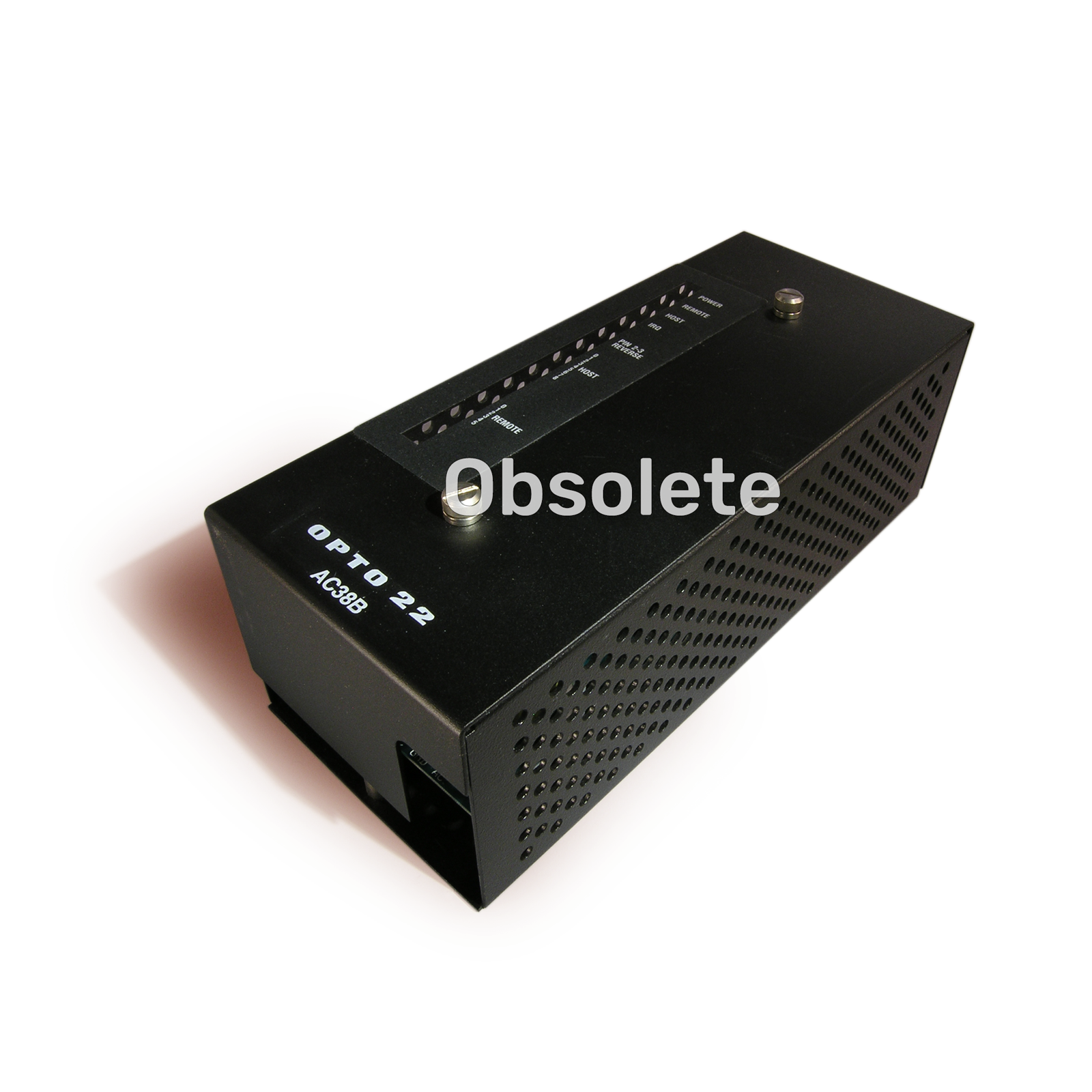

AC38B
Hover over image to zoom in

AC38B

$625.00 (USA and Canada only)

Availability: Call for Availability
OBSOLETE High Speed RS-485 Repeater 220 VAC

Production Specification

High Speed RS-485 Repeater 220 VAC

NOTE: This product is obsolete and no longer available. Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

Power Requirements
  AC38A:
  AC38B:



120 VAC ± 10 VAC 60 Hz
240 VAC ± 20 VAC 50 Hz

Ambient Temperature:

0 °C - 70 °C
95% relative humidity, non-condensing

Host RS-485 Port:

3,000 feet maximum cable length twisted pair wire
2-wire or 4-wire hook ups
Asynchronous operation, independent of baud rate,
parity, stop bits or data word size
115.2 KBd maximum
Supports Mistic IRQ interrupt line

Host RS-232 Port:

30 feet maximum
38.4 KBd maximum
Mistic IRQ interrupt line is on pin 8 of connector (CTS)
Has option jumpers to reverse pins 2 and 3

Remote RS-485 Port:

3,000 feet maximum cable length twisted pair wiring
2-wire hook-up only
Asynchronous operation independent of baud rate,
parity, stop bits or data word size 115.2 KBd maximum
Supports Mistic IRQ interrupt line



AC38 RS-485 Datalink Repeater Data Sheet

The AC38 is an optically-isolated RS-485 repeater and can operate at up to 115.2 Kbaud.
