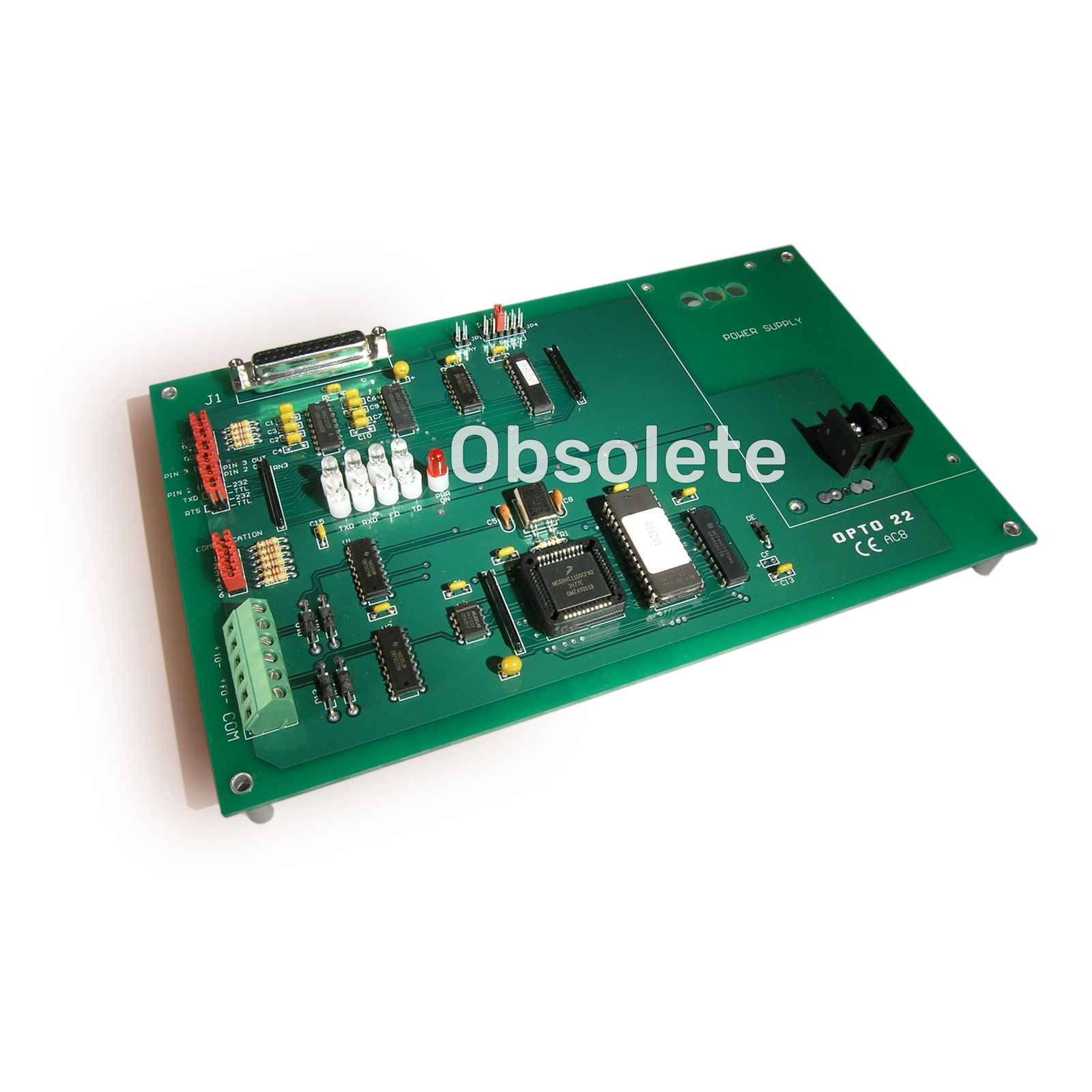

AC8
Hover over image to zoom in

AC8

Availability: Obsolete
OBSOLETE Half Duplex Modem Interface

Production Specification

*** NOTE: This product is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

AC8 and AC8A

Power Requirements
  AC8
  AC8A



5 VDC @ 500 mA
115 VAC ± 10 VAC @ 50 - 60 Hz

Power Consumption

0.1 amps @ 115 VAC
.06 amps @ 220 VAC

Operating Temperature Range

0 to 70 °C
95% relative humidity (non-condensing)

Isolation

None

Interface
  RS-232C
  RS-422/485



25-pin, D-shell female connector
4-40 screw terminals

Baud Rate

Up to 9,600 baud

Distance
  RS-232C
  RS-422/485



Up to 50 feet
Up to 5,000 feet

Communications

Half or full duplex over two twisted pairs

Indicators

Transmit, receive, RTS, CTS, DCD,
DCR, and power



Optomux Half-Duplex Modem Adapter Card Data Sheet

The AC8 adapter card is a communications interface board that provides bi-directional RS-232 to half duplex RS-485/422 conversion, allowing half-duplex modems to be use with the Optomux network.
