AD17T

$201.00 (USA and Canada only)

Availability: In stock
G1 Type R or S Thermocouple Input, Isolated

Please call (800) 321-6786 to order.

AD17T

Production Specification

G1 I/O family

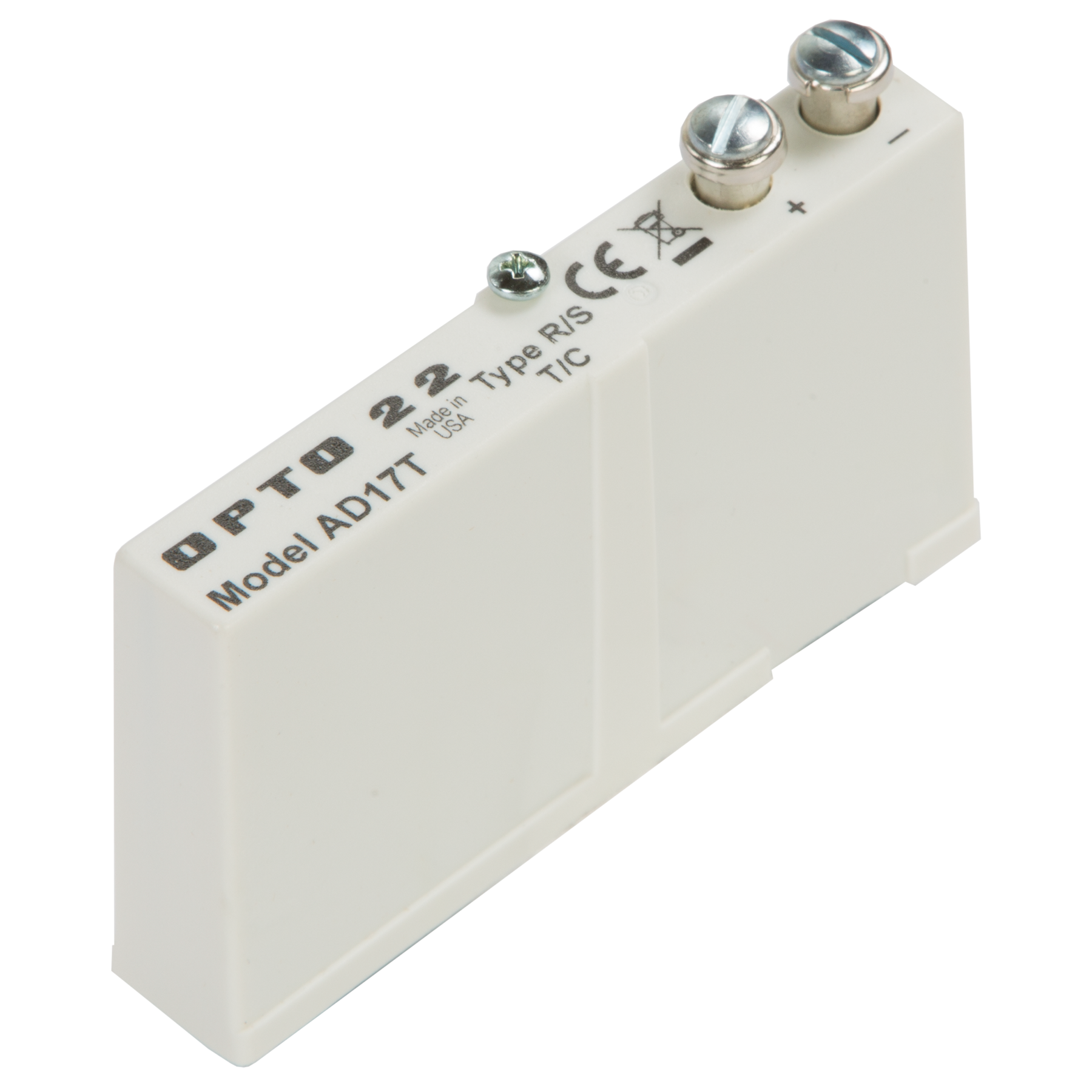

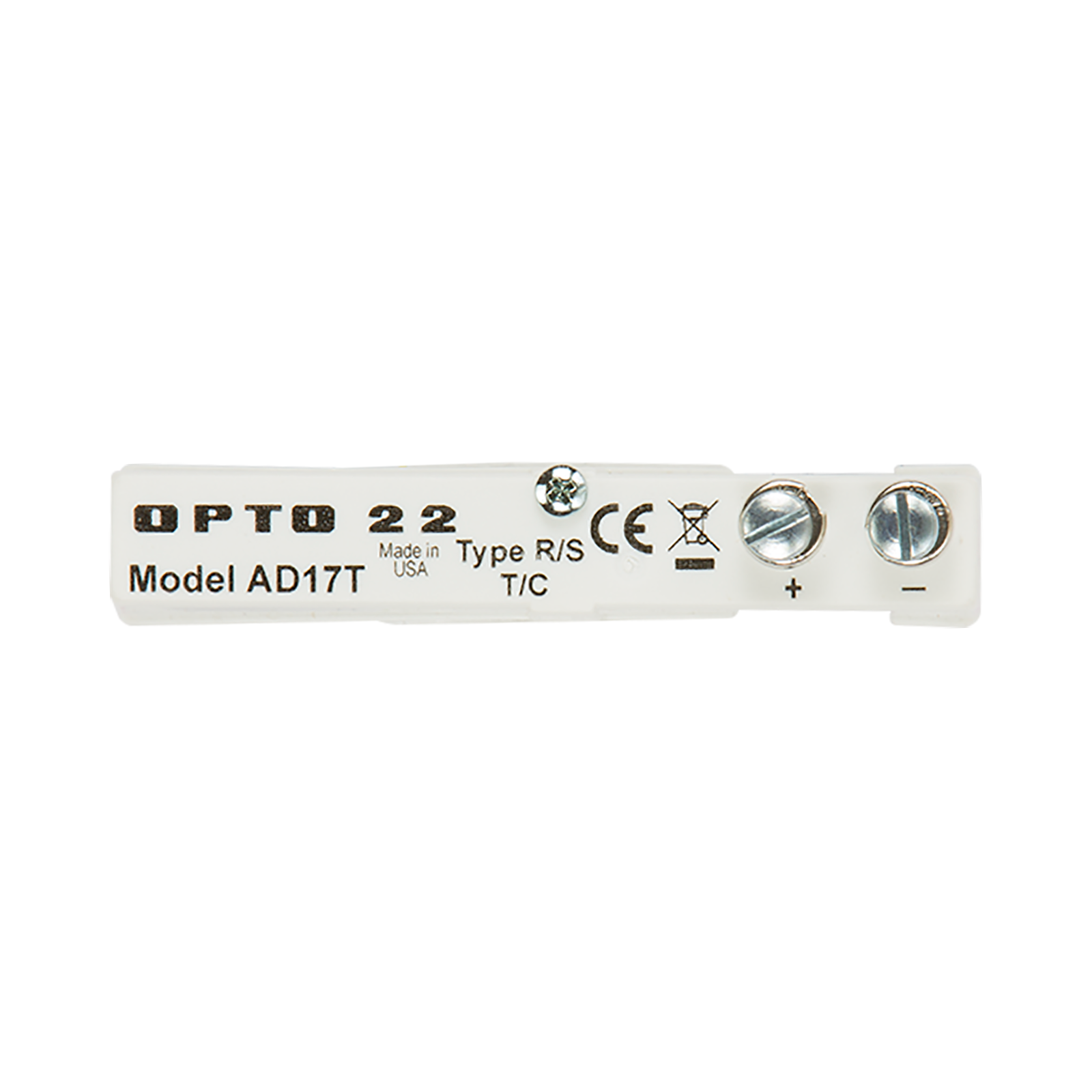

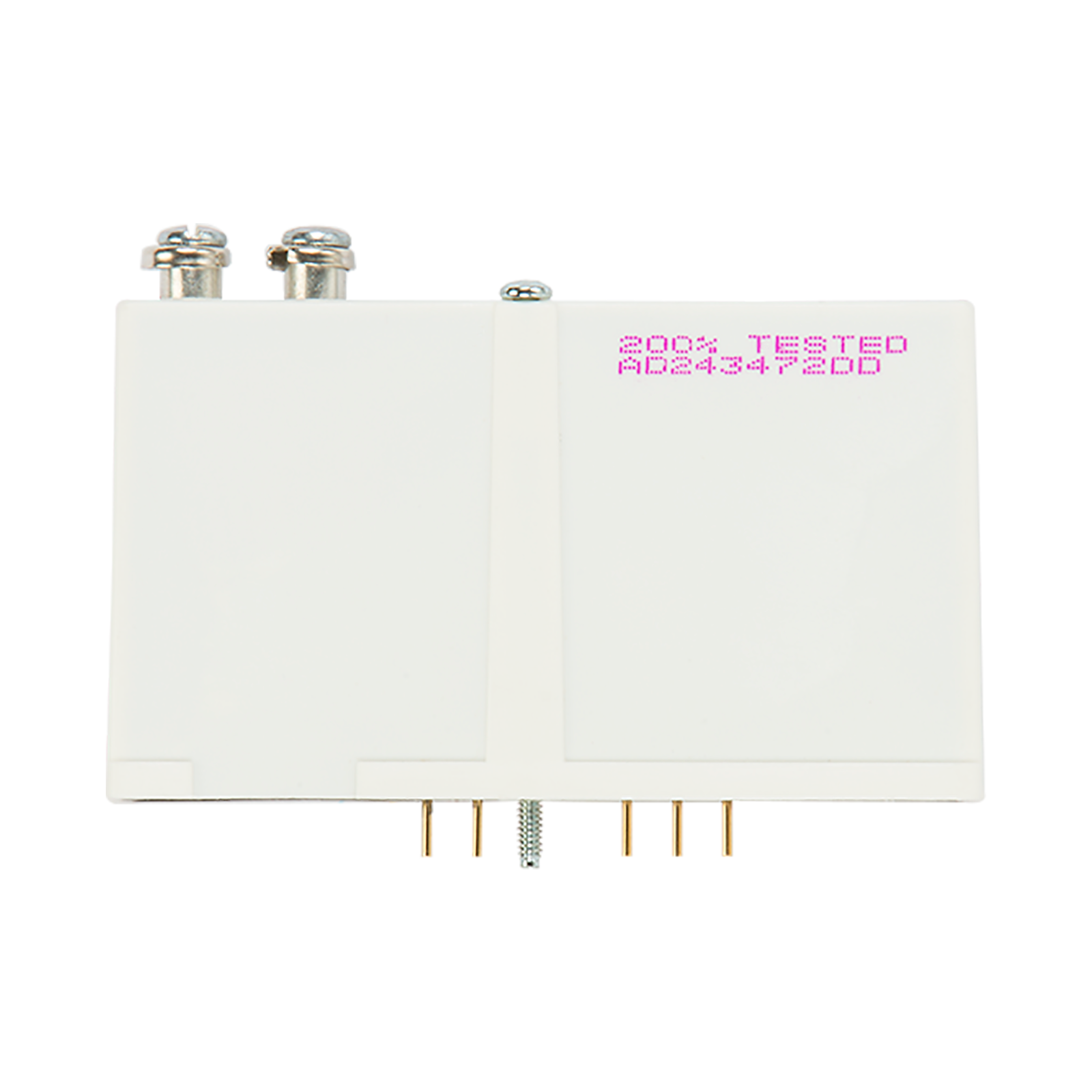

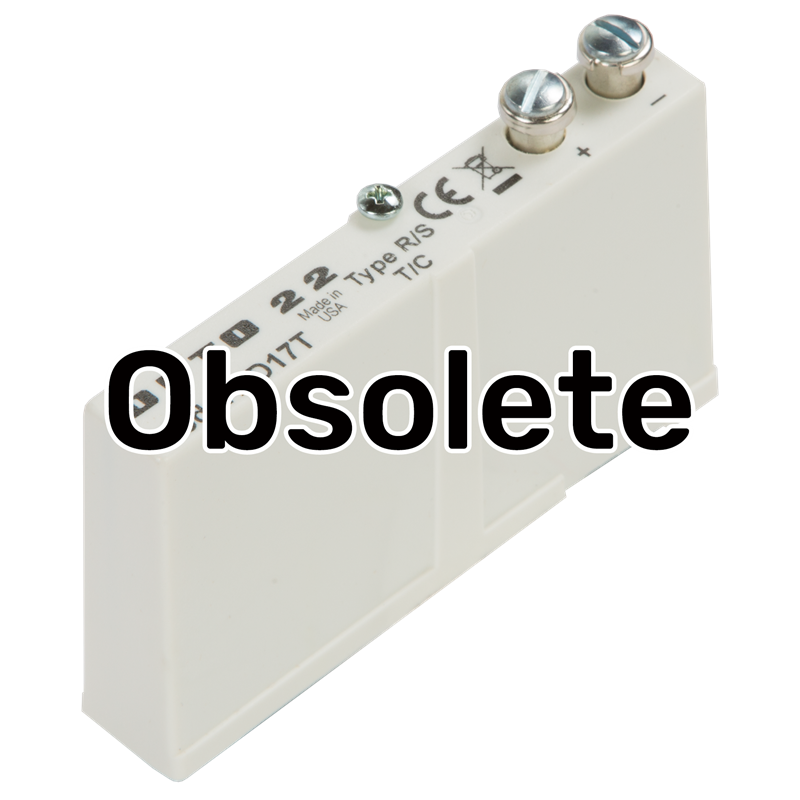

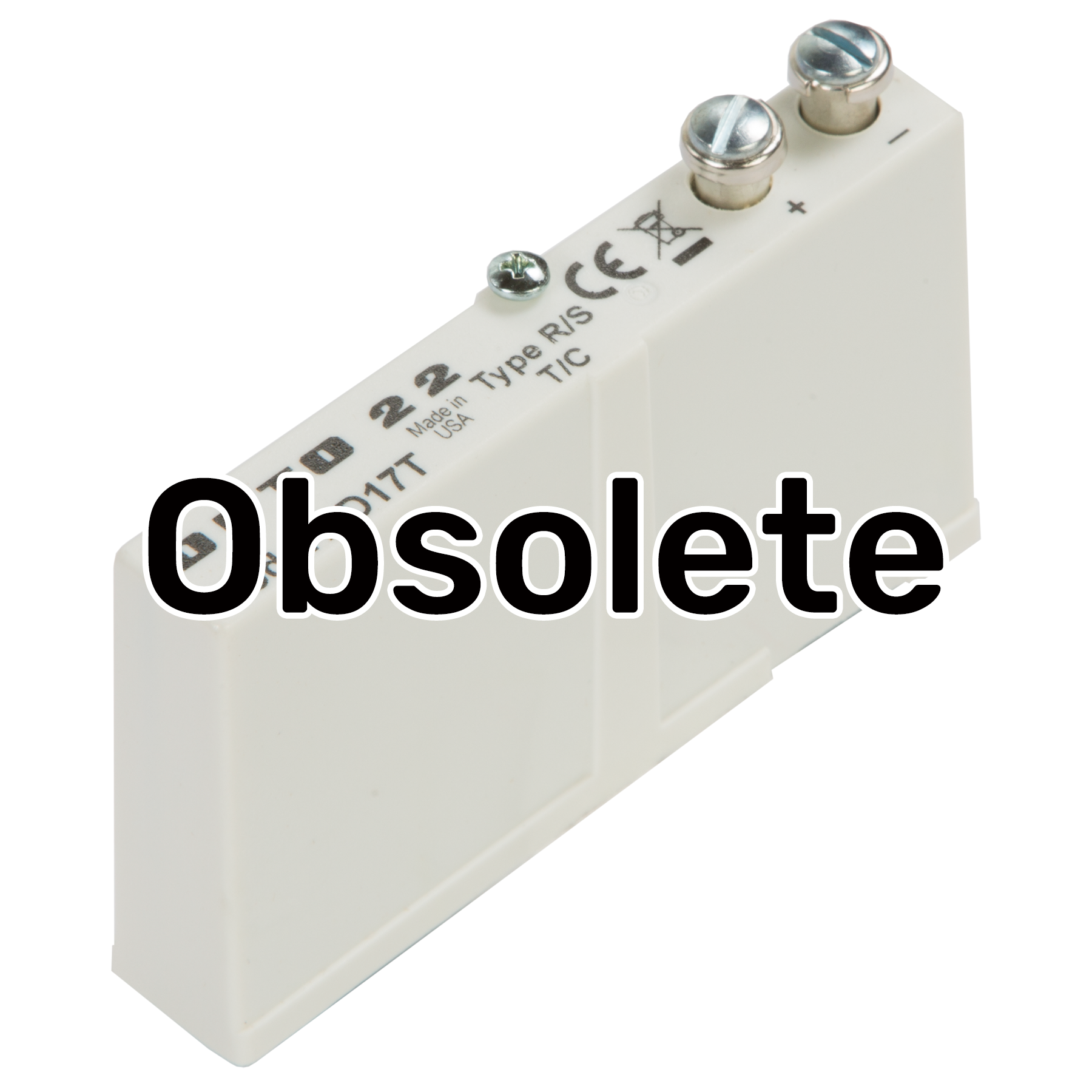

The AD17T Type R or S thermocouple analog input module provides a single channel of optically isolated temperature-to-digital conversion.

In addition to optical isolation, this module includes 4000 Vrms transient channel-to-channel isolation, which eliminates any ground loop problems.

This module mounts on a G1 analog mounting rack, for example the  PB16AH.



AD17T

AD17T

AD18T

AD19T

Thermocouple
Type

R

S

T

E

Nominal Temperature
Range °C

0° to 960°

0° to 1034°

-200° to 224°

-100° to 435°

Nominal Temperature
Range °F

32° to 1760°

32° to 1893°

-328° to 435°

-148° to 815°

Over/Under Range
Capability °C

-50° to 1768°

-50° to 1768°

-200° to 400°

-100° to 900°

Over/Under Range
Capability °F

-58° to 3214°

-58° to 3214°

-328° to 752°

-148° to 1652°

Average Resolution

0.23 °C
  (200 to 960 °C)
0.35 °C
  (960 to 1768 °C)

0.25 °C
  (200 to 1034 °C)
0.48 °C
  (1034 to 1768 °C)

0.1 °C
  (-200 to 244 °C)
0.14 °C
  (244 to 400 °C)

0.13 °C
  (-100 to 435 °C)
0.23 °C
  (435 to 900 °C)

Accuracy*

± 5 °C
  (200 to 960 °C)
± 3.5 °C
  (960 to 1768 °C)

± 5.2 °C
  (200 to 1034 °C)
± 4.2 °C
  (1034 to 1768 °C)

± 3 °C
  (-100 to 224 °C)
± 2 °C
  (224 to 400 °C)

± 3 °C

Repeatability

± 2.5 °C
  (200 to 960 °C)
± 1.8 °C
  (960 to 1768 °C)

± 2.6 °C
  (200 to 1034 °C)
± 2.1 °C
  (1034 to 1768 °C)

± 1.0 °C
  (-100 to 0 °C)
± 0.6 °C
  (0 to 224 °C)
± 0.4 °C
  (224 to 400 °C)

± 0.8 °C
  (-100 to 0 °C)
± 0.6 °C
  (0 to 435 °C)
± 0.5 °C
  (435 to 900 °C)

Power Requirements

30 mA at +15 (+/- 0.25) VDC
30 mA at -15 (+/- 0.25) VDC

30 mA at +15 (+/- 0.25) VDC
30 mA at -15 (+/- 0.25) VDC

30 mA at +15 (+/- 0.25) VDC
30 mA at -15 (+/- 0.25) VDC

30 mA at +15 (+/- 0.25) VDC
30 mA at -15 (+/- 0.25) VDC

*Accuracy may be improved by the use of "Set Offset" and "Set Gain" commands in the OPTOMUX command set.
