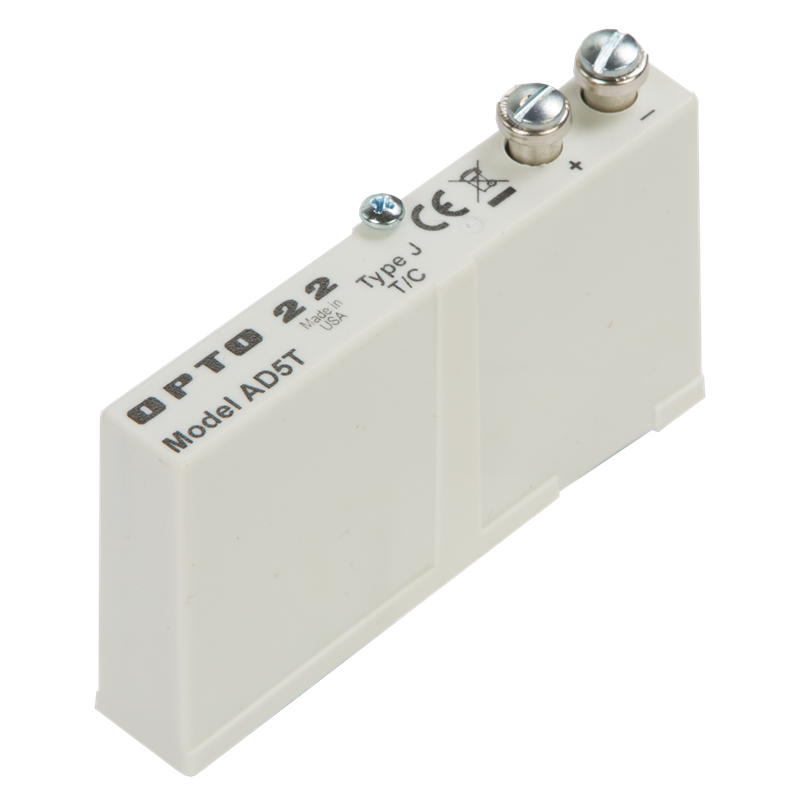

AD5T

AD5T

$201.00 (USA and Canada only)

Availability: In stock
G1 Type J Thermocouple Input, Isolated

Please call (800) 321-6786 to order.

Production Specification

G1 I/O family

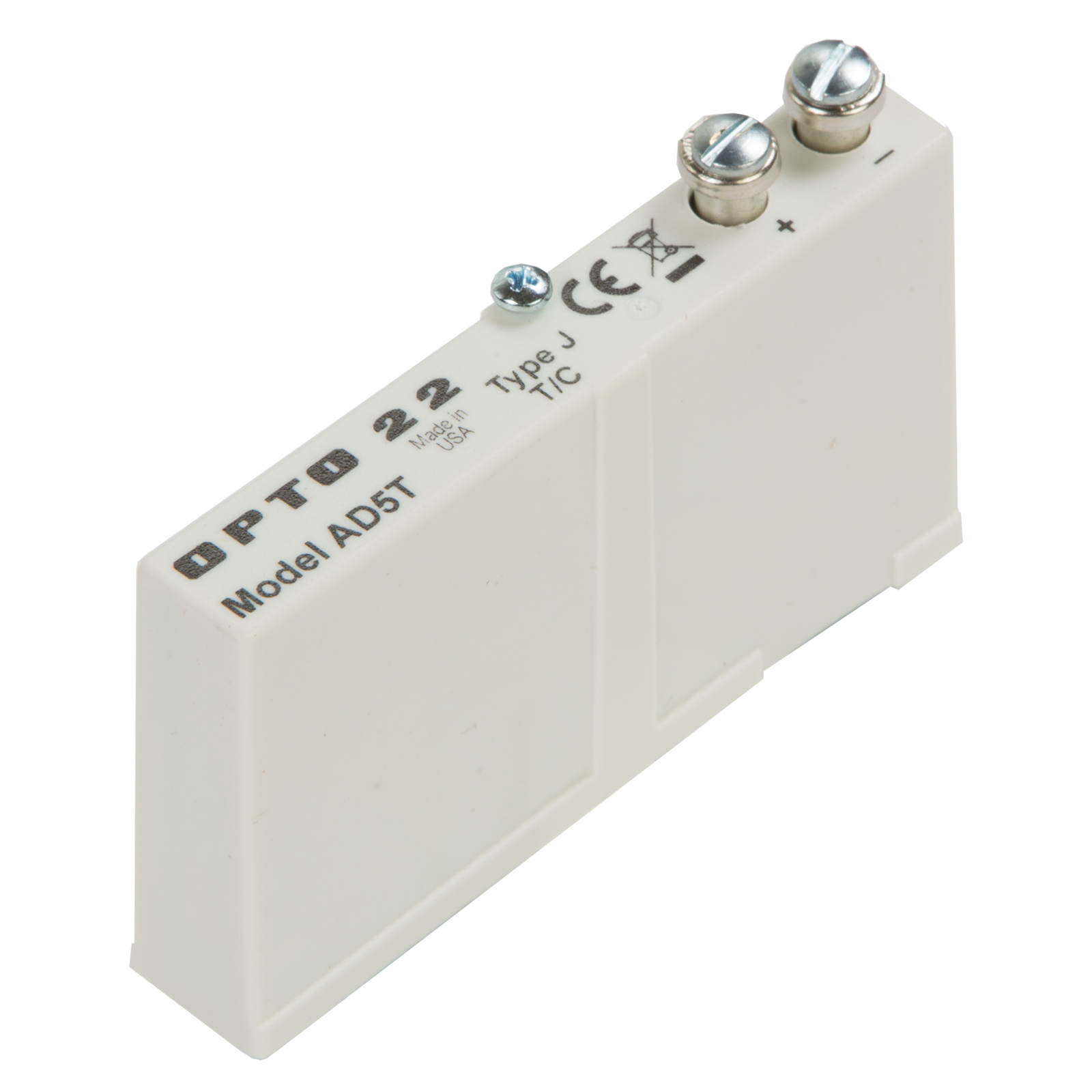

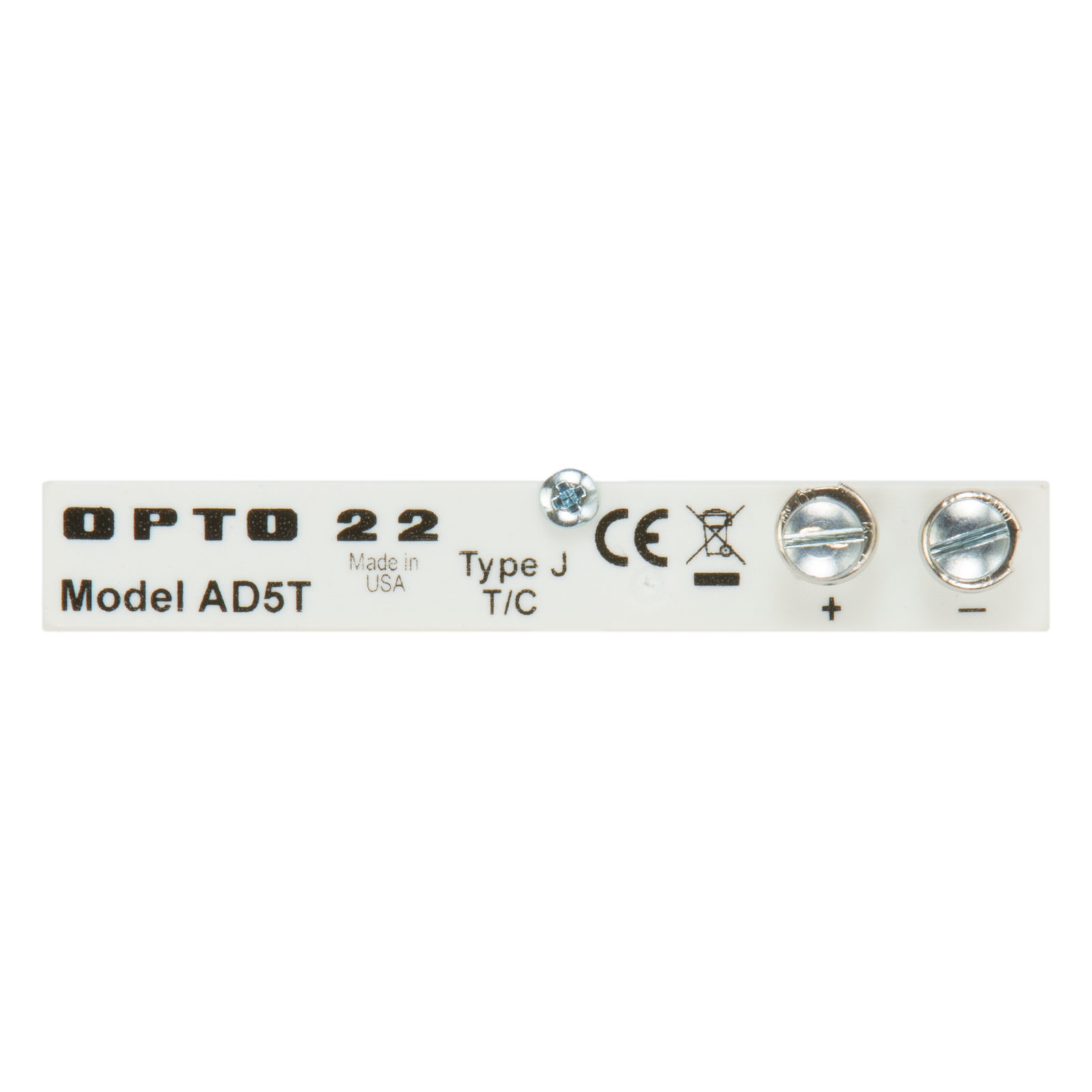

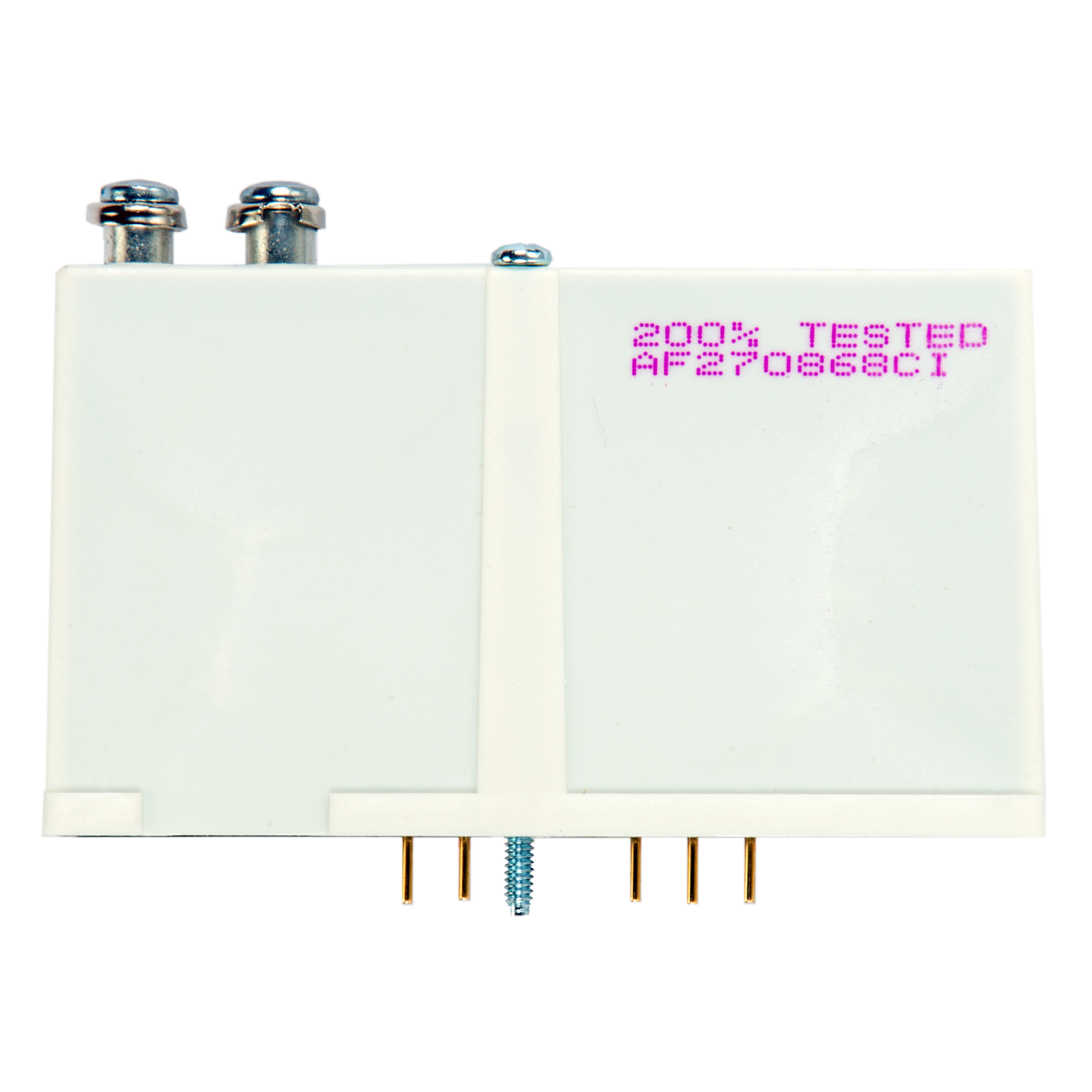

The AD5T Type J thermocouple analog input module provides a single channel of optically isolated temperature-to-digital conversion.

In addition to optical isolation, this module includes 4000 Vrms transient channel-to-channel isolation, which eliminates any ground loop problems.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



AD5

AD5T

AD8

AD8T

Thermocouple Type

J

J

K

K

Nominal Temperature
Range °C

0° to 700°

0° to 700°

-100° to 924°

-100° to 924°

Nominal Temperature
Range °F

32° to 1292°

32° to 1292°

-148° to 1695°

-148° to 1695°

Over/Under Range
Capability °C

-20° to 1200°

-20° to 1200°

-125° to 1250°

-125° to 1250°

Over/Under Range
Capability °F

- 4° to 2192°

- 4° to 2192°

-193° to 2282°

-193° to 2282°

Average
Resolution

0.18 °C
  (0 to 700 °C)
0.36 °C
  (700 to 1200 °C)

0.18 °C
  (0 to 700 °C)
0.36 °C
  (700 to 1200 °C)

± 0.25 °C
  (-100 to 924 °C)
± 0.5 °C
  (924 to 1250 °C)

± 0.25 °C
  (-100 to 924 °C)
± 0.5 °C
  (924 to 1250 °C)

Accuracy*

± 3 °C (0 to 700 °C)

± 3 °C (0 to 700 °C)

± 3 °C (-100 to 924 °C)

± 3 °C (-100 to 924 °C)

Repeatability

± 1 °C

± 1 °C

± 1 °C

± 1 °C

Power
Requirements

17 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

17 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

*Accuracy may be improved by the use of "Set Offset" and "Set Gain" commands in the OPTOMUX command set.

Standard Thermocouple Input Modules Data Sheet

The thermocouple analog modules provide a single channel of optically isolated temperature-to-digital conversion.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

No downloads are available for this product.
No videos or demos are available for this product.
