AD6
Hover over image to zoom in

AD6

$163.00 (USA and Canada only)

Availability: In stock
G1 0 to +5 VDC Analog Input

Production Specification

G1 I/O family

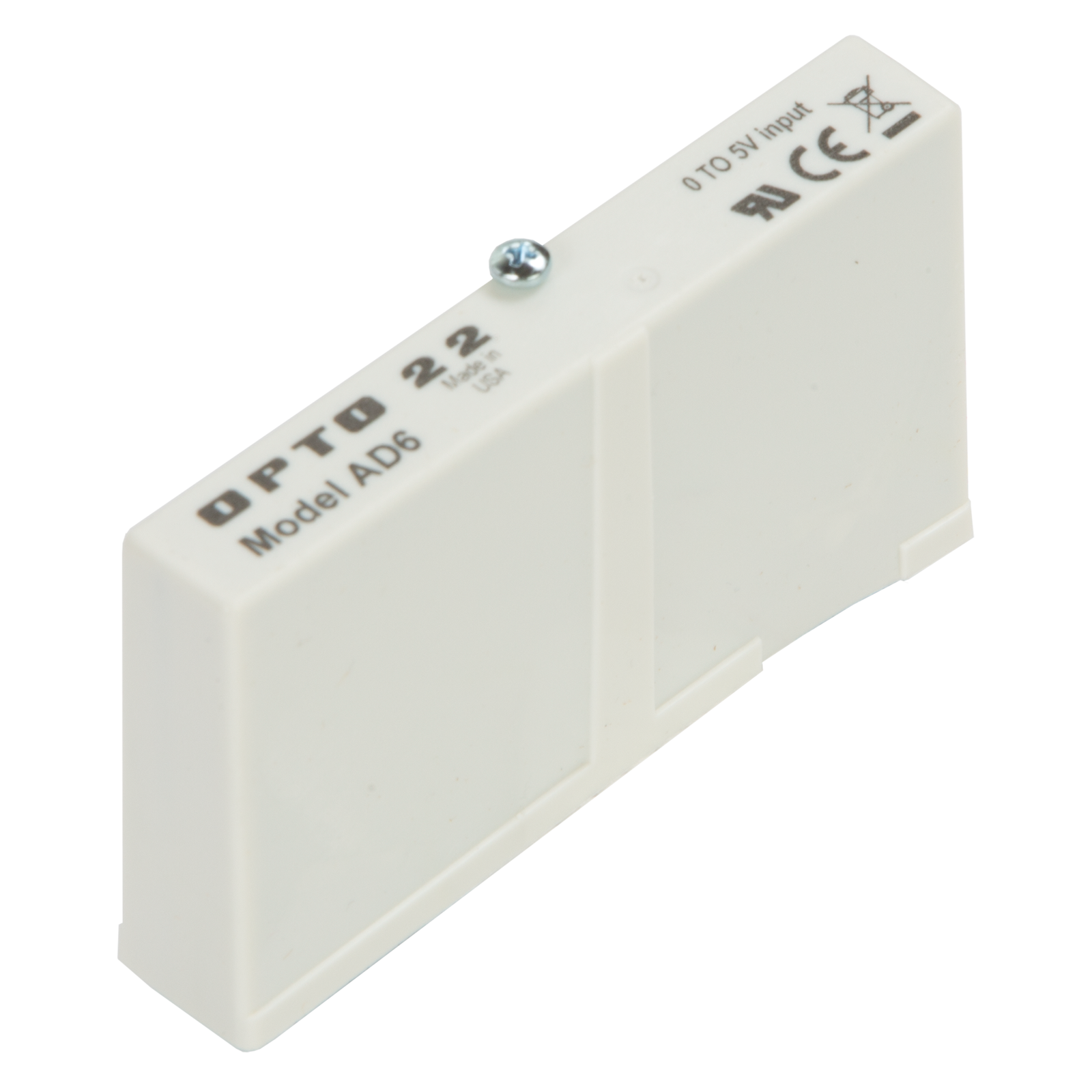

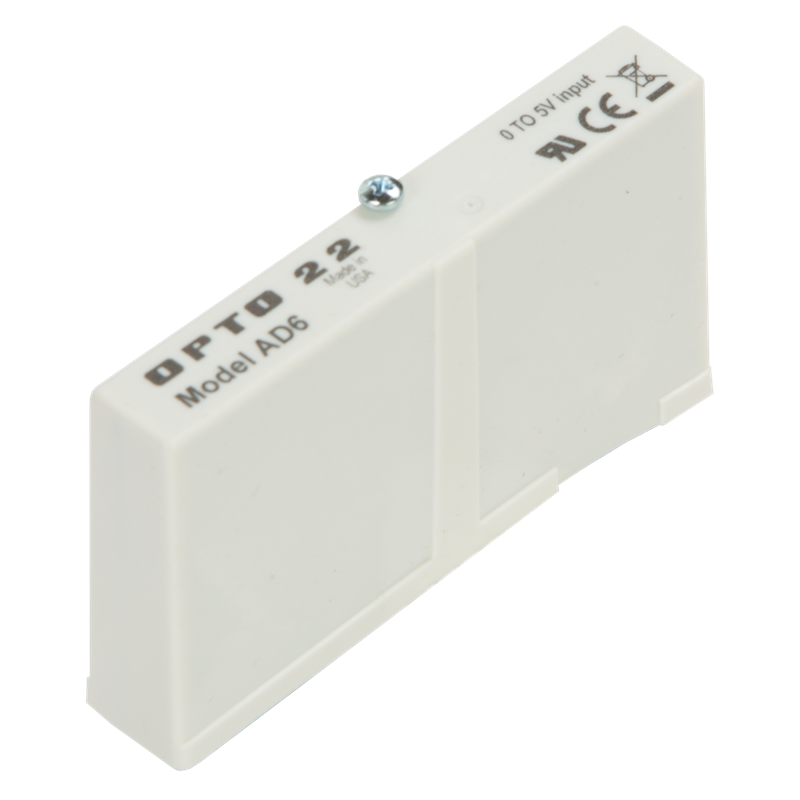

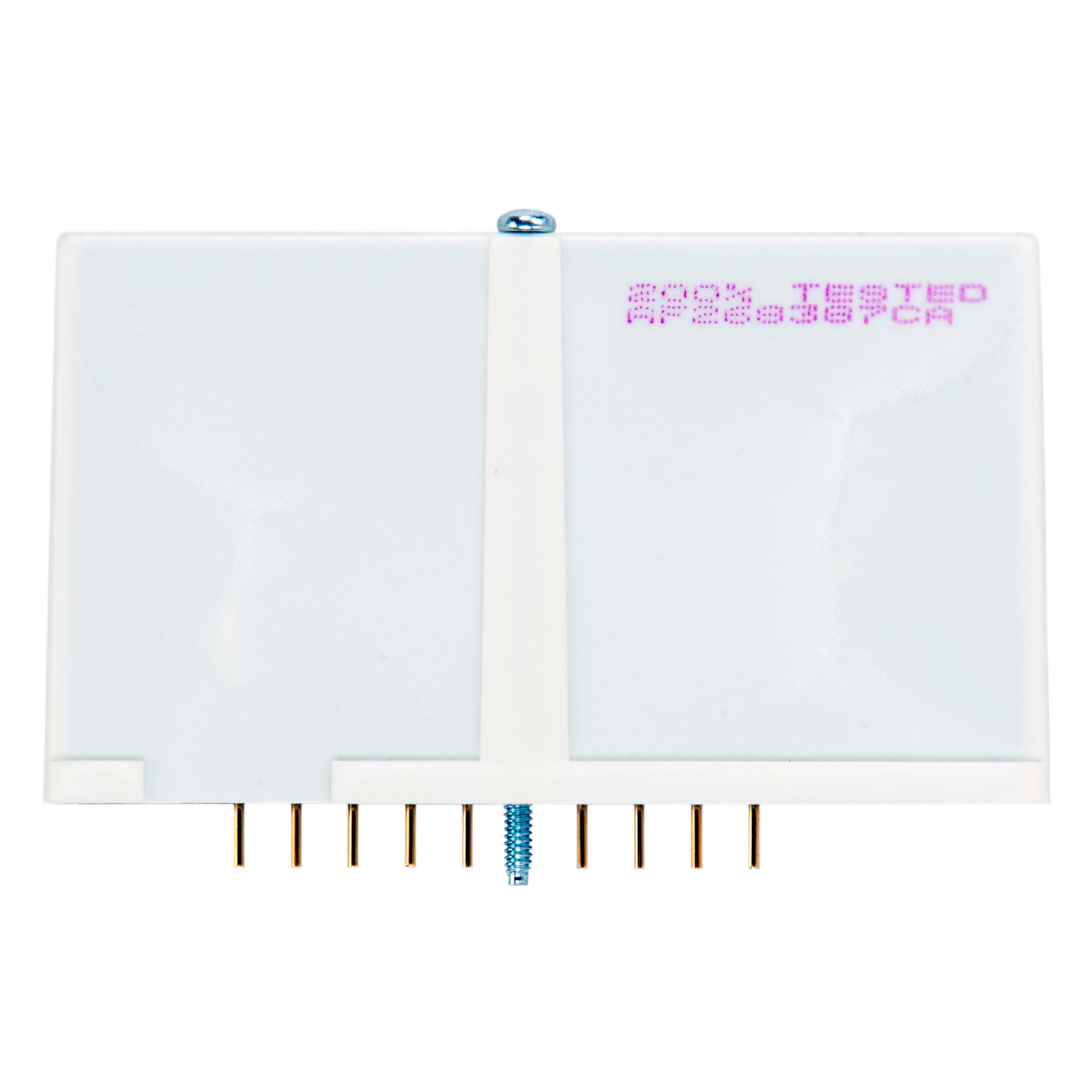

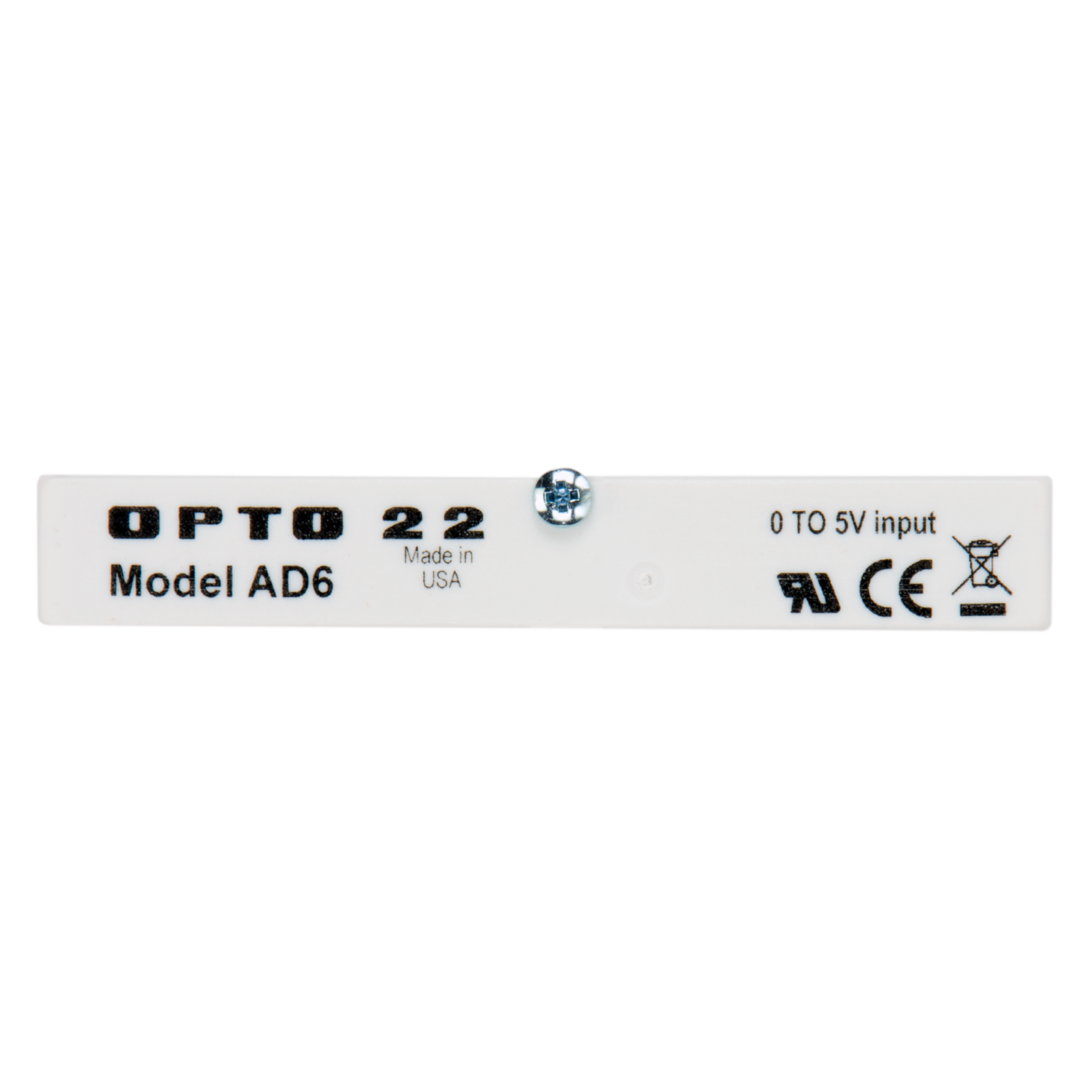

The AD6 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to + 5 VDC.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



AD6
AD6HS

AD6T

AD7

AD9T

Nominal Voltage Input

0 to 5 VDC

0 to 5 VDC

0 to 10 VDC

0 to 50 mVDC

Over/Under
Range Capability

-.125 to 11 VDC

-.125 to 11 VDC

-.250 to 11 VDC

-.125 to 110 mVDC

Accuracy*

± 5 mV

± 5 mV

± 10 mV

± 100 mV

Power Requirements

16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

Agency Approvals CE; RoHS; UKCA CE; UKCA CE; RoHS; UKCA CE; RoHS; UKCA

*May be improved by the use of the "Set Offset" or "Set Gain" commands in the OPTOMUX command set.



Input Response Time*

5% of scale change in 8.5 ms 63% of scale change in 165 ms

Resolution

12-bits

Isolation
  Input-to-Output
  Input-to-Analog Supply ("T" Modules)



4,000 VRMS
4,000 VRMS

Temperature
  Operating
  Storage



0 to 70 °C
-25 to 85 °C

*AD6HS input response 100% step change in less than 3 milliseconds.

Standard Voltage Input Modules Data Sheet

Voltage input analog modules provide a single channel of optically isolated voltage-to-digital conversion.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
