G1 I/O family

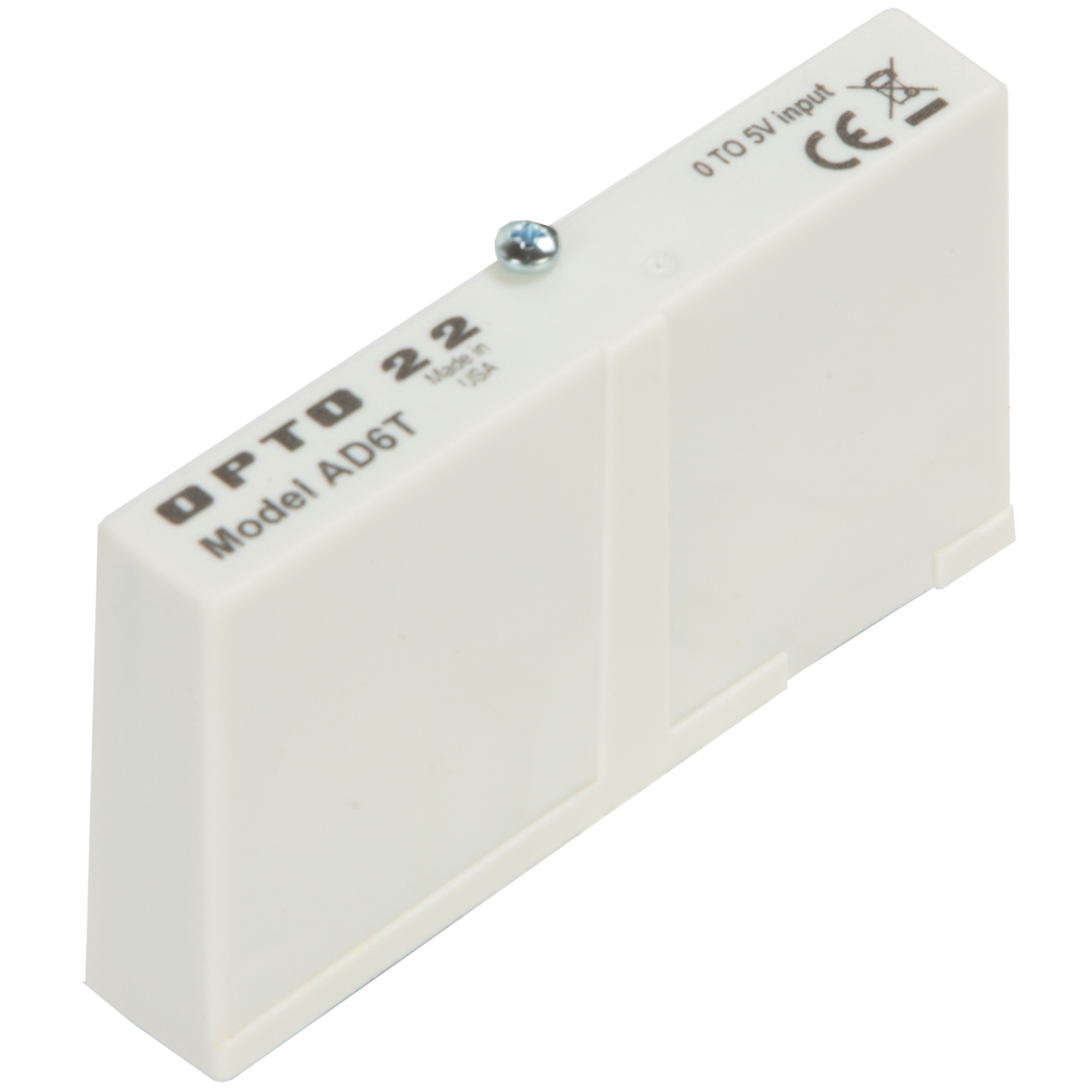

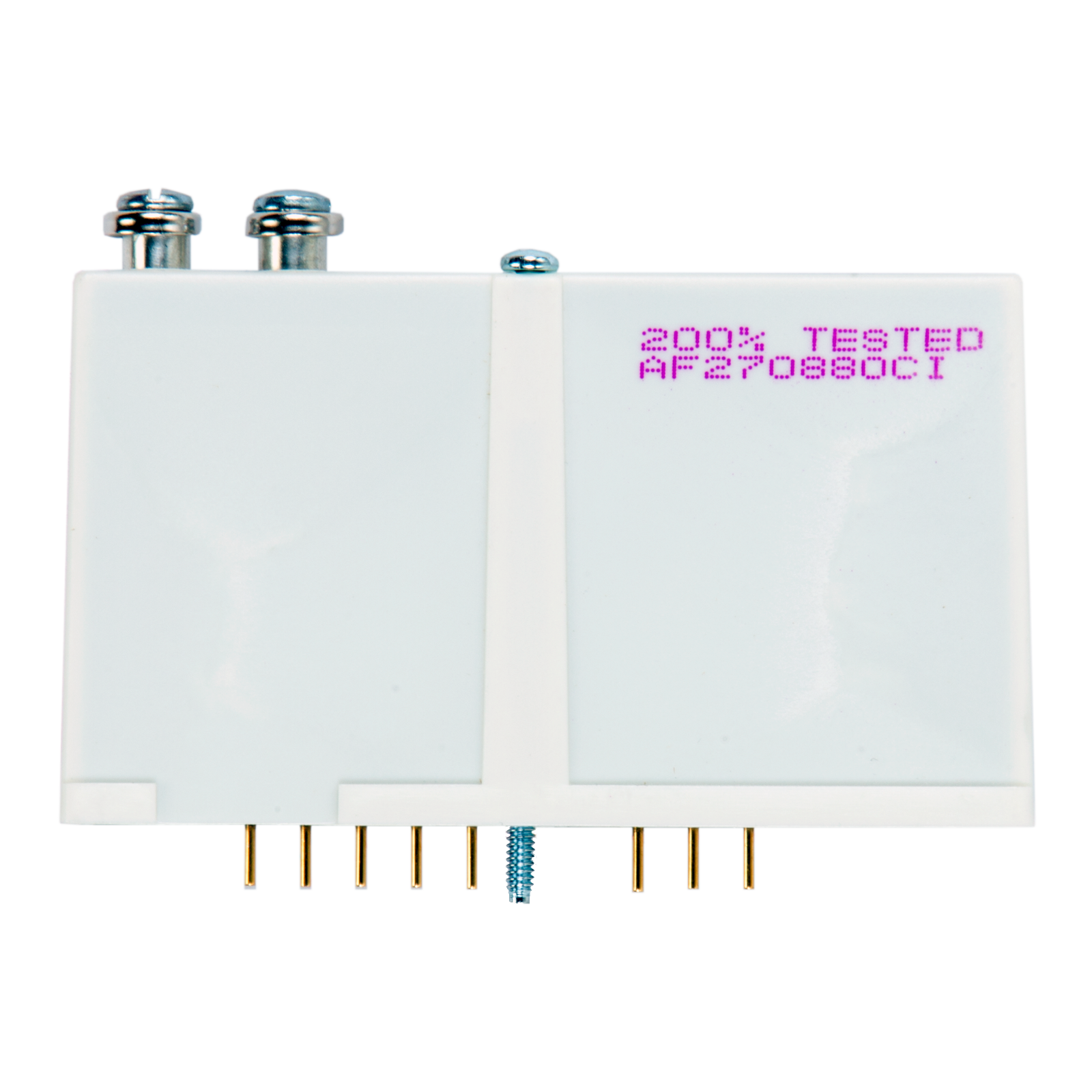

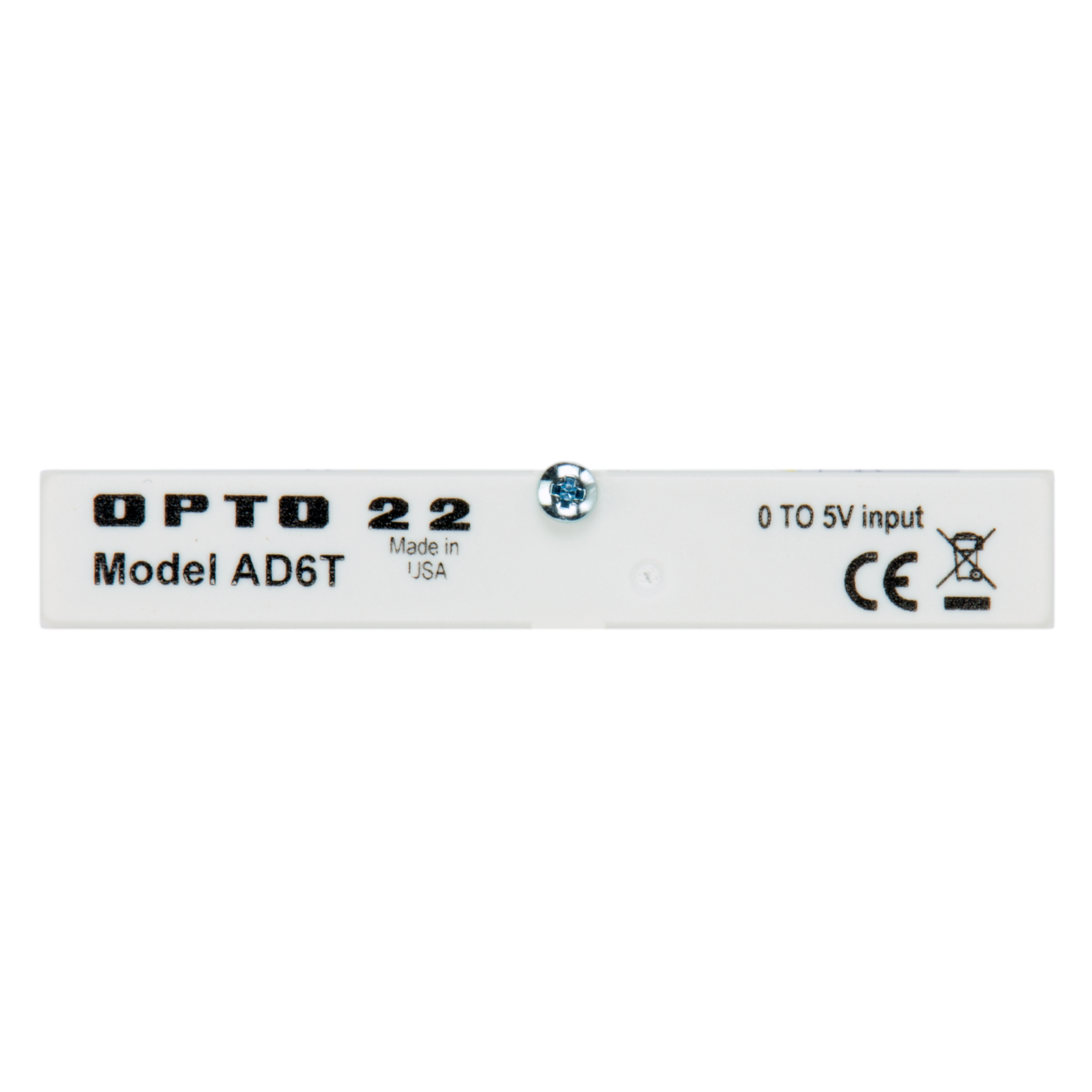

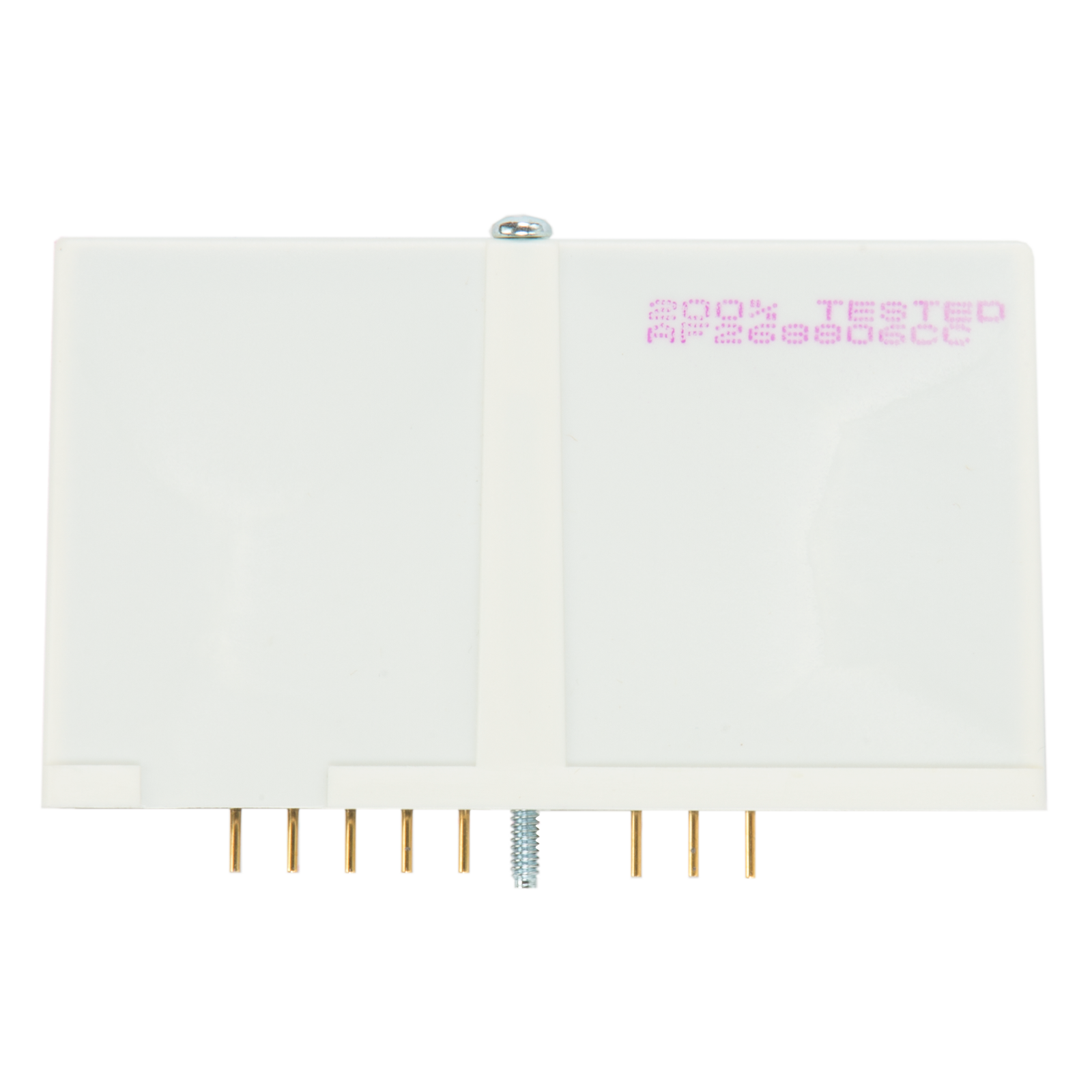

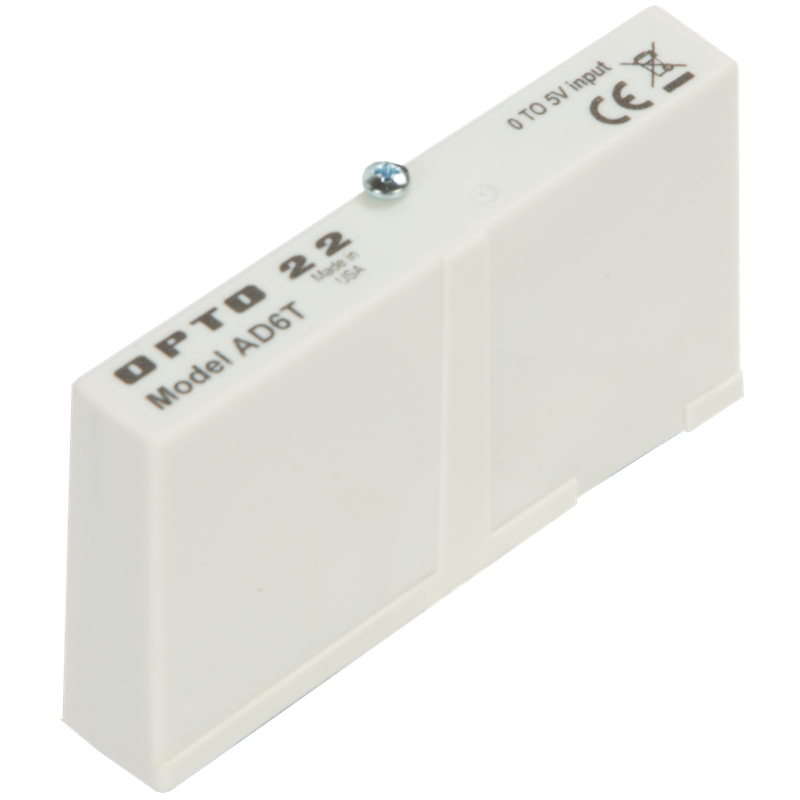

The AD6T analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to + 5 VDC. The module's 4,000 Vrms channel-to-channel isolation eliminates ground loop problems.
This module mounts on a G1 analog mounting rack, for example the
PB16AH.
|
|
AD6
AD6HS
|
AD6T
|
AD7
|

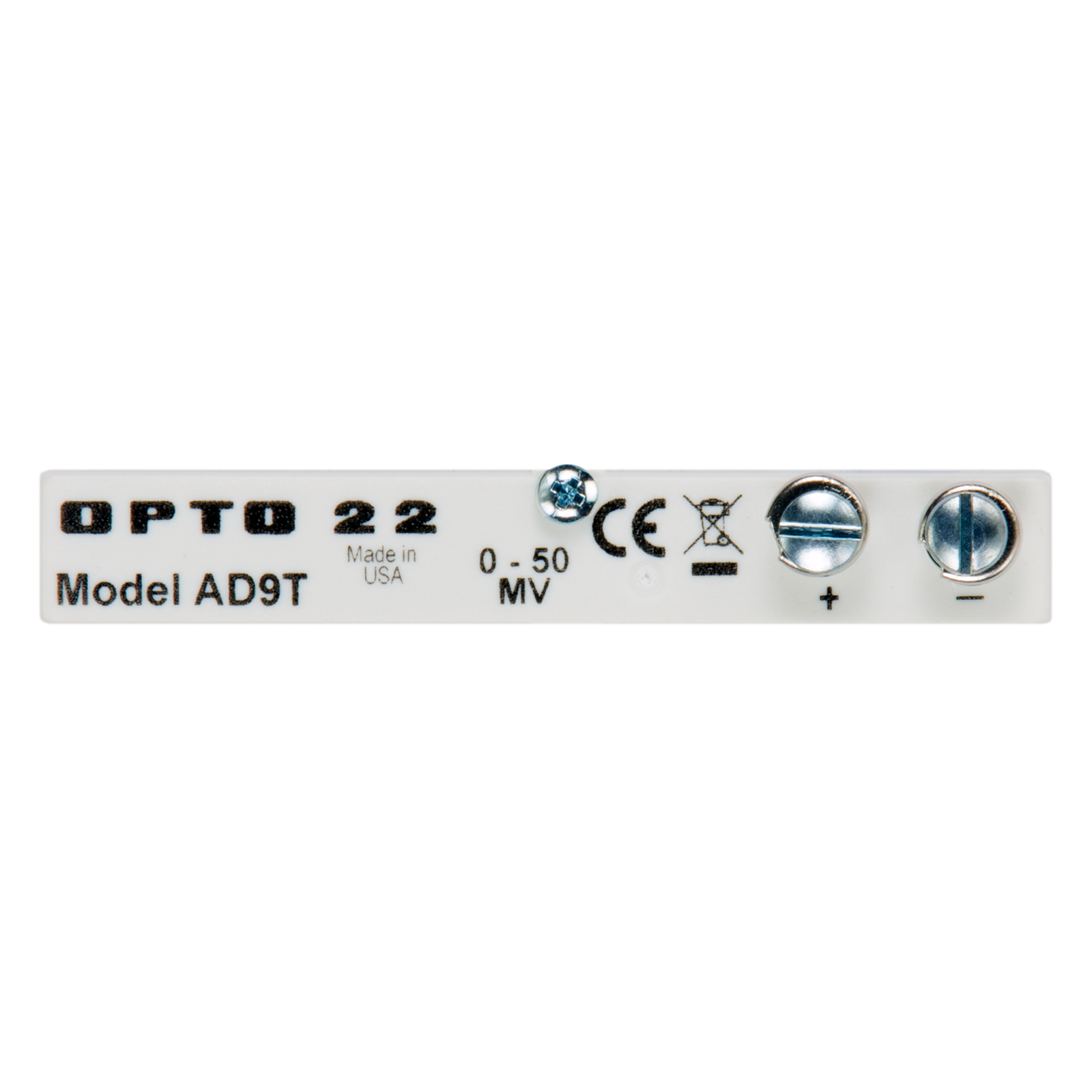

AD9T
|
|
Nominal Voltage Input
|
0 to 5 VDC
|
0 to 5 VDC
|
0 to 10 VDC
|
0 to 50 mVDC
|
|
Over/Under
Range Capability
|
-.125 to 11 VDC
|
-.125 to 11 VDC
|
-.250 to 11 VDC
|
-.125 to 110 mVDC
|
|
Accuracy*
|
± 5 mV
|
± 5 mV
|
± 10 mV
|
± 100 mV
|
|
Power Requirements
|
16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC
|
35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC
|
16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC
|
35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC
|
|
*May be improved by the use of the "Set Offset" or "Set Gain" commands in the OPTOMUX command set.
|
|
Input Response Time*
|
5% of scale change in 8.5 ms 63% of scale change in 165 ms
|
|
Resolution
|
12-bits
|
|
Isolation
Input-to-Output
Input-to-Analog Supply ("T" Modules)
|
4,000 VRMS
4,000 VRMS
|
|
Temperature
Operating
Storage
|
0 to 70 °C
-25 to 85 °C
|
|
*AD6HS input response 100% step change in less than 3 milliseconds.
|
Voltage input analog modules provide a single channel of optically isolated voltage-to-digital conversion.
