B200
Hover over image to zoom in

B200

Availability: Obsolete
OBSOLETE 16-channel Analog Brain Mistic

Production Specification

The B200 brain board is obsolete and no longer available. There is no direct replacement. Depending on wiring, protocol, and features needed, our E2 brain may be a possible replacement. Please contact Opto 22 Pre-Sales engineers with details about your specific application so they can help you.

--------------------

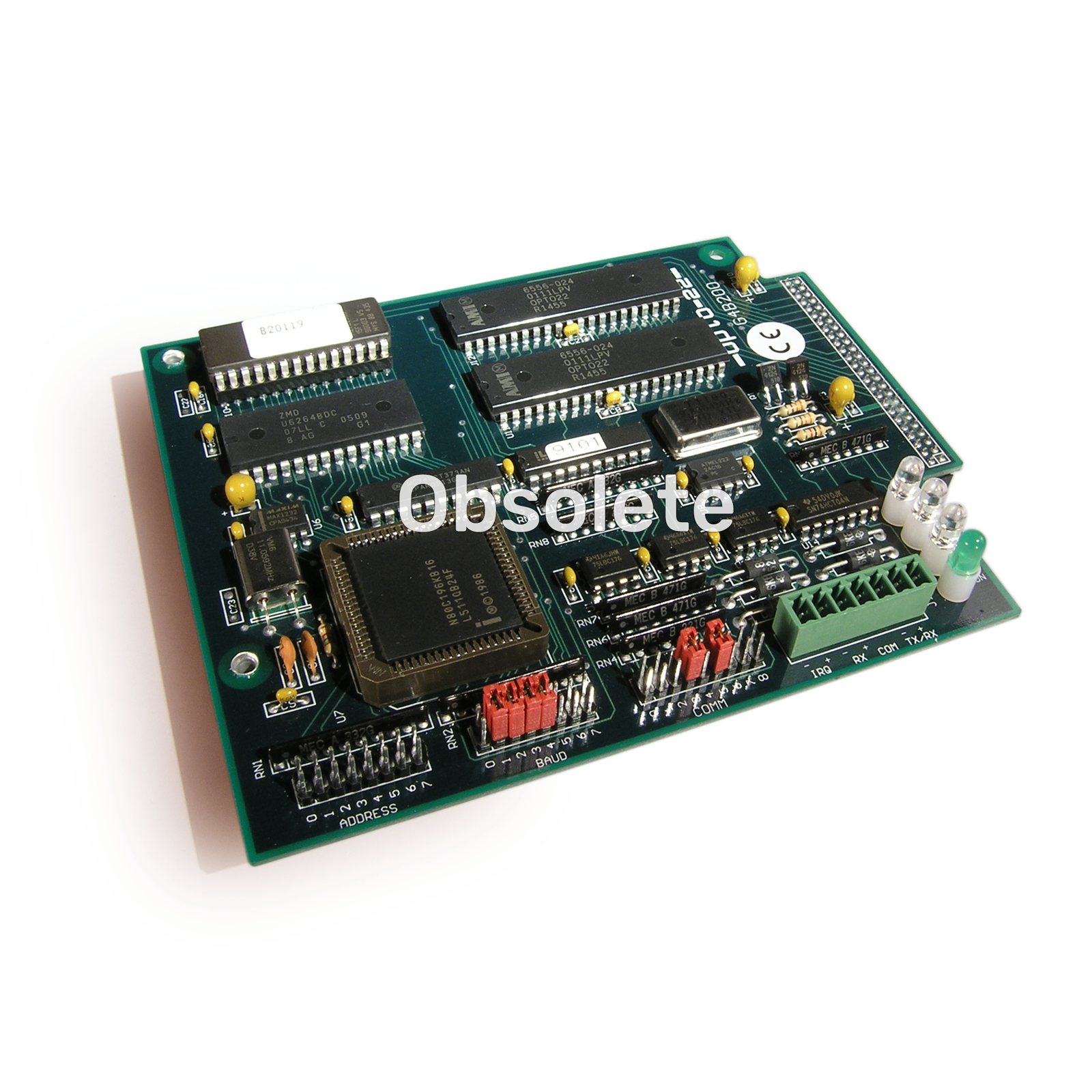

The B200 brain board is used to control up to 16 channels of remote analog I/O. The B200 communicates via RS-485 serial at communication speeds up to 115K baud using the mistic protocol. It can be used with either an Opto 22 FactoryFloor® controller or a host computer.
Specifications are not currently available for this product.

Mistic 16-Channel Analog Brain Board Data Sheet

**** This product is obsolete and no longer available. ****
Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

The B200 is a high-performance analog brain board used to control up to 16 channels of remote analog I/O using Opto 22’s Classic analog I/O mounting racks and modules.

ioControl User's Guide

The ioControl User's Guide includes programming instructions and tips for developing control strategies to run on SNAP Ultimate controller/brains and SNAP-LCE controllers. ioControl is part of the ioProject software suite.

Mistic Protocol User's Guide

This manual describes the communication protocol required to communicate with all Mistic brain board types. Every Mistic command is fully explained and illustrated by a programming example.

ioControl Commands Quick Reference Card

Quick reference card for using ioControl, including all standard ioControl commands and their OptoScript equivalents. ioControl is part of the ioProject software suite.

ioControl Command Reference

This command reference describes in detail all ioControl programming commands, or instructions. Use with form #1300, the ioControl User's Guide. ioControl is part of the ioProject software suite.

SNAP PAC System Migration Technical Note

This document describes migration options for customers integrating the SNAP PAC System with older Opto 22 systems. It explains the SNAP PAC System's similarities and differences with earlier systems, defines legacy products, and shows how to mix old and new hardware.

Customers moving to the SNAP PAC System may also want to consult form #1693, Legacy and Current Product Comparison and Compatibility Charts.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
