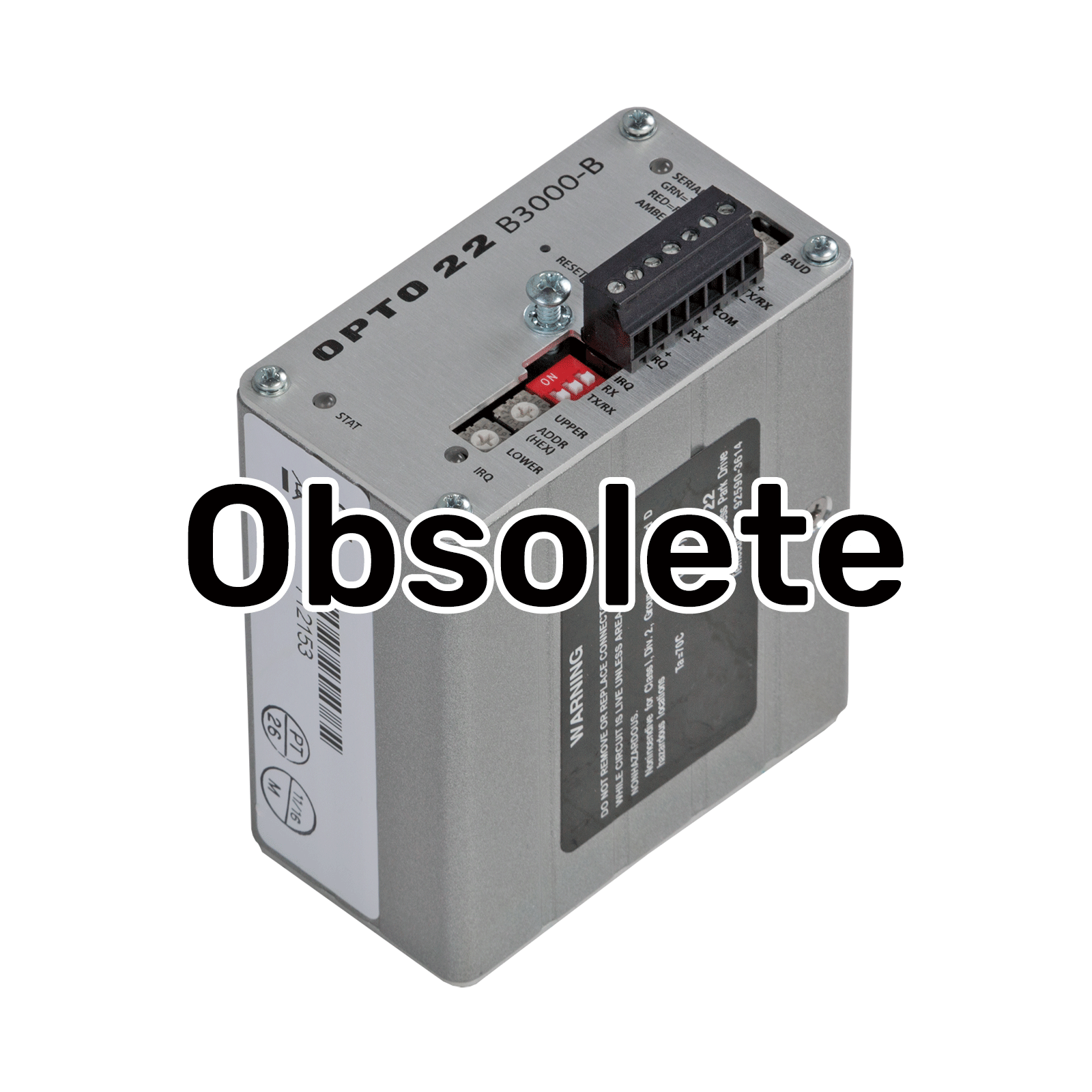

Due to the unavailability of essential parts, the B3000-B-OMUX is now obsolete.
NOTE: For new systems requiring a brain that communicates serially, we recommend a
SNAP PAC SB serial brain. If you're ready to modernize or need easier system integration, see the
groov EPIC System. Fully compatible with SNAP PAC,
groov EPIC offers secure, efficient data processing and communication for industrial internet of things applications, as well as real-time control and I/O at the edge of your network.

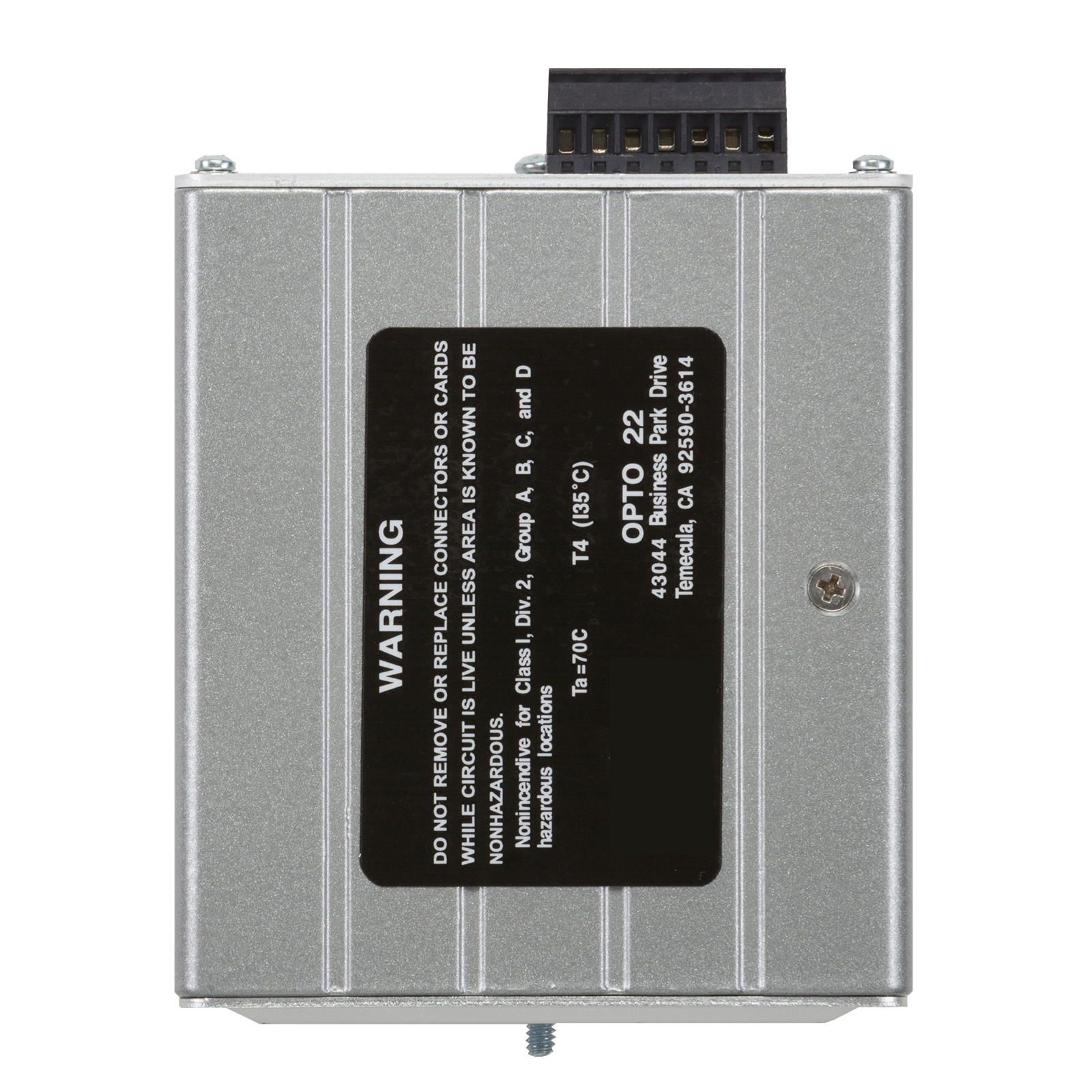

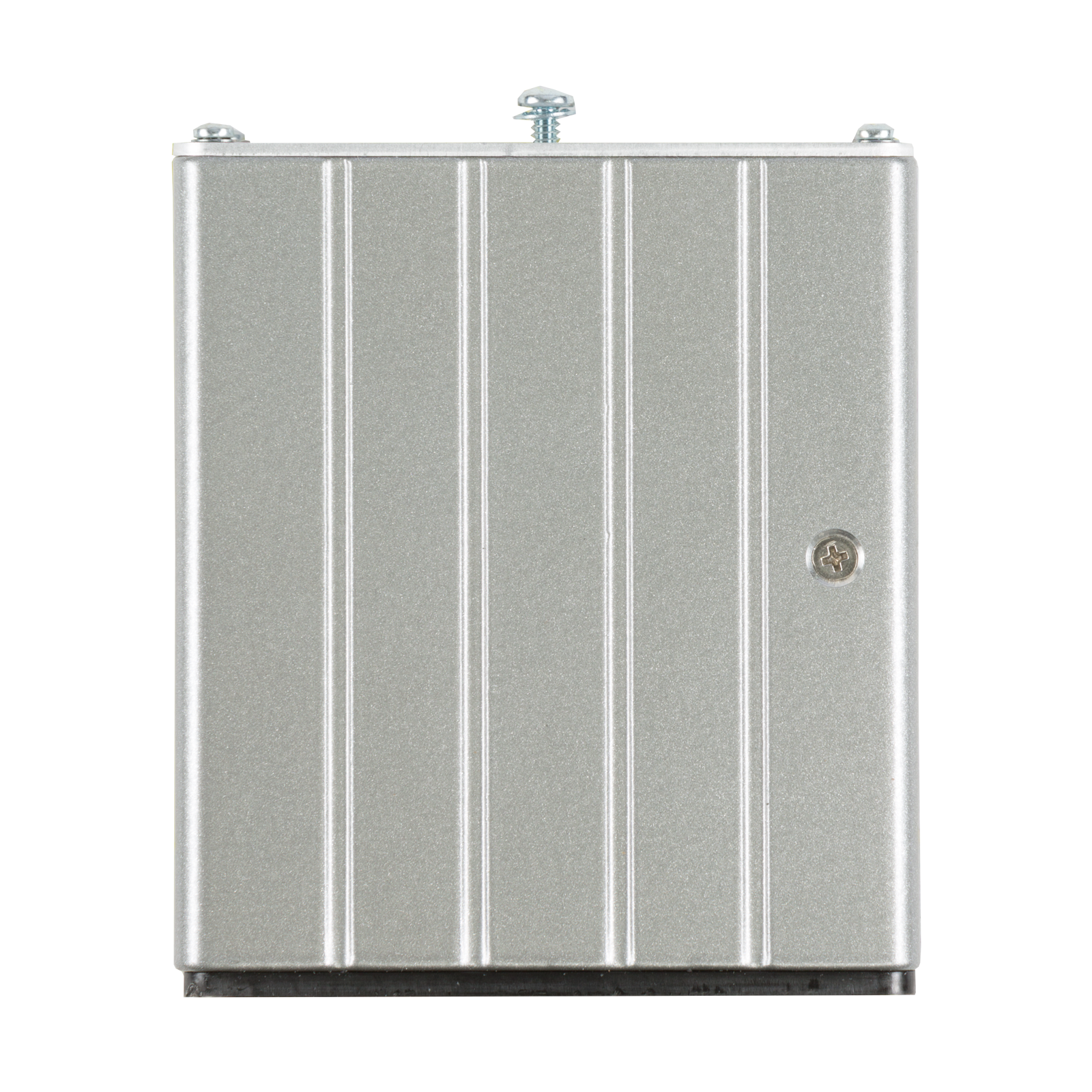

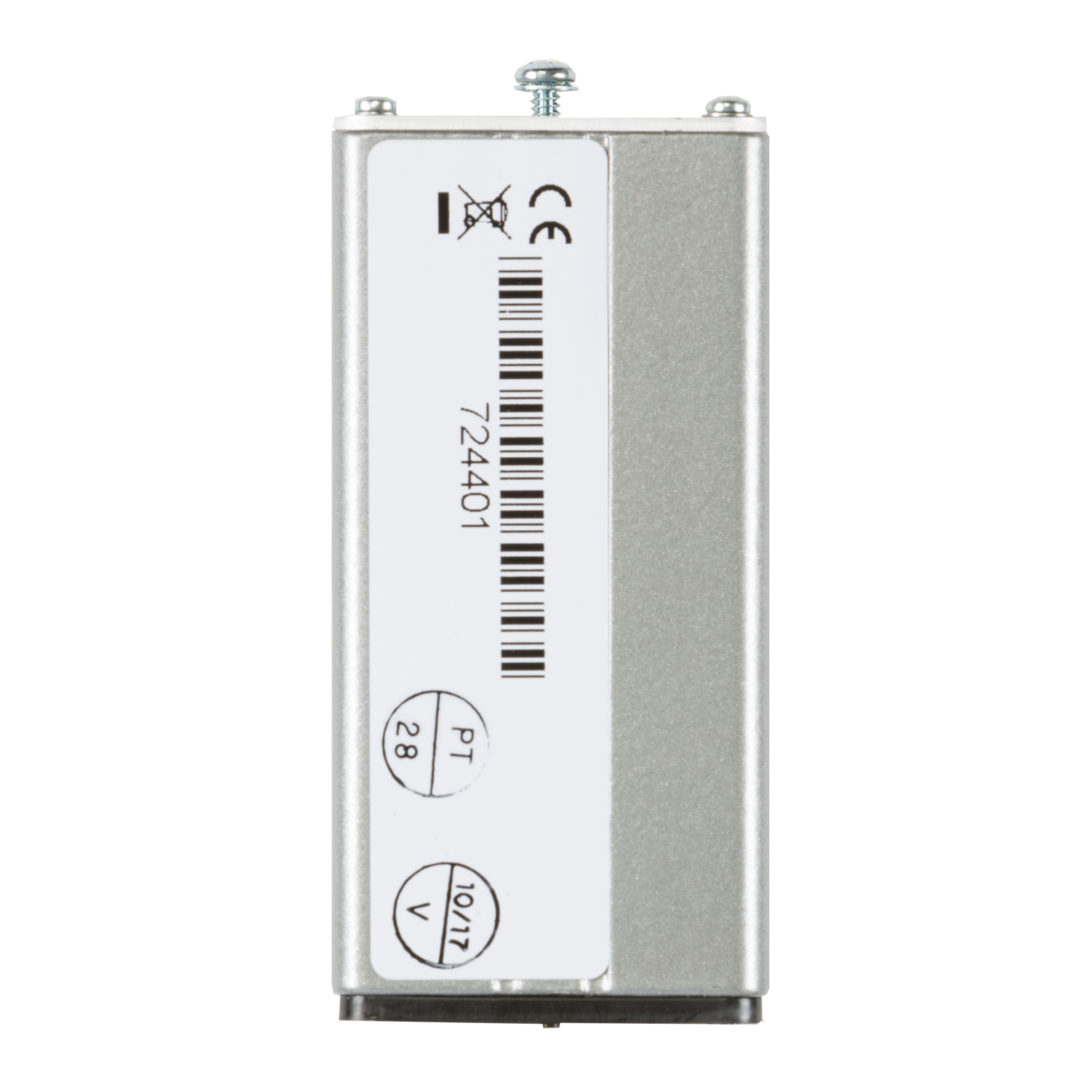

The B3000-B-OMUX is a drop-in replacement for a B3000 that uses the Optomux protocol. The B3000-B-OMUX is identical to the
B3000-B (which uses the

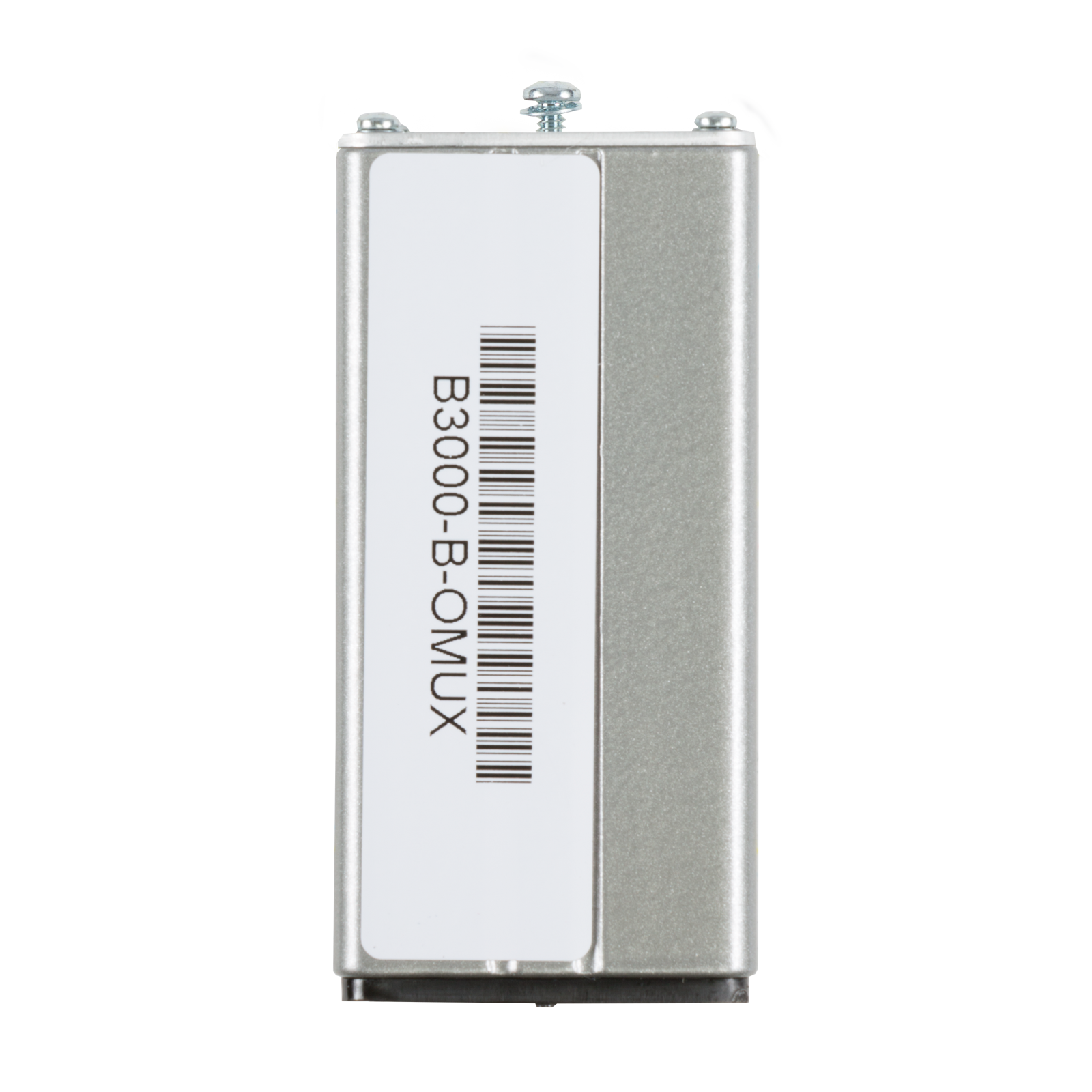

mistic protocol) but contains different firmware. The B3000-B-OMUX has a sticker on its side to identify it.
|
Power Requirements
|
5.0–5.2 VDC at 750 mA maximum (does not include module power requirements)
|
|
Operating Temperature
|
0 to 60 °C
|
|
Storage Temperature
|
-40 to 85 °C
|
|
Humidity
|
0–95% humidity, non-condensing
|
|
Communications Interface
|
RS-485, 2- or 4-wire, twisted pair(s), with shield
|
|
Data Rates
|
300 baud to 230.4 Kbaud
|
|
Range: Multidrop
|
32 stations maximum between repeaters; up to 3000 ft (914 m) between repeaters
|
|
LED indicators
|
SERIAL (transmit/receive), STAT (brain status), IRQ (interrupt)
|
|
Options:
Switch Selectable
|
Address
Baud rate
Binary/ASCII
CRC/Checksum
|
| Agency Approvals |
CE, DFARS, UKCA |
Due to the unavailability of critical components, the B3000-B Serial brain reached its end-of-life status. The product is officially designated as obsolete. For existing systems, we recommend migrating to an Ethernet-based architecture using the SNAP-PAC-R1 controller/brain and a SNAP-M2B adapter. For new designs, the groov EPIC platform offers a modern, flexible, and future-ready solution.

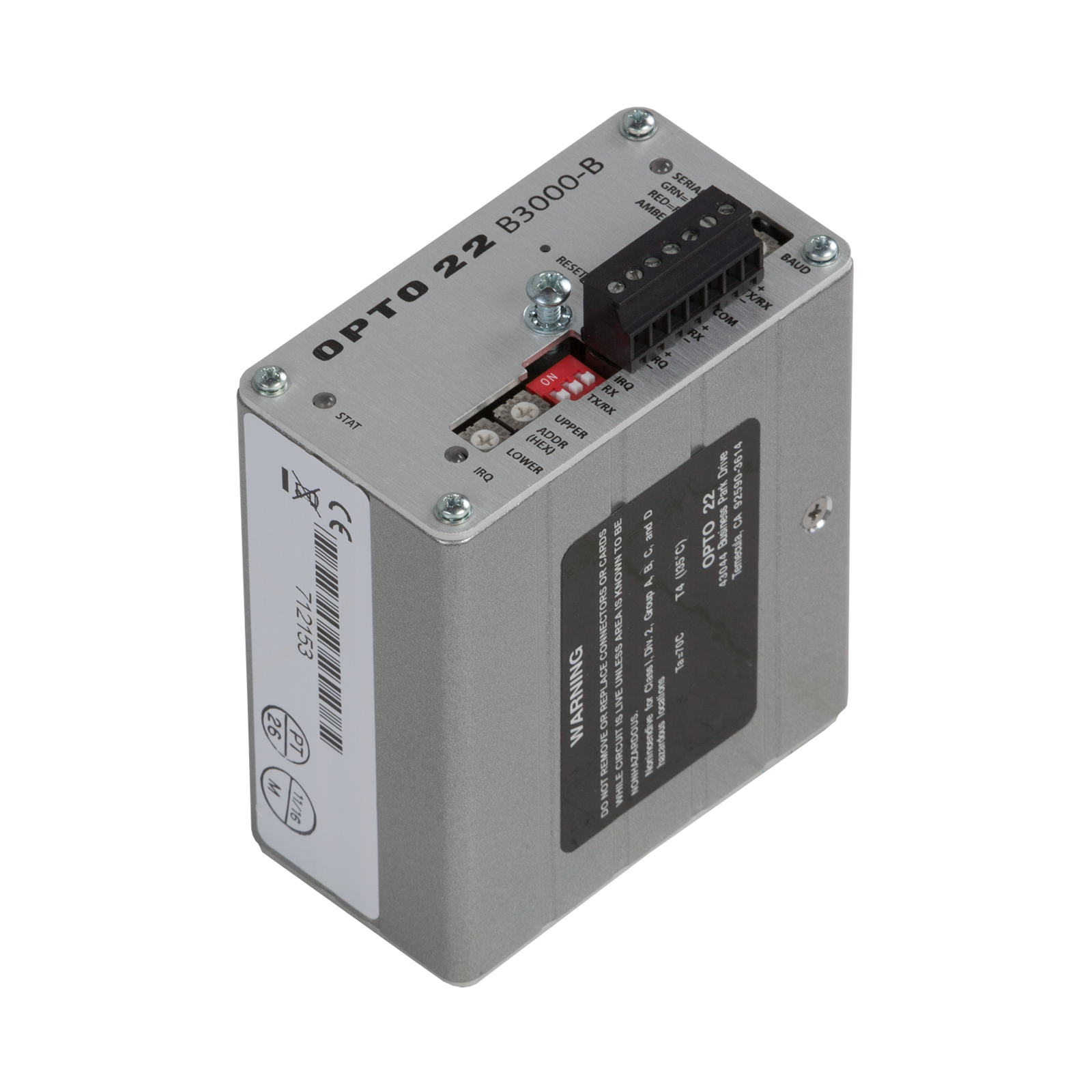

B3000-B brains are serial brains designed as drop-in replacements for the obsolete B3000. Two models are
available:
- The B3000-B replaces a B3000 that uses the mistic protocol. This model is compatible with FactoryFloor controllers running OptoControl strategies and SNAP B-series mounting racks. The B3000-B has the same functionality as the B3000 but supports mistic only.
- The B3000-B-OMUX replaces a B3000 that uses the Optomux protocol. This model is compatible with SNAP B-series mounting racks and contains firmware suited for an Optomux system.
The two models have identical hardware but different firmware. The B3000-B-OMUX has an identifying label on its side.
Due to the unavailability of critical components, the B3000-B Serial brain reached its end-of-life status. The product is officially designated as obsolete. For existing systems, we recommend migrating to an Ethernet-based architecture using the SNAP-PAC-R1 controller/brain and a SNAP-M2B adapter. For new designs, the groov EPIC platform offers a modern, flexible, and future-ready solution.
B3000-B brains are serial brains designed as drop-in replacements for the obsolete B3000. Two models are
available:
- The B3000-B replaces a B3000 that uses the mistic protocol. This model is compatible with FactoryFloor controllers running OptoControl strategies and SNAP B-series mounting racks. The B3000-B has the same functionality as the B3000 but supports mistic only.
- The B3000-B-OMUX replaces a B3000 that uses the Optomux protocol. This model is compatible with SNAP B-series mounting racks and contains firmware suited for an Optomux system.
The two models have identical hardware but different firmware. The B3000-B-OMUX has an identifying label on its side. This guide shows you how to configure, wire, and maintain both brains.
This Readme file lists revision changes made to the firmware used in the B3000-B-OMUX brain, a serial brain using the Optomux protocol.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with ATEX, EMC, LVD, and RoHS rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
