OBSOLETE - 16-channel Digital Brain, Pamux

Production Specification

*** This part is Obsolete and no longer available, please contact Pre-Sales Engineering for more information. ***

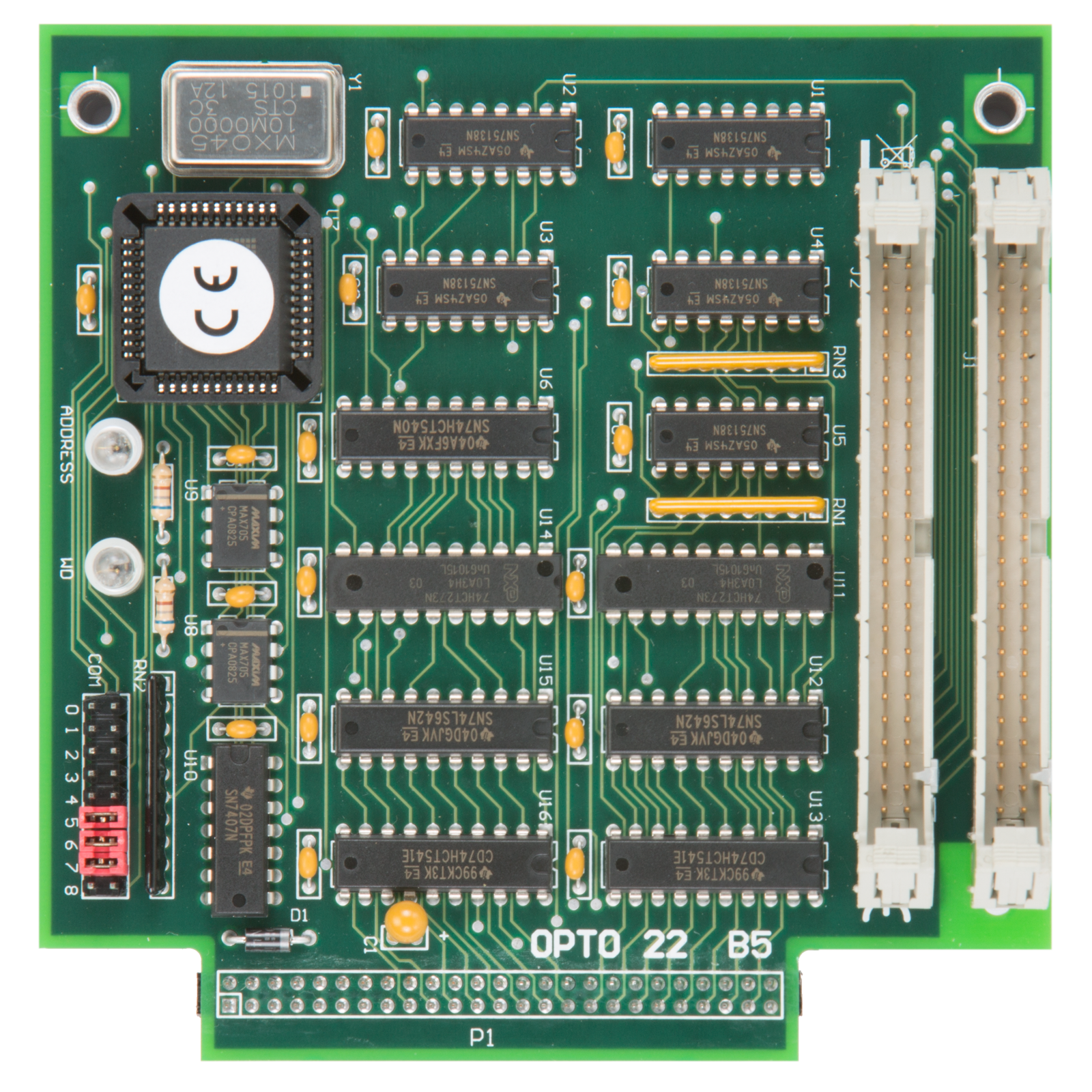

The Pamux B5 is an addressable digital brain board that can control up to 16 input or output points in distributed I/O applications. The B6 uses a 50-pin ribbon cable and the Pamux protocol.

The B5 is designed for use with a variety of Opto 22 I/O mounting racks, including racks that accept single-point digital I/O or quad pak digital I/O as well as racks with integrated digital I/O circuitry.

For stations on a Pamux bus to operate correctly, both ends of the bus must be terminated. Use part number TERM 1 or TERM 2 (shielded cable) for termination. See the Pamux User's Guide for more details.

Use the PAMUX Systems SDK to create a custom control program for PC-based control of the B5 and its I/O.
Compatible I/O and mounting racks:
Specifications are not currently available for this product.

B5 Digital Brain Board Data Sheet and Installation Notes

The Pamux B5 is an addressable digital brain board that can control up to 16 input or output points in distributed I/O applications. The B5 is designed for use with a variety of Opto 22 I/O mounting racks, including racks that accept single-point digital I/O or quad pak digital I/O as well as racks with integrated digital I/O circuitry.

Pamux User's Guide

This manual provides all the information you will need to set up and use a Pamux system. It features complete descriptions of all Pamux components, including the B4, B5, and B6 brain boards and the AC28 and AC36 adapter cards.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PamScan for MS-DOS

PamScan for MS-DOS is a software utility for troubleshooting Pamux hardware.
