DA3

$119.00 (USA and Canada only)

Availability: In stock
G1 4-20 mA Analog Output

Please call (800) 321-6786 to order.

DA3

Production Specification

G1 I/O family

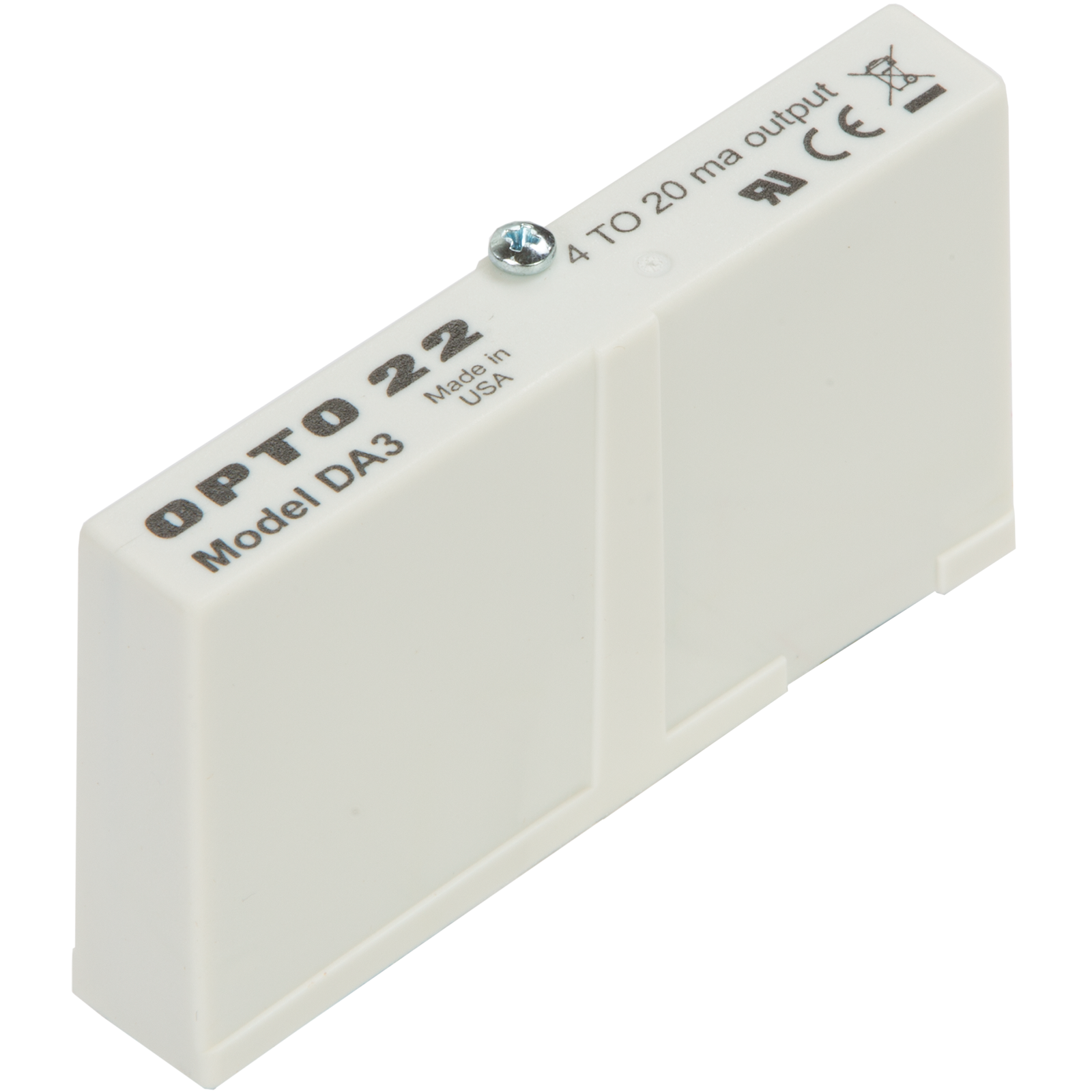

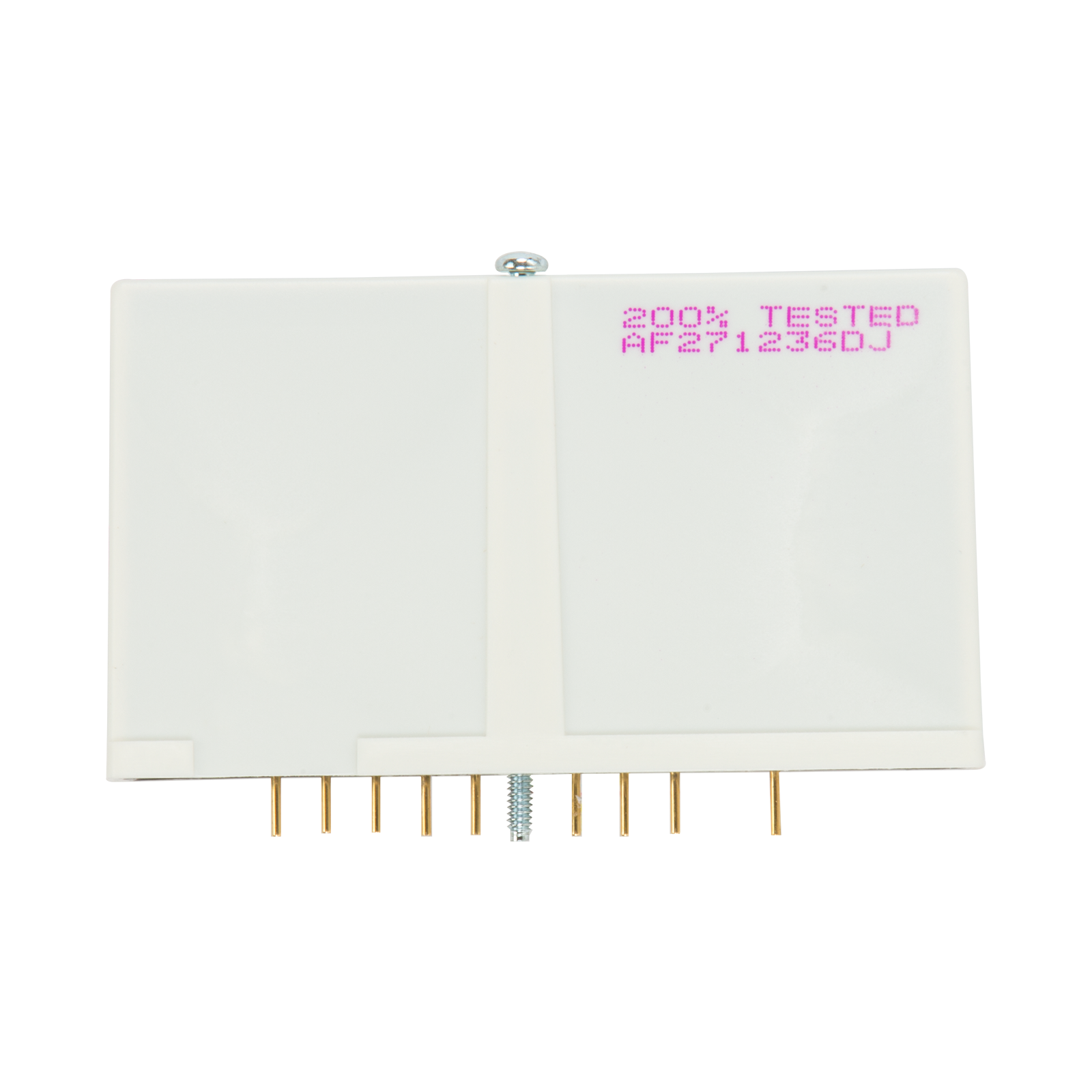

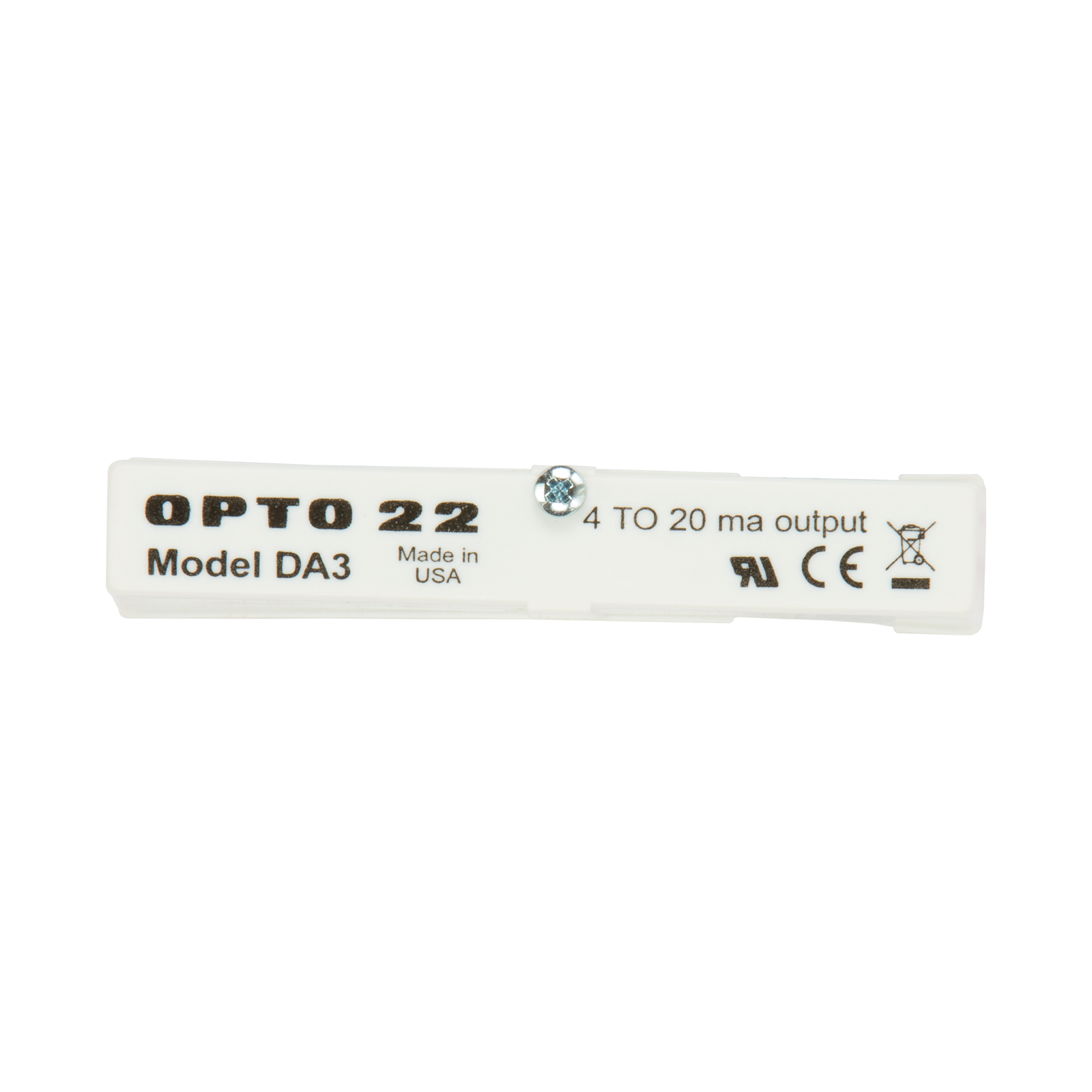

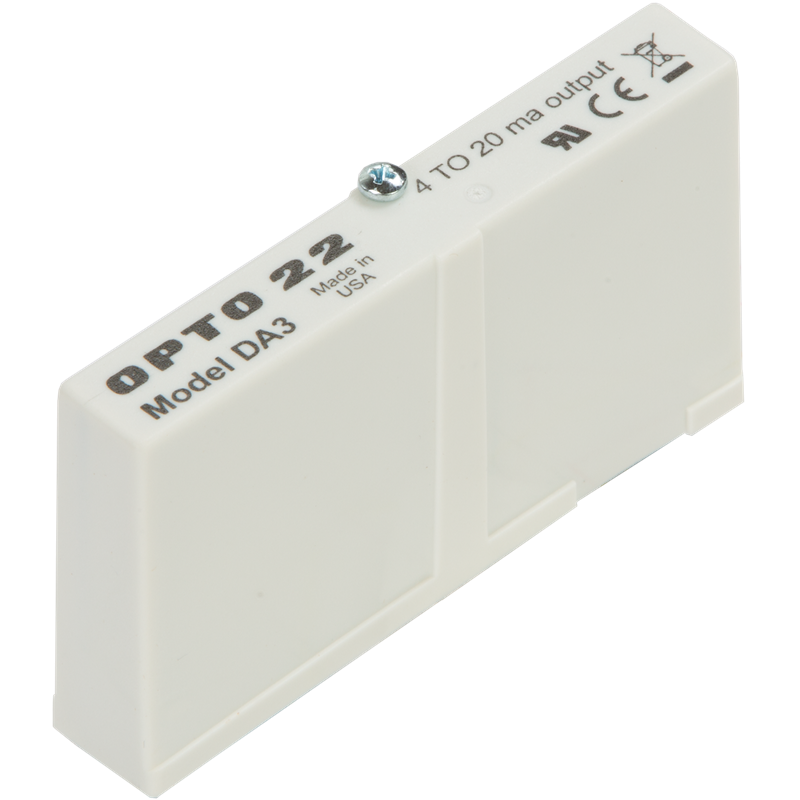

The DA3 provides a single channel of optically isolated digital-to-current conversion. Output current is 4-20 mA. The DA3 is UL approved.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



DA3

DA3T

DA8

Output Current

4-20 mA

4-20 mA

4-20 mA

Minimal Current Draw

1.6 mA

1.6 mA

1.6 mA

Accuracy

16 μA

16 μA

20 μA

Power Requirements

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
24 mA at 5 VDC

22 mA at +15 (+/- 0.25) VDC
22 mA at -15 (+/- 0.25) VDC
24 mA at 5 VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
24 mA at 5 VDC

Agency Approvals

UL, CE, RoHS, DFARS

CE, RoHS, DFARS

UL, CE, RoHS, DFARS



Response Time

Full scale step change in 3 ms

Resolution

12 bits

Isolation
  Input-to-Output
  Input-to-Analog Supply (T Modules)



4,000 Vrms
4,000 Vrms

Temperature
  Operating
  Storage



0 °C to 70 °C
- 25 °C to 85 °C

DA3T: All of the lower A terminals on the mounting rack are tied together.
These provide a convenient tie point for shared loop source return. To use the
DA3T with a common loop supply, connect any one lower A terminal to the
shared loop source "-", then jumper upper A to lower A for each DA3T.
