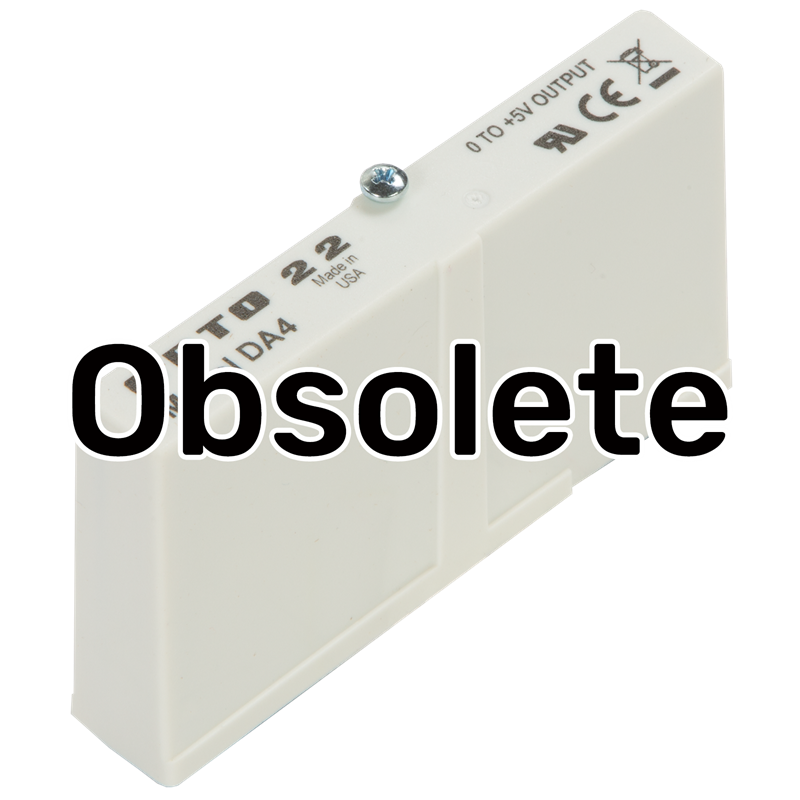

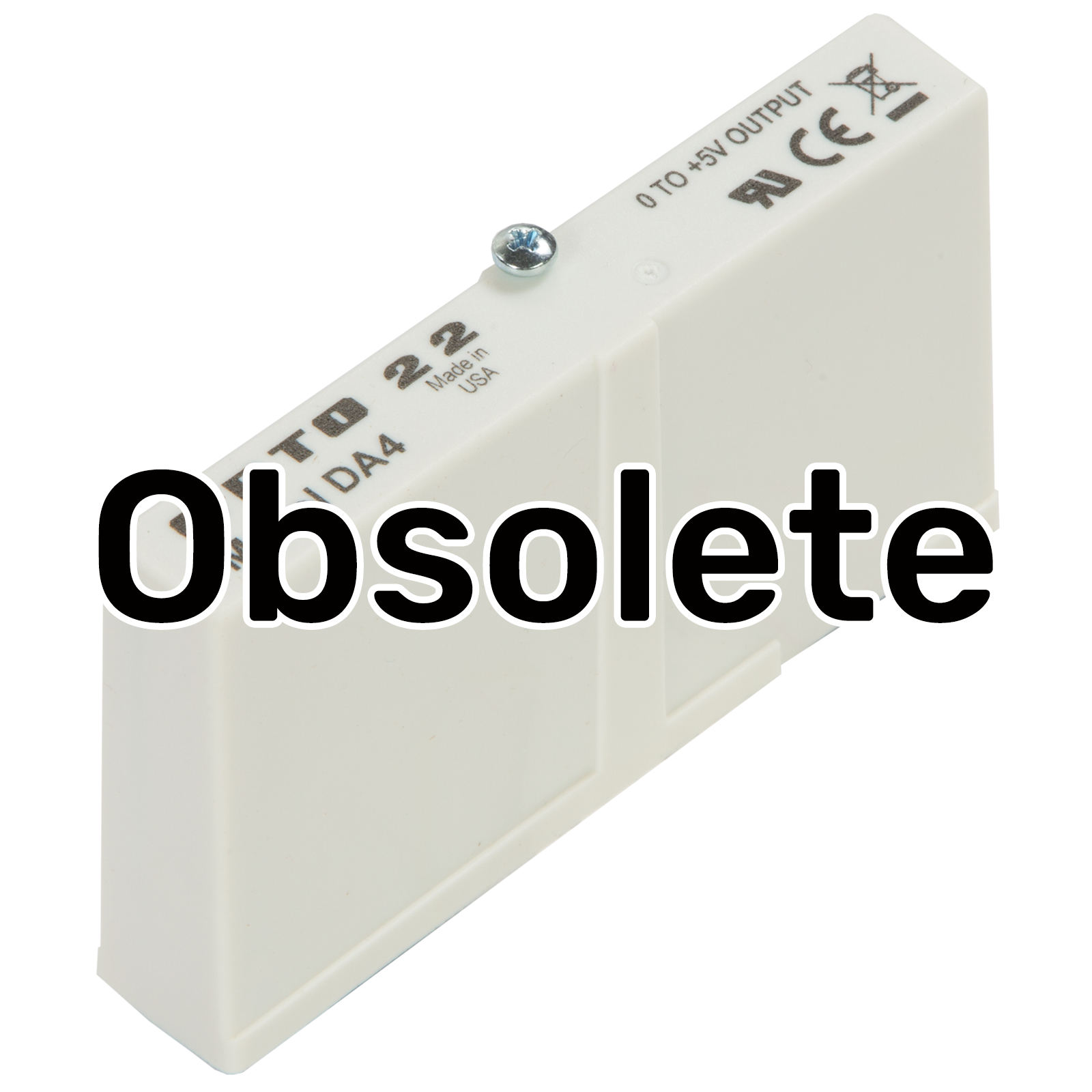

*** NOTE: This part is obsolete and no longer available. ***
G1 I/O family

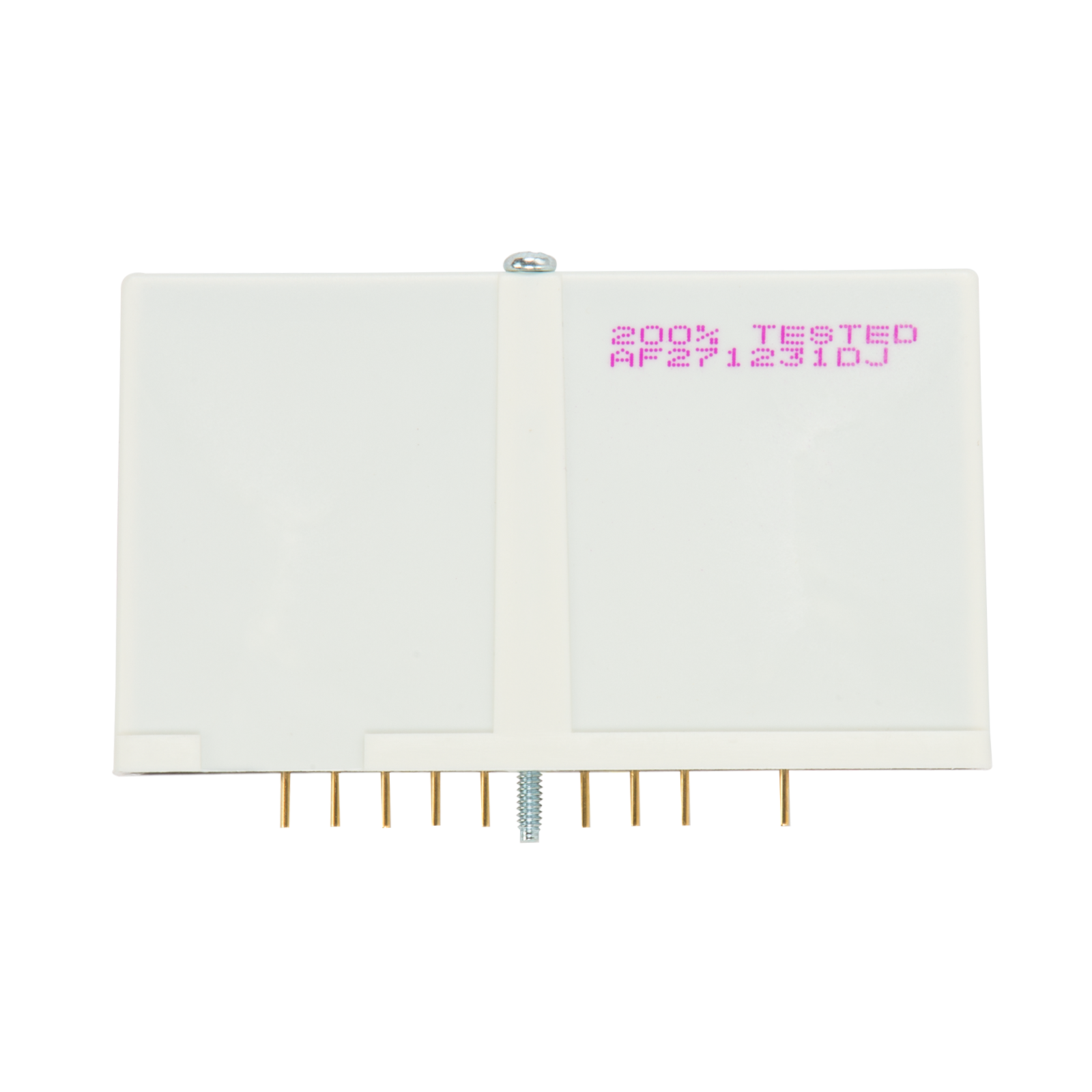

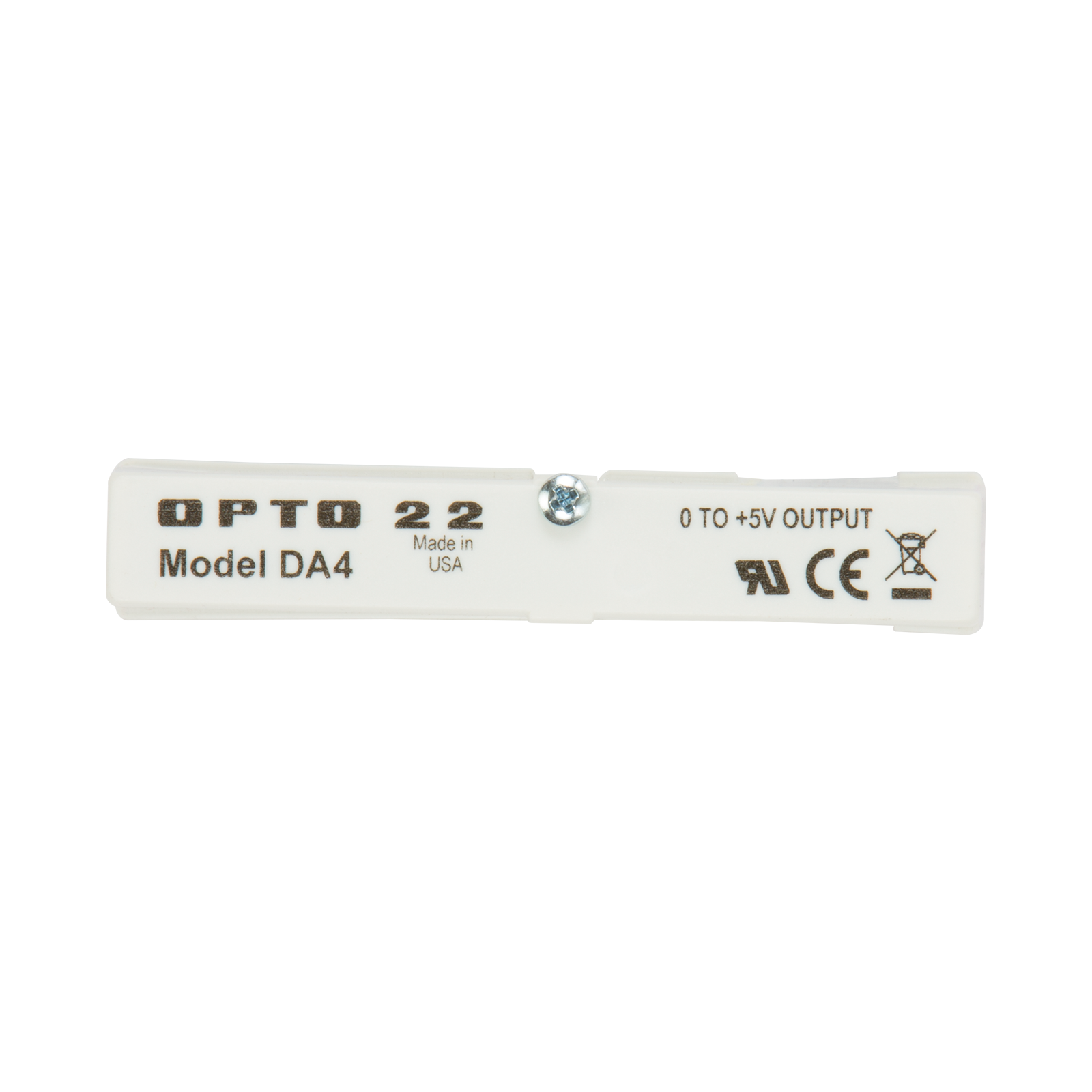

The DA4 provides a single channel of optically-isolated digital-to-voltage conversion. Output voltage is 0-5 VDC.
This module mounts on a G1 analog mounting rack, for example the
PB16AH.
|
|
DA4 [Obsolete]
|
DA4T
|
DA5
|
DA6
|
DA7 [Obsolete]
|
DA7T
[Obsolete]
|
|
Output Voltage
|
0 to 5 VDC
|
0 to 5 VDC
|
0 to 10 VDC
|
-0 to +5 VDC
|
-10 to +10 VDC
|
-10 to +10 VDC
|
|
Accuracy
|
±5 mV
|
±5 mV
|
±10 mV
|
±10 mV
|
±20 mV
|
±20 mV
|
|
Power Requirements
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
| Agency Approvals |
UL, CE; UKCA |
CE, UKCA |
UL, CE; UKCA |
UL, CE, RoHS;
UKCA |
CE, RoHS; UKCA |
CE, RoHS; UKCA |
|
Output Current
DA4, DA5, DA6, DA7
DA4T, DA7T
|
70 mA
25 mA
|
|
Output Response Time
|
Full-scale step change in 3 ms
|
|
Resolution
|
12 bits
|
|
Isolation
Input-to-Output
Input-to-Analog Supply
|
4,000 Vrms (Transient)
4,000 Vrms
|
|
Temperature
Operating
Storage
|
0 °C to 70 °C
- 25 °C to 85 °C
|
The voltage output analog module provides a single channel of optically-isolated digital-to-voltage conversion.This data sheet provides information about these standard voltage output modules:
- DA4 [Obsolete]
- DA4T
- DA5
- DA6
- DA7
- DA7T [Obsolete]
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
