DC200MP

$19.00 (USA and Canada only)

Availability: In stock

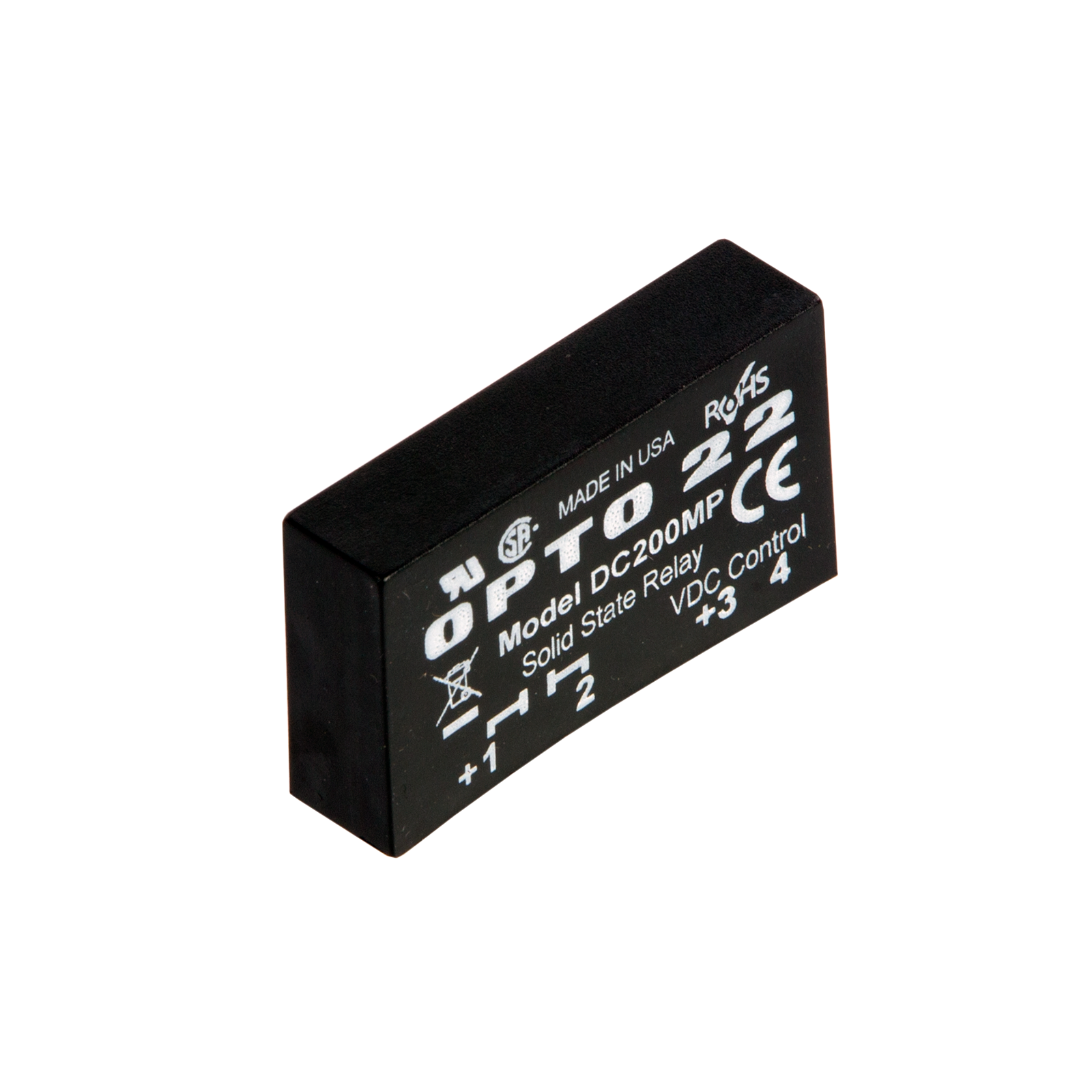

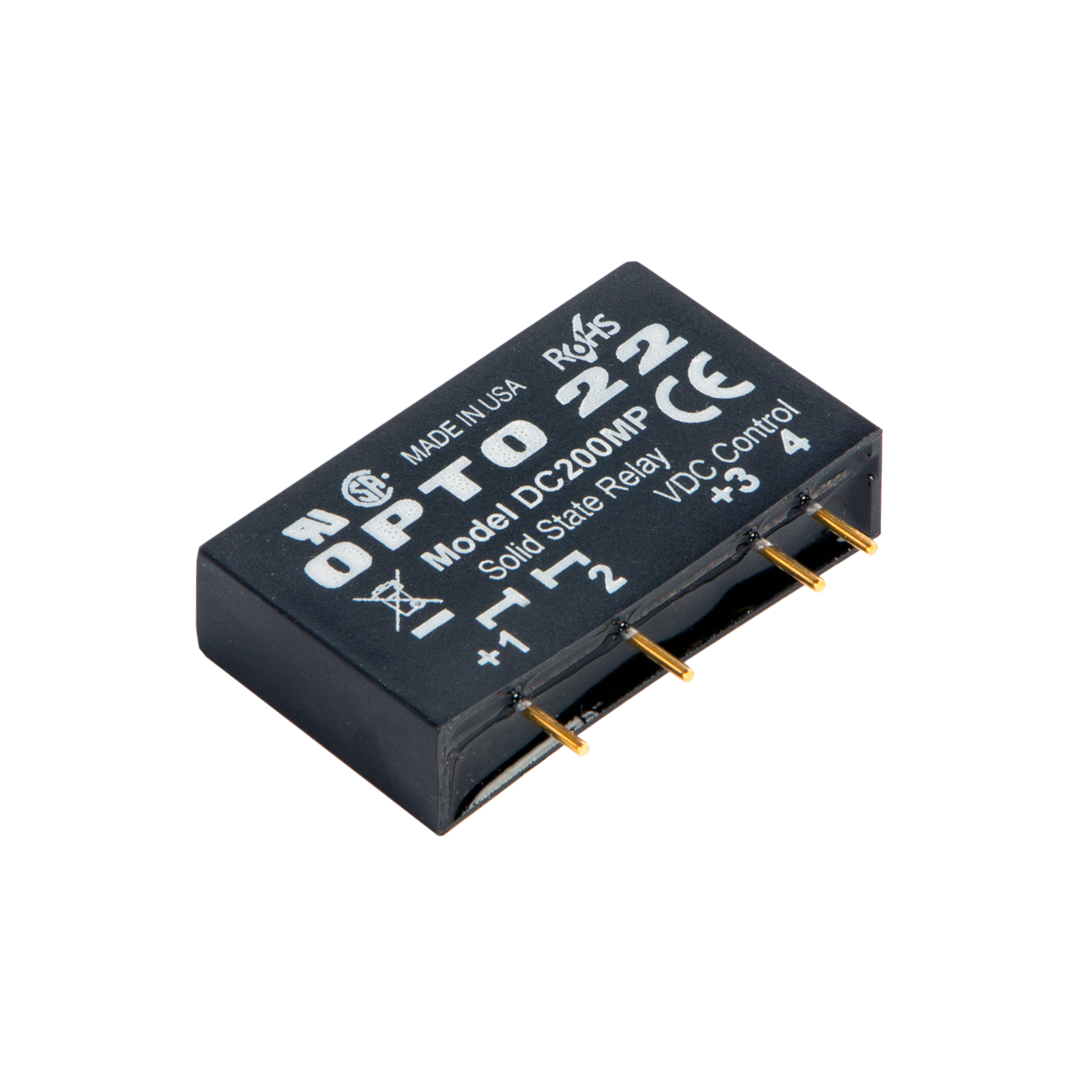

MP Model, 200 VDC, 1 Amp, DC Control Solid State Relay (SSR)

Please call (800) 321-6786 to order.

DC200MP

Production Specification

The DC200MP is a DC-controlled MP Series relay that switches 200 VDC at up to 1 A.

MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.
Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list

This SSR carries a lifetime warranty.



DC60P
or DC60MP

DC200P or
DC200MP

DC60S-3

DC60S-5

Operating Voltage Range

5–60 VDC

5–200 VDC

5–60 VDC

5–60 VDC

Forward Voltage Drop

1.5 volts
at 3 amps

1.5 volts
at 1 amp

1.5 volts
at 3 amps

1.5 volts
at 5 amps

Nominal Currrent Rating
(Amps)

3*

1*

3*

5*

Off-State Blocking

60 VDC

250 VDC

60 VDC

60 VDC

Signal Pickup Voltage

3 VDC
32 Volts**
allowed

3 VDC
32 Volts**
allowed

3 VDC
32 Volts
allowed

3 VDC
32 Volts
allowed

Signal Dropout Voltage

1 VDC

1 VDC

1 VDC

1 VDC

Signal Input Impedeance

1,000 ohms

1,000 ohms

1,000 ohms

1,000 ohms

1 Second Surge

5 amps

2 amps

5 amps

10 amps

Operating Temp. Range

–40 °C to
100 °C

–40 °C to
100 °C

–40 °C to
100 °C

–40 °C to
100 °C

Isolation Voltage

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

Off-State Leakage

1 mA
maximum

1 mA
maximum

1 mA
maximum

1 mA
maximum

Package Type

P/MP series

P/MP series

Power series

Power series

Turn-on Time

100 microseconds

100 microseconds

100 microseconds

100 microseconds

Turn-off Time

750 microseconds

750 microseconds

750 microseconds

750 microseconds

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** MP series maximum allowed control signal is 24 VDC.

For more information, see the Solid State Relays Data Sheet (form 0859).

Solid-State Relays (SSRs) Data Sheet

Opto 22 provides a full range of reliable solid-state relays (SSR). This data sheet includes descriptions, specifications, dimensional drawings, and application information.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
