Products > DC60MP
DC60MP
Hover over image to zoom in

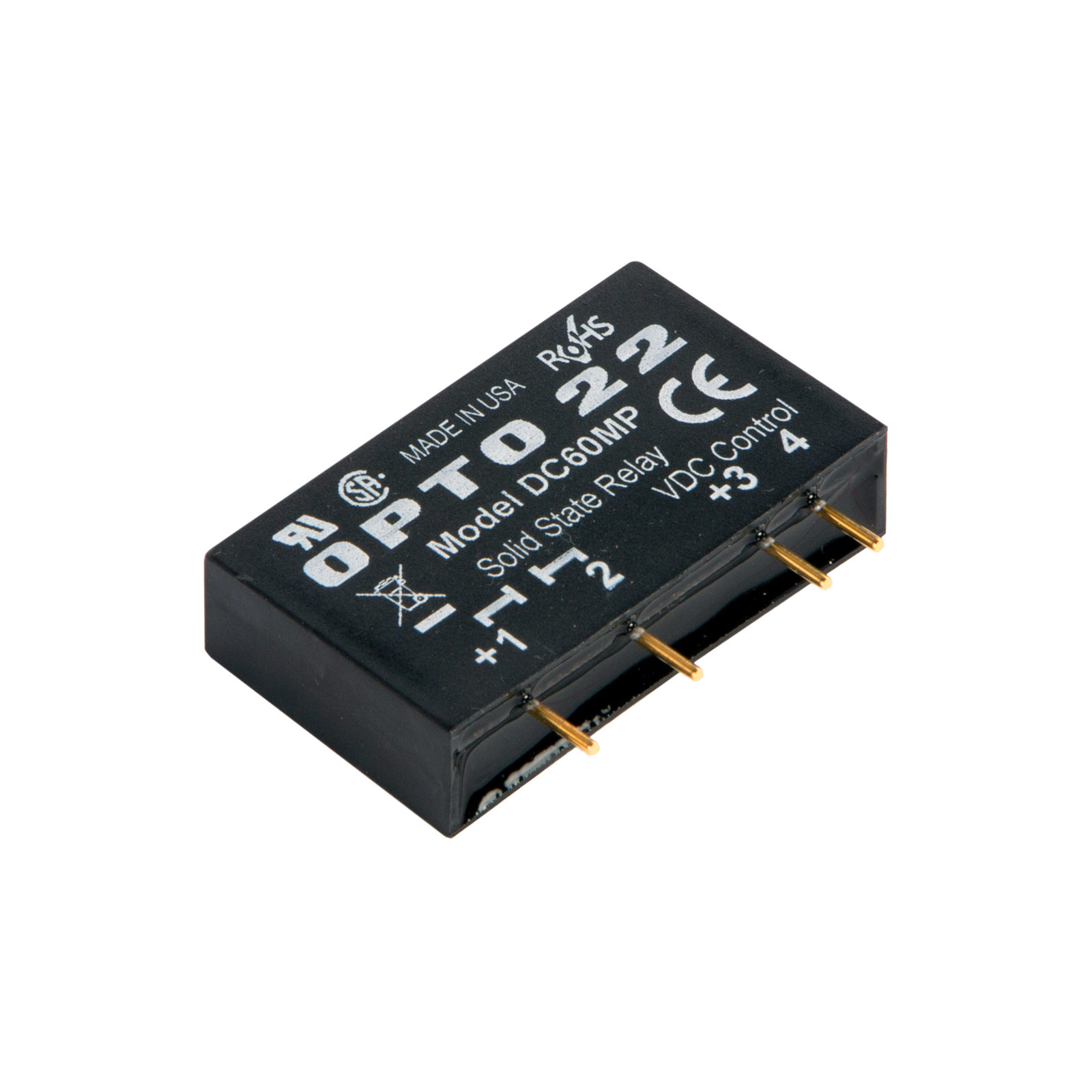

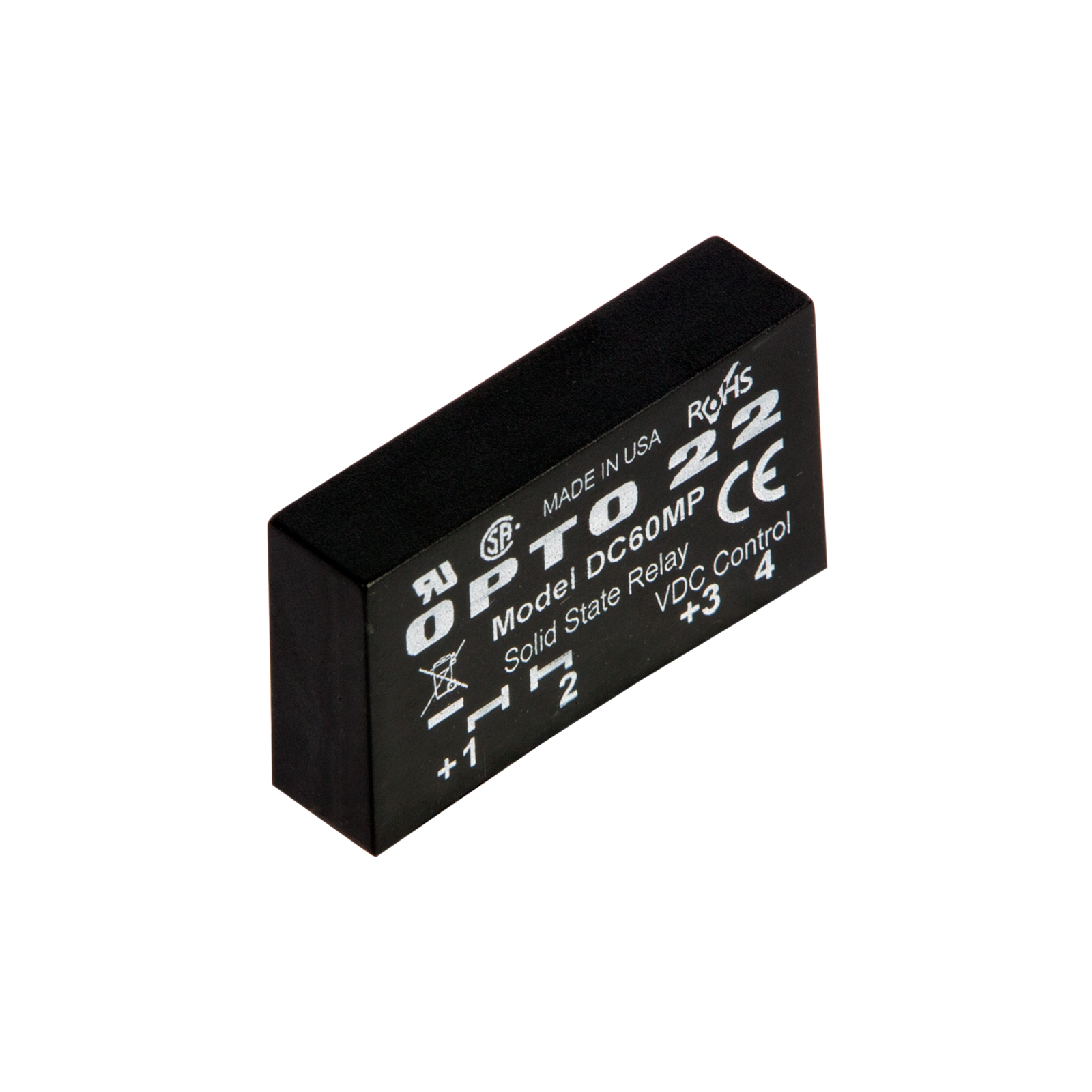

MP Model, 60 VDC, 3 Amp, DC Control Solid State Relay (SSR)

Please contact your local distributor for pricing and purchase information.

Data Sheet

Production Specification

The DC60MP is a DC-controlled MP Series relay that switches 60 VDC at up to 3 A.

MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

This SSR carries a lifetime warranty.



DC60P
or DC60MP

DC200P or
DC200MP

DC60S3

DC60S5

Operating Voltage Range

5–60 VDC

5–200 VDC

5–60 VDC

5–60 VDC

Forward Voltage Drop

1.5 volts
at 3 amps

1.5 volts
at 1 amp

1.5 volts
at 3 amps

1.5 volts
at 5 amps

Nominal Currrent Rating
(Amps)

3*

1*

3*

5*

Off-State Blocking

60 VDC

250 VDC

60 VDC

60 VDC

Signal Pickup Voltage

3 VDC
32 Volts**
allowed

3 VDC
32 Volts**
allowed

3 VDC
32 Volts
allowed

3 VDC
32 Volts
allowed

Signal Dropout Voltage

1 VDC

1 VDC

1 VDC

1 VDC

Signal Input Impedeance

1,000 ohms

1,000 ohms

1,000 ohms

1,000 ohms

1 Second Surge

5 amps

2 amps

5 amps

10 amps

Operating Temp. Range

–40 °C to
100 °C

–40 °C to
100 °C

–40 °C to
100 °C

–40 °C to
100 °C

Isolation Voltage

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

Off-State Leakage

1 mA
maximum

1 mA
maximum

1 mA
maximum

1 mA
maximum

Package Type

P/MP series

P/MP series

Power series

Power series

Turn-on Time

100 microseconds

100 microseconds

100 microseconds

100 microseconds

Turn-off Time

750 microseconds

750 microseconds

750 microseconds

750 microseconds
Agency Approvals UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** MP series maximum allowed control signal is 24 VDC.

For more information, see the Solid State Relays Data Sheet (form 0859).
