EtherNet/IP Configuration Software
Download

Production Specification

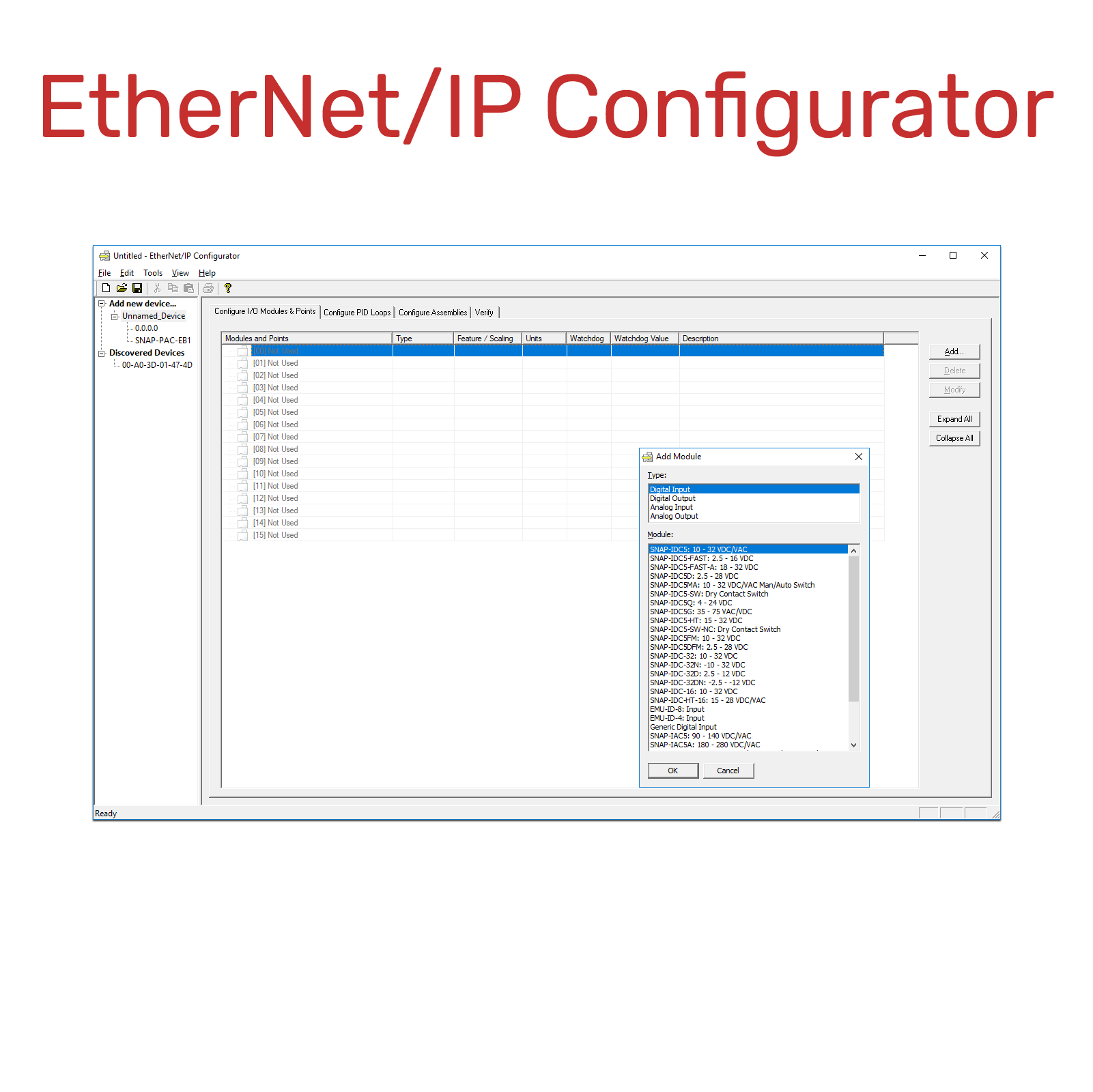

Opto 22 EtherNet/IP Configurator is free configuration software for preparing Opto 22 SNAP I/O units for use with an Allen-Bradley® PLC system. Use EtherNet/IP Configurator to configure I/O points on a SNAP I/O unit. If your PLC system is based on RSLogix™ programming software, also use the Configurator to define assembly instances.

Opto 22 SNAP I/O units require firmware R8.3 or higher to operate with EtherNet/IP Configurator.

As of version R3.1n, Microsoft Windows 2000 and XP are no longer supported.

Allen-Bradley and RSLogix are trademarks or registered trademarks of Rockwell Automation, Inc.
Installation requirements:
  • A computer with at least the minimum processor and memory required for your version of Microsoft® Windows®, and Ethernet capability
  • Any of the following operating systems:
    • Microsoft Windows 10 Professional (32-bit or 64-bit)
    • Microsoft Windows 8.1 Professional (32-bit or 64-bit)
    • Microsoft Windows 7 Professional (32-bit or 64-bit)
    • Windows Vista® Business (32-bit only)
  • VGA or higher resolution monitor (Super VGA recommended) Minimum size: 800x600 with small fonts.
  • Mouse or other pointing device
  • Available hard disk space required: 17.9 MB

Note: as of version R3.0n, Microsoft Windows 2000 and XP are no longer supported.

RM_EIP_CONFIGUR

EtherNet/IP Configurator Readme Notes

Latest Readme for EtherNet/IP Configurator. Includes information on new features, enhancements, and bug fixes.

Also see Form 1819, the EtherNet/IP 3.0 Release Notes, which includes important information on installation and use.

View

1819

EtherNet/IP Configurator 3.0 Release Notes

This document contains the release notes for version 3.0 of the EtherNet/IP Configurator.

View

1801

EtherNet/IP Configurator 2.0 Release Notes

This document contains the release notes for version 2.0 of the EtherNet/IP Configurator.

View

1909

IO4AB User's Guide

This guide provides instructions on how to set up EtherNet/IP messaging between an Allen-Bradley® Logix™ controller and Opto 22’s SNAP PAC I/O using Opto 22’s EtherNet/IP Configurator as well as Allen-Bradley’s RSLogix™ 5000 software.

View

1770

EtherNet/IP for SNAP PAC Protocol Guide

This guide provides detailed descriptions of the EtherNet/IP commands that can be accessed when using remote Opto 22 I/O with an Allen-Bradley controller.

View

1799

Using Intelligent SNAP I/O with Allen-Bradley PLC Systems

This technical note introduces SNAP I/O (brain, mounting rack, and I/O modules) for Allen-Bradley industrial PLC systems that use EtherNet/IP, including ControlLogix, CompactLogix, and MicroLogix.

The technical note briefly presents communication concepts, such as implicit and explicit messaging, and describes how to use implicit messaging to communicate with an A-B RSLogix-based PLC system.

View
No downloads are available for this product.

Playlist: Opto 22 I/O for Allen-Bradley

Learn about Opto 104AB using this playlist of videos.
