G4AD10

$245.00 (USA and Canada only)

Availability: In stock

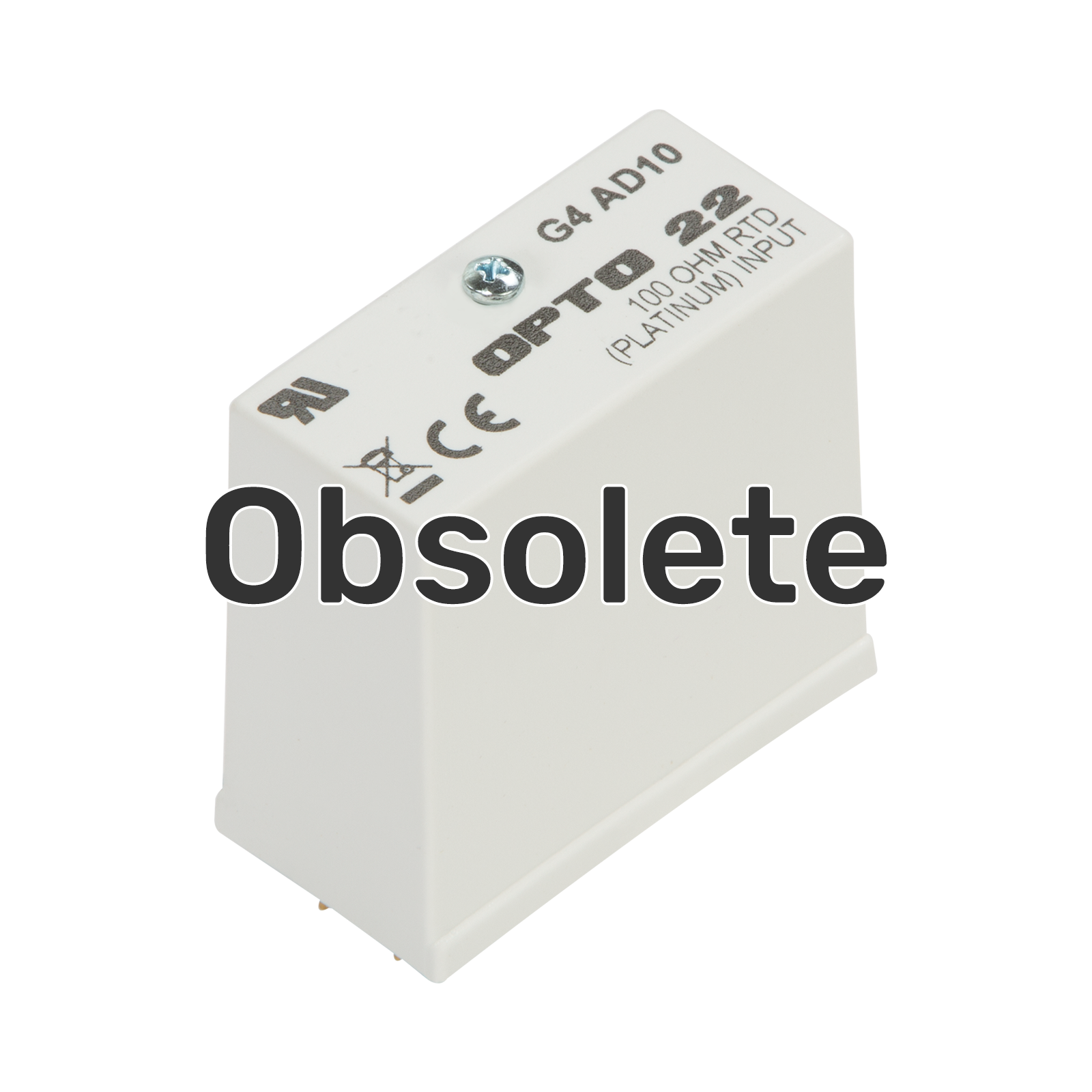

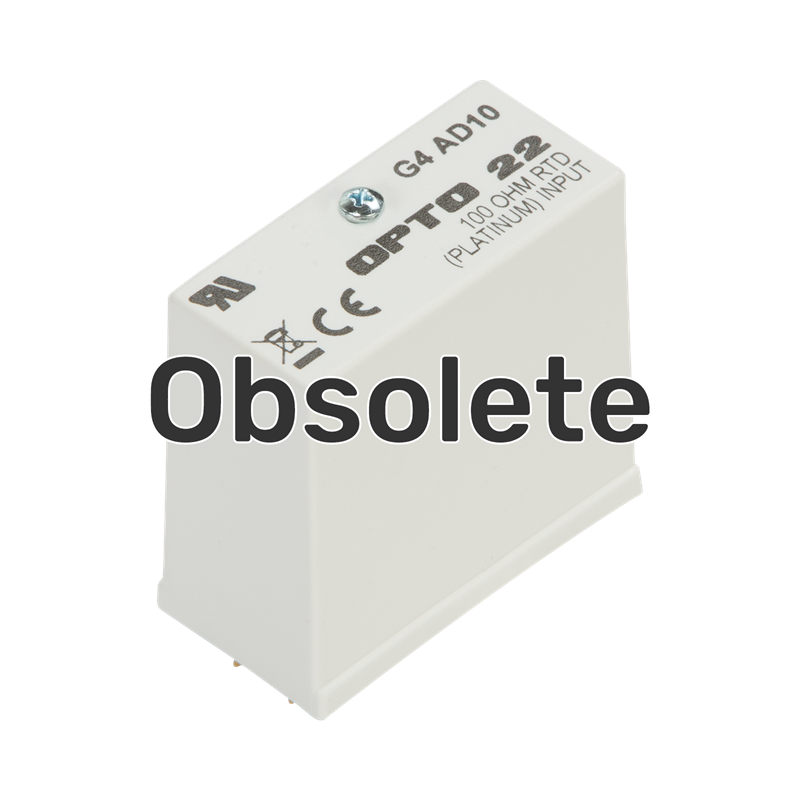

G4 100 Ohm Platinum RTD Analog Input

Please call (800) 321-6786 to order.

G4AD10

Production Specification

G4 I/O family

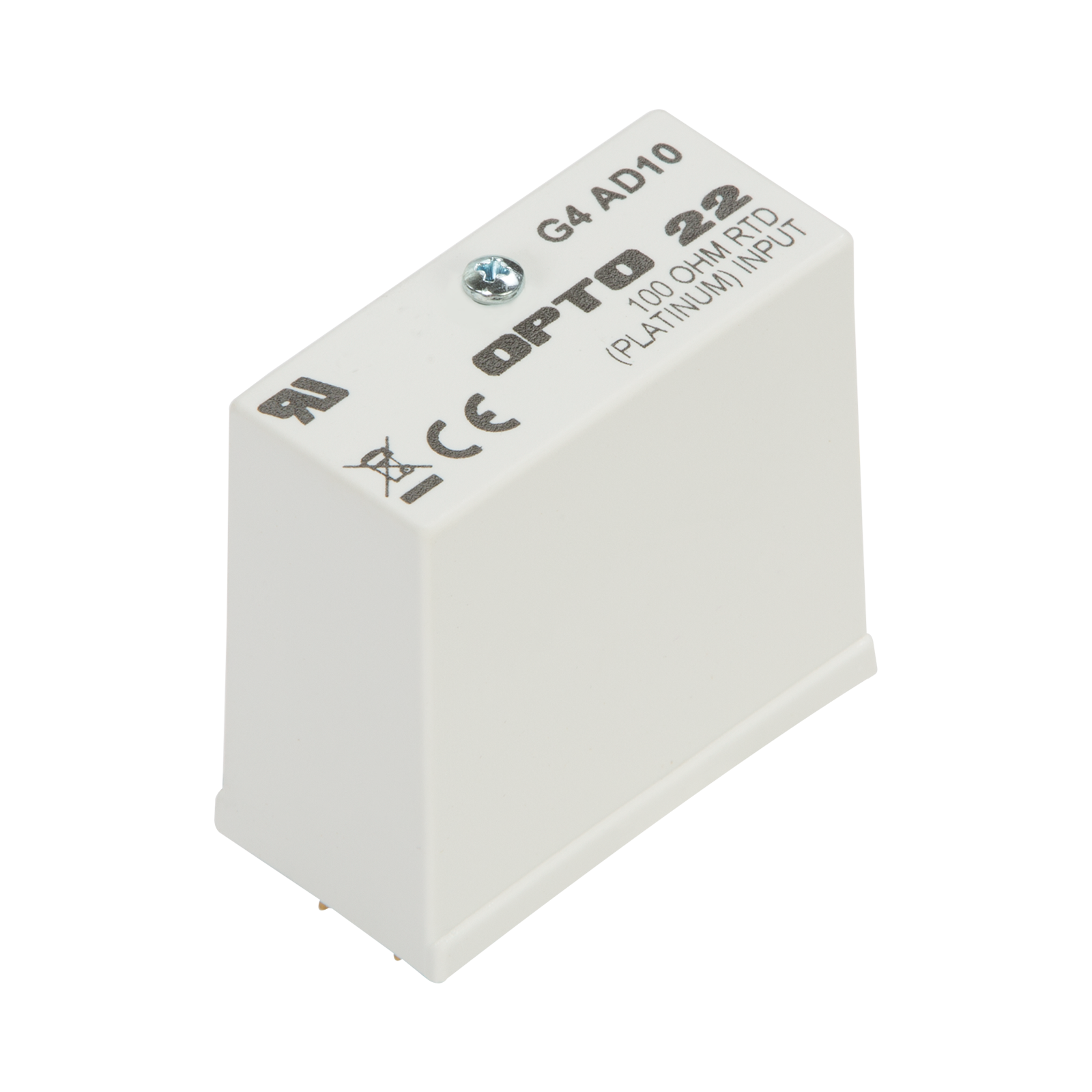

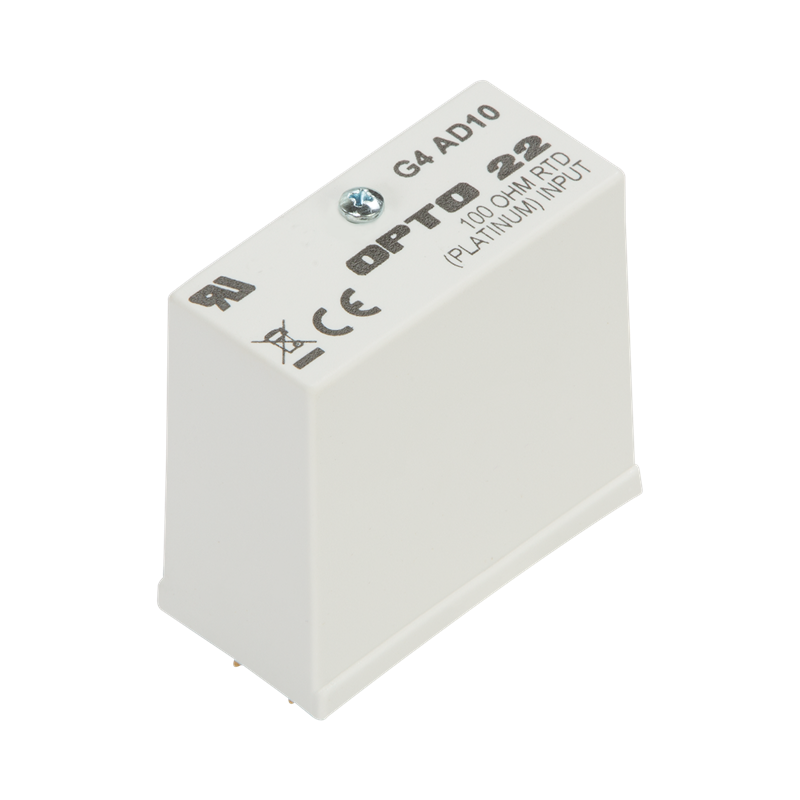

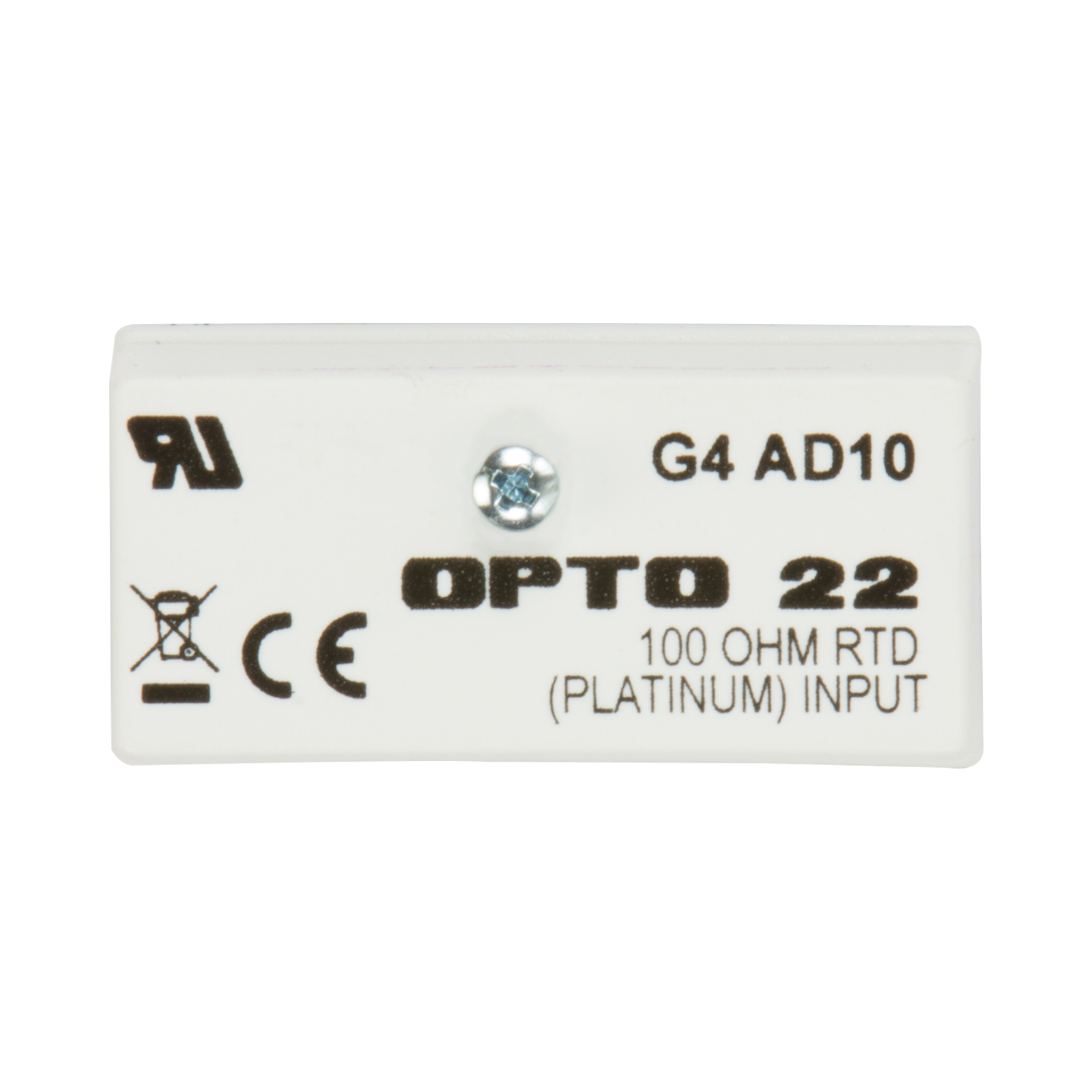

The G4AD10 provides a single channel of optically isolated temperature-to-digital conversion from a 100 ohm platinum RTD input. This module also includes complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems. The G4AD10 is suitable for temperature measurement where the RTD probe is grounded or when ground loop currents exist. G4AD10 can be used with 2-wire, 3-wire, or 4-wire installations.

RTD input

100 Ω platinum (α = 0.00385)

Nominal temperature range °C

-50 to 350 °C

Nominal temperature range °F

-58 to 662 °F

Over/under range °C

-72 to 812 °C

Over/under range °F

-97.6 to 1493 °F

Accuracy

*±0.8 °C

Resolution

12 bits

Response time

Full-scale step change in 100 ms

Isolation (Transient)
Input-to-output
Input-to-analog supply



4,000 VRMS
4,000 VRMS

Ambient temperature
Operating
Storage



0 to 70 °C
-25 to 85 °C

*Accuracy figure requires use of gain and offset commands.



G4 Analog RTD Input Module Data Sheet

The G4AD10 module provides a single channel of optically-isolated temperature-to-digital conversion.
