G4 I/O family
*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.

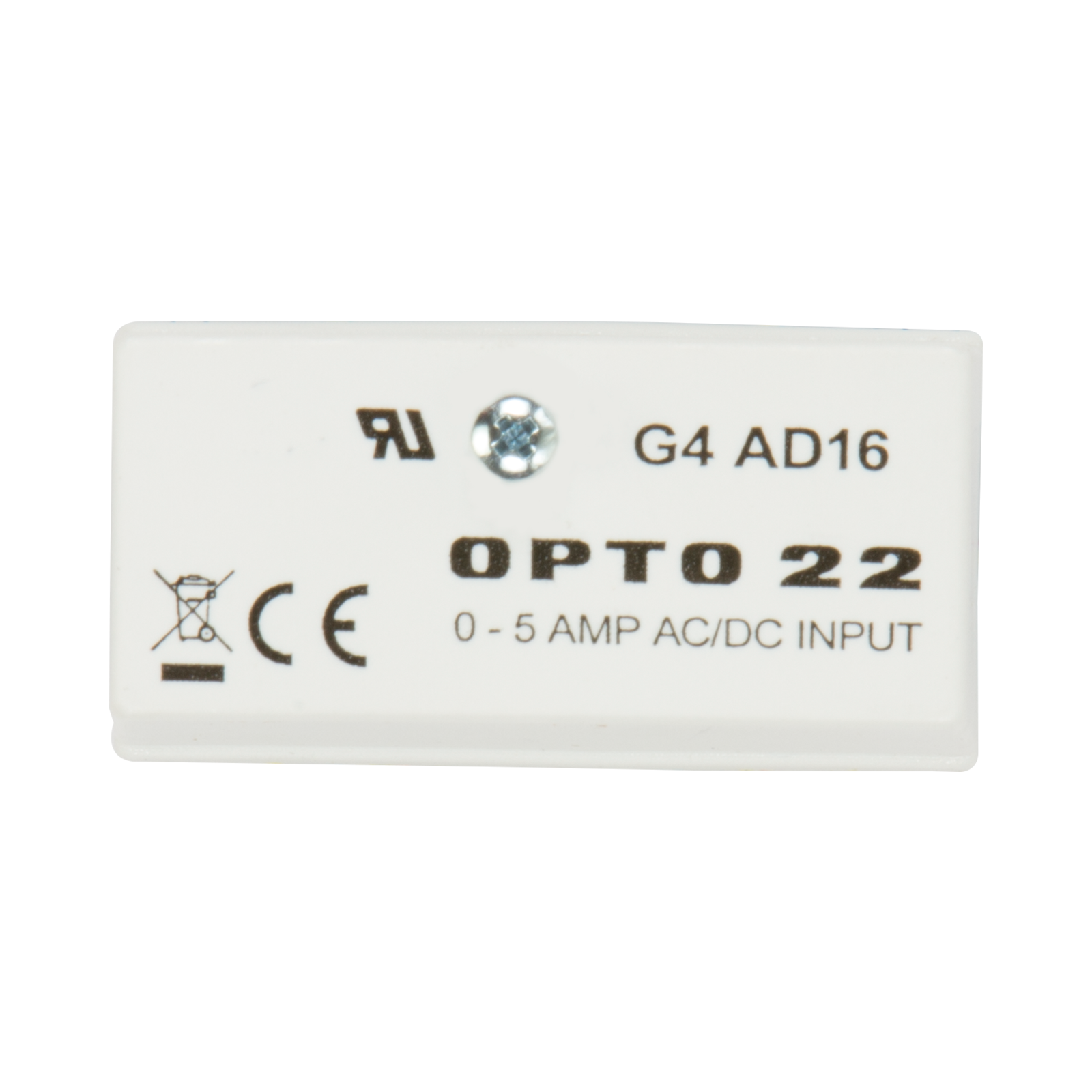

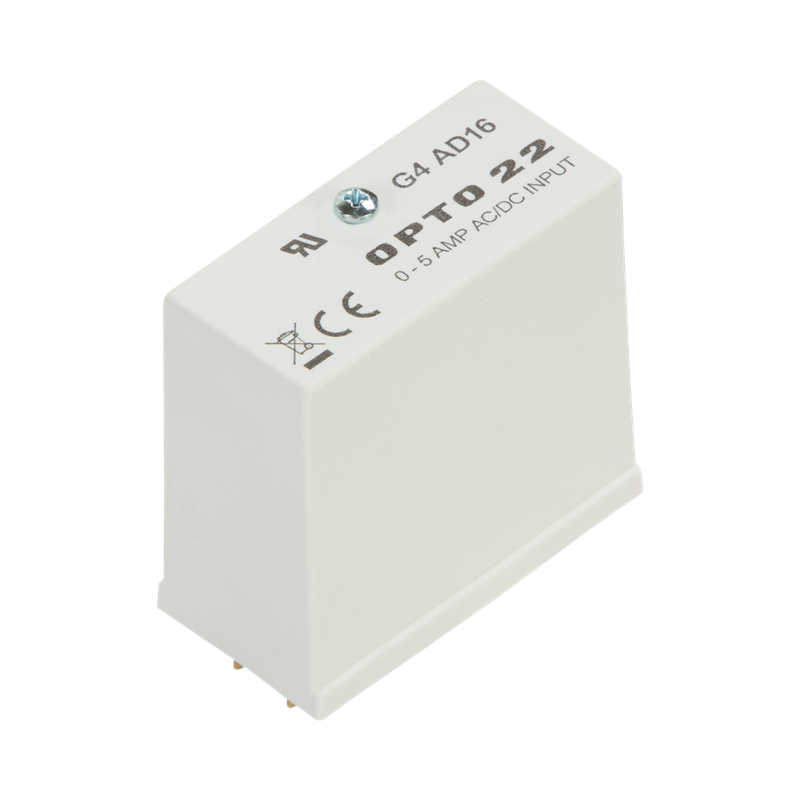

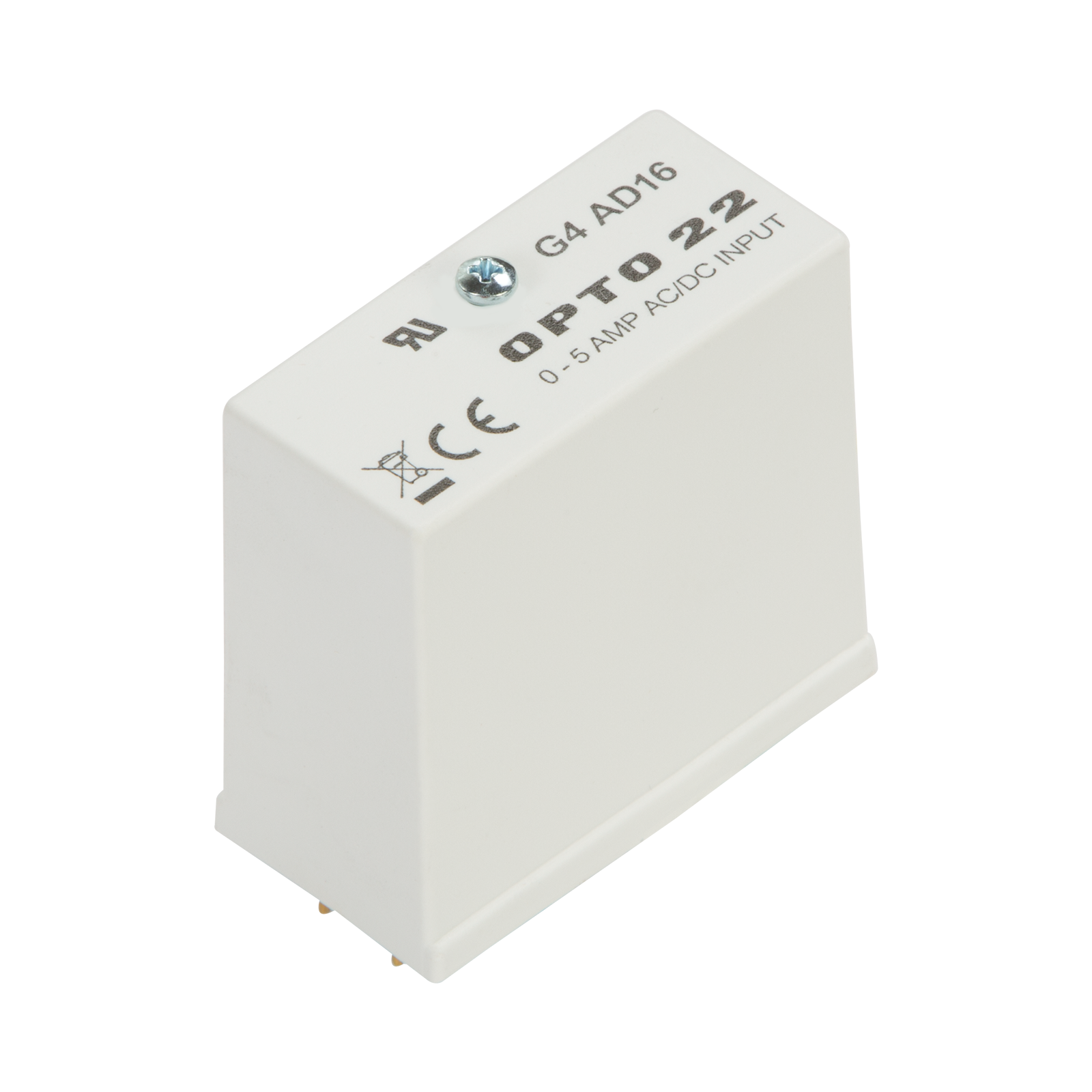

The G4AD16 provides a single channel of optically isolated true RMS current-to-digital conversion with an input current of 0-5 amp AC or DC. This module includes complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems. An ideal input is the 5-amp secondary winding of a standard current transformer used to monitor AC line current.
|
Input
|
0 - 5 amp AC/DC
|
|
Input Impedance
|
0.02 Ohms
|
|
Maximum Input
|
8 amps AC/DC
|
|
Accuracy*
|
25 mA
|
|
Resolution
|
12 bits
|
|
Response Time
|
Full scale step change in 1,200 ms
|
|
Isolation (Transient)
Input-to-Output
Supply
|
4,000 Vrms
4,000 Vrms
|
|
Operating Temperature
|
0 to 70 °C
|
|
Operating Storage
|
-25 to 85 °C
|
| Agency Approvals |
UL, CE; UKCA |
|
* Accuracy figure requires use of gain and offset commands.
|
*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***
The G4AD16 module provides a single channel of optically-isolated true RMS current-to-digital conversion.
