*** NOTE: This part is obsolete and no longer available when current stock is depleted. *** G4 I/O family

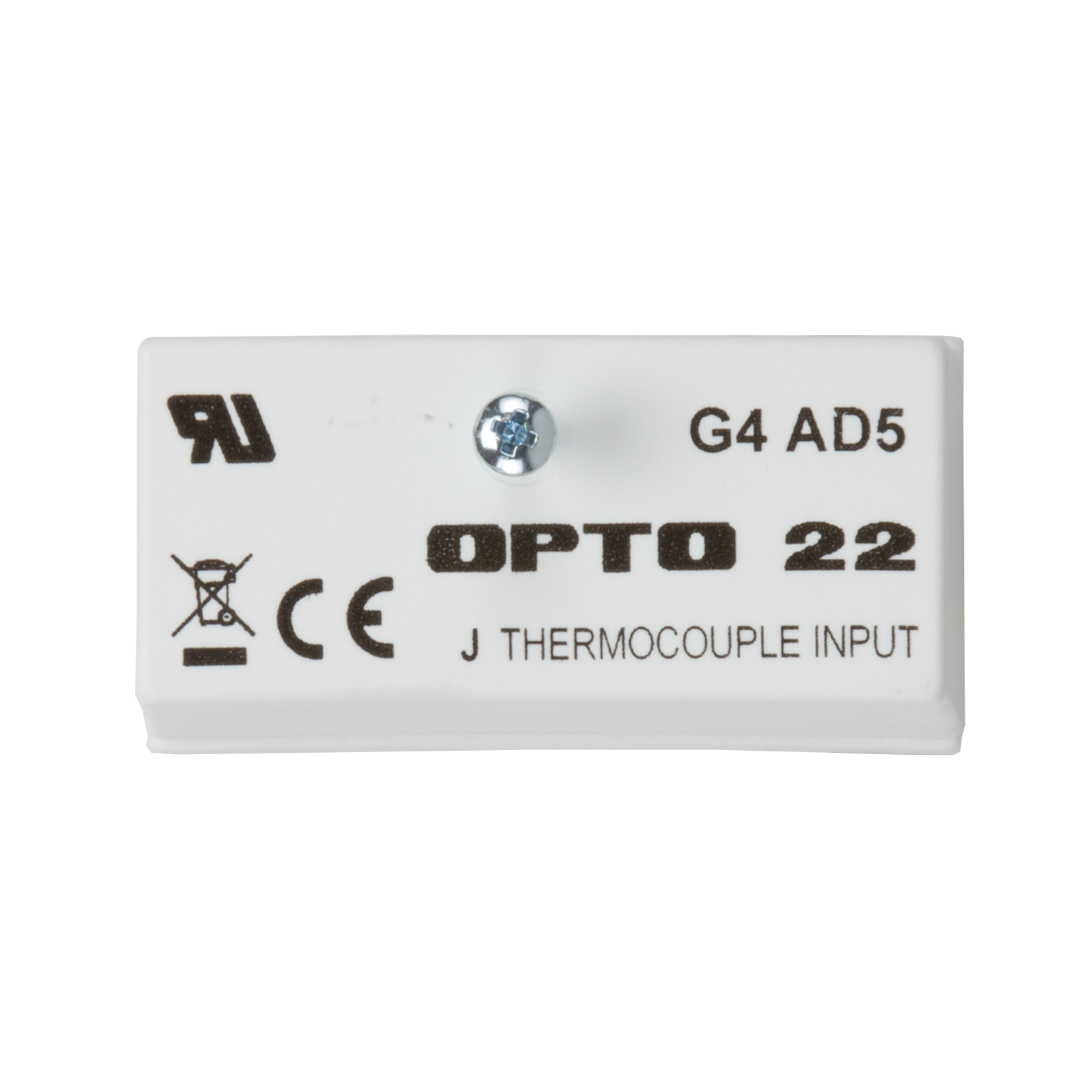

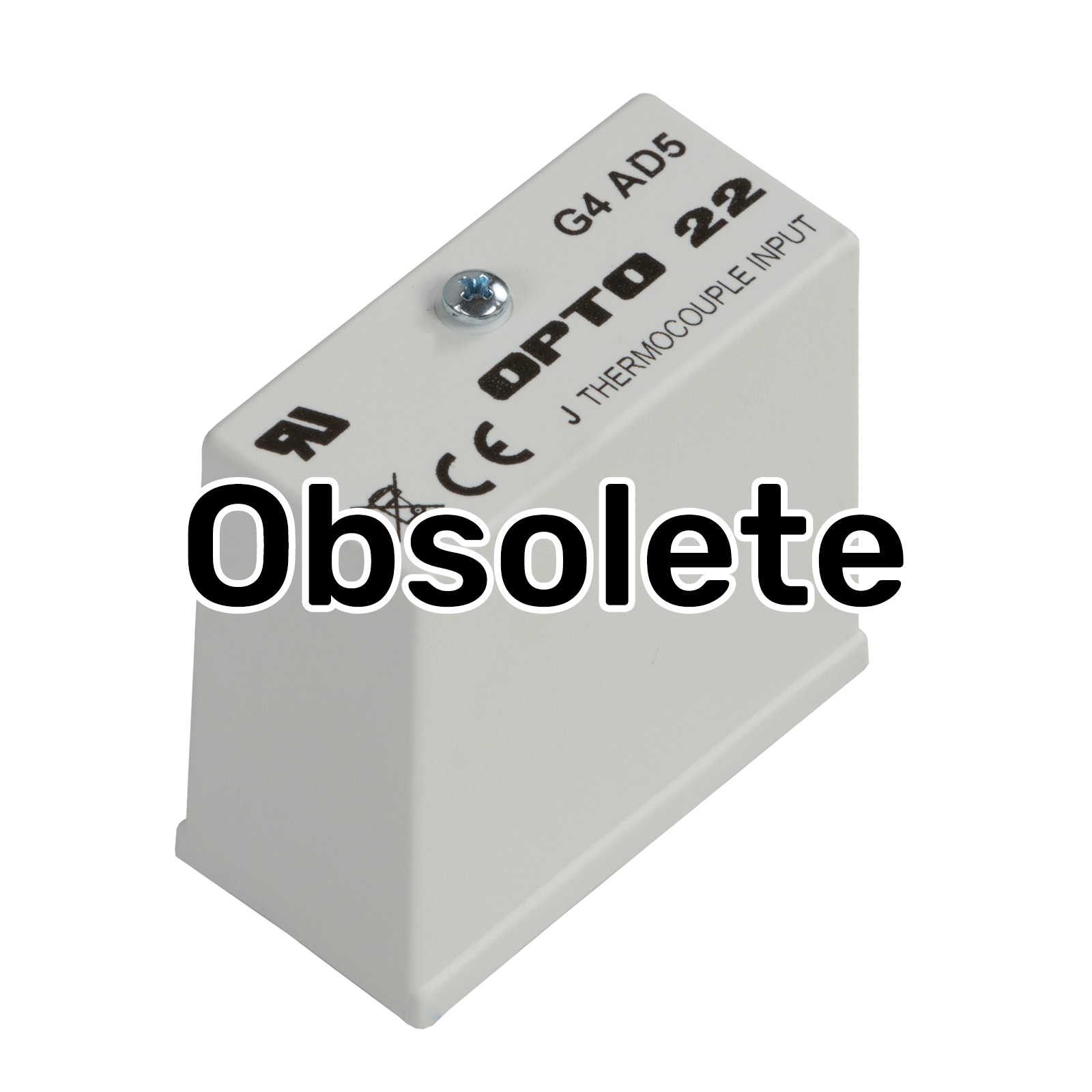

The G4AD5 provides a single channel of transformer and optically isolated temperature-to-digital conversion from a Type J thermocouple input. This module also includes complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems.
G4AD5 [OBSOLETE}
G4AD8
G4AD17 [OBSOLETE]
G4AD18 [OBSOLETE]
G4AD19 [OBSOLETE]
G4AD23 [OBSOLETE]
G4AD24 [OBSOLETE]
Thermocouple Type
J
K
R
T
E
S
B
Nominal Temperature Range °C
0° to 485°
-100° to 460°
0° to 960°
-200° to 224°
-100° to 435°
0° to 1,034°
42° to 1,491.85°
Nominal Temperature Range °F
32° to 905°
-148° to 860°
32° to 1,760°
-328° to 435.2°
-148° to 815°
32° to 1,893.2°
107.888° to 2,717.33°
Accuracy*
± 1 °C
± 2.5 °C
± 0.9 °C
± 5 °C
Over/Under Range Capability °C
-32° to 1,200°
-150° to 1,372°
-50° to 1,768°
-270° to 400°
-155° to 1,000°
42° to 1,820°
Over/Under Range Capability °F
-25° to 2,192°
-238° to 2,501°
-58° to 3,214°
-454° to 752°
-247° to 1,832°
107.9° to 3,308°
Over/Under Range Accuracy
± 2 °C
± °C
± 1.8 °C
* Accuracy figure requires use of gain and offset commands.
Isolation (Transient) Input-to-output Input-to-analog supply
4,000 Vrms 4,000 Vrms
Cold Junction Compensated
Yes
Open Thermocouple Detection
Input Response Time
5% of scale change in 8.5 ms 63% of scale change in 165 ms
Ambient Temperature Operating Storage
0 to 70 °C -25 to 85 °C
Resolution
12 bits
Thermocouple analog modules provide a single channel of transformer and optically- isolated temperature-to-digital conversion.
