*** NOTE: This part is obsolete and no longer available when current stock is depleted. *** G4 I/O family

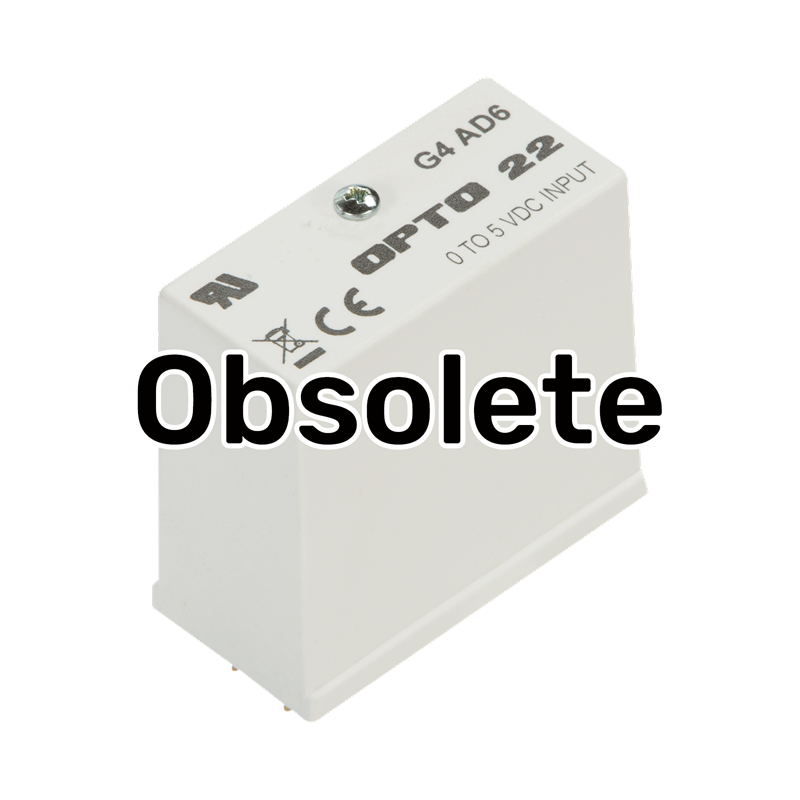

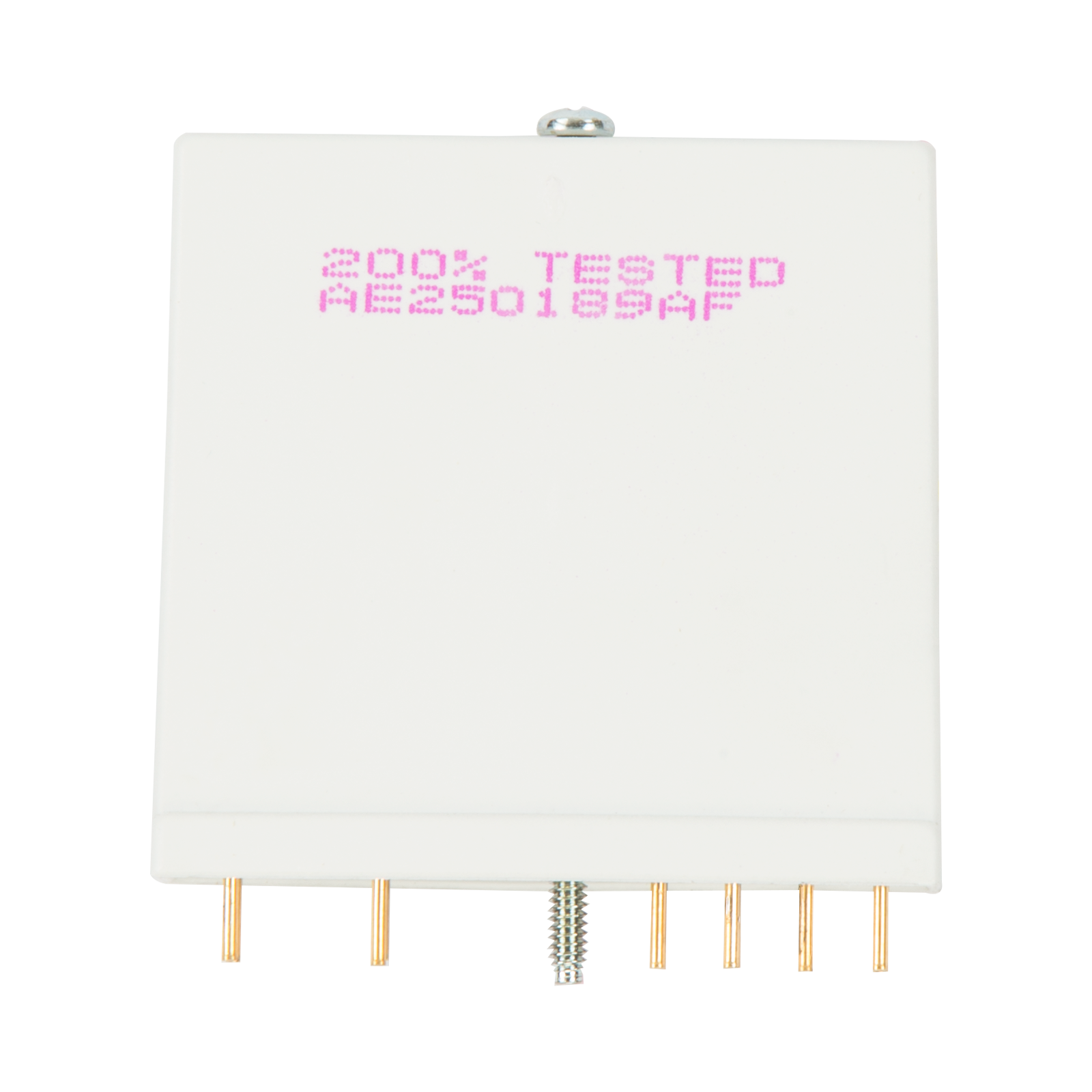

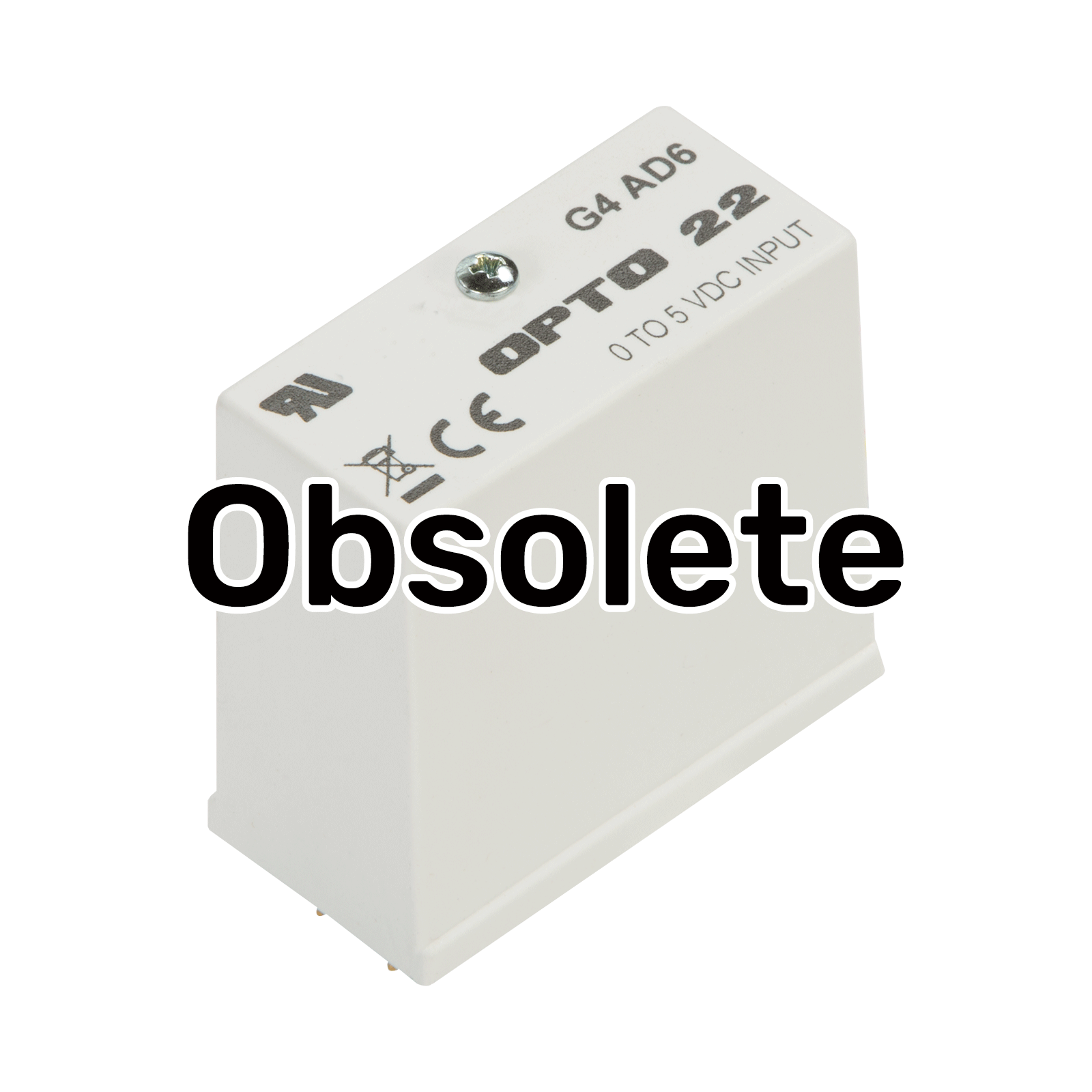

The G4AD6 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to +5 VDC. This module also provides complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems.
G4AD6**
G4AD6HS**
G4AD7*
G4AD7HS*
G4AD9*
G4AD11*
G4AD12*
G4AD13*
G4AD22*
Nominal Voltage Input
0 to 5 VDC
0 to 10 VDC
0 to 50 mV
-5 to +5 VDC
-10 to +10 VDC
0 to 100 mV
0 to 1 VDC
Over/Under Range
-0.3 to 11 VDC
-0.6 to 22 VDC
-3.0 to 110 mV
-5.6 to 21 VDC
-11.2 to 42 VDC
-6 to 220 mV
-60 mV to 2.2 VDC
Accuracy*
± 5 mV
± 10 mV
± 100 µV
± 20 mV
± 1 mV\
Response Time % Of Scale Change 5% 63%
8.4 msec 165 msec
< 3 msec < 3 msec
2 msec 36 mse
2 msec 36 msec
< 3 msec < 10 msec
* Accuracy figure requires use of gain and offset commands.
* This product is Obsolete and no longer available. ** This product is Obsolete and available until stock is depleted.
Resolution
12 bits
Isolation (Transient) Input-to-output Input-to-analog supply
4,000 Vrms 4,000 Vrms
Ambient Temperature Operating Storage
-30 to 70 °C -40 to 85 °C
*** This parts are obsolete and no longer available when current stock is depleted. *** Opto 22’s voltage input modules provide a single channel of transformer and optically- isolated voltage-to-digital conversion. These data sheet describes these parts: G4AD6,G4AD6HS, G4AD7, G4AD7HS, G4AD9, G4AD11, G4AD12, G4AD13, G4AD22.
