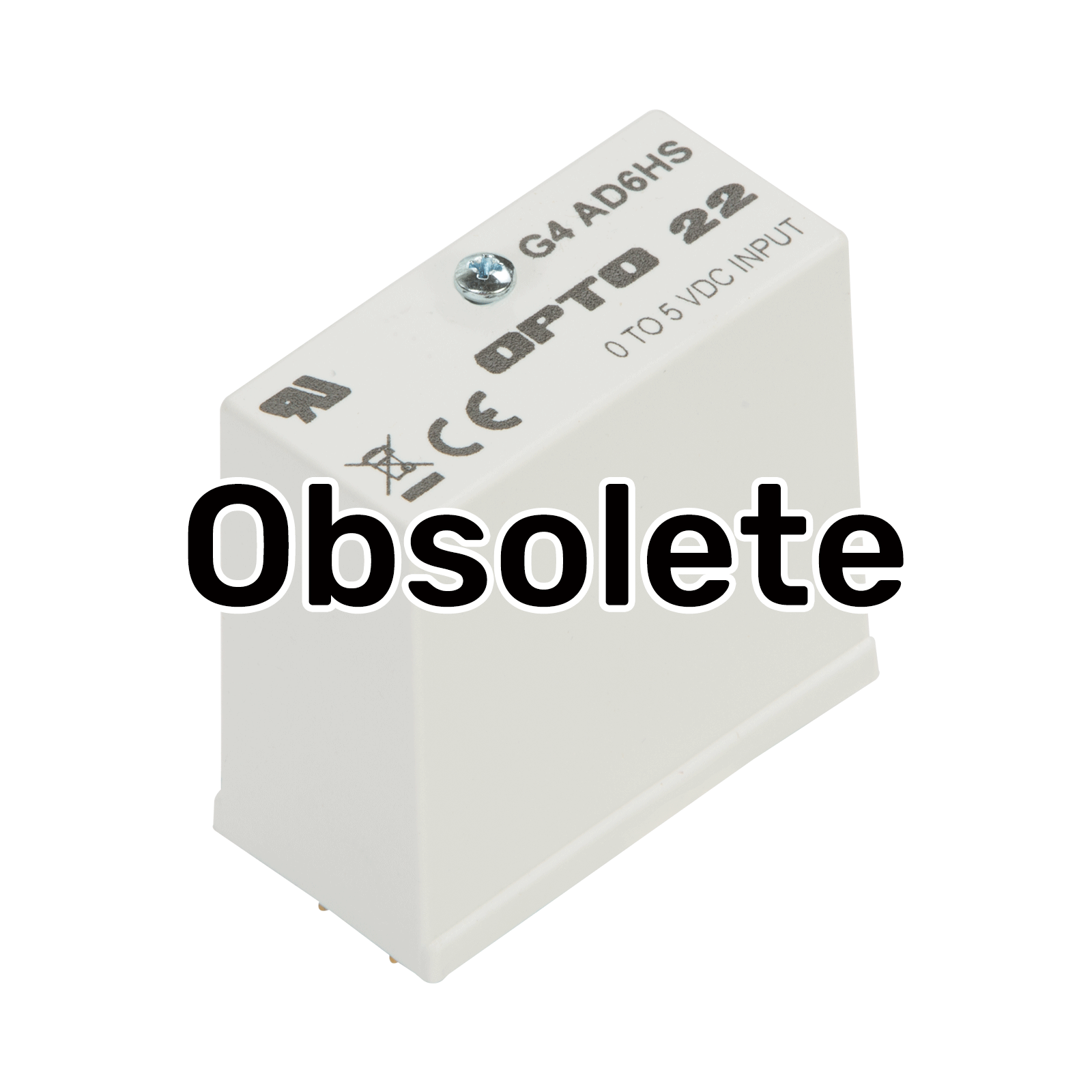

*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.
G4 I/O family

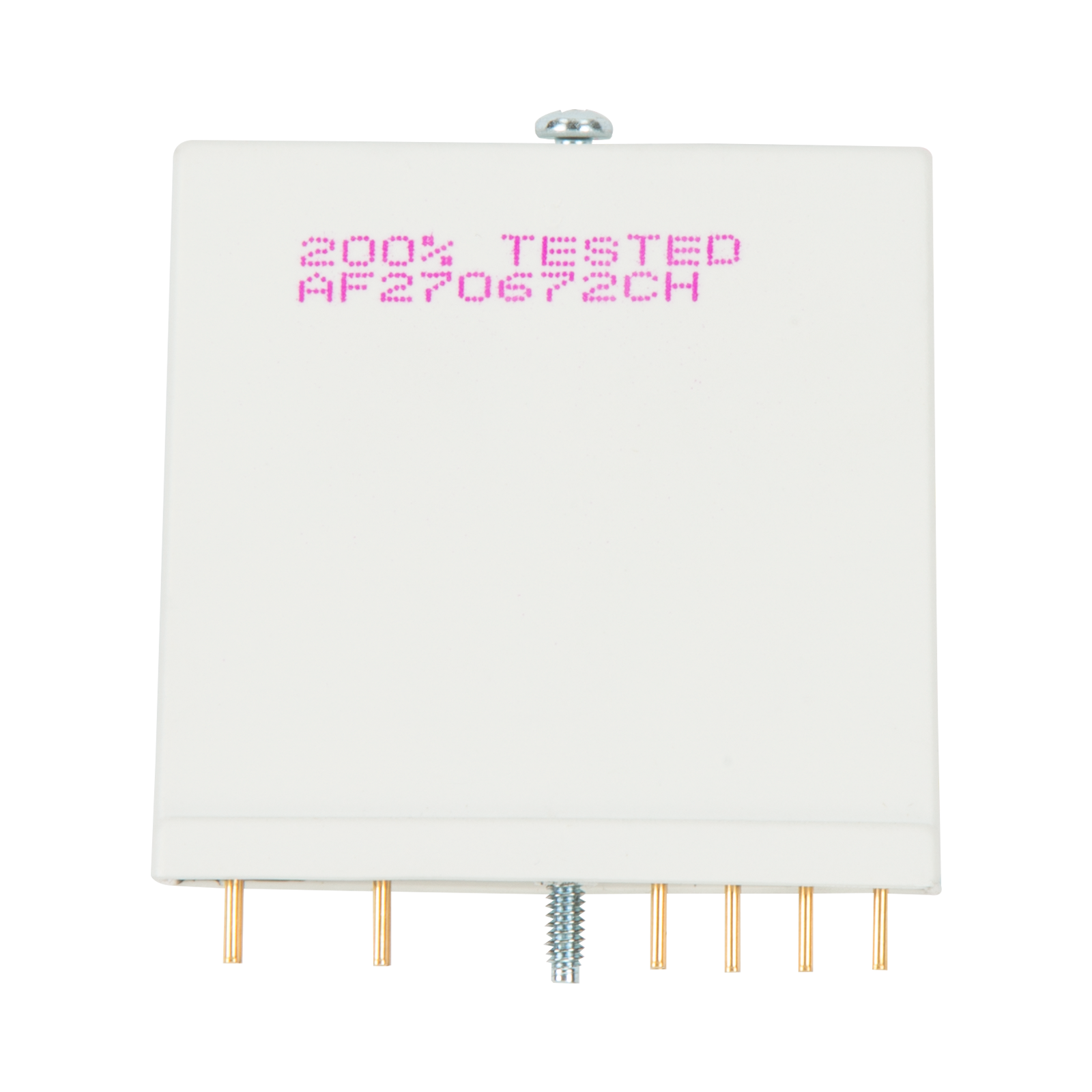

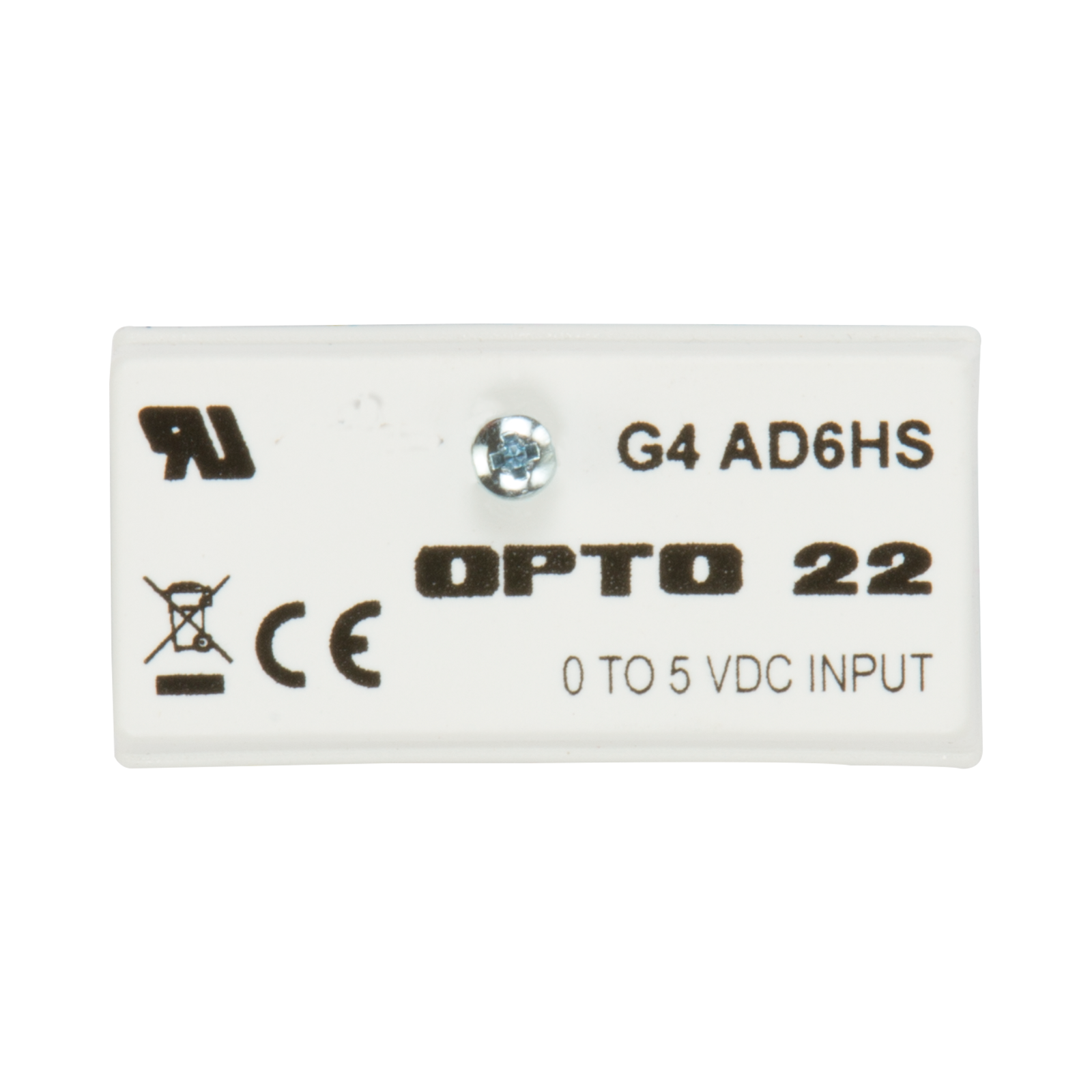

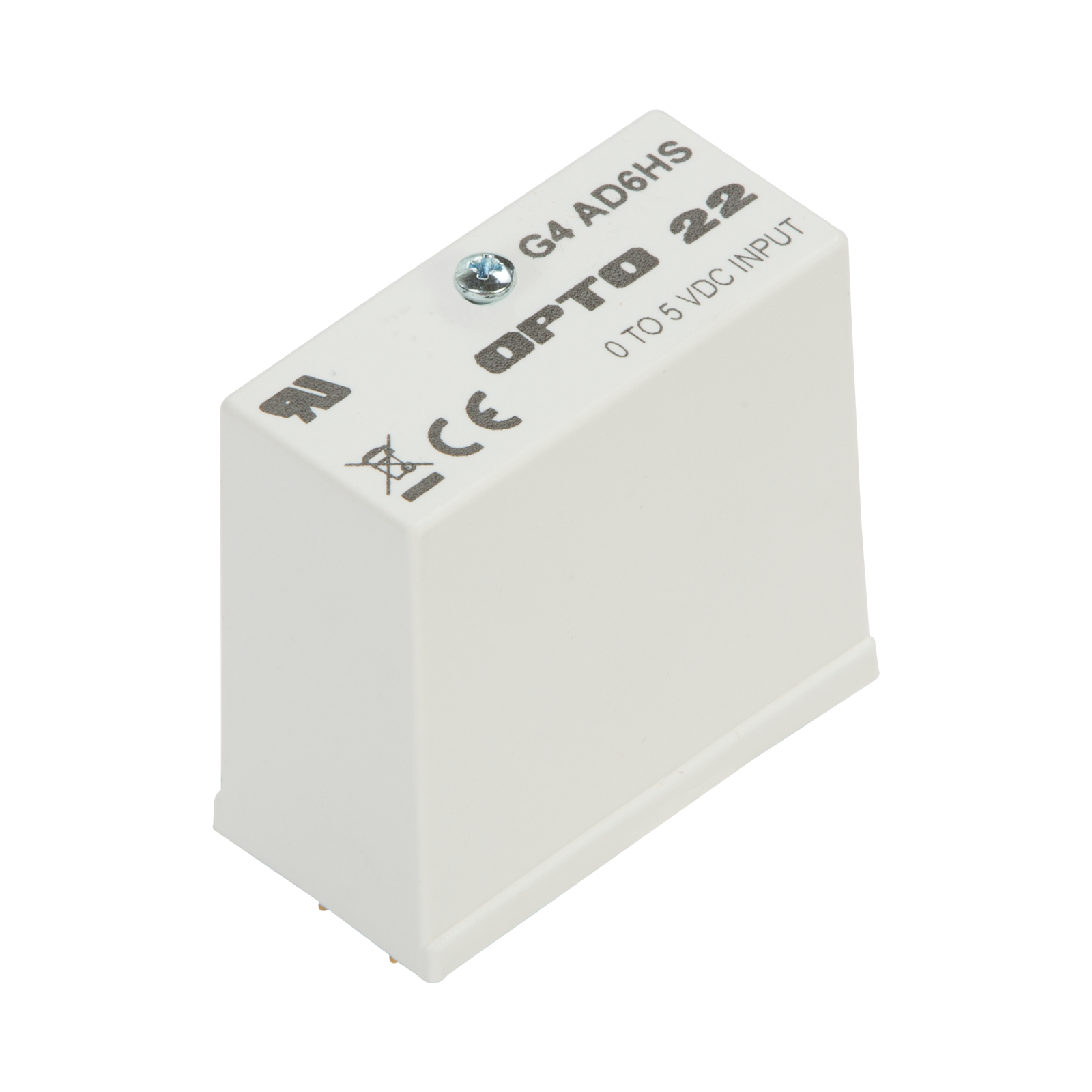

The G4AD6HS analog input module provides a single high-speed channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to +5 VDC. This module also provides complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems.
|
|
G4AD6**
|
G4AD6HS*
|
G4AD7*
|
G4AD7HS*
|
G4AD9*
|
G4AD11*
|
G4AD12*
|
G4AD13*
|
G4AD22*
|
|
Nominal Voltage Input
|
0 to 5 VDC
|
0 to
5 VDC
|
0 to
10 VDC
|
0 to
10 VDC
|
0 to
50 mV
|
-5 to
+5 VDC
|
-10 to
+10 VDC
|
0 to
100 mV
|
0 to
1 VDC
|
|
Over/Under Range
|
-0.3 to
11 VDC
|
-0.3 to
11 VDC
|
-0.6 to
22 VDC
|
-0.6
to 22 VDC
|
-3.0 to
110 mV
|
-5.6 to
21 VDC
|
-11.2 to
42 VDC
|
-6 to
220 mV
|
-60 mV to
2.2 VDC
|
|
Accuracy*
|
± 5 mV
|
± 5 mV
|
± 10 mV
|
± 10 mV
|
± 100 µV
|
± 10 mV
|
± 20 mV
|
± 100 µV
|
± 1 mV\
|
|
Response Time
% Of Scale Change
5%
63%
|
8.4 msec
165 msec
|
< 3 msec
< 3 msec
|
8.4 msec
165 msec
|
< 3 msec
< 3 msec
|
2 msec
36 mse
|
8.4 msec
165 msec
|
8.4 msec
165 msec
|
2 msec
36 msec
|
< 3 msec
< 10 msec
|
| Agency Approvals |
UL, RoHS, CE;
UKCA |
UL, CE; UKCA |
UL, CE; UKCA |
UL, CE; UKCA |
UL, CE; UKCA |
UL, CE; UKCA |
UL, NEBS Compliant,
CE; UKCA |
UL, CE; UKCA |
CE; UKCA |
|
* Accuracy figure requires use of gain and offset commands.
|
* This product is Obsolete and no longer available.
** This product is Obsolete and available until stock is depleted.
|
Resolution
|
12 bits
|
|
Isolation (Transient)
Input-to-output
Input-to-analog supply
|
4,000 Vrms
4,000 Vrms
|
|
Ambient Temperature
Operating
Storage
|
-30 to 70 °C
-40 to 85 °C
|
*** This parts are obsolete and no longer available when current stock is depleted. ***
Opto 22’s voltage input modules provide a single channel of transformer and optically- isolated voltage-to-digital conversion. These data sheet describes these parts: G4AD6,G4AD6HS, G4AD7, G4AD7HS, G4AD9, G4AD11, G4AD12, G4AD13, G4AD22.
