*** Note: The G4DA10 is OBSOLETE and no longer available. ***
Please contact Opto 22
Pre-Sales engineers for more information.
G4 I/O family

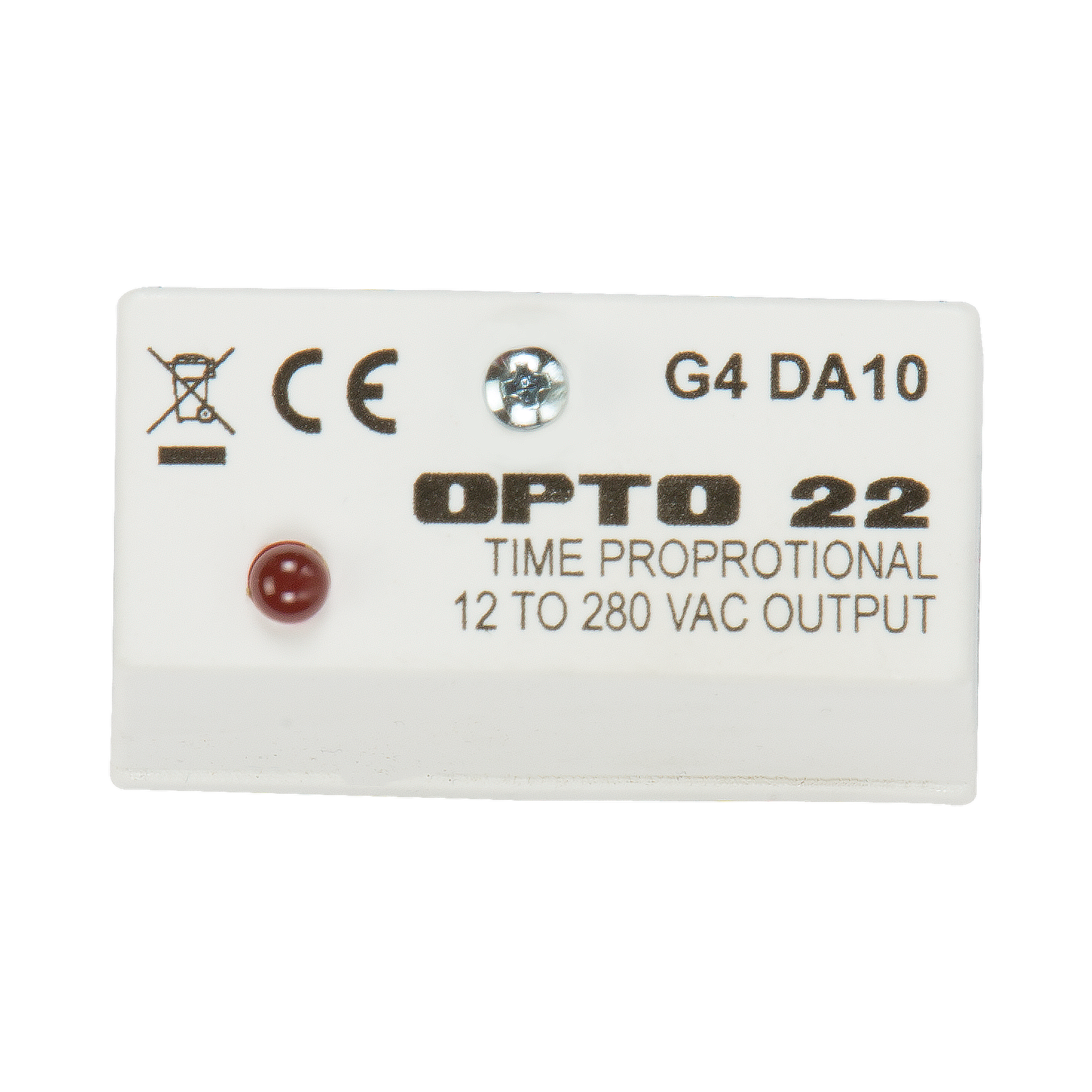

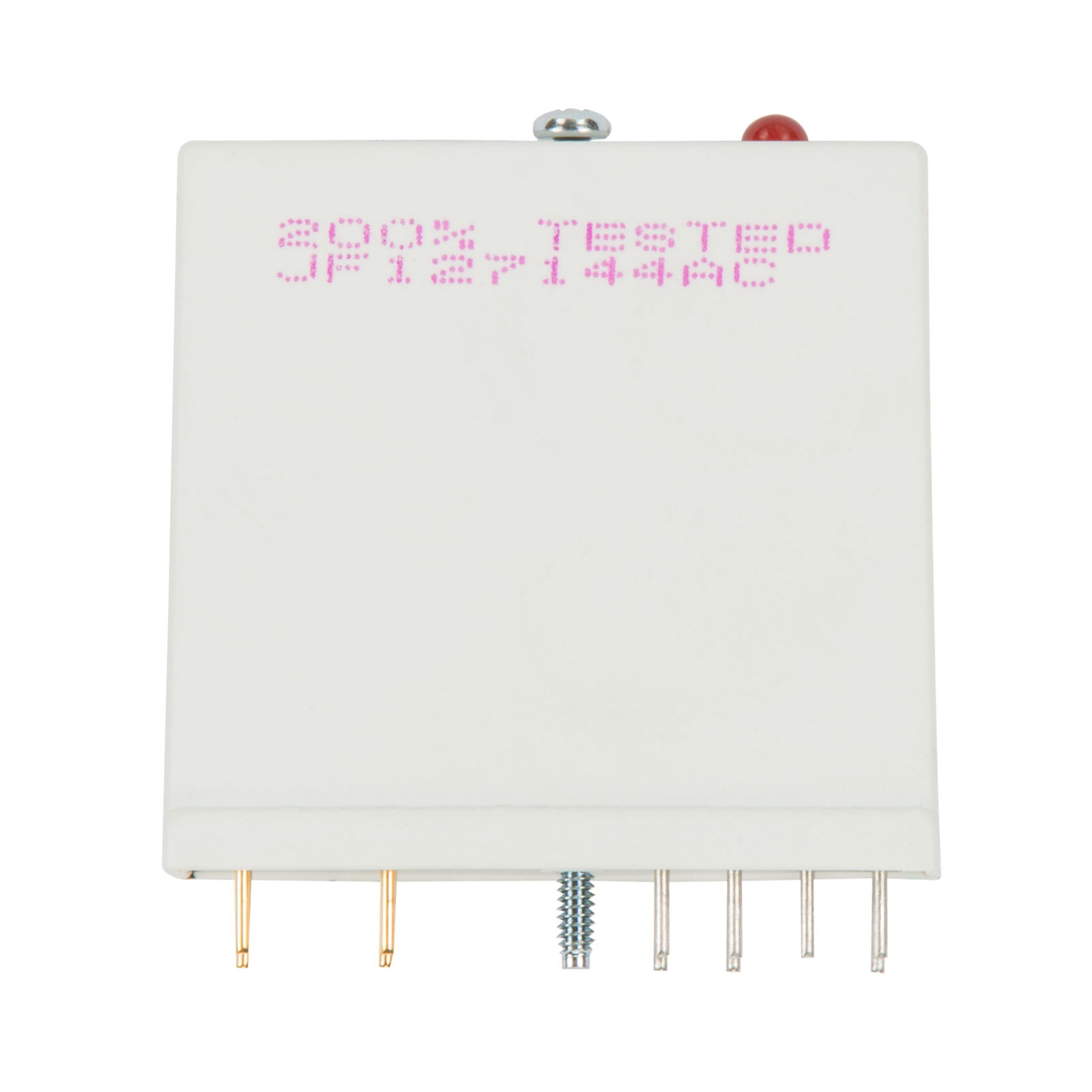

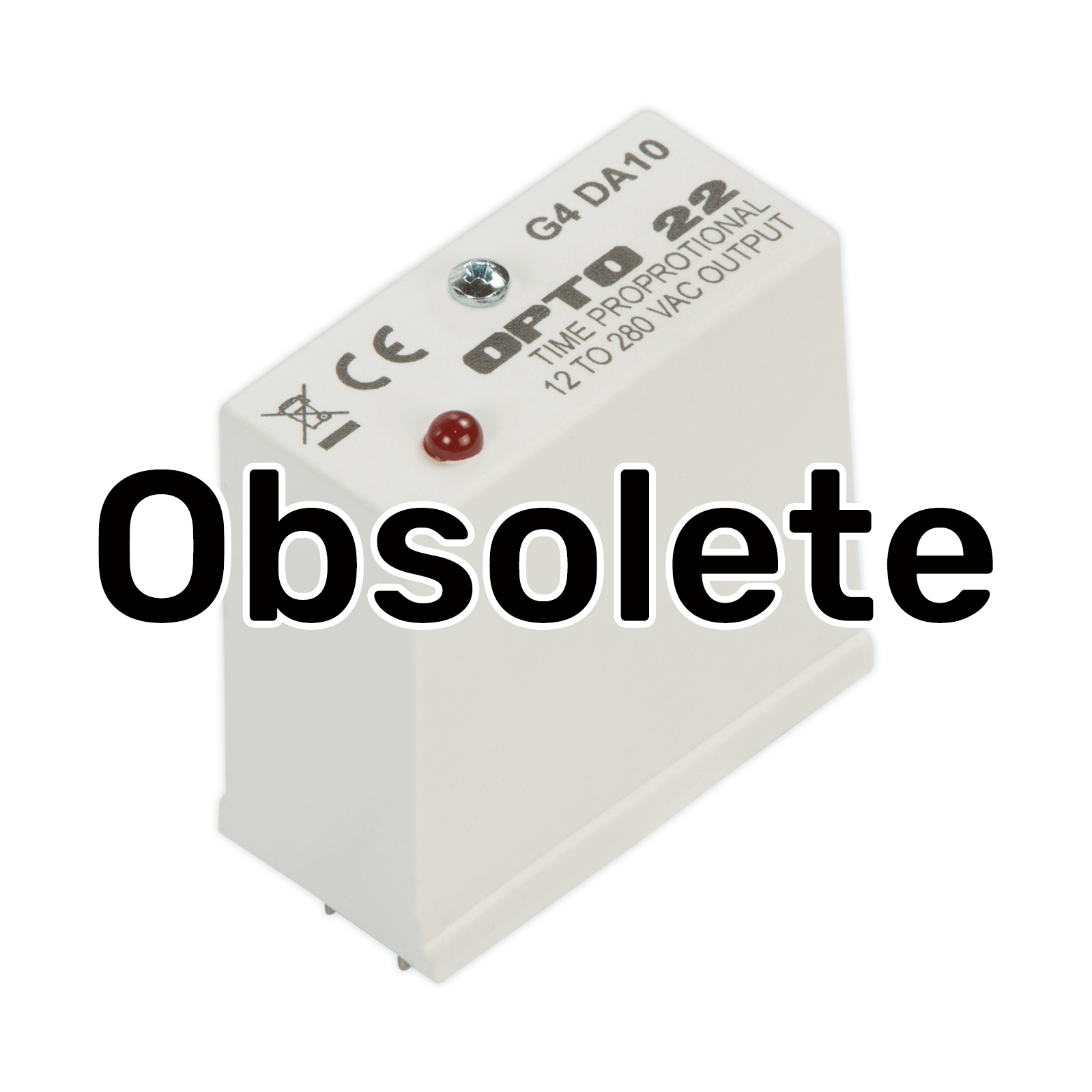

The G4DA10 time proportional output (TPO) module provides digital control from a mistic analog brick or modular controller. The module is optically isolated to 4,000 volts (transient) from field devices and features point-to-point electrical isolation. The module switches 12-280 VAC. Together with a
Power-series solid-state relay (SSR), the G4DA10 can be used to control heater circuits.
|
G4DA9 [OBSOLETE}
|
G4DA10 [OBSOLETE}
|
Ambient Temperature
Operating
Storage
|
0 °C to 70 °C
- 25 °C to 85 °C
|
0 °C to 70 °C
- 25 °C to 85 °C
|
Isolation Input-to-Output
|
4,000 Vrms
|
4,000 Vrms
|
Turn-on Time
|
50 ms
|
Half cycle AC waveform
|
Turn-off Time
|
50 ms
|
Half cycle AC waveform
|
Output Voltage Drop
Maximum Peak
|
1.6 V
|
1.6 V
|
Operating Voltage Range
|
5 - 60 VDC
|
12 - 280 VAC
|
Current Rating
at 45 °C Ambient
at 70 °C Ambient
|
0.5 A
0.3 A
|
0.5 A
0.3 A
|
Surge Rating
|
1 A for 1 second
|
80 A (peak) for 1 cycle
|
Off-State Leakage at
Maximum Voltage
|
1 mA at 60 VDC
|
3 mA at 280 VAC
|
Period
|
2.048 seconds to 8.7 minutes
4.096 seconds default
|
2.048 seconds to 8.7 minutes
4.096 seconds default
|
Resolution
|
12-bit
Each bit = Period/4096
1 millisecond/bit default
|
12-bit
Each bit = Period/4096
1 millisecond/bit default
|
Power Requirements
|
5 V at 25 mA
|
5 V at 25 mA
|
Agency Approvals |
UL, CE |
CE |
*** Note: The G4DA9 and G4DA10 are OBSOLETE and no longer available. ***
The G4DA9 and G4DA10 time proportional output (TPO) modules provide digital control from a Mistic Analog brick or Modular controller.
