$330.00 (USA and Canada only)
*** This product is OBSOLETE and no longer available when current stock is depleted. *** G4 I/O family

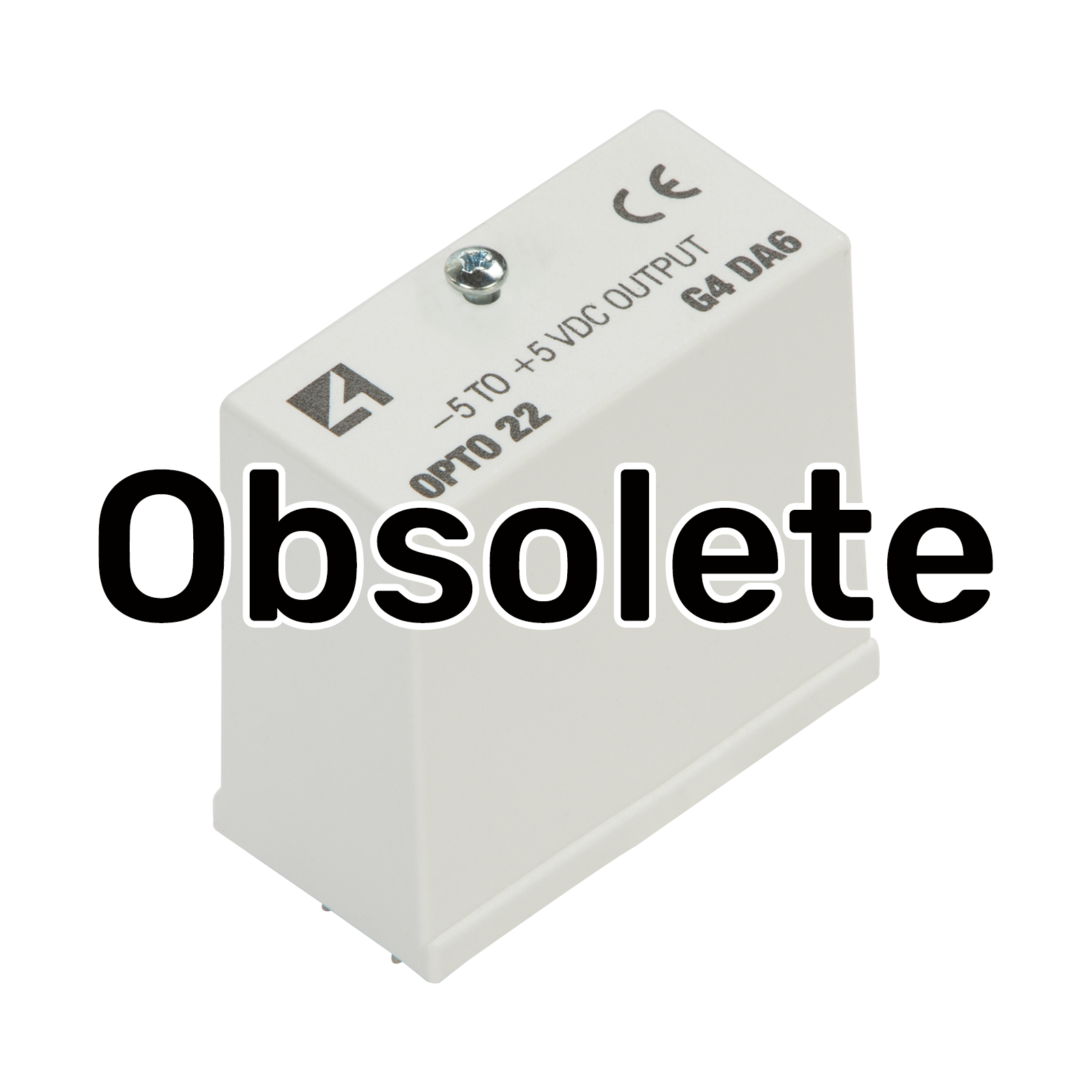

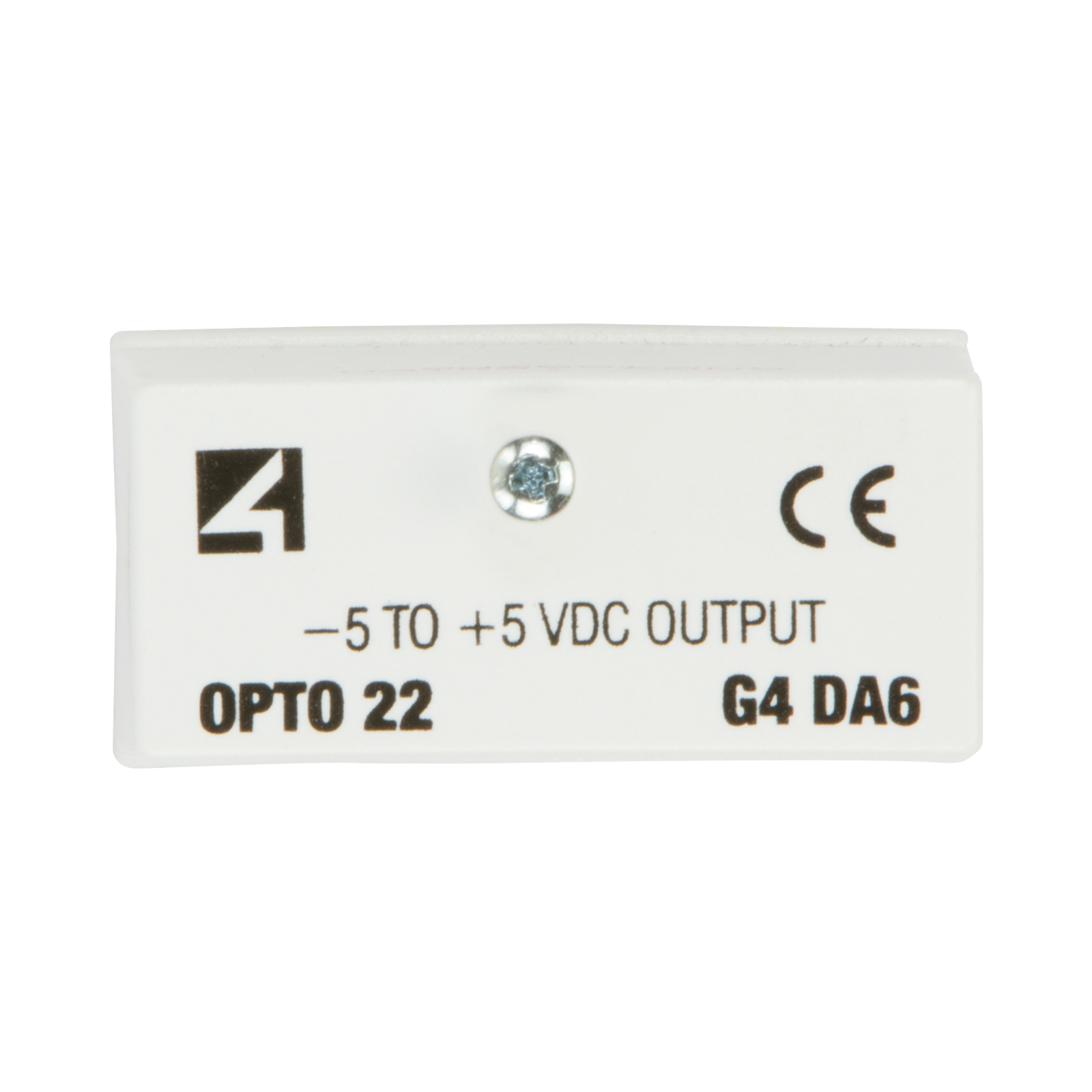

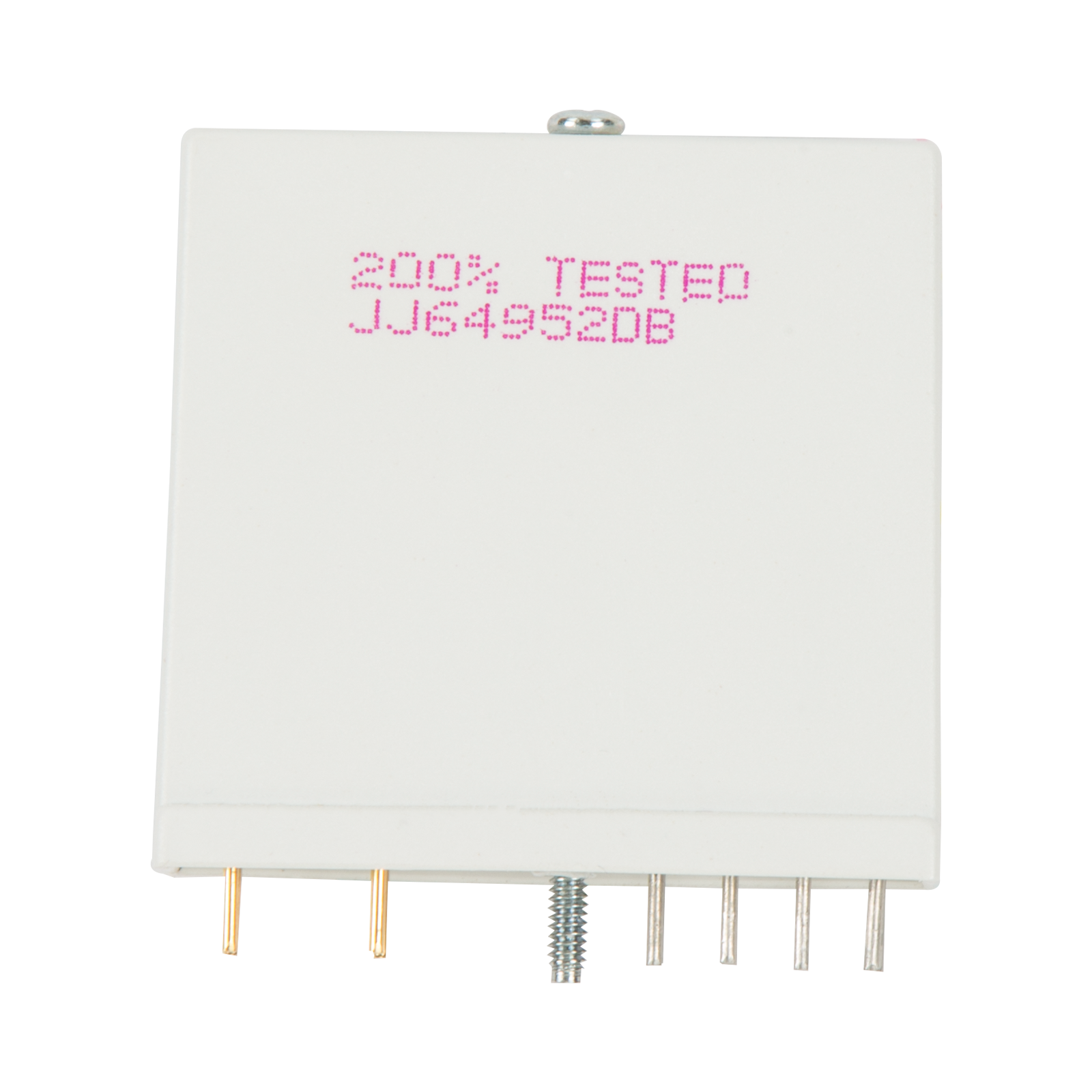

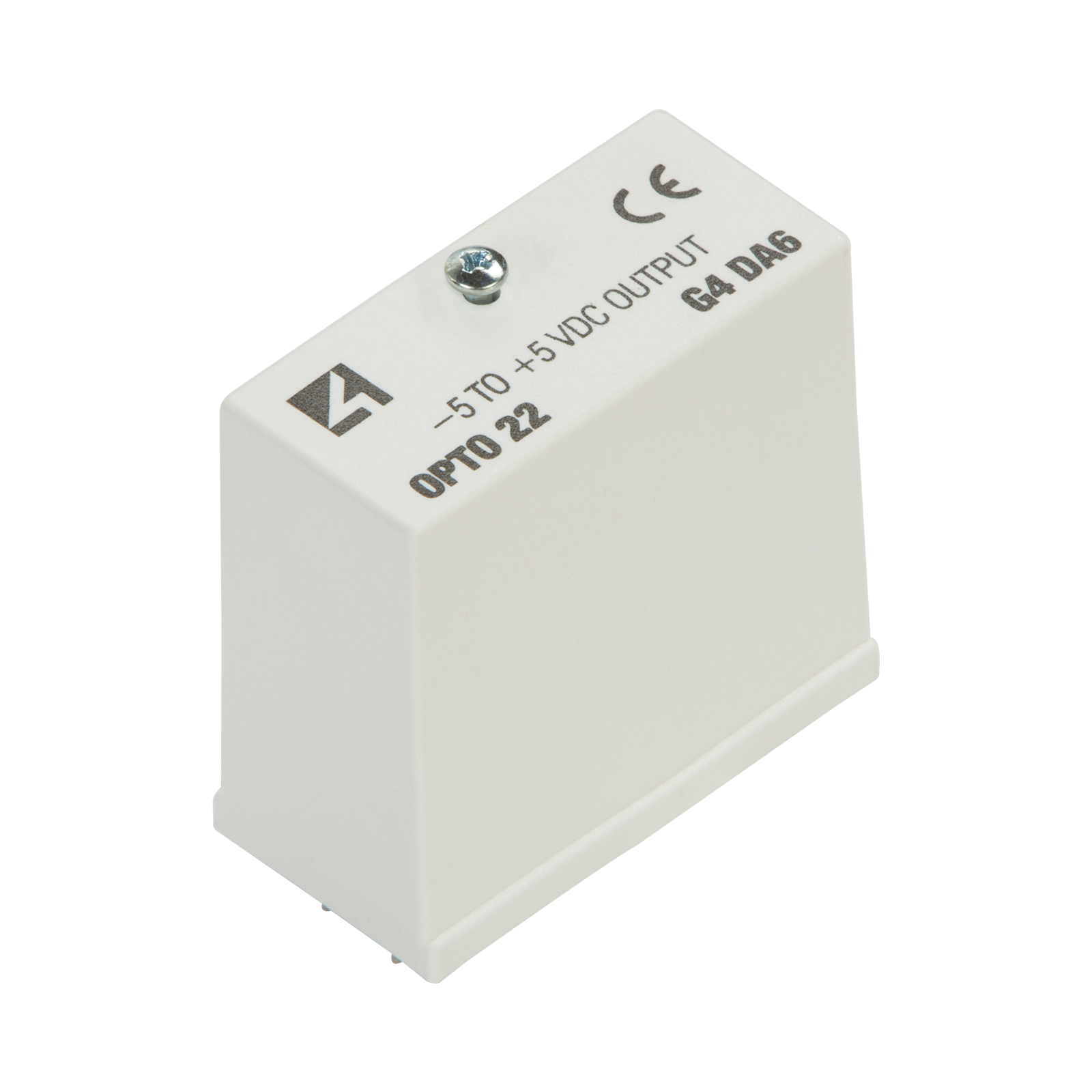

The G4DA6 provides a single channel of transformer and optically isolated digital-to-voltage conversion. Output voltage is -5 to +5 VDC. This module also includes complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems.
G4DA4 *
G4DA5*
G4DA6**
G4DA7**
Output Voltage
0 to 5 VDC
0 to 10 VDC
-5 to +5 VDC
-10 to +10 VDC
Accuracy
±5 mV
±10 mV
±20 mV
* This product is Obsolete and no longer available. ** This product is Obsolete and no longer available when stock is depleted.
Maximum Output current
20 mA
Output response time
Full scale step change in 3 ms
Resolution
12 bits
Isolation (Transient) Input-to-output Input-to-analog supply
4,000 Vrms 4,000 Vrms
Ambient temperature Operating Storage
0 to 70 °C -25 to 85 °C
G4 analog voltage output modules provide a single channel of transformer and optically isolated digital to voltage conversion. This data sheet includes:
