$26.00 (USA and Canada only)
*** NOTE: This part is obsolete and no longer available when current stock is depleted. *** G4 I/O family

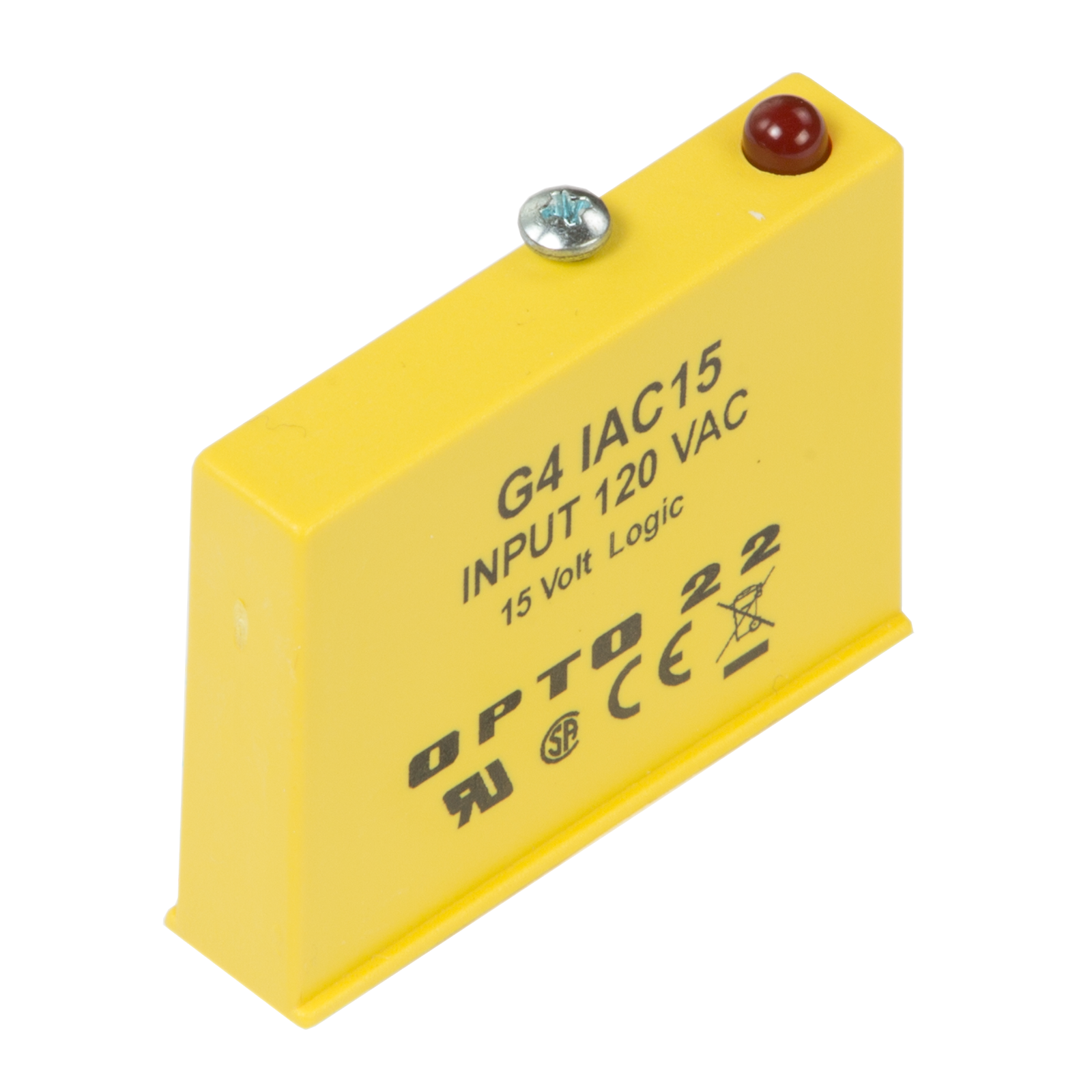

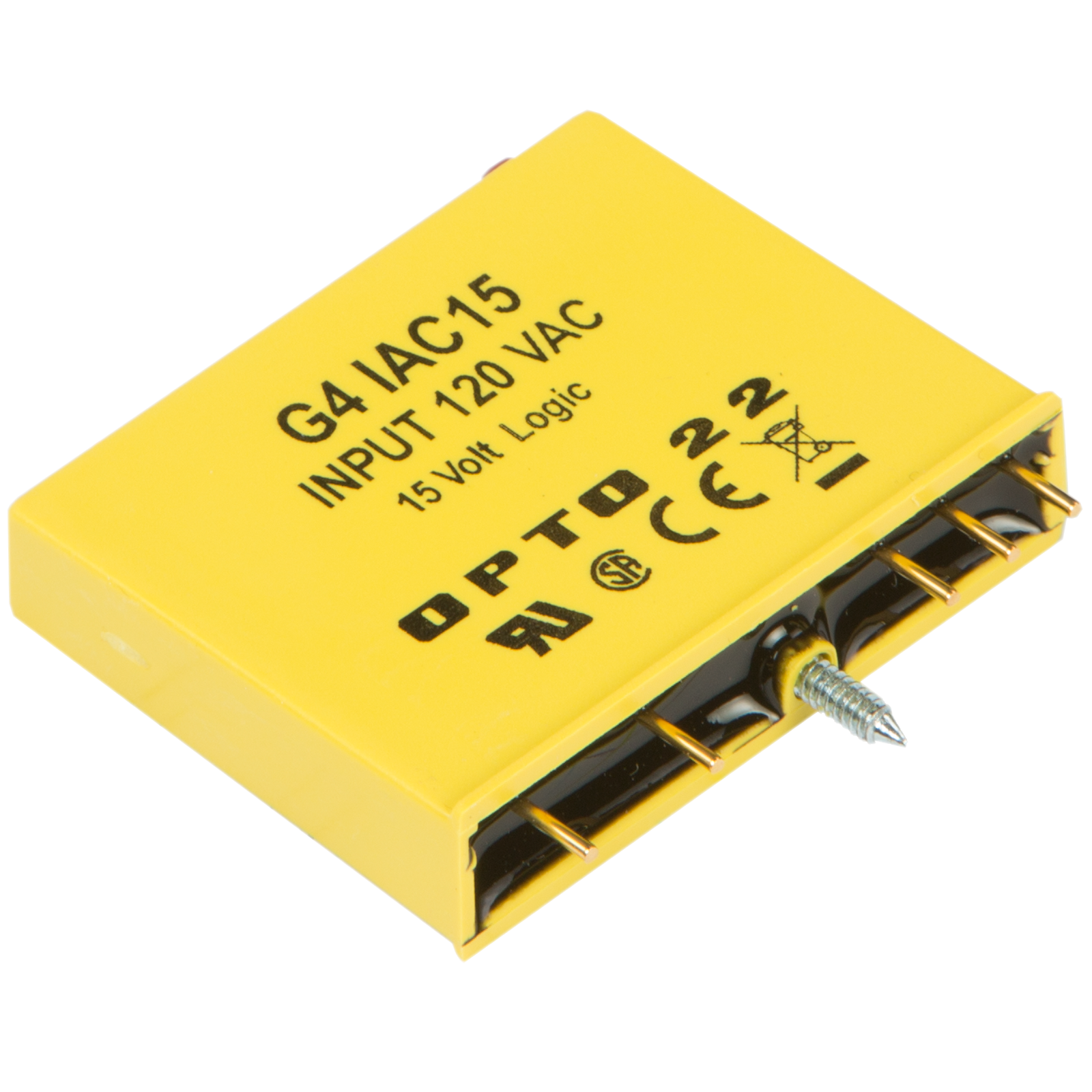

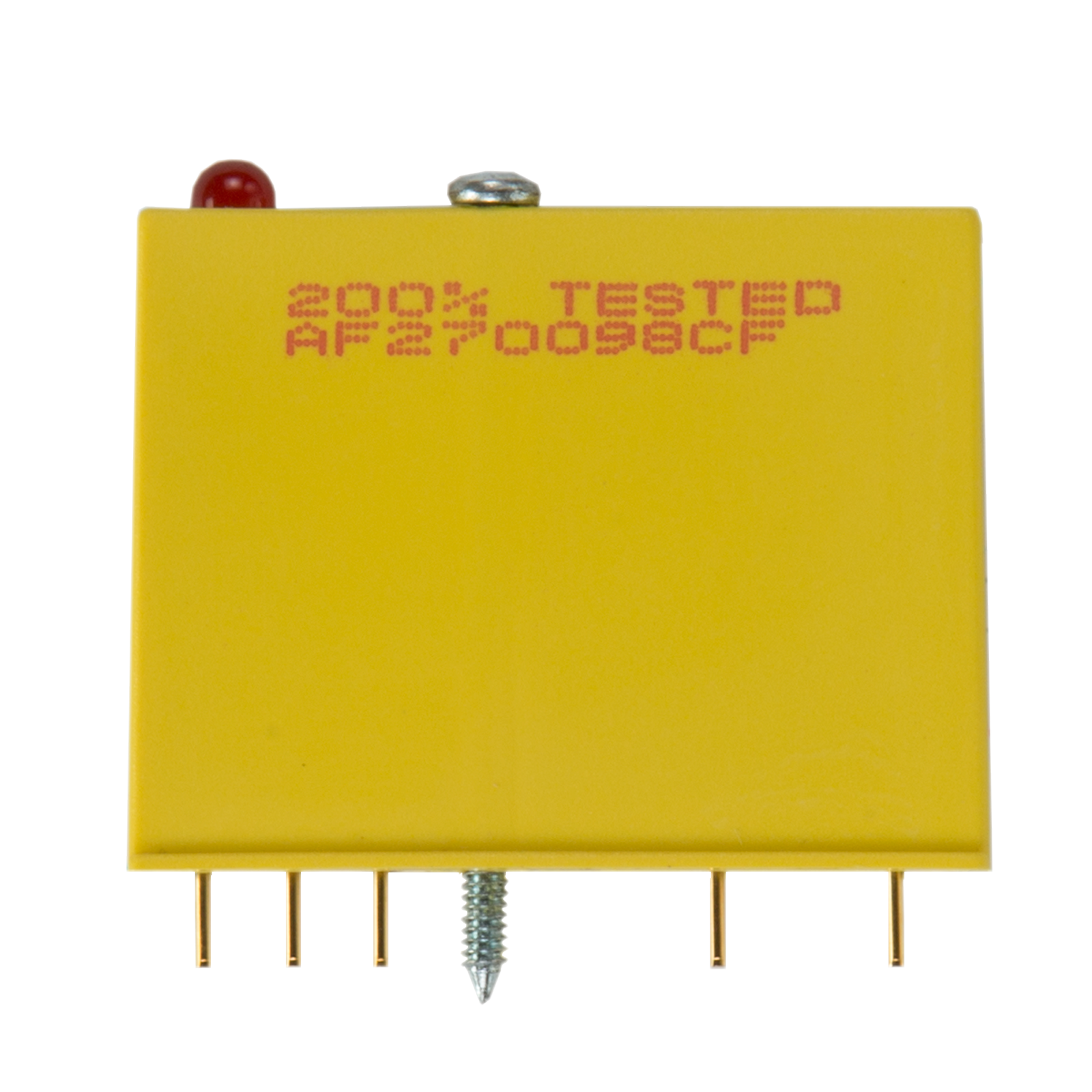

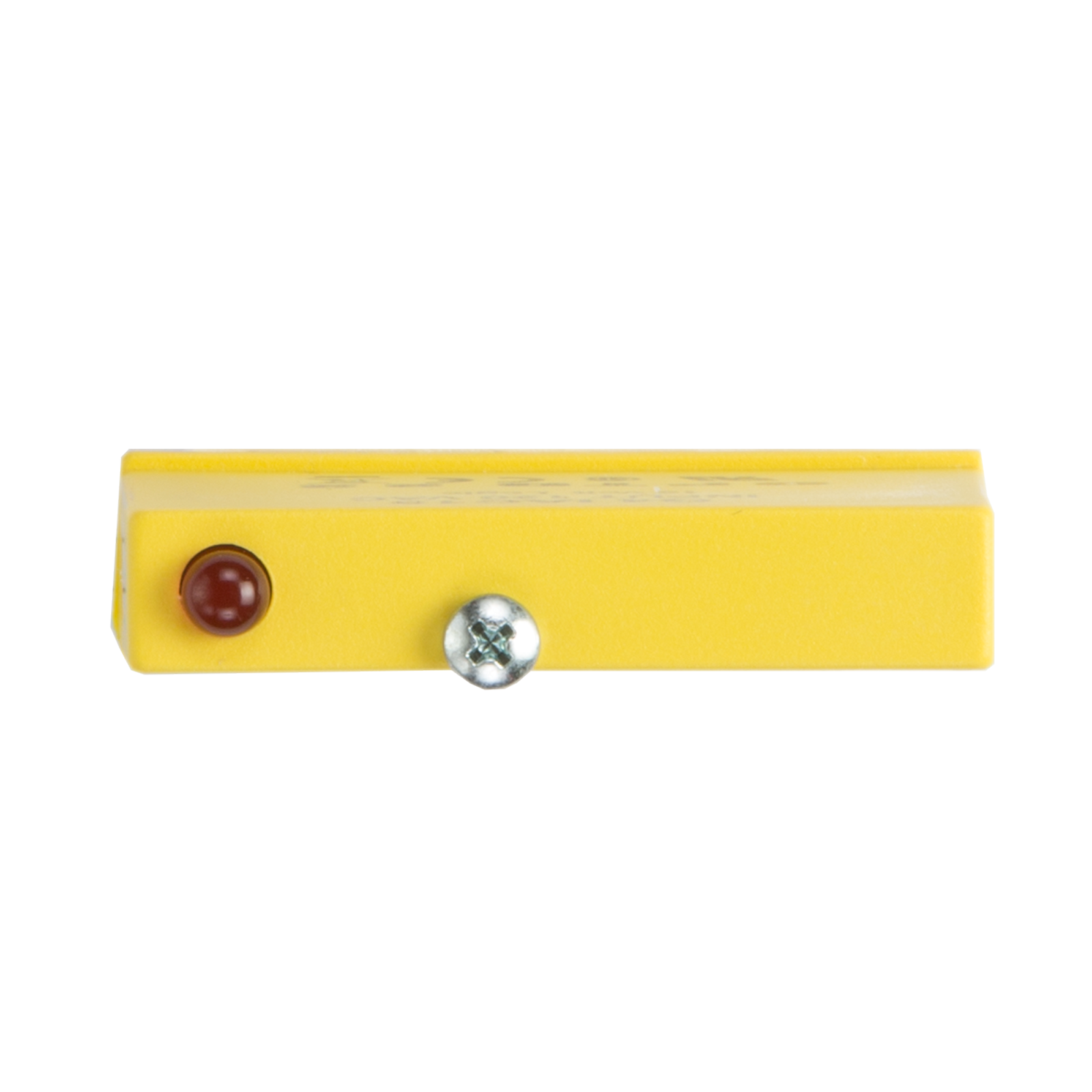

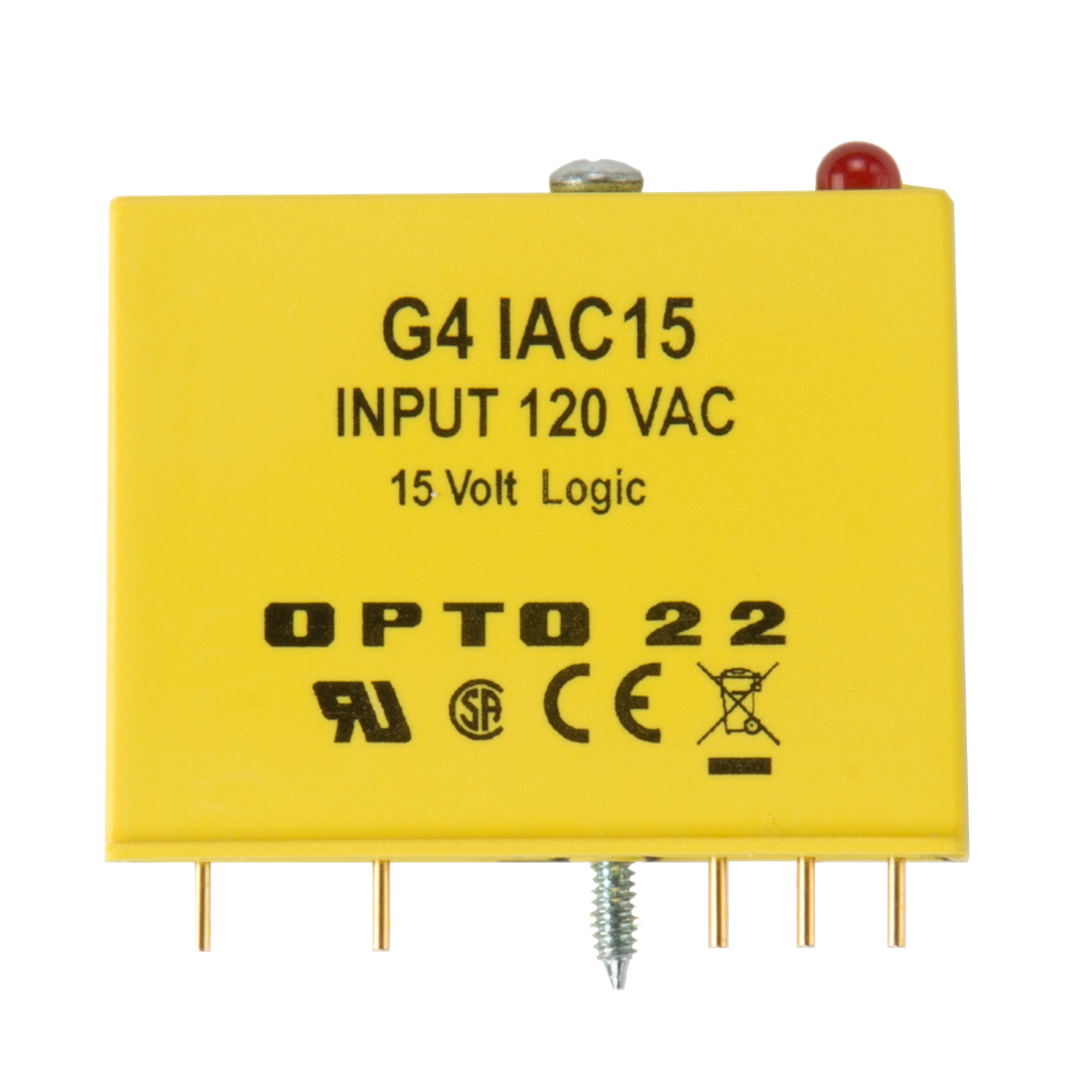

The G4IAC15 is a digital AC input module with an input voltage range of 90-140 VAC/VDC, requiring a typical logic voltage of 15 VDC. It is not for use with Opto 22 brains or with a Raspberry Pi, which use 5 VDC logic.
Opto 22’s G4 AC input modules are used to detect on/off AC (or DC) voltage levels. Each module provides up to 4000 volts of optical isolation (transient) between field inputs and the logic output of the circuit. All AC input modules are designed with filtering on the input and a hysteresis amplifier, providing high noise rejection and transient-free “clean” switching. Typical applications for AC input modules include sensing the presence or absence of voltage, and sensing contact closure from sources such as proximity switches, limit switches, float switches, selector switches, push buttons, toggle switches, and thermostats.
Units
G4IAC15*
G4IAC15A*
G4IAC24*
G4IAC24A*
Input voltage range
VAC or VDC
90–140
180–280
Key feature
--
Input current at maximum line
mA
5
Isolation, input-to-output (transient): 1 ms 1 minute
V V
4000 1500
Turn-on time
ms
20
Turn-off time
Input allowed for off-state
mA, V
1.4, 40
0.7, 45
Nominal output supply voltage
VDC
15
24
Output supply voltage range
12–18
20–30
Output supply current at nominal logic voltage
Input resistance (R1 in schematic)
ohms
28 K
70 K
Control resistance (Rc in schematic)
1 K
2.2 K
Output voltage drop
V @ 50 mA
0.4
Output current (sinking)
50
Peak repetitive voltage
VAC
500
Output leakage with no input
microamps @ 30 VDC
100
Transistor
V breakdown
30
Temperature Operating: Storage:
°C °C
-30 to +70 -30 to +85
* Not for use with Opto 22 brains.
