*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.
G4 I/O family

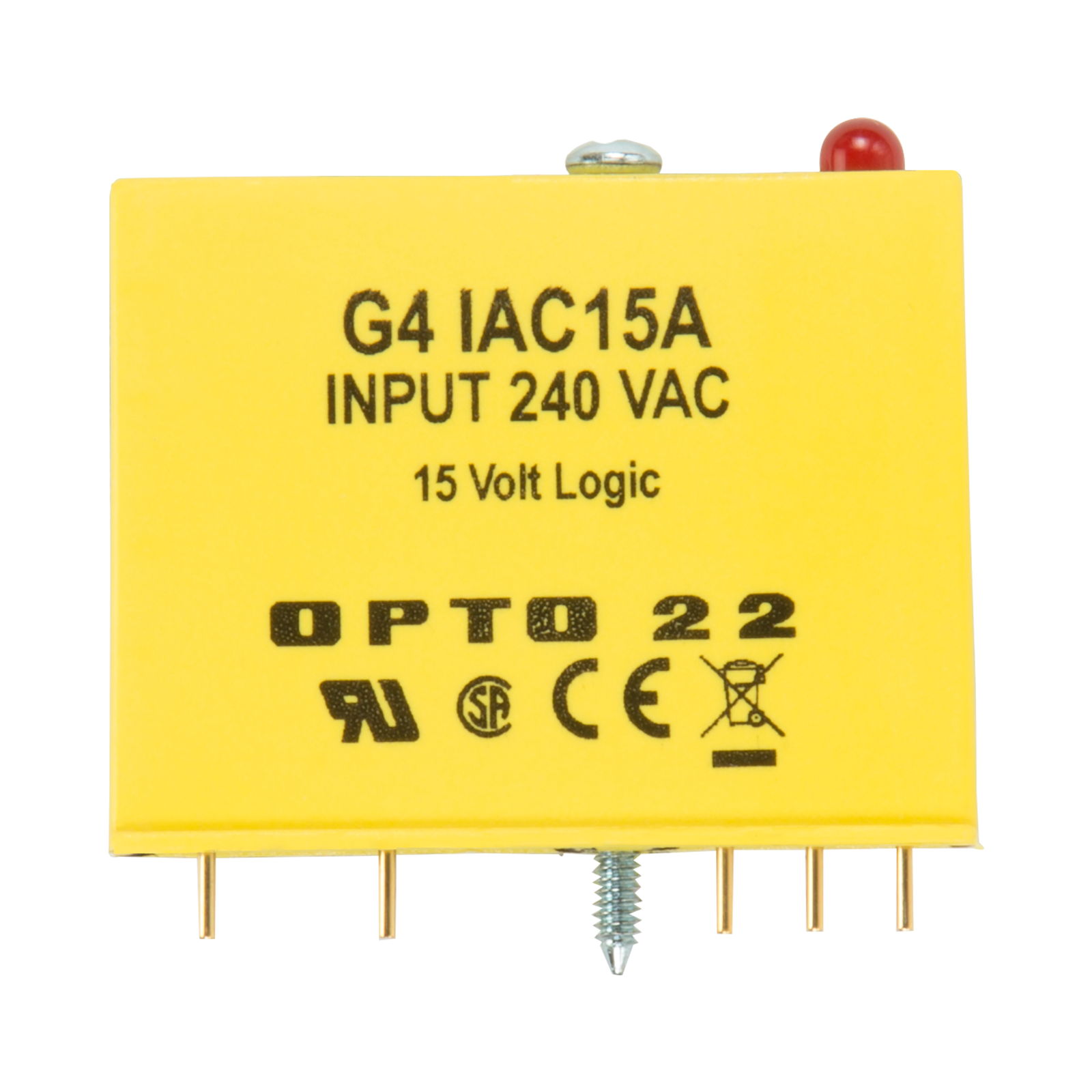

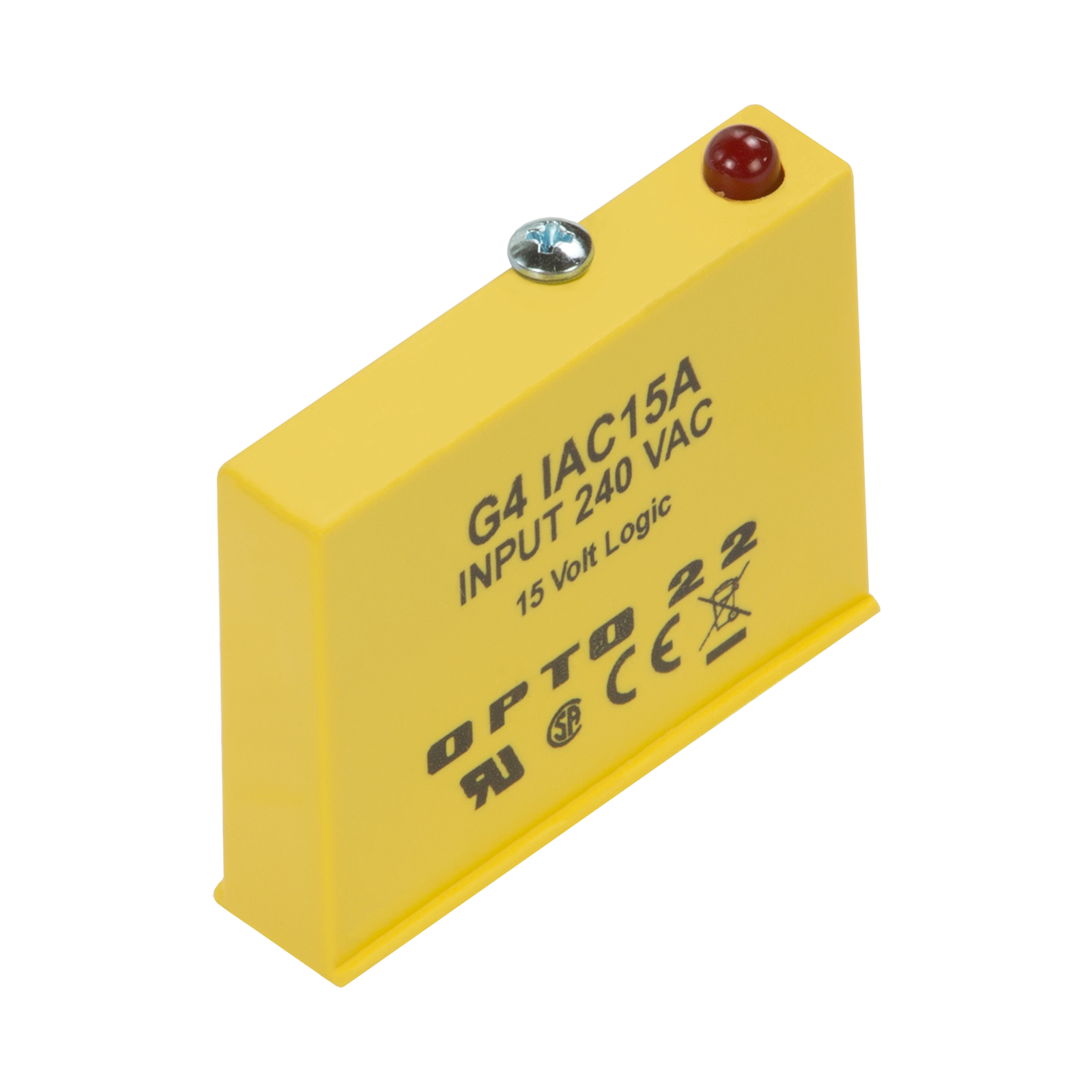

The G4IAC15A is a digital AC input module with an input voltage range of 180-280 VAC/VDC, requiring a typical logic voltage of 15 VDC. It is not for use with Opto 22 brains or with a Raspberry Pi, which use 5 VDC logic.
Opto 22’s G4 AC input modules are used to detect on/off AC (or DC) voltage levels. Each module provides up to 4000 volts of optical isolation (transient) between field inputs and the logic output of the circuit.
All AC input modules are designed with filtering on the input and a hysteresis amplifier, providing high noise rejection and transient-free “clean” switching.
Typical applications for AC input modules include sensing the presence or absence of voltage, and sensing contact closure from sources such as proximity switches, limit switches, float switches, selector switches, push buttons, toggle switches, and thermostats.
|
|
Units
|
G4IAC15*
|
G4IAC15A*
|
G4IAC24*
|
G4IAC24A*
|
|
Input voltage range
|
VAC or VDC
|
90–140
|
180–280
|
90–140
|
180–280
|
|
Key feature
|
--
|
--
|
--
|
--
|
--
|
|
Input current at maximum line
|
mA
|
5
|
5
|
5
|
5
|
|
Isolation, input-to-output (transient):
1 ms
1 minute
|
V
V
|
4000
1500
|
4000
1500
|
4000
1500
|
4000
1500
|
|
Turn-on time
|
ms
|
20
|
20
|
20
|
20
|
|
Turn-off time
|
ms
|
20
|
20
|
20
|
20
|
|
Input allowed for off-state
|
mA, V
|
1.4, 40
|
0.7, 45
|
1.4, 40
|
0.7, 45
|
|
Nominal output supply voltage
|
VDC
|
15
|
15
|
24
|
24
|
|
Output supply voltage range
|
VDC
|
12–18
|
12–18
|
20–30
|
20–30
|
|
Output supply current at
nominal logic voltage
|
mA
|
15
|
15
|
15
|
15
|
|
Input resistance (R1 in schematic)
|
ohms
|
28 K
|
70 K
|
28 K
|
70 K
|
|
Control resistance (Rc in schematic)
|
ohms
|
1 K
|
1 K
|
2.2 K
|
2.2 K
|
|
Output voltage drop
|
V @ 50 mA
|
0.4
|
0.4
|
0.4
|
0.4
|
|
Output current (sinking)
|
mA
|
50
|
50
|
50
|
50
|
|
Peak repetitive voltage
|
VAC
|
500
|
500
|
500
|
500
|
|
Output leakage with no input
|
microamps @ 30 VDC
|
100
|
100
|
100
|
100
|
|
Transistor
|
V breakdown
|
30
|
30
|
30
|
30
|
|
Temperature
Operating:
Storage:
|
°C
°C
|
-30 to +70
-30 to +85
|
-30 to +70
-30 to +85
|
-30 to +70
-30 to +85
|
-30 to +70
-30 to +85
|
| Agency Approvals |
|
UL, CSA, CE; UKCA |
UL, RoHS, CSA, CE; UKCA |
UL, CSA, CE; UKCA |
UL, CSA, CE; UKCA |
|
* Not for use with Opto 22 brains.
|
Opto 22’s G4 AC input modules are used to detect on/off AC or DC voltage levels. This data sheet covers:
- G4IAC, G4 AC Input 90–140 VAC/VDC, 5 VDC Logic
- G4IAC5A, G4 AC Input 180–280 VAC/VDC, 5 VDC Logic
- G4IAC5L, G4 AC Input 90–140 VAC/VDC, 5 VDC Logic, Low Input Impedance
- G4IAC5MA, G4 AC Input 90–140 VAC/VDC, 5 VDC Logic with Manual/Auto Switch
- G4IAC15, G4 AC Input 90–140 VAC/VDC, 15 VDC Logic
- [OBSLOETE] G4IAC15A, G4 AC Input 180–280 VAC/VDC, 15 VDC Logic
- G4IAC24, G4 AC Input 90–140 VAC/VDC, 24 VDC Logic
- G4IAC24A, G4 AC Input 190–280 VAC/VDC, 24 VDC Logic
The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.
