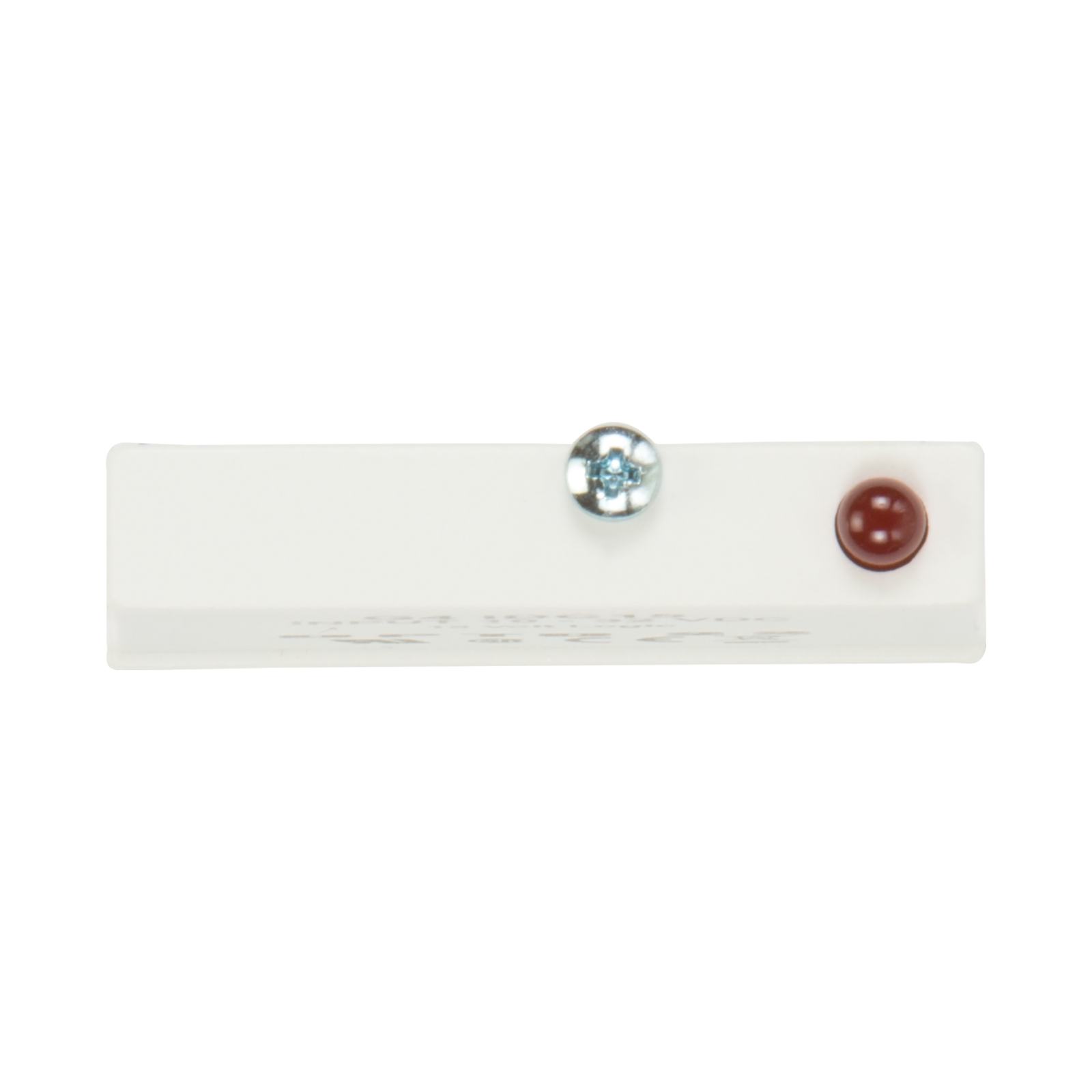

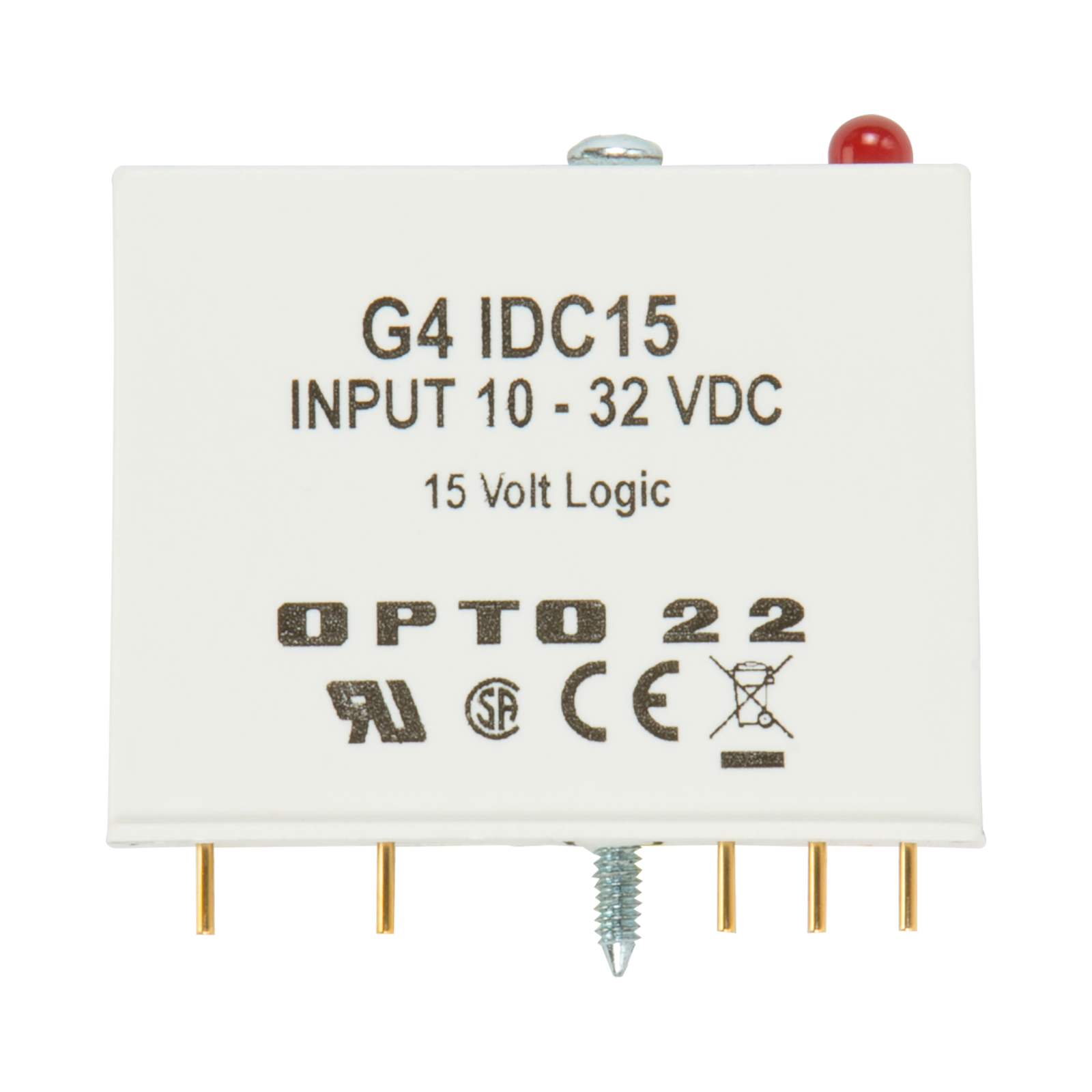

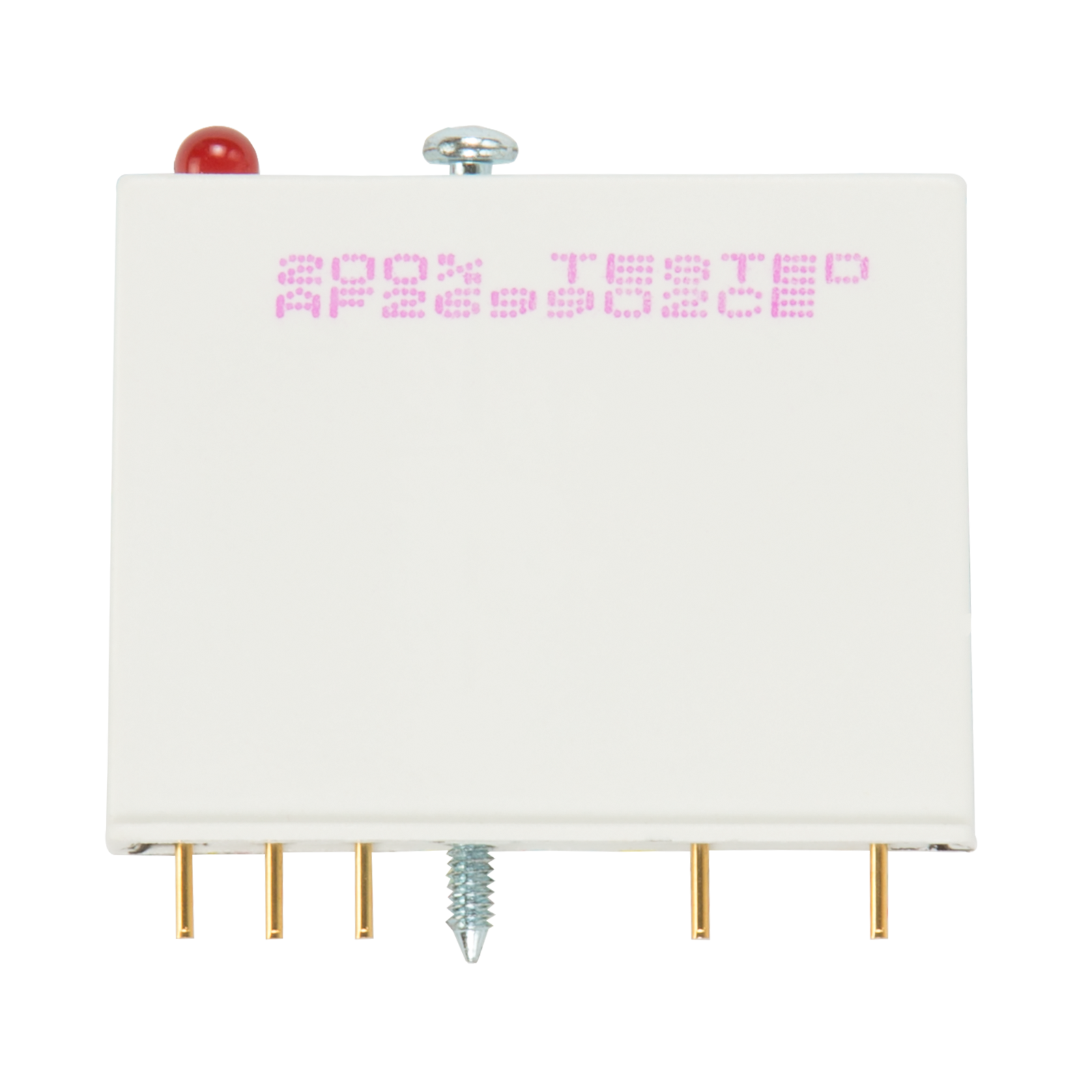

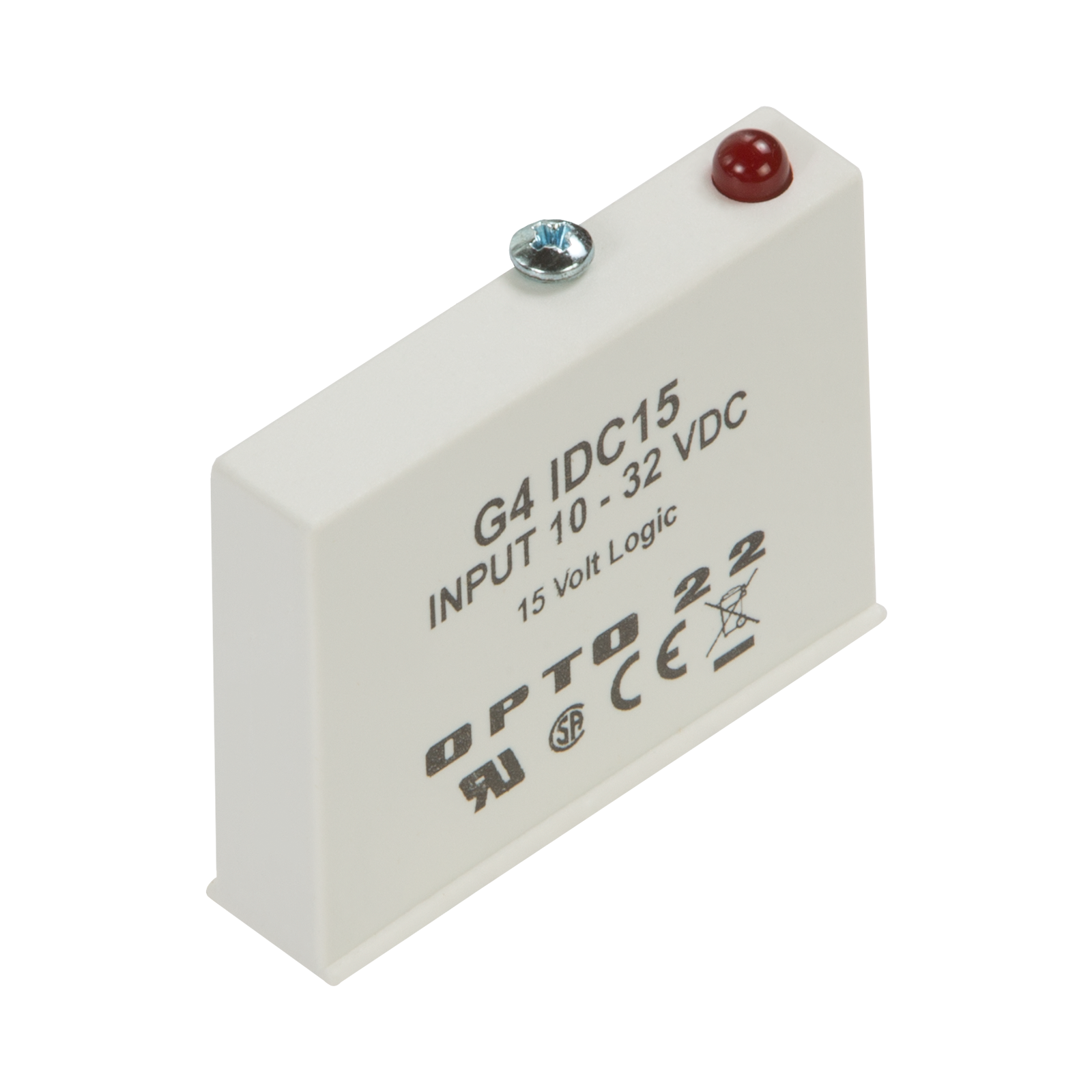

G4IDC15
Hover over image to zoom in

G4IDC15

$26.00 (USA and Canada only)

Availability: In stock
OBSOLETE G4 DC Input 10-32 VDC, 15 VDC Logic

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***
G4 I/O family

The G4IDC15 is a digital DC input module with an input voltage range of 10-32 VDC (or 12-32 VAC), requiring a typical logic voltage of 15 VDC. This module is not compatible with Opto 22 brains.

This module is designed with filtering on the input and a hysteresis amplifier, providing high noise rejection and transient-free, "clean" switching.

Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. Each module provides up to 4000 volts (transient) of optical isolation between field inputs and the logic output of the circuit. Typical applications for DC input modules include sensing the presence or absence of voltage and sensing contact closure from sources such as proximity switches, limit switches, selector switches, push buttons, photoelectric switches, and TTL-compatible devices.




Units

G4IDC5K

G4IDC5MA*

G4IDC15**

G4IDC24**

Input voltage range

VDC
VAC

2.5–16

10–32
12–32

10–32
12–32

10–32
12–32

Key feature



Highest
speed

Diagnostic
switch

Input current at maximum line

mA

30

25

25

25

Isolation, input-to-output (transient):
1 ms
1 minute



V
V



4000
1500



4000
1500



4000
1500



4000
1500

Turn-on time

ms

0.025***

5

5

5

Turn-off time

ms

0.025***

5

5

5

Input allowed for off-state

mA, V

0.2, 1

1, 3

1, 3

1,3

Nominal output supply voltage

VDC

5

5

15

24

Output supply voltage range

VDC

4.5–6

4.5–6

12–18

20–30

Output supply current at
nominal logic voltage

mA

12

12

15

18

Input resistance (R1 in schematic)

ohms

500

1.5 K

1.5 K

1.5 K

Control resistance (Rc in schematic)

ohms

220

220

1 K

2.2 K

Output voltage drop

V @ 50 mA

0.4

0.4

0.4

0.4

Output current (sinking)

mA

50

50

50

50

Output leakage with no input

microamps @ 30 VDC

100

100

100

100

Transistor

V breakdown

30

30

30

30

Temperature:
Operating

Storage



°C
°C



–30 to +70
–30 to +85



–30 to +70
–30 to +85



–30 to +70
–30 to +85



–30 to +70
–30 to +85

Agency Approvals   UL, CE, CSA, FM; UKCA UL, CE, CSA; UKCA UL, CE, CSA; UKCA UL, CE, CSA; UKCA

* Compatible with Raspberry Pi.
** Not for use with Opto 22 brains.
*** At 5Vp-p square wave input, 50% duty cycle.
