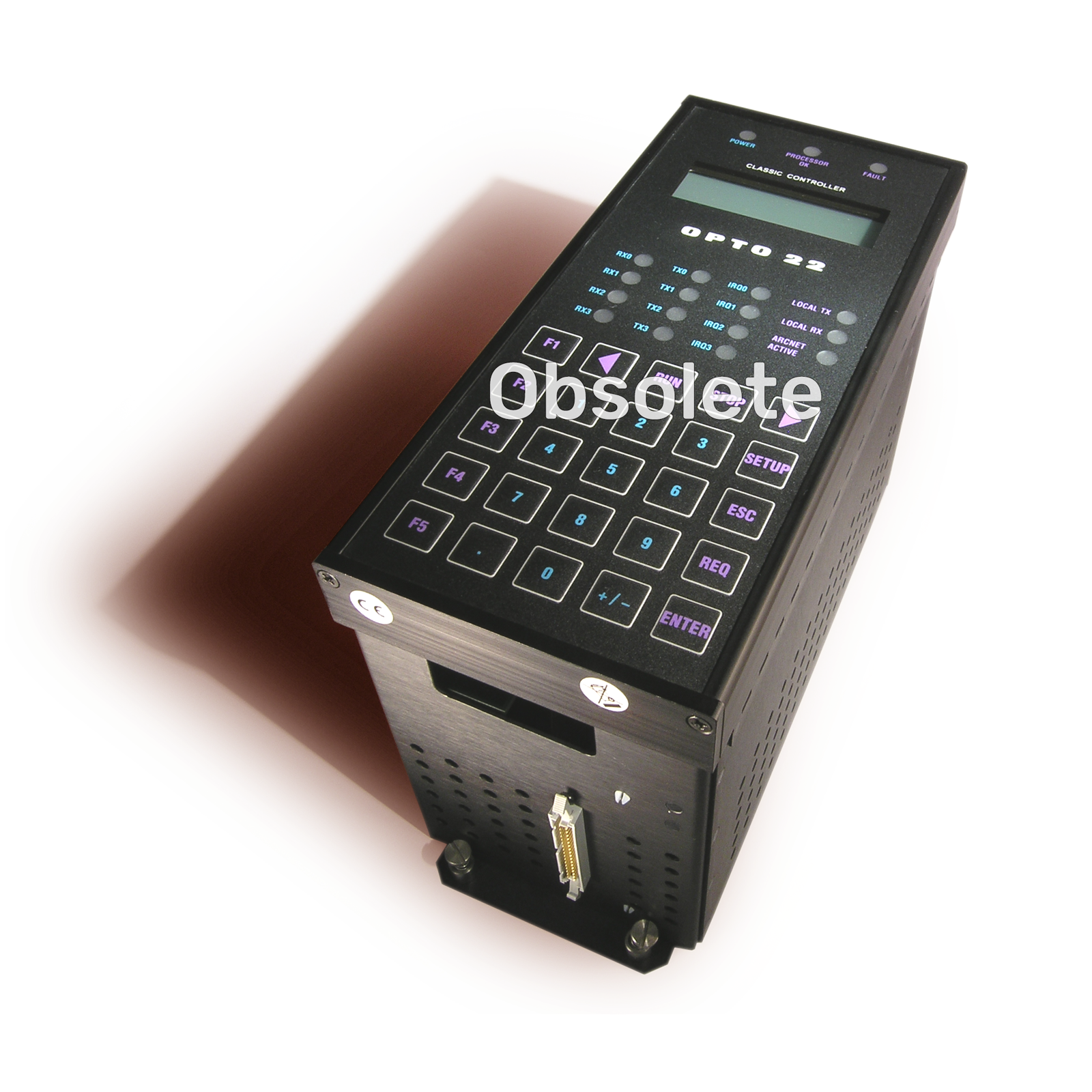

OBSOLETE Opto 22 Classic Controller for FactoryFloor systems

Please call (800) 321-6786 to order.

G4LC32

Production Specification

The Opto 22 G4LC32 Classic Controller is designed for use with the FactoryFloor Software suite.

IMPORTANT NOTE: Due to difficulty obtaining parts, this controller is obsolete and no longer available.

For new development, system expansion, or modernization, we recommend using the SNAP-PAC-S2 standalone controller and the PAC Project Professional software suite. SNAP PAC S-series controllers with PAC Project Pro offer a migration path for legacy mistic systems.

For migration information, see the FactoryFloor to PAC Project Migration Technical Note.

CPU

Motorola 68020 32-bit microprocessor

NPU

Motorola 68882 floating point math coprocessor

CPU Clock Frequency

16.67 MHz

FLASH EPROM

512 KB (expandable to 1 MB)

RAM

512 KB (expandable to 4 MB), with battery backup

Watchdog timer

Standard, hardware

Real-time Clock

Clock/calendar, Epson 62421A, with battery backup

Front panel display

4 line x 20 character backlight LCD

Front panel keyboard

25-button keypad

Communications

Two full-duplex, RS-422/485 serial ports
Two full-duplex combined RS-232 or RS-422/485 serial ports
One ARCNET port
Local bus port

RAM/clock battery

3.6 V lithium, nonrechargeable

Battery life

Two years under normal operating conditions

Power requirements

5.0 - 5.2 VDC @ 2.0 A

Operating temperature

0 °C to 60 °C
0 °C to 50 °C for LCD display

Storage temperature

- 25 °C to 85 °C

Humidity

5 % to 95 % relative humidity

Software

FactoryFloor (OptoControl, OptoDisplay, and OptoServer)
Classic Software (Cyrano, Mistic MMI, MDS)



RAM & EPROM Memory Expansion Options Data Sheet

Tables and other information for selecting RAM and EPROM expansion options for controllers.

High Performance, Real-Time Mistic 200 Controller

The G4LC32 Controller is a high-performance real-time industrial microcomputer designed to work within the Opto 22 family of rugged and compact controllers and I/O units.

OptoControl-based Controller Firmware README

This README file lists revision changes made to the firmware used in the following Opto 22 controllers that run OptoControl strategies: G4LC32, G4LC32SX, M4, M4IO, M4RTU, SNAP-LCSX, SNAP-LCSX-PLUS, and SNAP-LCM4.

Mistic Installation Guide

Guide for configuring and installing the Mistic 200 System.

Mistic 200 Family Data Book

Mistic 200 Family Data Book

G4LC32 Model 200 Processor Users Guide

This manual contains information about configuration, installation, and communications connections to the G4LC32 controller.

Declaration of Conformity (EMC)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
