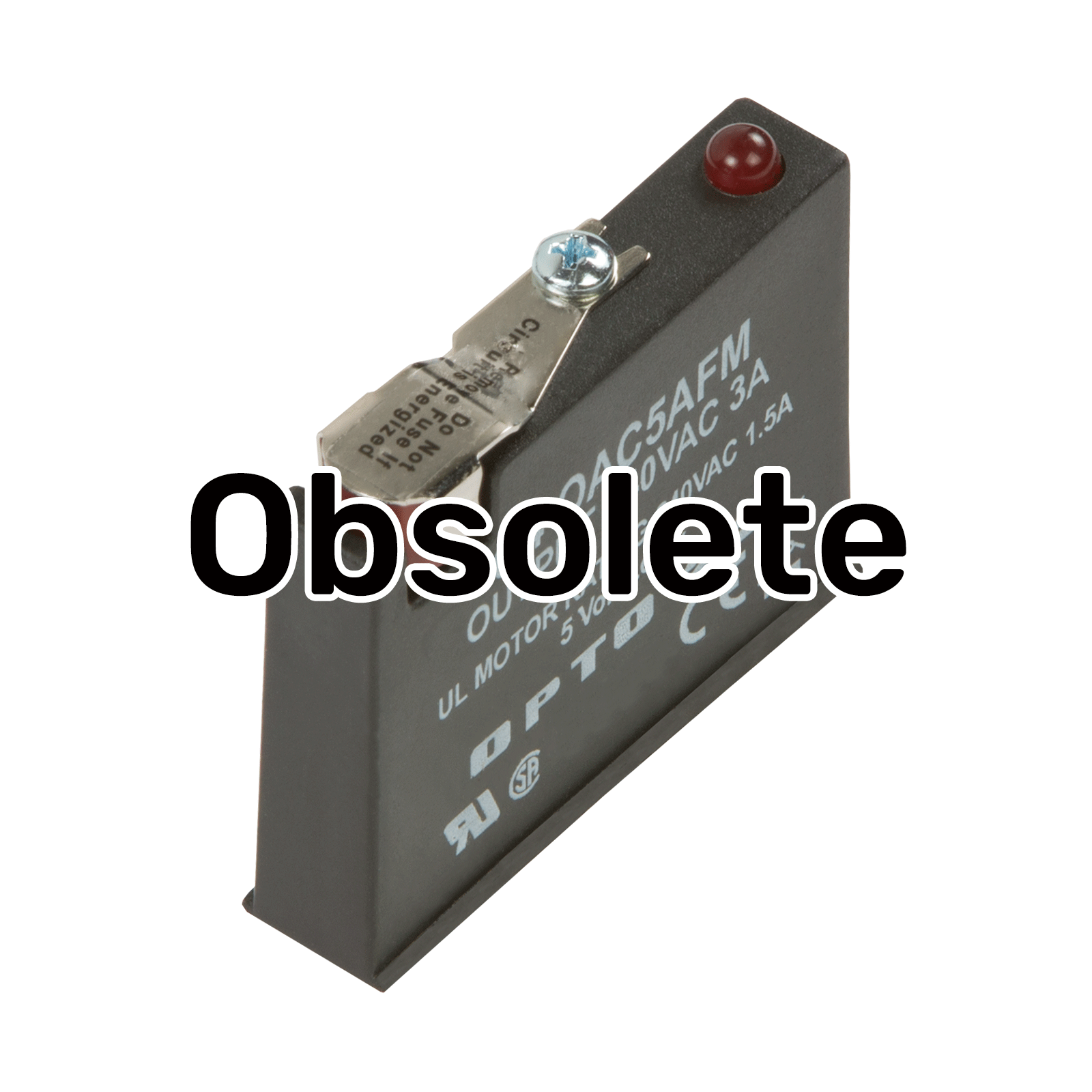

*** NOTE: This part is obsolete and no longer available. ***
Please consider
G4OAC5A or contact Opto 22
Pre-Sales engineers for more information.
G4 I/O family

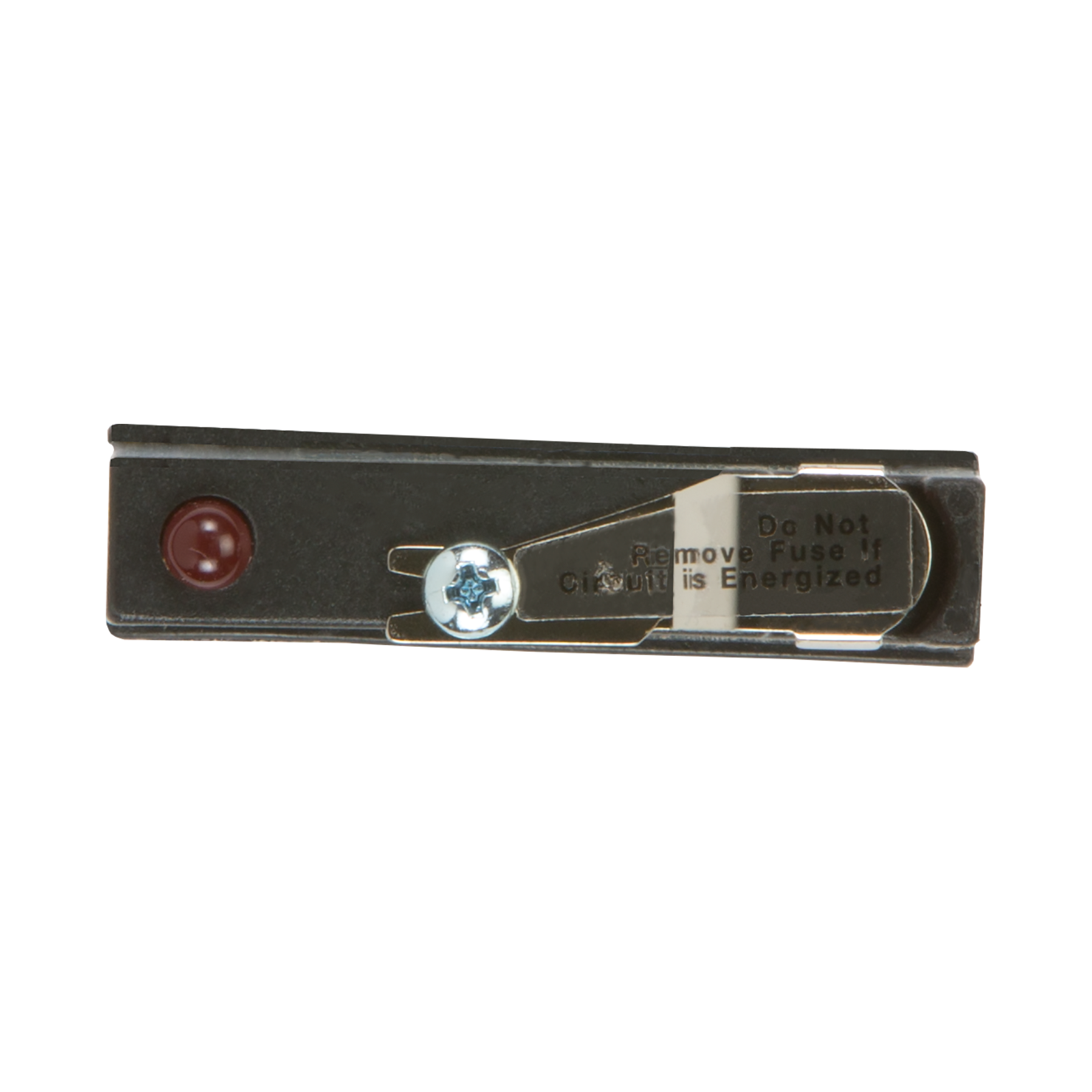

The G4OAC5AFM is a digital AC output module with an output voltage range of 24-280 VAC, requiring a typical logic voltage of 5 VDC. It is compatible with Opto 22 brains.
This AC output module is equivalent to a single-pole, single-throw, normally open contact (Form A, SPST-NO). It includes a 4 amp fast-blow fuse.
Opto 22’s G4 AC output modules are used to control or switch AC loads. Each module provides up to 4000 volts of optical isolation (transient) between field outputs and the control side of the circuit, and each features zero voltage turn-on and zero current turn-off.
Typical applications for AC output modules include switching loads such as AC relays, solenoids, motor starters, heaters, lamps, and indicators.
|
|
Units
|
G4OAC5FM**
|
G4OAC5AFM**
|
G4OAC5A5FM**
|
|
Nominal line voltage
|
VAC
|
120
|
120/240
|
120/240
|
|
Output voltage range
|
VAC
|
12–140
|
24–280
|
24–280
|
|
Key feature
|
—
|
—
|
—
|
Normally closed
|
|
Current rating:
At 45 °C ambient
At 70 °C ambient
|
A
A
|
3
2
|
3
2
|
3
2
|
|
UL Motor Load Rating
|
A
|
1.5
|
1.5
|
1.5
|
|
Isolation input-to-
output (transient):
1 ms
1 minute
|
volts
|
4000
1500
|
4000
1500
|
4000
1500
|
|
Off-state leakage at
nominal voltage (60 Hz)
|
mARMS
|
5
|
1.25/2.5
|
1.25/2.5
|
|
Nominal logic voltage
|
VDC
|
5
|
5
|
5
|
|
Logic voltage range
|
VDC
|
4–8
|
4–8
|
4–8
|
|
Logic pickup voltage
|
VDC
|
4
|
4
|
4
|
|
Logic dropout voltage
|
VDC
|
1
|
1
|
1
|
|
Logic input current at
nominal logic voltage
|
mA
|
12
|
12
|
12
|
|
Control resistance
(Rc in schematic)
|
ohms
|
220
|
220
|
220
|
|
One-cycle surge
|
A peak
|
80
|
80
|
80
|
|
Turn-on time @ 60 Hz
|
milliseconds
|
≤8.3***
|
≤8.3***
|
≤8.3***
|
|
Turn-off time @ 60 Hz
|
milliseconds
|
≤8.3****
|
≤8.3****
|
≤8.3****
|
|
Peak repetitive voltage
|
VAC
|
500
|
500
|
500
|
|
Minimum load current
|
mA
|
20
|
20
|
20
|
|
Output voltage drop
maximum peak
|
V
|
1.6
|
1.6
|
1.6
|
|
Operating frequency
|
Hz
|
25–65
|
25–65
|
25–65
|
|
dV/dT-off-state
|
V/micro-seconds
|
200
|
200
|
200
|
|
dV/dT-commutating
|
--
|
snubbed for
0.5 power
factor load
|
snubbed for
0.5 power
factor load
|
snubbed for
0.5 power
factor load
|
|
Temperature
Operating:
Storage:
|
°C
°C
|
-30 to +70
-30 to +85
|
-30 to +70
-30 to +85
|
-30 to +70
-30 to +85
|
| Agency Approvals |
|
UL, CE, CSA; UKCA |
UL, CE, CSA; UKCA |
CE, CSA; UKCA
|
|
** These parts are no longer available, please contact Pre-Sales Engineering for more information.
*** One-half cycle maximum. Module turns on at the zero volt crossing of the AC sine wave.
**** One-half cycle maximum. Module turns off at the zero current crossing of the AC sine wave.
|
