$33.00 (USA and Canada only)
G4 I/O family

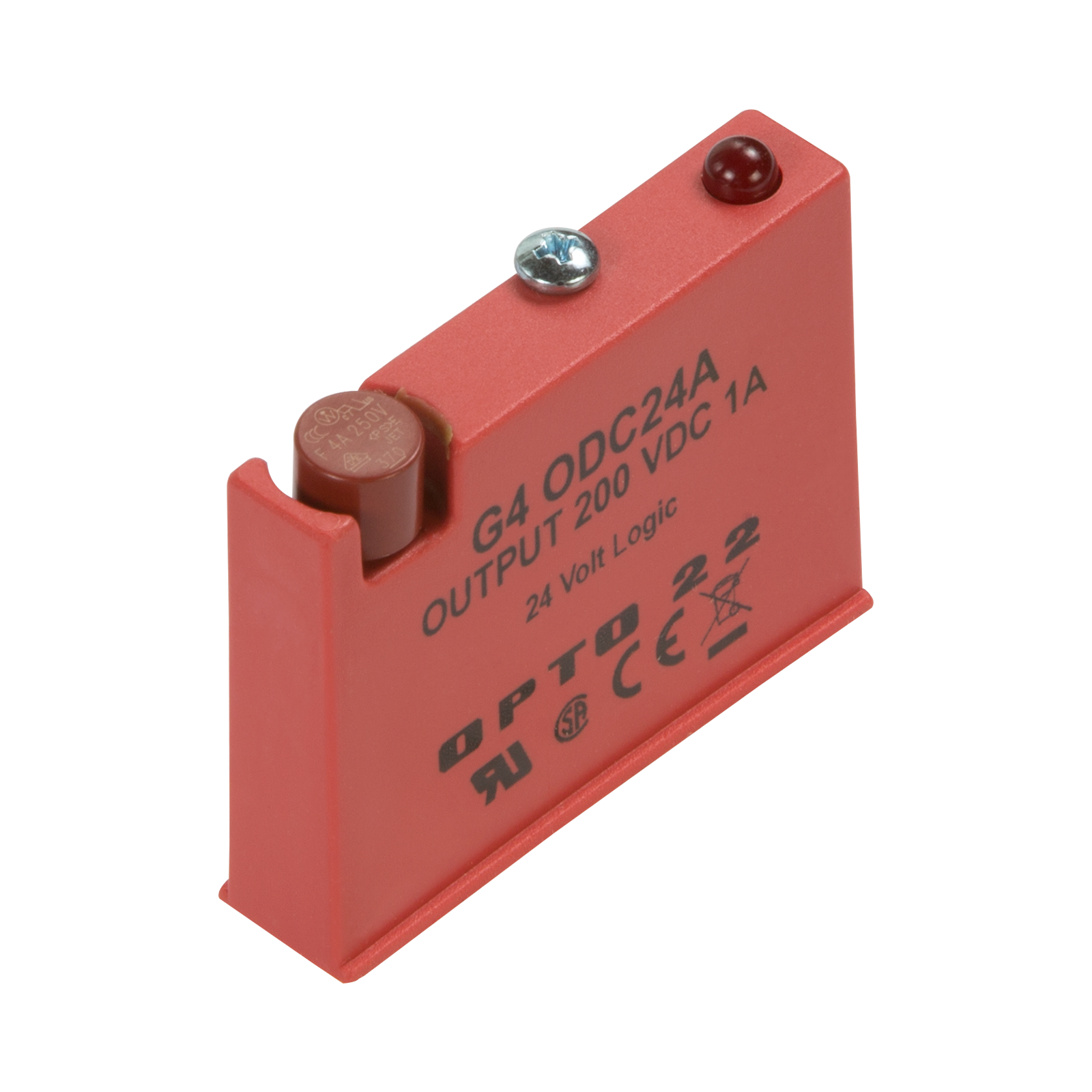

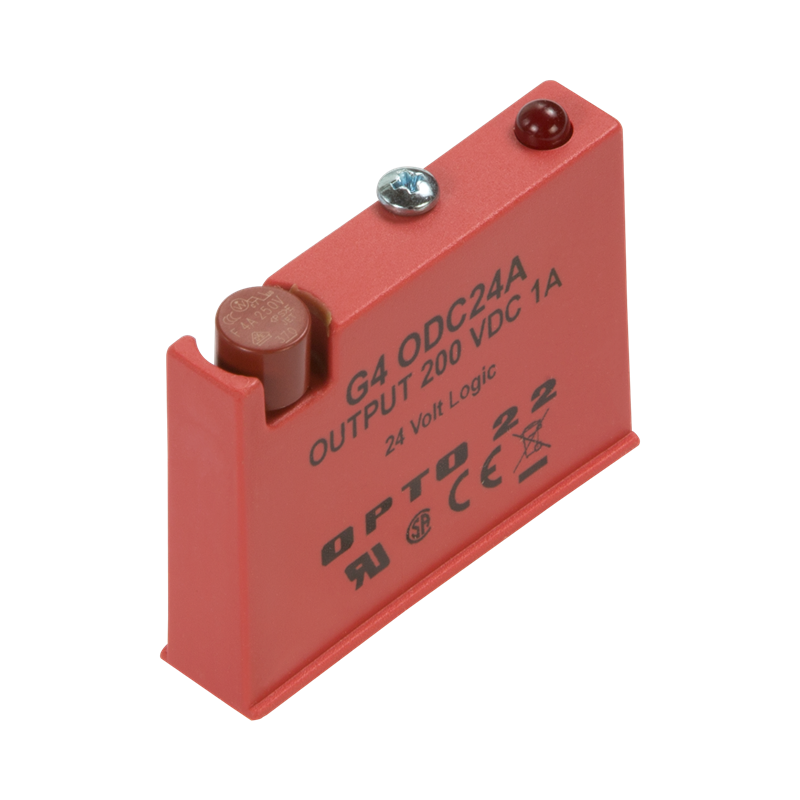

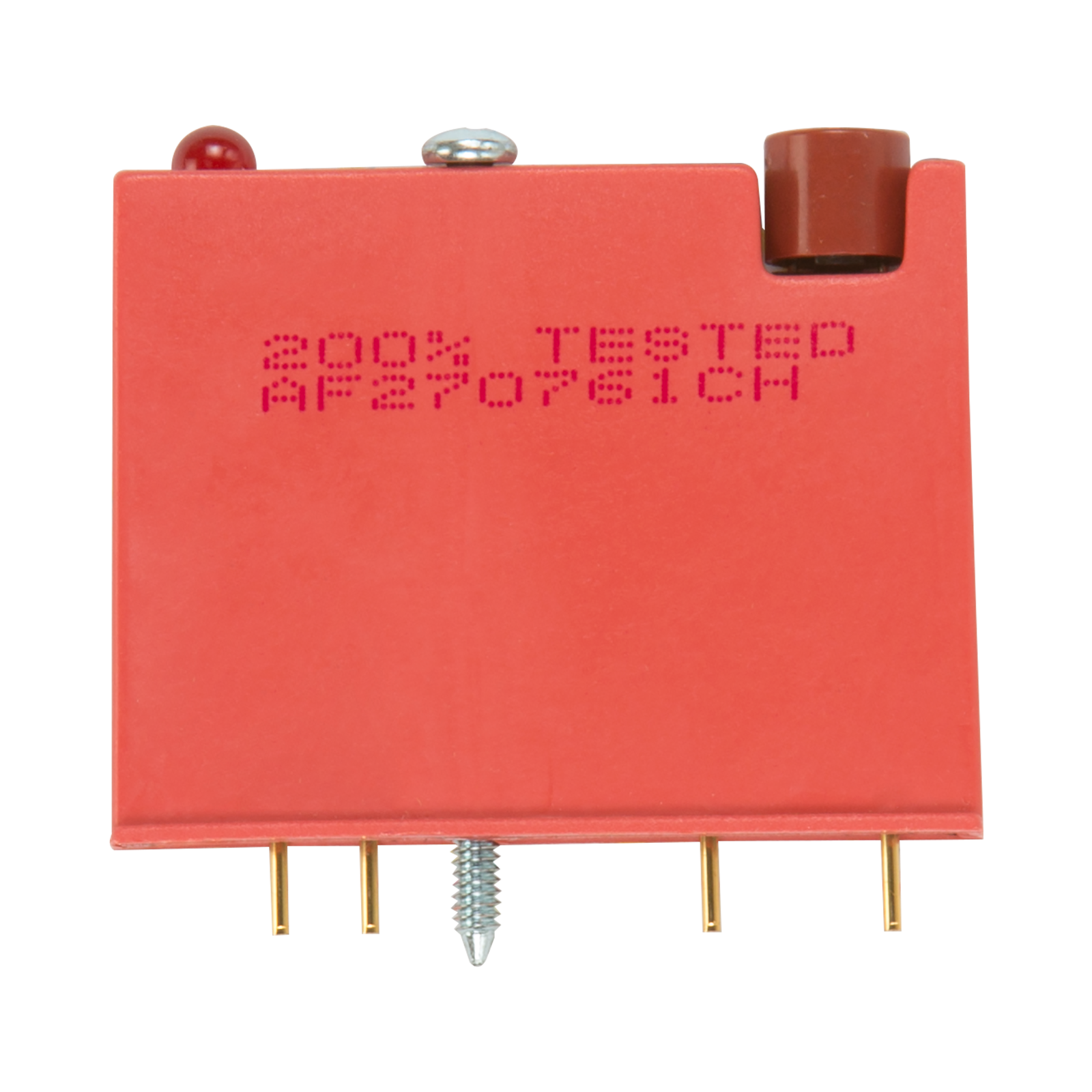

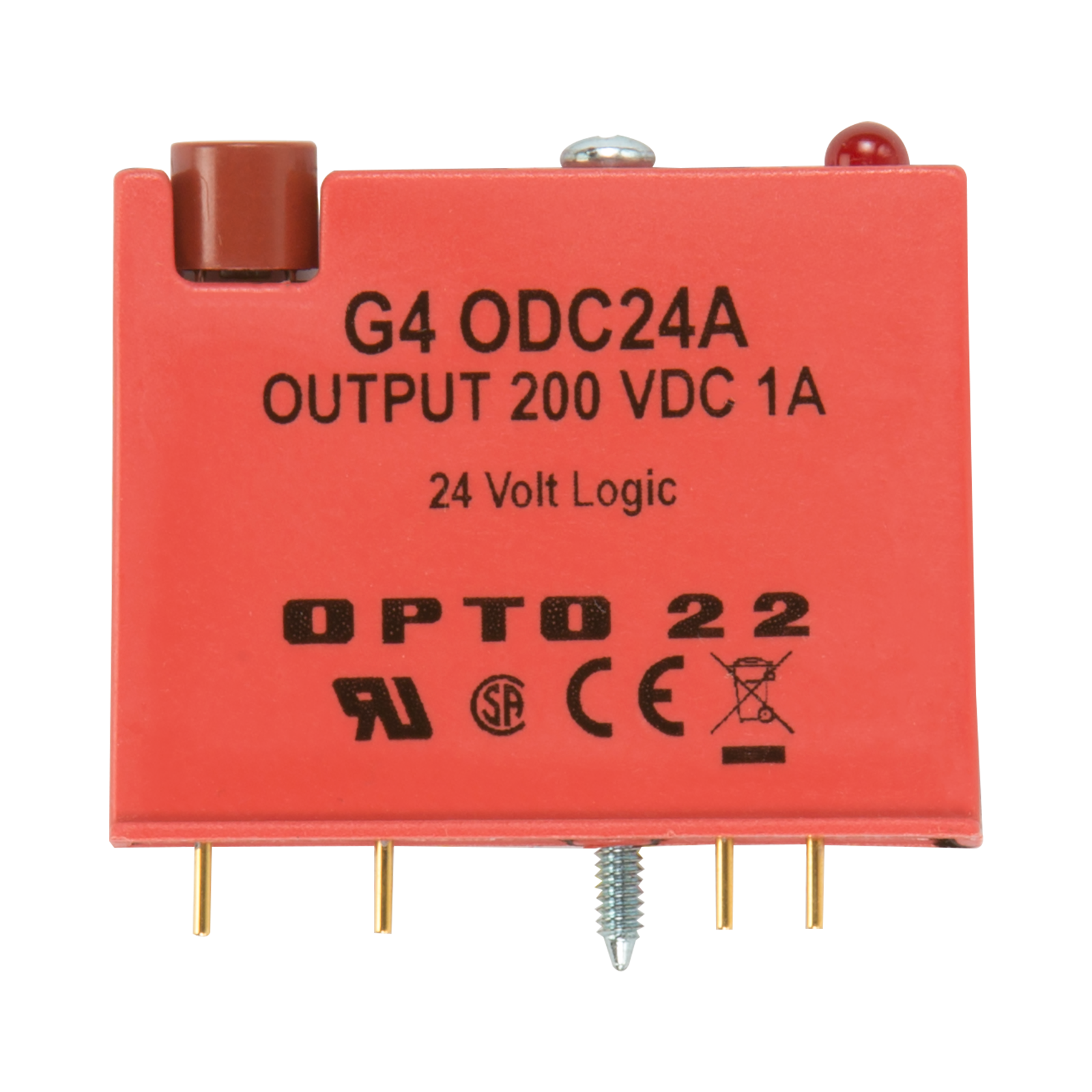

The G4ODC24A is a digital DC output module with an output voltage range of 5-200 VDC, requiring a typical logic voltage of 24 VDC. It is not for use with Opto 22 brains or with a Raspberry Pi, which use 5 VDC logic.

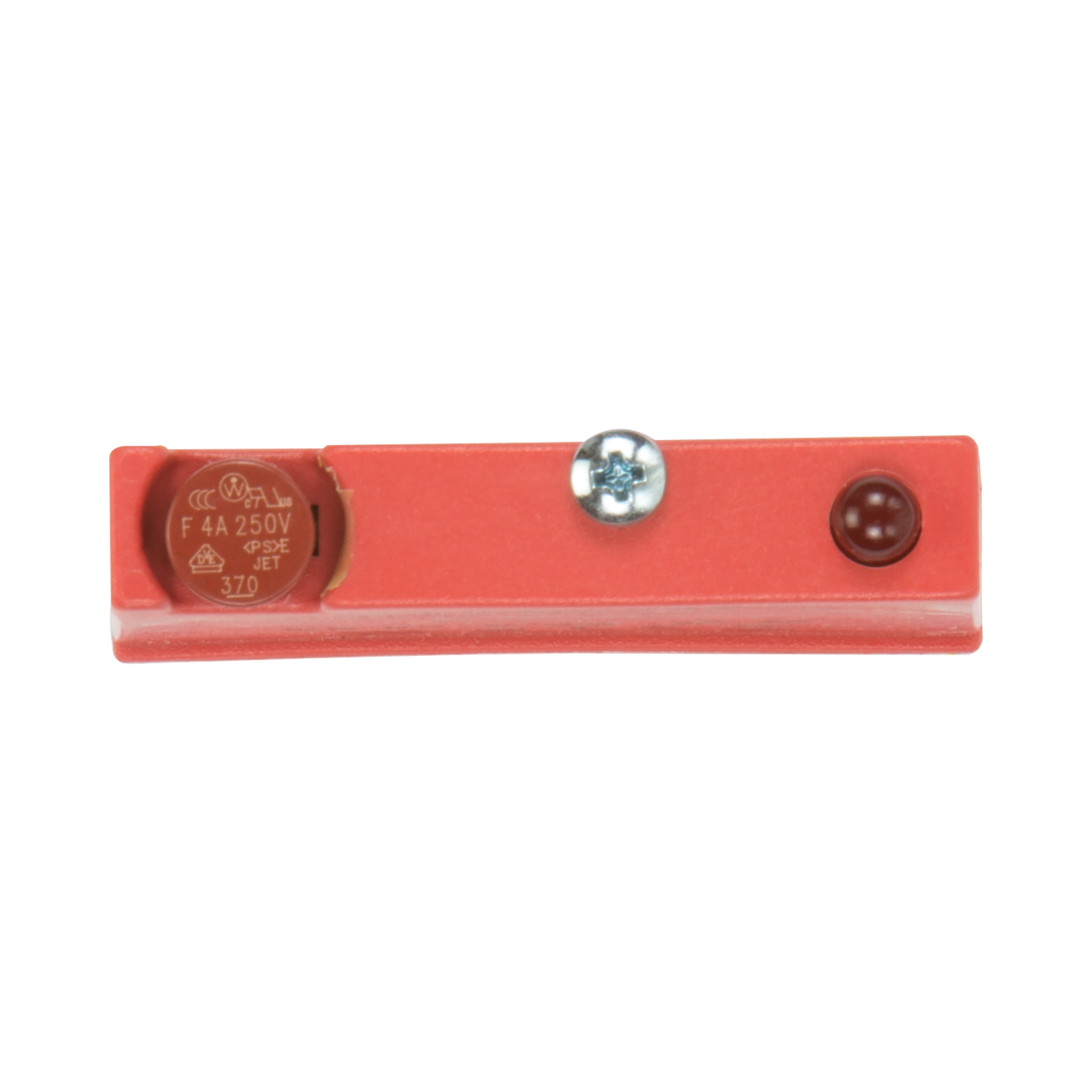

The module includes a built-in LED status indicator and a removable fuse.
G4 DC output modules are used to control or switch DC loads. Each module provides up to 4000 volts of optical isolation (transient) between field devices and control logic. Typical applications for DC output modules include switching loads such as DC relays, solenoids, motor starters, lamps, and indicators.
Units
G4ODC5* G4ODC5FM**
G4ODC5A* G4ODC5AFM**
G4ODC5MA*
G4ODC15***
G4ODC24***
G4ODC24A***
Maximum line voltage
VDC
60
200
Output voltage range
5–60
5–200
Key feature
—
Diagnostic switch
Current rating: At 45 °C ambient At 70 °C ambient
A A
3 2
1 0.55
Isolation input-to-output (transient): 1 ms 1 minute
volts
4000 1500
Off-state leakage at maximum voltage
mA
1
Control resistance (Rc in schematic)
Ohms
220
1 K
2.2 K
One-second surge
A
5
Turn-on time
micro- seconds
100
Turn-off time
750
Output voltage drop maximum peak
V
1.6
Nominal logic voltage
15
24
Logic voltage range
4–8
10.5–16
19.5–32
Logic pickup voltage
4
10.5
19.5
Logic dropout voltage
Logic input current at nominal logic voltage
12
18
Temperature: Operating Storage
°C °C
-30 to +70 -30 to +85
-3- to +70 -30 to +85
* Compatible with Raspberry Pi. ** Part numbers ending in FM are Factory Mutual approved. *** Not for use with Opto 22 brains.
Opto 22’s G4 DC output modules are used to control or switch DC loads.This document includes descriptions, specifications, and wiring and dimensional diagrams for Opto 22’s G4 DC output modules:
The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
Wiring diagrams for G4 modules and racks
This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.
This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
This CAD file contains a three-dimensional drawing of G4ODC digital DC output modules, part of the G4 I/O family. The drawing applies to the following modules: G4ODC15 G4ODC24 G4ODC24A G4ODC5 G4ODC5A
