G4 I/O family

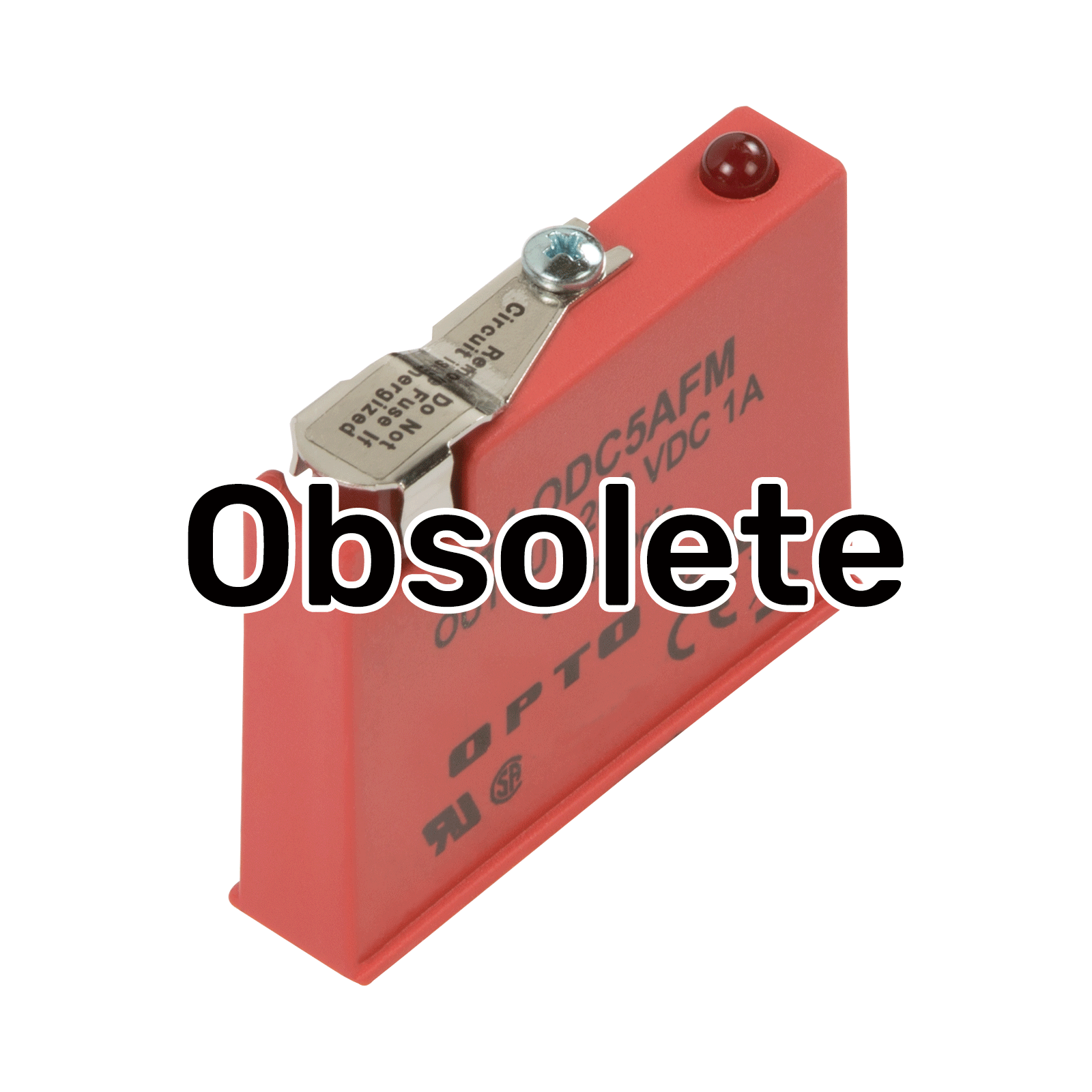

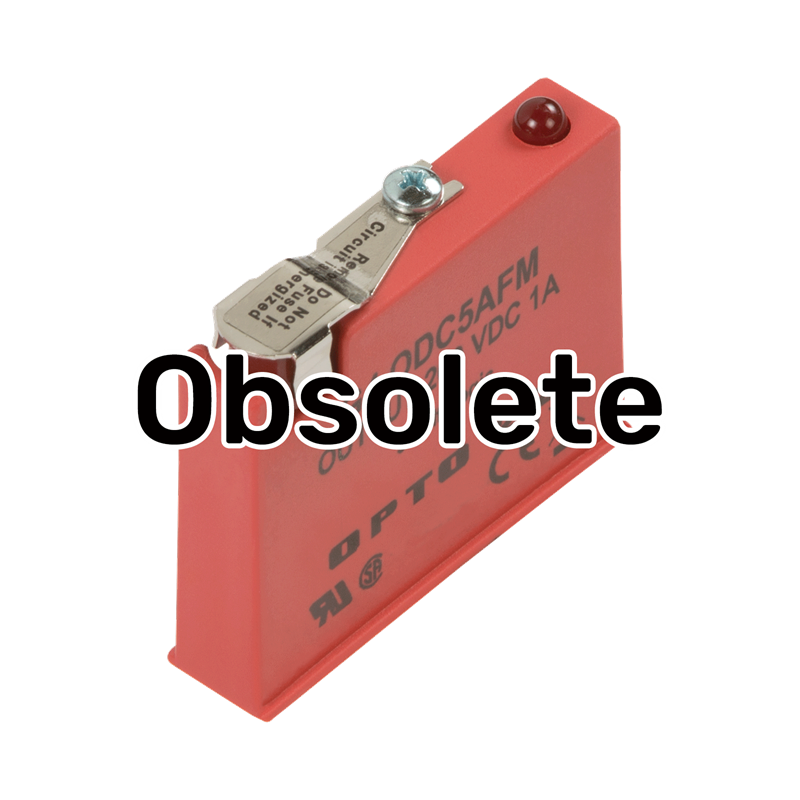

The G4ODC5AFM is a digital DC output module with an output voltage range of 5-200 VDC, requiring a typical logic voltage of 5 VDC. It is compatible with Opto 22 brains.

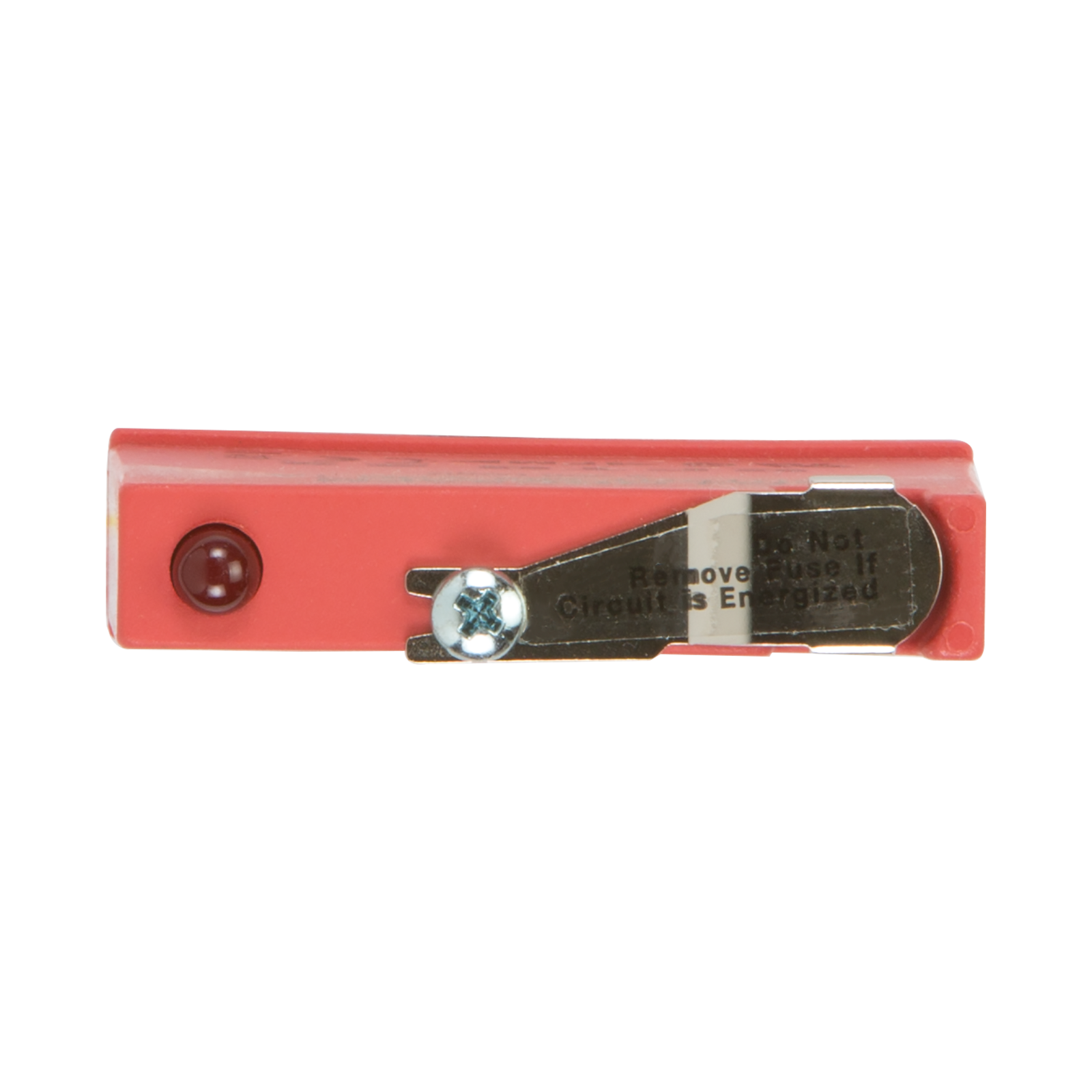

The module includes a built-in LED status indicator and a removable fuse.
G4 DC output modules are used to control or switch DC loads. Each module provides up to 4000 volts of optical isolation (transient) between field devices and control logic.
Typical applications for DC output modules include switching loads such as DC relays, solenoids, motor starters, lamps, and indicators.
|
|
Units
|
G4ODC5FM**
|
G4ODC5AFM**
|
|
Maximum line voltage
|
VDC
|
60
|
200
|
|
Output voltage range
|
VDC
|
5–60
|
5–200
|
|
Key feature
|
—
|
—
|
—
|
|
Current rating:
At 45 °C ambient
At 70 °C ambient
|
A
A
|
3
2
|
1
0.55
|
|
Isolation input-to-output
(transient):
1 ms
1 minute
|
volts
|
4000
1500
|
4000
1500
|
|
Off-state leakage at
maximum voltage
|
mA
|
1
|
1
|
|
Control resistance
(Rc in schematic)
|
Ohms
|
220
|
220
|
|
One-second surge
|
A
|
5
|
5
|
|
Turn-on time
|
micro-
seconds
|
100
|
100
|
|
Turn-off time
|
micro-
seconds
|
750
|
750
|
|
Output voltage drop
maximum peak
|
V
|
1.6
|
1.6
|
|
Nominal logic voltage
|
VDC
|
5
|
5
|
|
Logic voltage range
|
VDC
|
4–8
|
4–8
|
|
Logic pickup voltage
|
VDC
|
4
|
4
|
|
Logic dropout voltage
|
VDC
|
1
|
1
|
|
Logic input current at
nominal logic voltage
|
mA
|
12
|
12
|
|
Temperature:
Operating
Storage
|
°C
°C
|
-30 to +70
-30 to +85
|
-30 to +70
-30 to +85
|
| Agency Approvals |
UL, CE, CSA; UKCA |
UL, CE, CSA; UKCA |
UL, CE, CSA; UKCA |
|
* Compatible with Raspberry Pi.
** These parts are no longer available, contact Opto 22 Pre-Sales engineers for more information.
*** Not for use with Opto 22 brains.
|
