G4ODC5FM

Production Specification

G4 I/O family

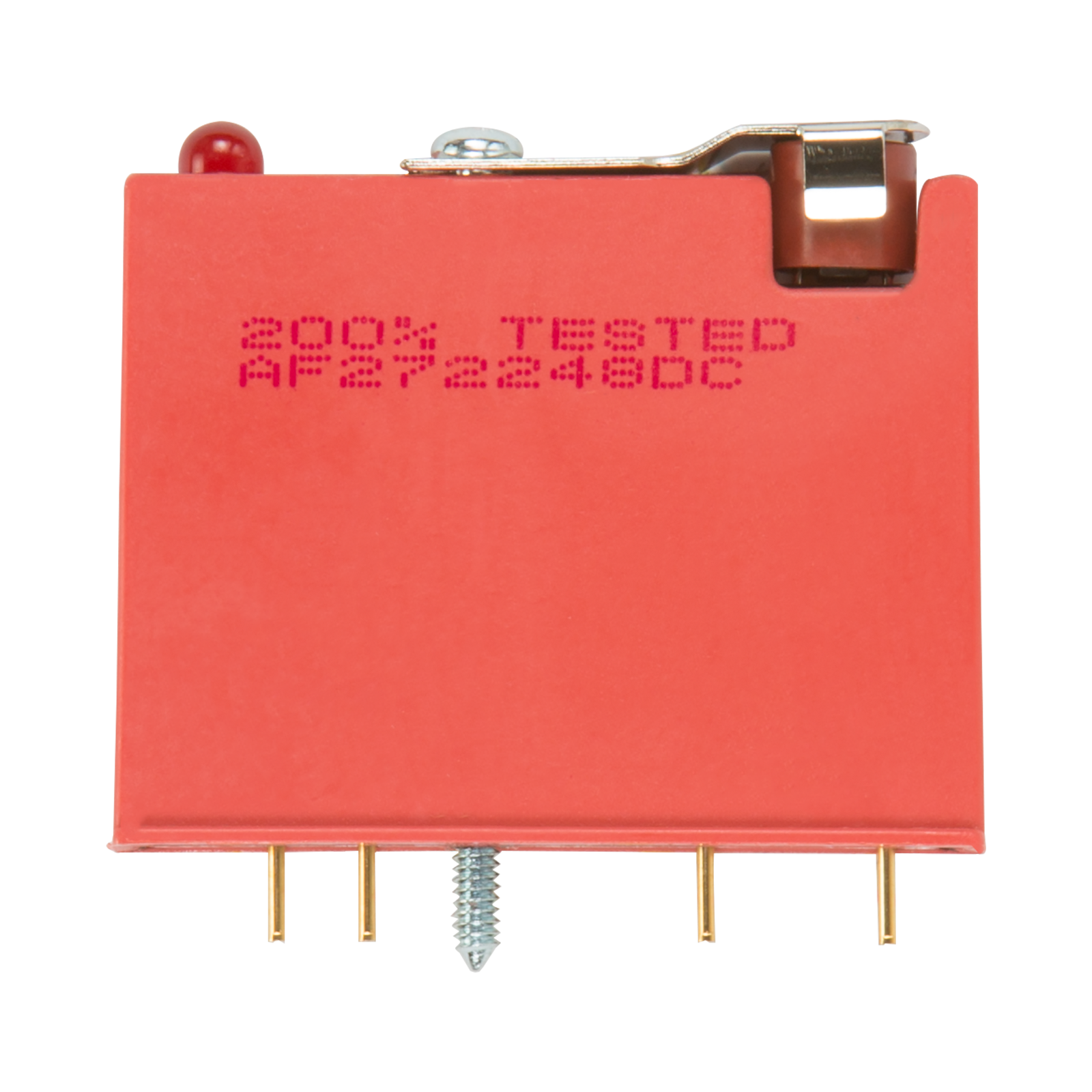

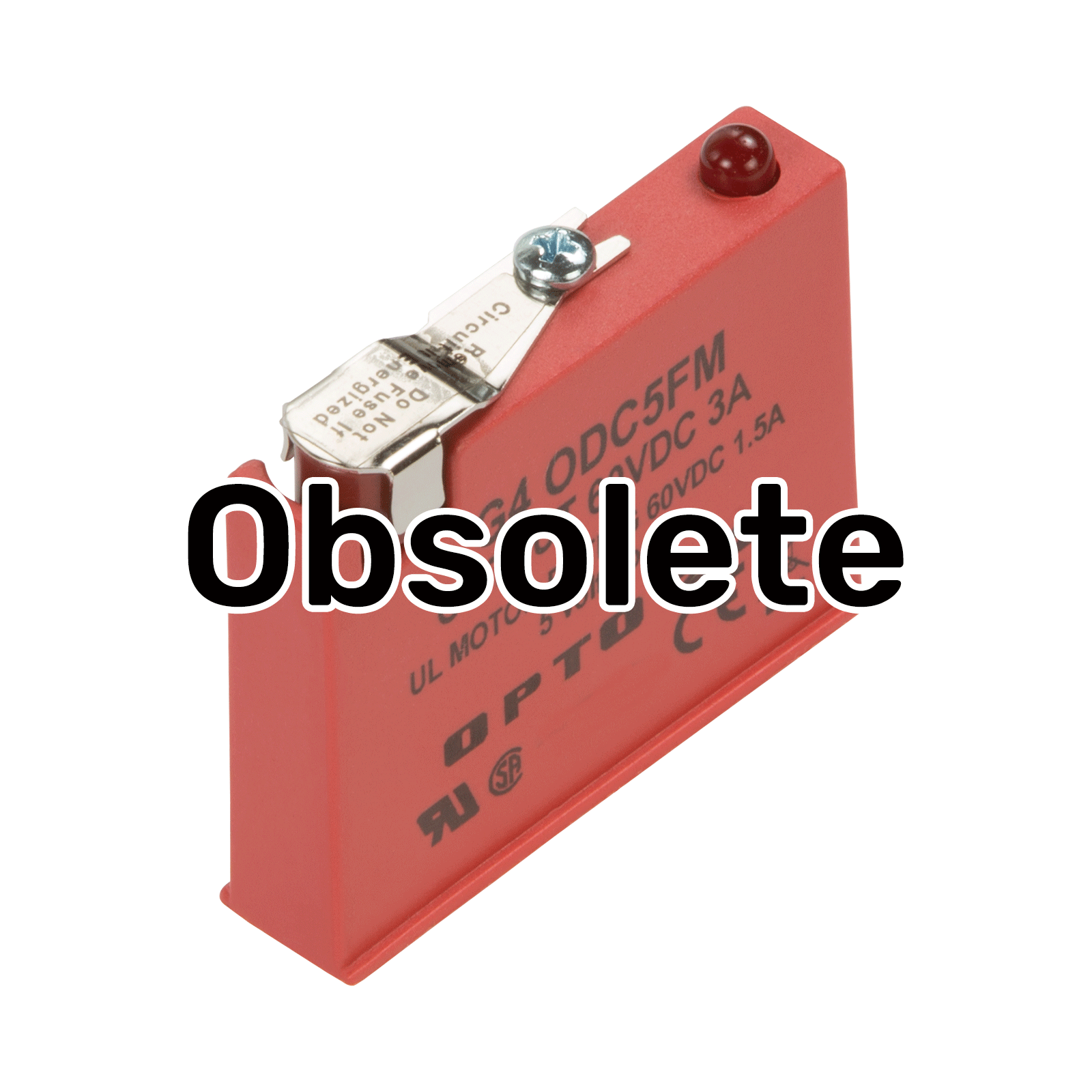

The G4ODC5FM is a digital DC output module with an output voltage range of 5-60 VDC, requiring a typical logic voltage of 5 VDC. It is compatible with Opto 22 brains.

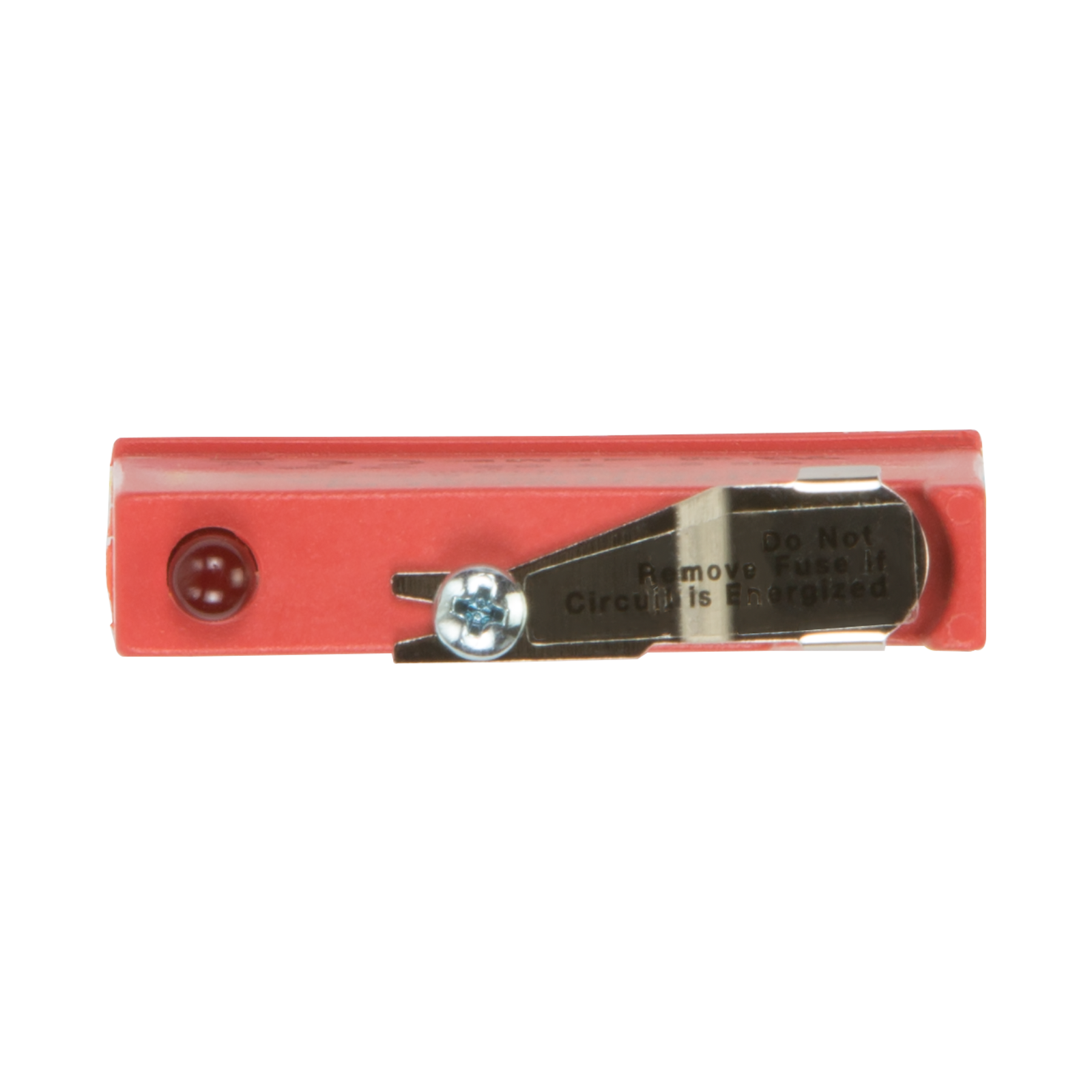

The module includes a built-in LED status indicator and a removable fuse.

G4 DC output modules are used to control or switch DC loads. Each module provides up to 4000 volts of optical isolation (transient) between field devices and control logic.

Typical applications for DC output modules include switching loads such as DC relays, solenoids, motor starters, lamps, and indicators.

The G4ODC5FM is Factory Mutual approved. If you do not need FM approval, see the G4ODC5.



Units

G4ODC5*
G4ODC5FM**

G4ODC5A*
G4ODC5AFM**

G4ODC5MA*

G4ODC15***

G4ODC24***

G4ODC24A***

Maximum line voltage

VDC

60

200

60

60

60

200

Output voltage range

VDC

5–60

5–200

5–60

5–60

5–60

5–200

Key feature

Diagnostic switch

Current rating:
   At 45 °C ambient
   At 70 °C ambient



A
A



3
2



1
0.55



3
2



3
2



3
2



1
0.55

Isolation input-to-out­put
(transient):
   1 ms
   1 minute

volts



4000
1500



4000
1500



4000
1500



4000
1500



4000
1500



4000
1500

Off-state leakage at
maximum voltage

mA

1

1

1

1

1

1

Control resistance
(Rc in schematic)

W

220

220

220

1 K

2.2 K

2.2 K

One-second surge

A

5

5

5

5

5

5

Turn-on time

micro-
seconds

100

100

100

100

100

100

Turn-off time

micro-
seconds

750

750

750

750

750

750

Output voltage drop
maximum peak

V

1.6

1.6

1.6

1.6

1.6

1.6

Nominal logic voltage

VDC

5

5

5

15

24

24

Logic voltage range

VDC

4–8

4–8

4–8

10.5–16

19.5–32

19.5–32

Logic pickup voltage

VDC

4

4

4

10.5

19.5

19.5

Logic dropout voltage

VDC

1

1

1

1

1

1

Logic input current at
nominal logic voltage

mA

12

12

12

15

18

18

Temperature:
   Operating
   Storage



°C
°C



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-3- to +70
-30 to +85

* Compatible with Raspberry Pi.
** Part numbers ending in FM are Factory Mutual approved.
*** Not for use with Opto 22 brains.
