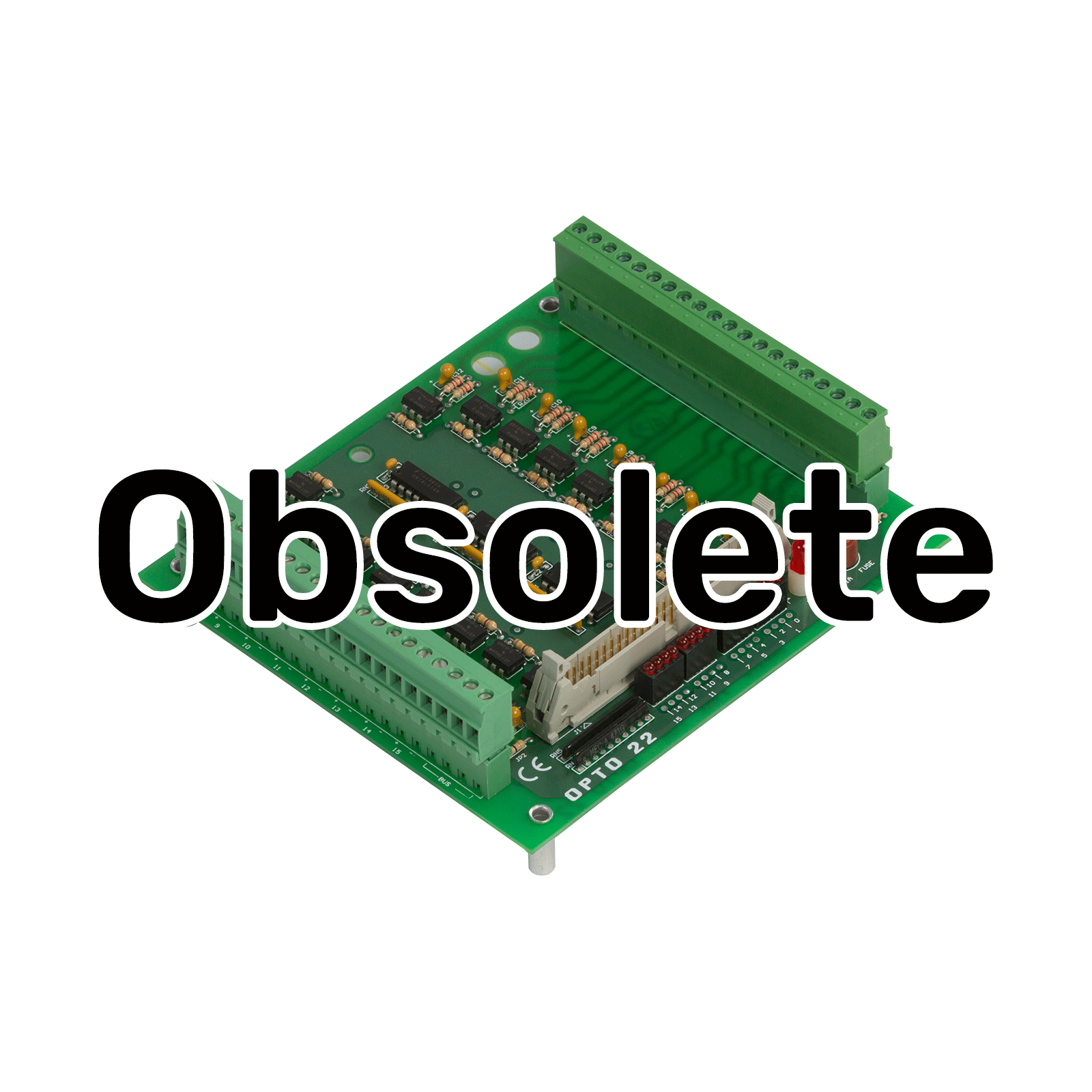

OBSOLETE - G4 DC Input 4-16 VDC 16-channel Integral Rack
Data Sheet

Production Specification

The G4PB16J is no longer available and is obsolete.

G4 I/O family

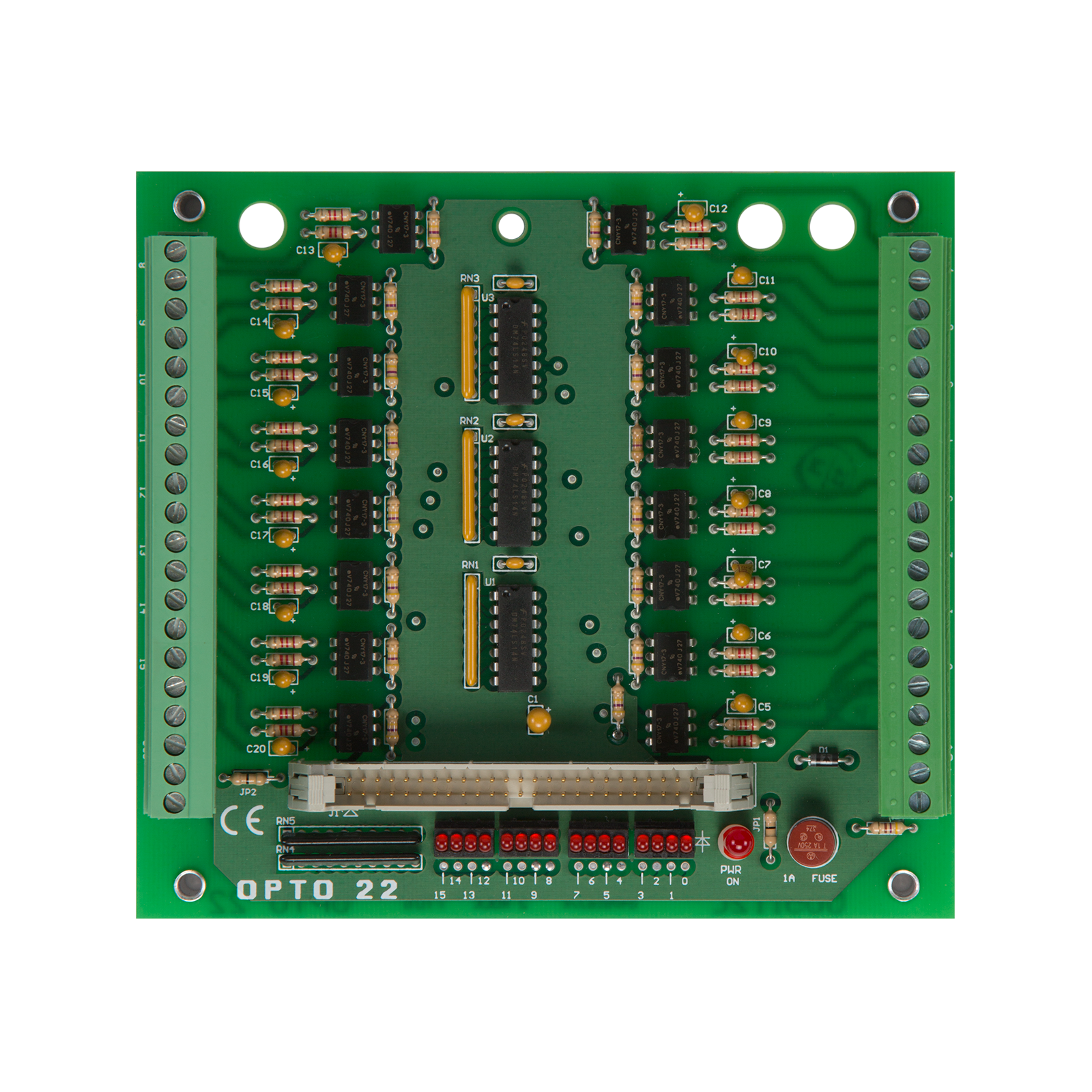

The G4PB16J DC input rack provides 16 channels of optically-isolated inputs for sensing on/off DC voltage levels by an Optomux B1 or E1, Pamux B5, or mistic B100 brain board.

The compact size and design of this rack yields a substantial space and cost savings over other 16-channel I/O racks. All input channels are identical, ideal for applications that need to monitor several 4–16 VDC signals. On-board LED indicators display each channel’s on/off status.

Typical applications include sensing the presence or absence of voltage from sources such as BCD devices, TTL level devices, thumbwheel switches, and barcode readers.

Control connections are easily made to a 50-pin header connector. Barrier strips with screw terminals provide the field and rack power connections. For easier field wiring, use the G4STRAPB. The logic supply is fused with a 1A fuse.

NOTE: This rack can be used with Opto 22 PC adapter cards (PCI-AC5, PCIe-AC5, or G4AC5) if jumpers 1 and 2 are removed. (See the Adapter Cards Data Sheet for more information.)



Units

G4PB16J

G4PB16K

Input line voltage

VDC

4–16

16–28

Input current:
@ Minimum voltage range
@ Maximum voltage range



mA @ VDC
mA @ VDC



3.3, 4
16, 16



3.4, 16
6.3, 28

Isolation:
  Input-to-output
  Channel-to-channel

VRMS
Continuous
VRMS



4,000
300



4,000
300

Input-to-output capacitance

pF/channel

8

8

Turn-on-time

ms

2.5

3

Turn-off-time

ms

3.5

4.5

Logic supply voltage

VDC

4.5–6

4.5–6

Logic supply current

mA @ VDC

190, 5

190, 5

Temperature:
  Operating
  Storage



°C
°C



-30 to +70
-30 to +85



-30 to +70
-30 to +85

Agency approvals:

UL, CSA, CE, RoHS, DFARS; UKCA

Warranty:

30 months from date of manufacture

0732

G4 Digital 16-Channel DC Input Integral Rack Data Sheet

NOTE: G4PB16J and G4PB16K are obsolete and no longer available.

The G4PB16J and G4PB16K DC input racks provide 16 channels of optically-isolated inputs for sensing on/off DC voltage levels by a B1, B5, or B100 brain board, or any ISA bus-compatible computer with an Opto 22 G4AC5 adapter card.
