OBSOLETE G4 DC Output 5-60 VDC 16-channel Integral Rack

Please call (800) 321-6786 to order.

Production Specification

*** This product is obsolete and no longer available. ***

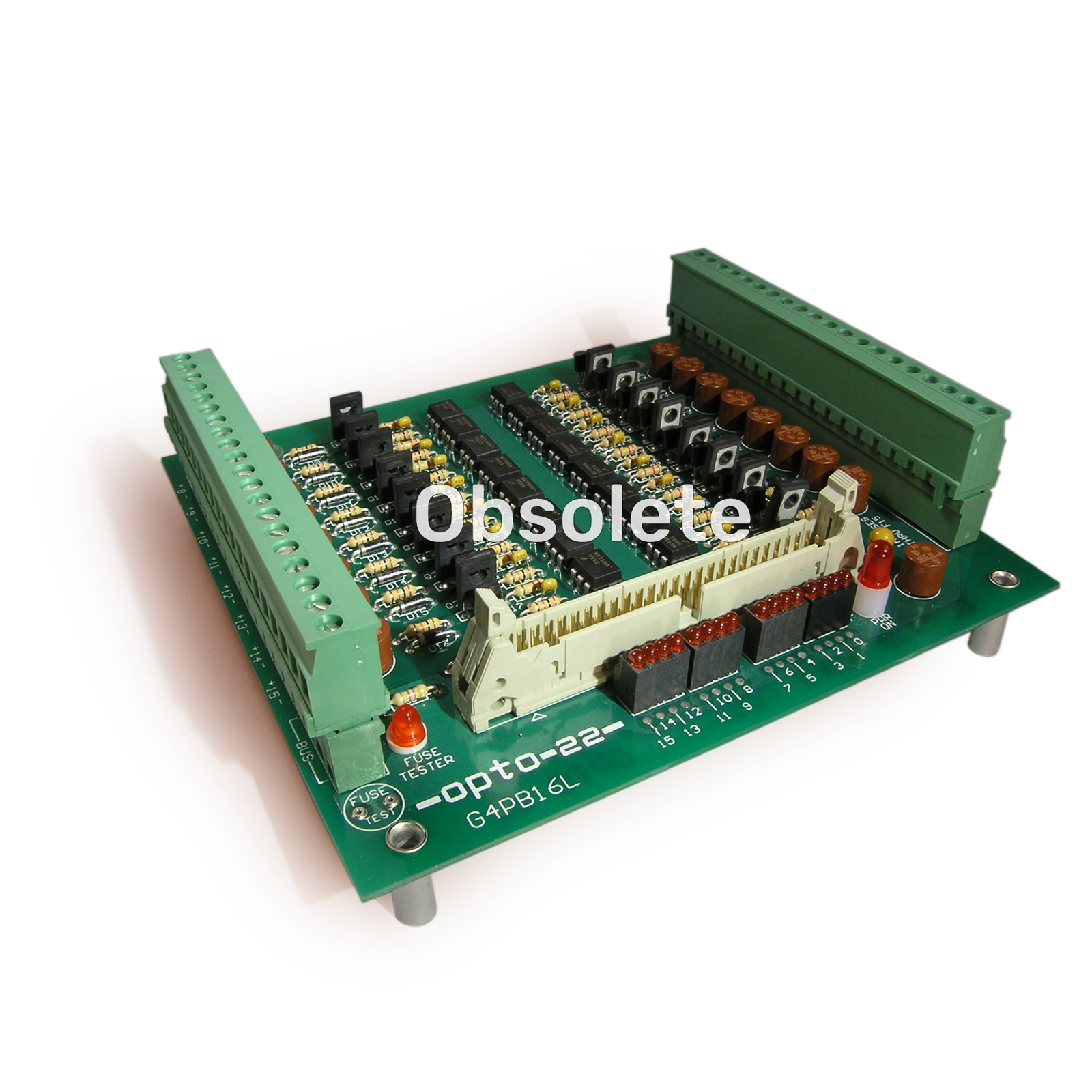

The G4PB16L DC output rack provides 16 channels of optically-isolated outputs for controlling or switching small DC loads by an Optomux B1 or E1, Pamux B5, or mistic B100 brain board.

The compact size and design of this rack yields a substantial space and cost savings over other 16-channel I/O racks. All channels are identical and output 5-60 VDC, ideal for applications that need to control or switch several similar small DC loads.

On-board LED indicators display each channel’s on/off status.

Typical applications for the integrated DC output rack include controlling or switching low-power DC relays, low-power DC solenoids, and DC lamps and indicators.

Control connections are easily made to a 50-pin header connector. Barrier strips with screw terminals provide the field and rack power connections. For easier field wiring, use the G4STRAPB. The logic supply and all output channels are individually fused with a 1A fuse.

NOTE: This rack can be used with Opto 22 PC adapter cards (PCI-AC5PCIe-AC5, or G4AC5) if jumpers 1 and 2 are removed. (See the Adapter Cards Data Sheet for more information.)

Output voltage range

5–60 VDC

Current rating:
  @ 45°C
  @ 70 °C



.5 A
.2A

Isolation:
  Input-to-output
  Channel-to-channel



4,000 Vrms
300 Vrms

Off-state leakage at maximum voltage

1 mA

One second surge

1.3 A

Turn-on-time

100 µs

Turn-off time

100 µs

Output voltage drop maximum peak

1.6 VDC

Nominal logic voltage

5 VDC

Logic voltage range

4.5–6 VDC

Logic input current at nominal logic voltage

190 mA

Temperature:
  Operating
  Storage



-30 to +70 °C
-30 to +85 °C

Agency approvals:

UL, CSA, CE, RoHS, DFARS

Warranty:

30 months from date of manufacture
