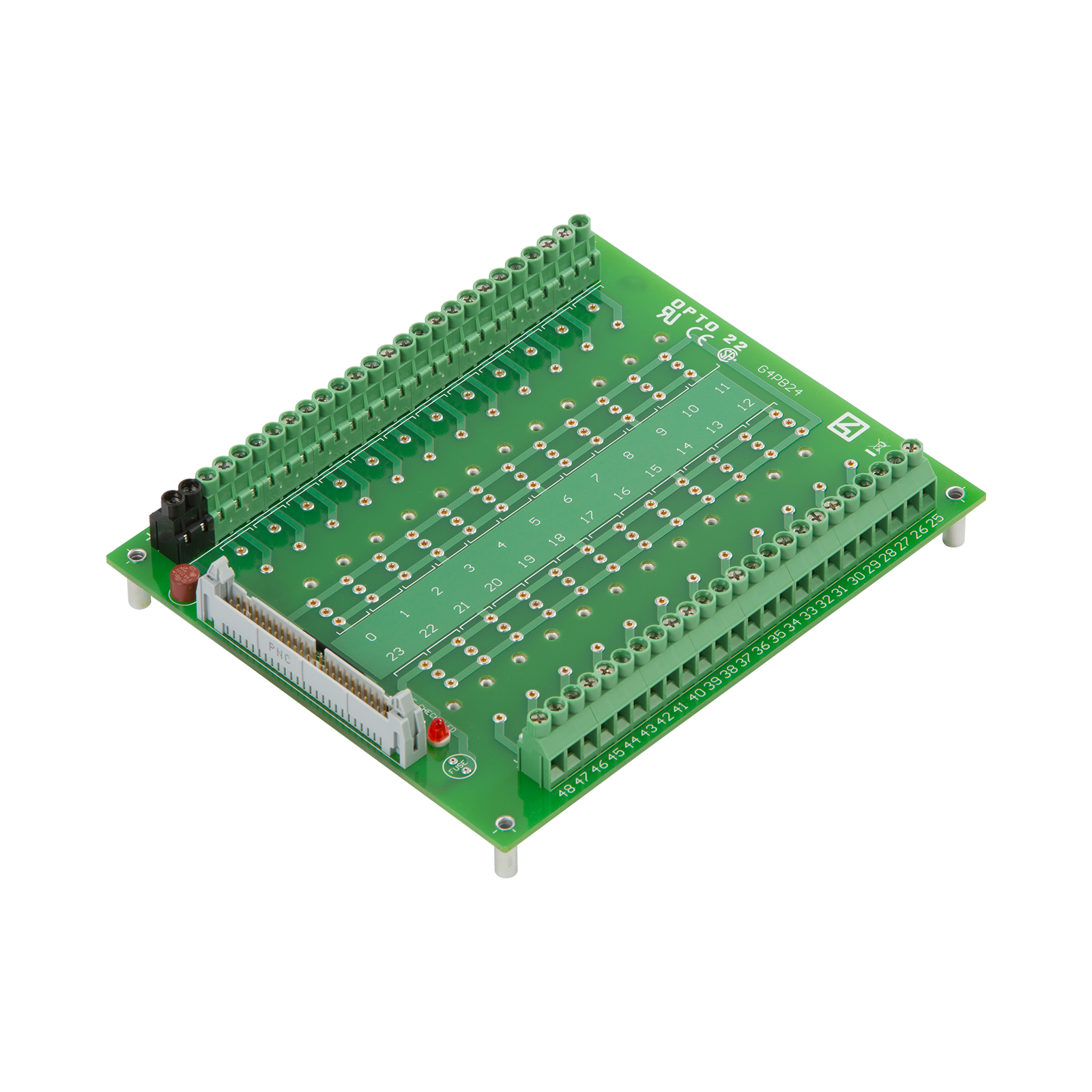

G4 24-channel I/O Module Rack

Production Specification

G4 I/O family

The G4PB24 rack holds 24 G4 digital I/O modules, both AC and DC. Single-channel G4 I/O gives you maximum flexibility. You can insert and remove modules easily and quickly without disturbing field wiring. Modules are securely attached with a threaded captive hold-down screw.

Barrier strips with screw terminals provide the field and mounting rack power connections. A spare module fuse is included with the rack. For easier field wiring, use the G4STRAPB.

For logic connections, a header connector accepts a standard 50-pin cable, typically from an Opto 22 PC adapter card (PCI-AC5, PCIe-AC5, or G4AC5). When used with an adapter card, 5 VDC G4 I/O modules are required (15 VDC and 24 VDC I/O modules cannot be used).

This rack supports negative-true logic only (zero voltage = ON, and Vcc = OFF).

Operating
temperature:

0 to 70 °C
95 percent relative humidity, non-condensing

Interface connector:
Field:
Control:



Screw-type barrier strip accommodates up to 10 AWG wire
50-conductor header connector

Field connector screws

Torque: 5.5 in-lb (0.62 N-m)

Agency approvals:

UL, CSA, CE, RoHS, DFARS; UKCA

Warranty:

30 months from date of manufacture
