G4PB4
Hover over image to zoom in

G4PB4

$67.25 (USA and Canada only)

Availability: In stock

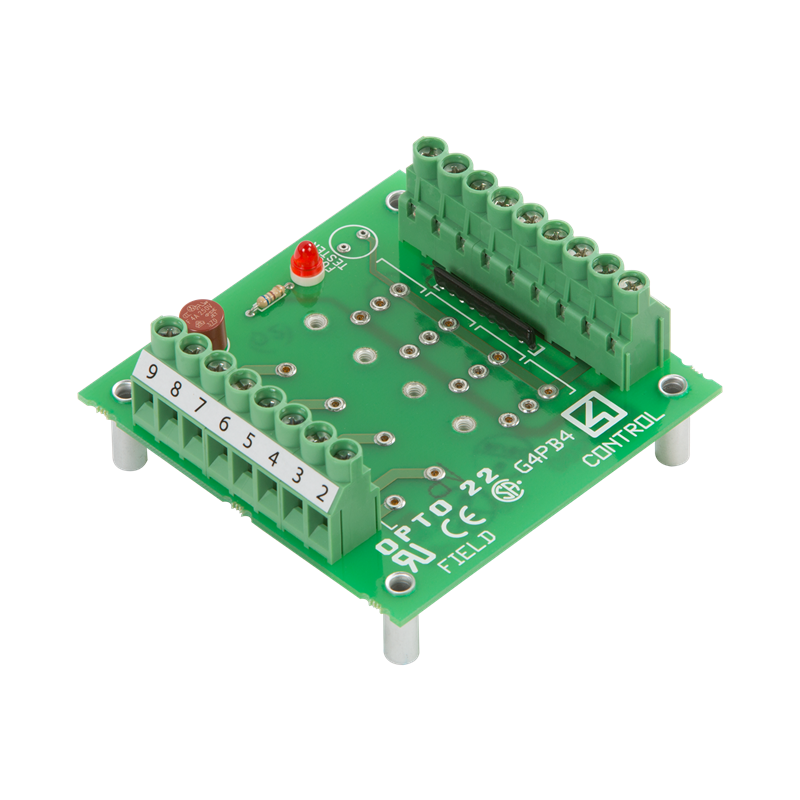

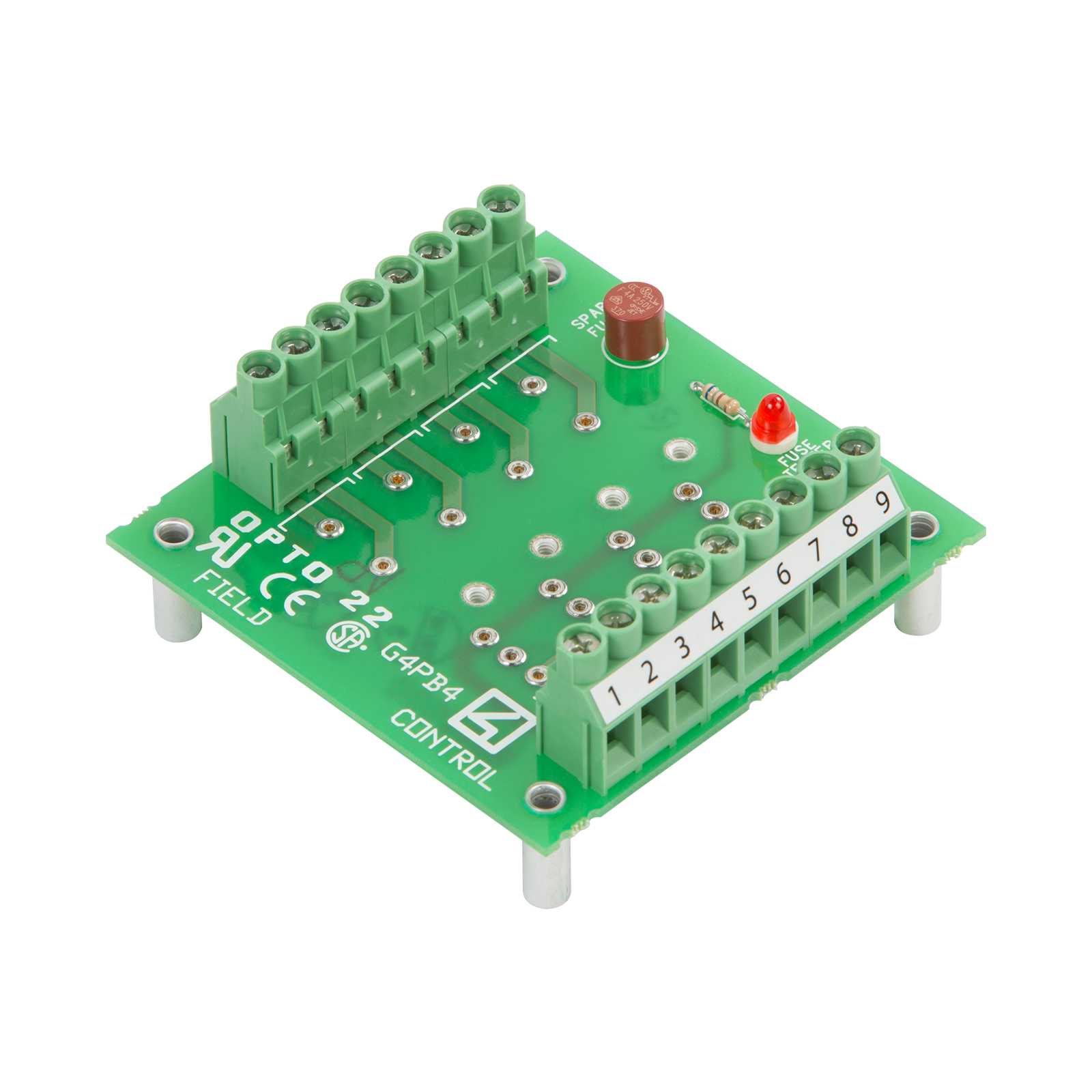

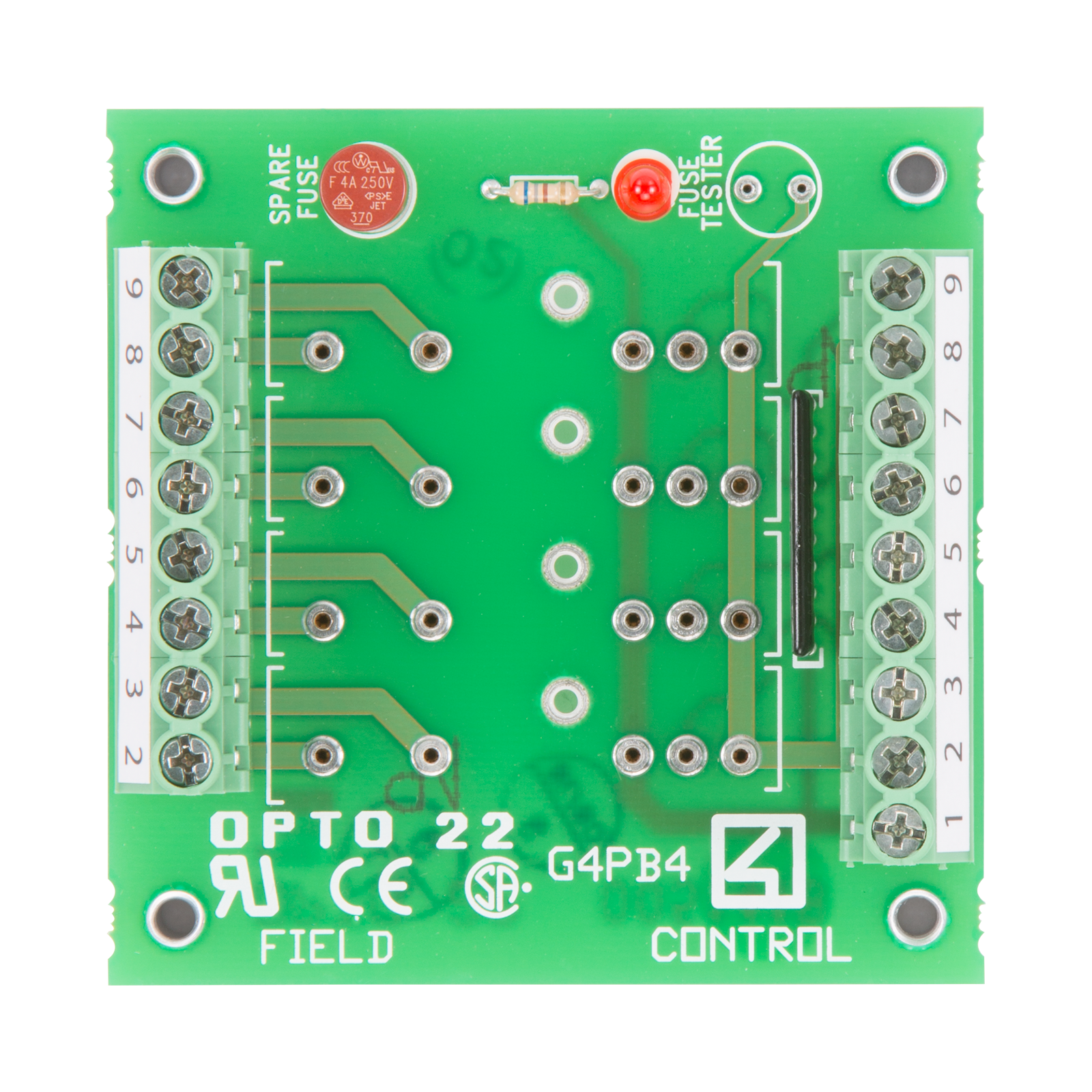

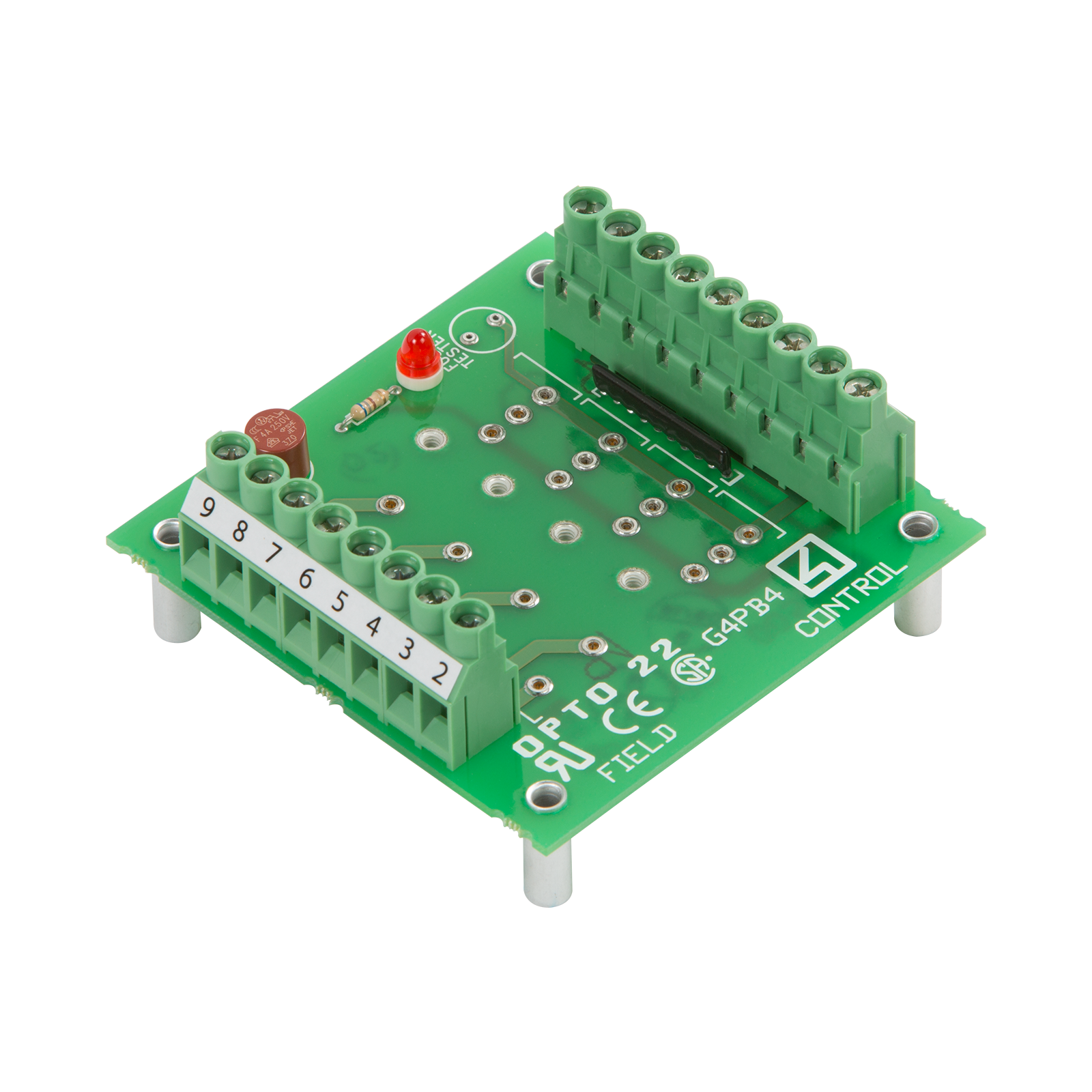

G4 Digital 4-Channel Mounting Rack

Production Specification

G4 I/O family

The G4PB4 I/O mounting rack compactly accommodates up to four G4 digital I/O modules in applications where only a few I/O points are needed.

Single-channel G4 I/O gives you maximum flexibility. All modules on the rack must use the same logic voltage (5 VDC, 15 VDC, or 24 VDC). Insert and remove modules easily and quickly without disturbing field wiring. Modules are secured to the mounting rack with a threaded captive hold-down screw.

Barrier strips with screw terminals provide the field, control, and mounting rack power connections. For easier wiring, use the G4STRAPB.

Operating
temperature:

0 to 70 °C

Interface connector
(field and control)

Screw-type barrier strip
accommodates up to 10 AWG wire

Agency approvals:

UL, CSA, CE, RoHS, DFARS; UKCA

Warranty:

30 months from date of manufacture

G4 Digital 4-Channel Mounting Rack Data Sheet

The G4PB4 I/O mounting rack compactly accommodates up to four G4 I/O modules secured by a threaded captive hold-down screw.

G4 Digital I/O Data Book

The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

G4 Digital I/O Wiring Diagrams

Wiring diagrams for G4 modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
