G4PB4R

Availability: In stock

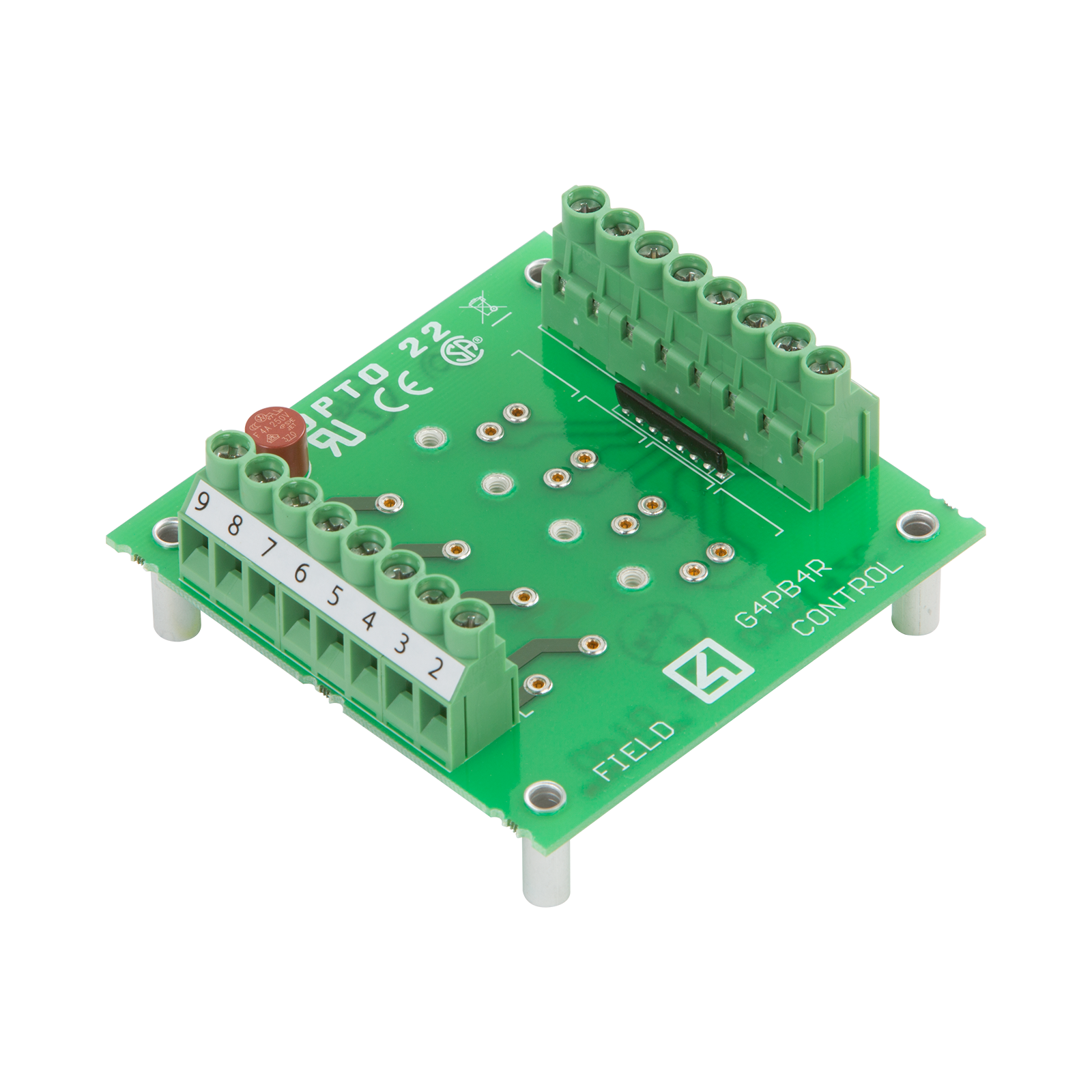

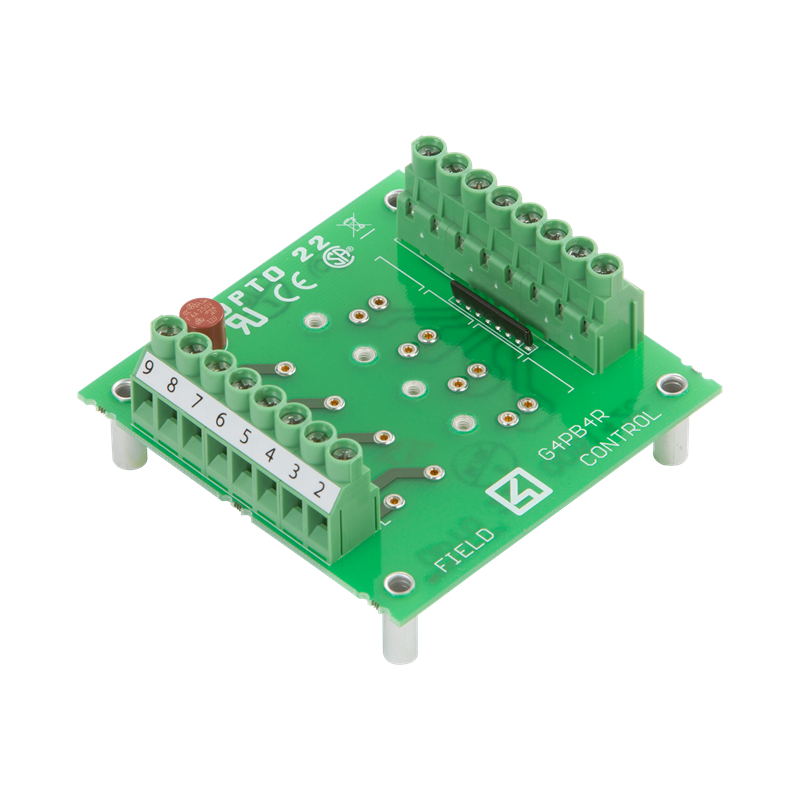

G4 4-channel Output Module Rack

Please call (800) 321-6786 to order.

G4PB4R

Production Specification

G4 I/O family

The G4PB4R output mounting rack compactly accommodates up to four G4 output modules and features channel-to-channel isolation between all field and control circuits.

I/O modules on this rack can have varied logic voltage. You can mix 5 VDC, 15 VDC, and 24 VDC logic modules on the rack. This rack cannot use dry contact output modules.

This rack supports negative-true or positive-true logic on a point-by-point basis. Each point can handle control signals differently.

Barrier strips with screw terminals provide the field, control, and mounting rack power connections. For easier wiring, use the G4STRAPB.

Operating
temperature:

0 to 70 °C

Interface connector
(field and control)

Screw-type barrier strip
accommodates up to 10 AWG wire

Agency approvals:

UL, CSA, CE, RoHS, DFARS

Warranty:

30 months from date of manufacture
