G4PS24XA

G4PS24XA

Availability: Call for Availability

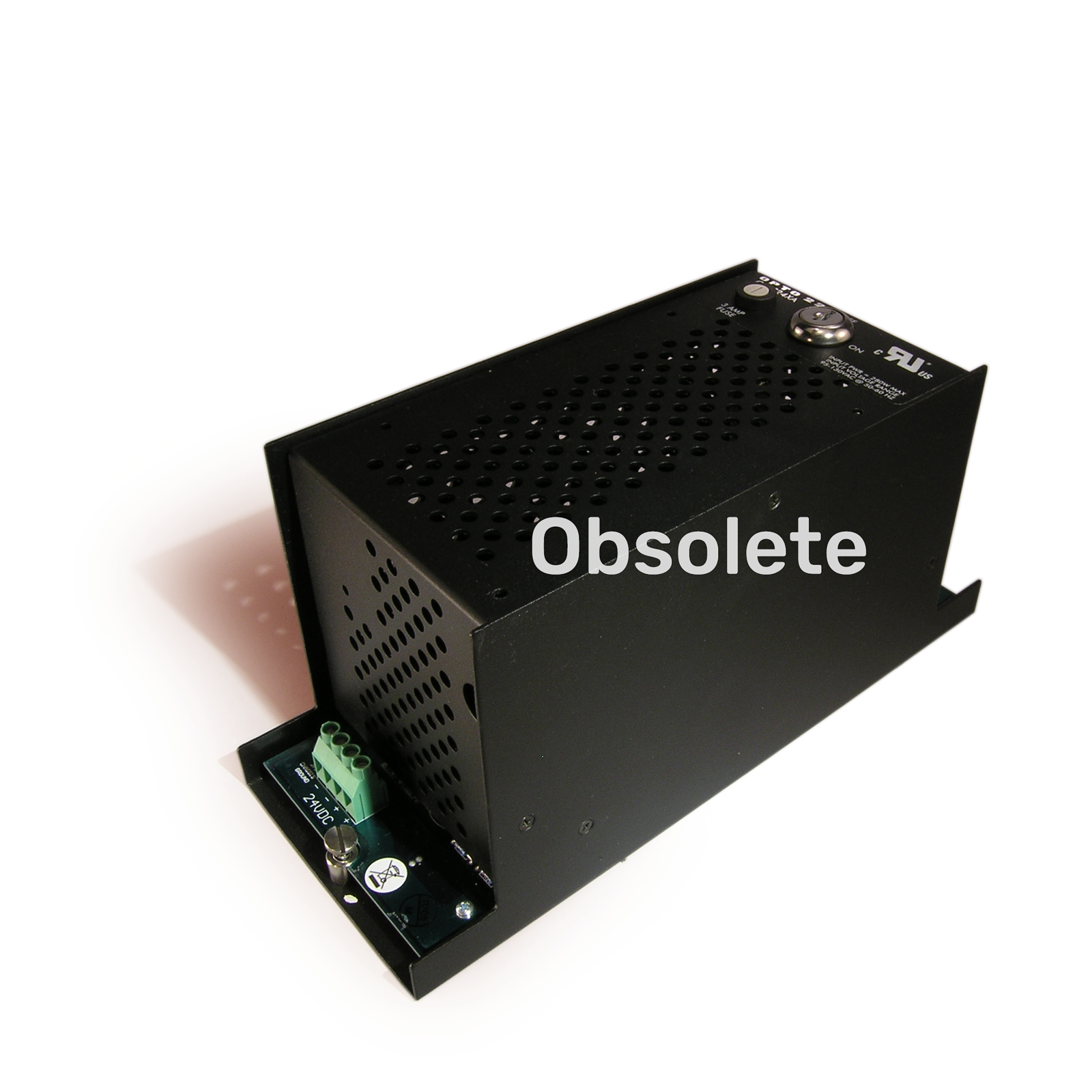

OBSOLETE Brick Power Supply 7 Bricks 120 VAC

Please call (800) 321-6786 to order.

Production Specification

*** NOTE: This product is obsolete and limited to stock on hand. ***
If you need to replace it, use a third-party linear or isolated switching power supply.

Brick Power Supply 7 Bricks 120 VAC

G4PS245A



G4PS245AFM

G4PS245B

G4PS24XA

G4PS24XB

Input Voltage Range

100–135 VAC

100–135 VAC

180–250 VAC

100–135 VAC

180–250 VAC

Input Voltage Frequency

50–60 Hz

50–60 Hz

50–60 Hz

50–60 Hz

50–60 Hz

Input Current

2.2 A

2.2 A

1.5 A

2.1 A

1.3 A

Output Voltage

24 ±0.5 VDC
5 ±0.1 VDC

24 ±0.5 VDC
5 ±0.1 VDC

24 ±0.5 VDC
5 ±0.1 VDC

24 ±0.5 VDC

24 ±0.5 VDC

Output Current
(24 VDC)

4.0 A

4.0 A

4.0 A

4.0 A

4.0 A

Output Current
(5 VDC)

4.0 A

4.0 A

4.0 A

Maximum Units Supplied

One (1) Mistic controller and six (6) bricks

Any combination of bricks with up to seven (7) digital bricks or six (6) analog bricks

Ambient Temperature Operating Storage

0 to 70 °C
-25 to 85 °C

0 to 70 °C
-25 to 85 °C

0 to 70 °C
-25 to 85 °C

0 to 70 °C
-25 to 85 °C

0 to 70 °C
-25 to 85 °C

Replacement Fuse

Standard 3AG, 1/4" x 1-1/4" glass fuse, Littlefuse P/N 312003

Mistic 200 Power Supplies Data Sheet

Four models of input power supplies are available for the G4LC32 and G4LC32SX controllers, and the family of mistic I/O bricks.

Declaration of Conformity (EMC)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
