G4SWIN
Hover over image to zoom in

G4SWIN

$36.75 (USA and Canada only)

Availability: In stock
G4 Digital Input Switch, 5, 15, 24 VDC Logic

Production Specification

G4 I/O family

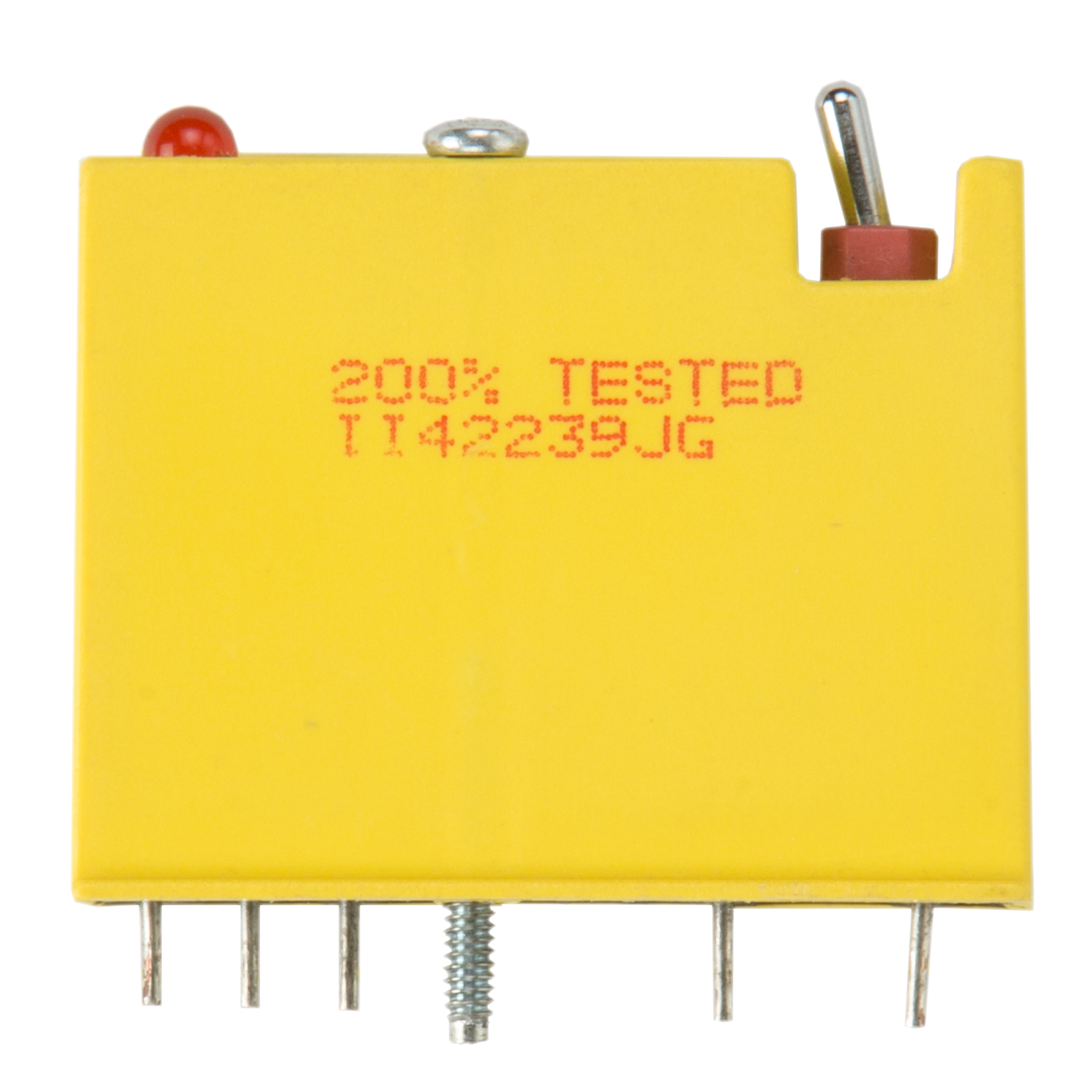

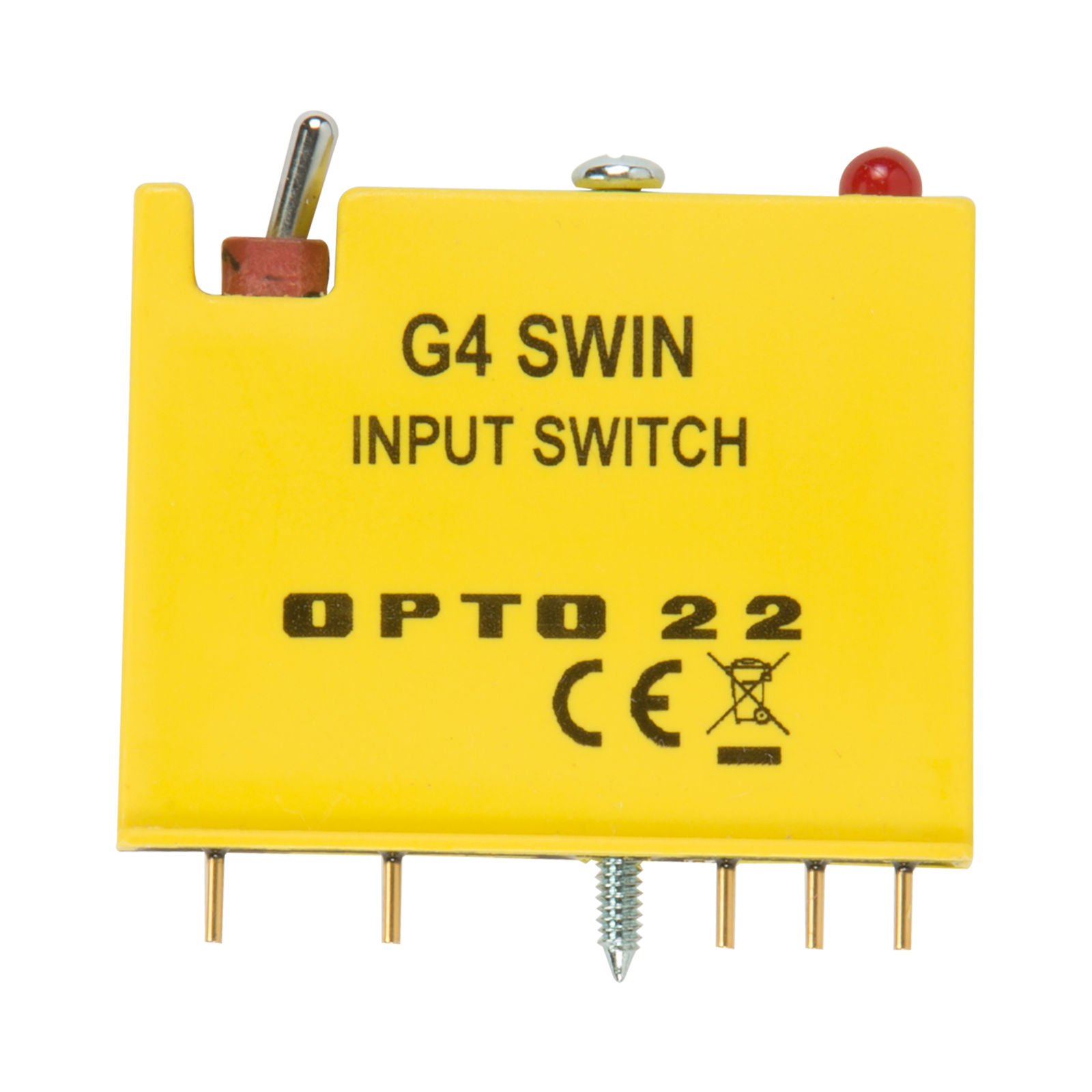

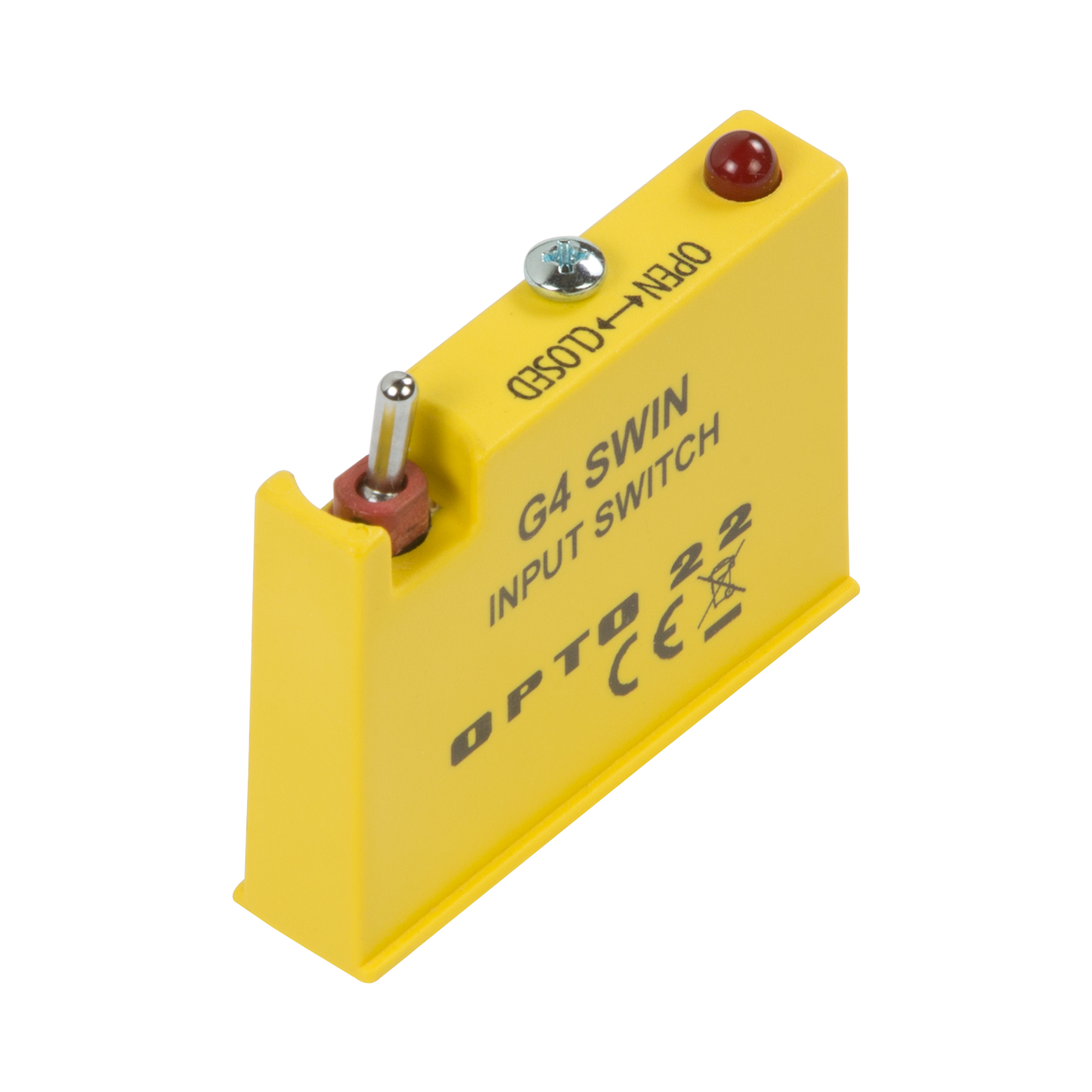

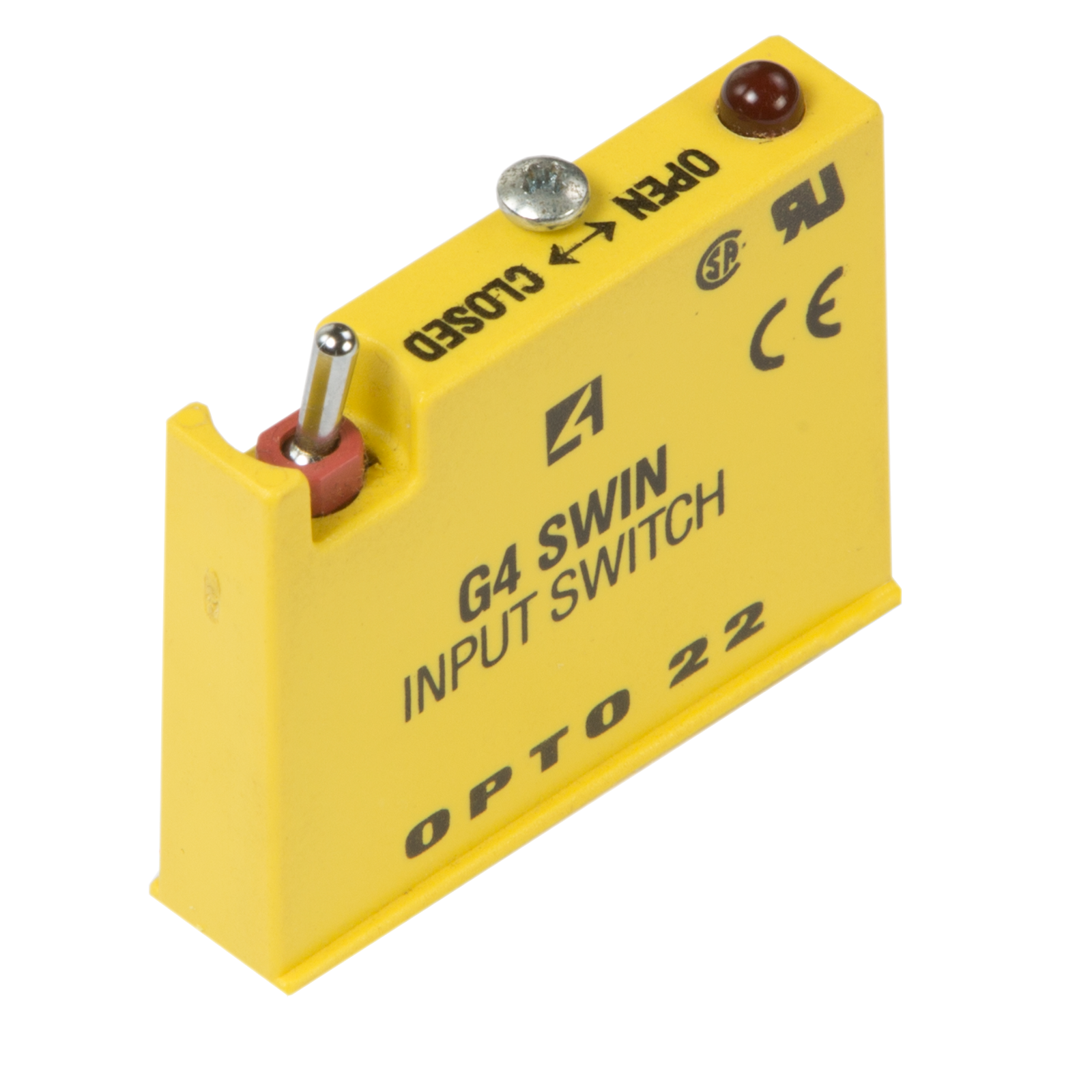

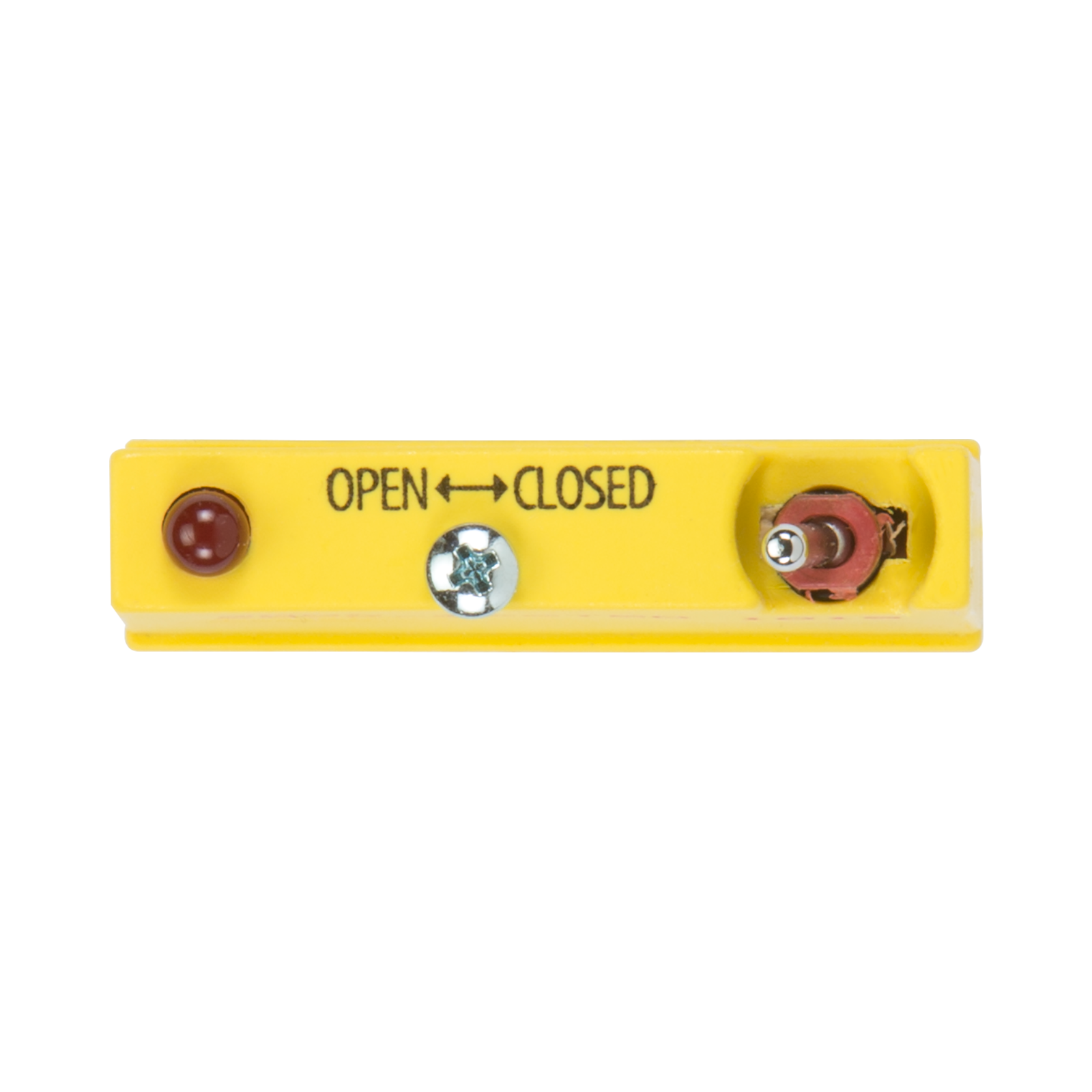

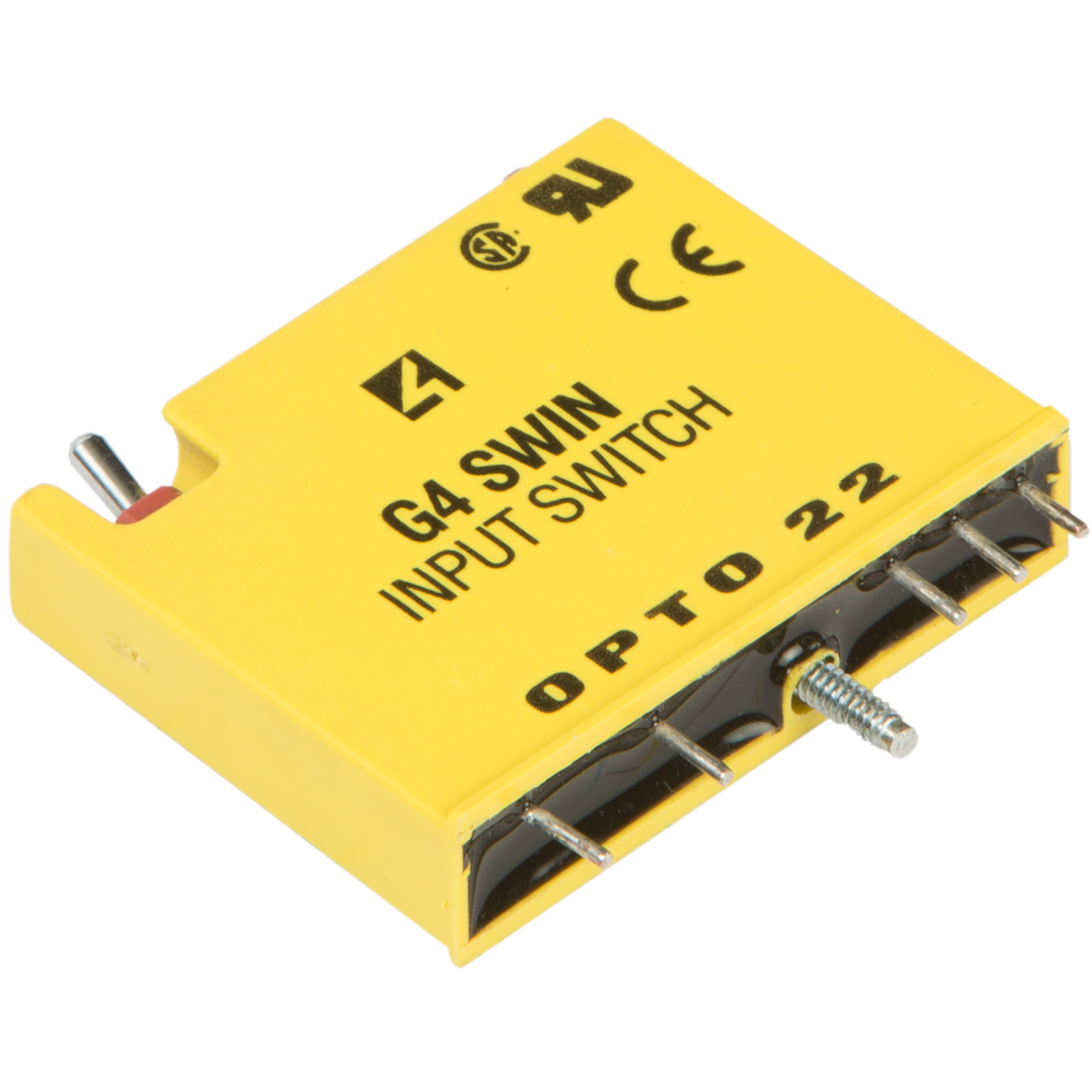

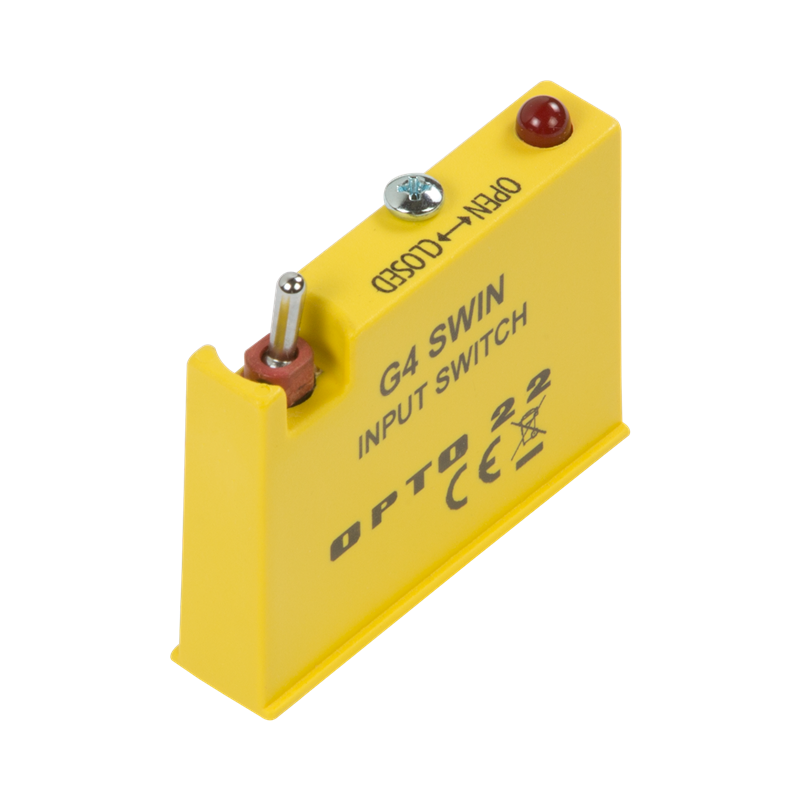

The G4SWIN input test module is used to simulate an input on an I/O mounting rack. Each module contains a toggle switch that closes a contact on the logic side of the module. An internal resistor limits the current through the switch and provides a load similar to that of an actual input module. An internal debounce circuit allows rapid switch closures without false counts.

The G4SWIN module works with logic voltages of 5, 15, and 24 volts. Internally, there is no connection to the field inputs.

The G4SWIN module is ideal for simulating discrete external events when testing application software.

Compatible with Raspberry Pi. The G4SWIN can be used with the Digital I/O Carrier Board for Raspberry Pi® (part number OPTO-P1-40P) to monitor and control industrial devices with your Raspberry Pi.

Isolation, input-to-output (transient):
1 ms
1 minute



4000 volts
1500 volts

Temperature:
Operating
Storage



-30 to +70 °C
-30 to +85
°C

Agency Approvals CE, UKCA

G4 Digital Switch Modules Data Sheet

G4 digital switch modules are used to simulate an input on an I/O mounting rack (G4SWIN) or an output from a G4 module (G4SWOUT). These modules are ideal for testing application software and field wiring. Each module contains a manual toggle switch. The G4SWIN's switch closes a contact on the logic side of the module; the G4SWOUT's switch is on the field side.

Digital I/O for Raspberry Pi Selection Guide

Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.

This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.

For code samples and steps to get started, also see developer.opto22.com.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
