GROOV-AT1-SNAP
Hover over image to zoom in

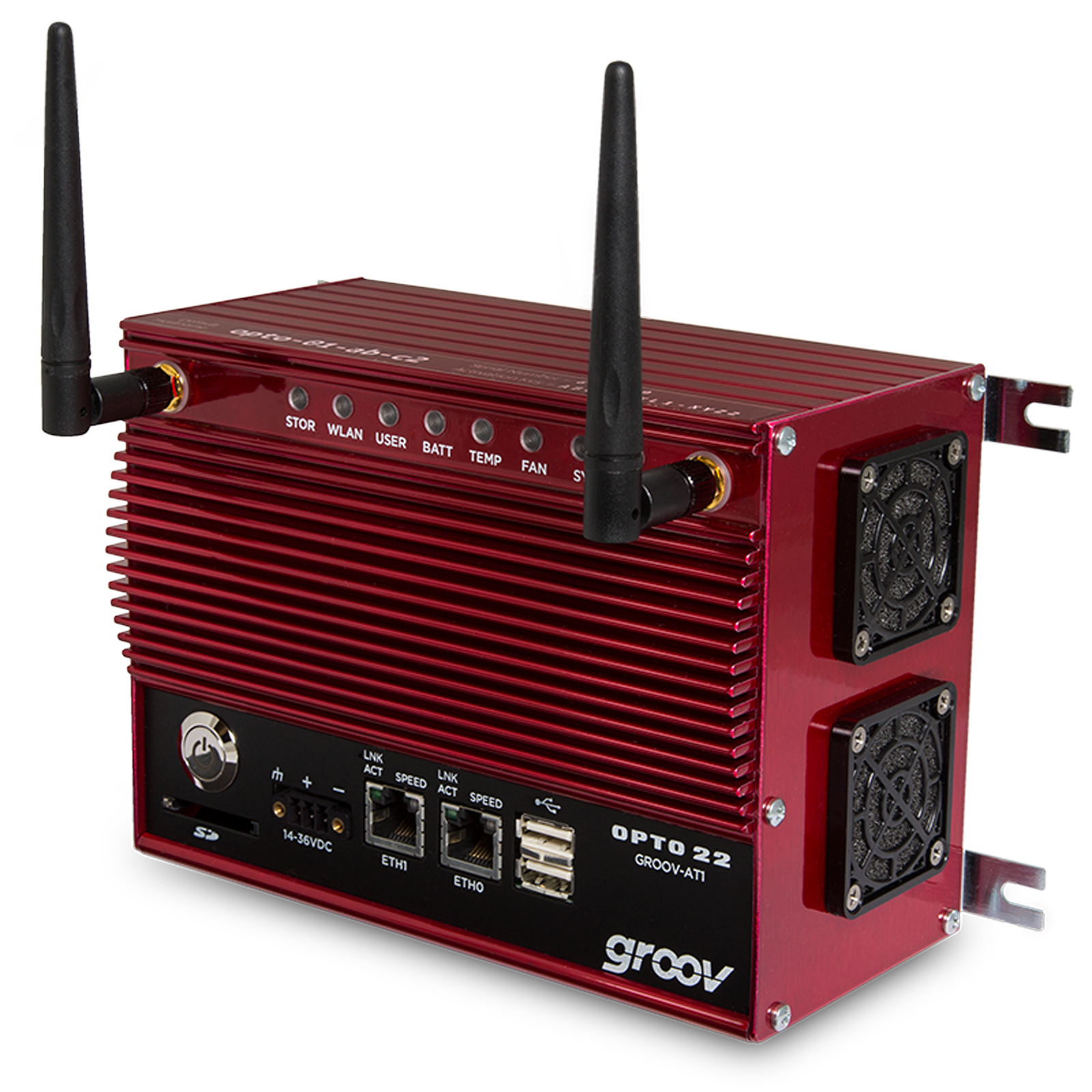

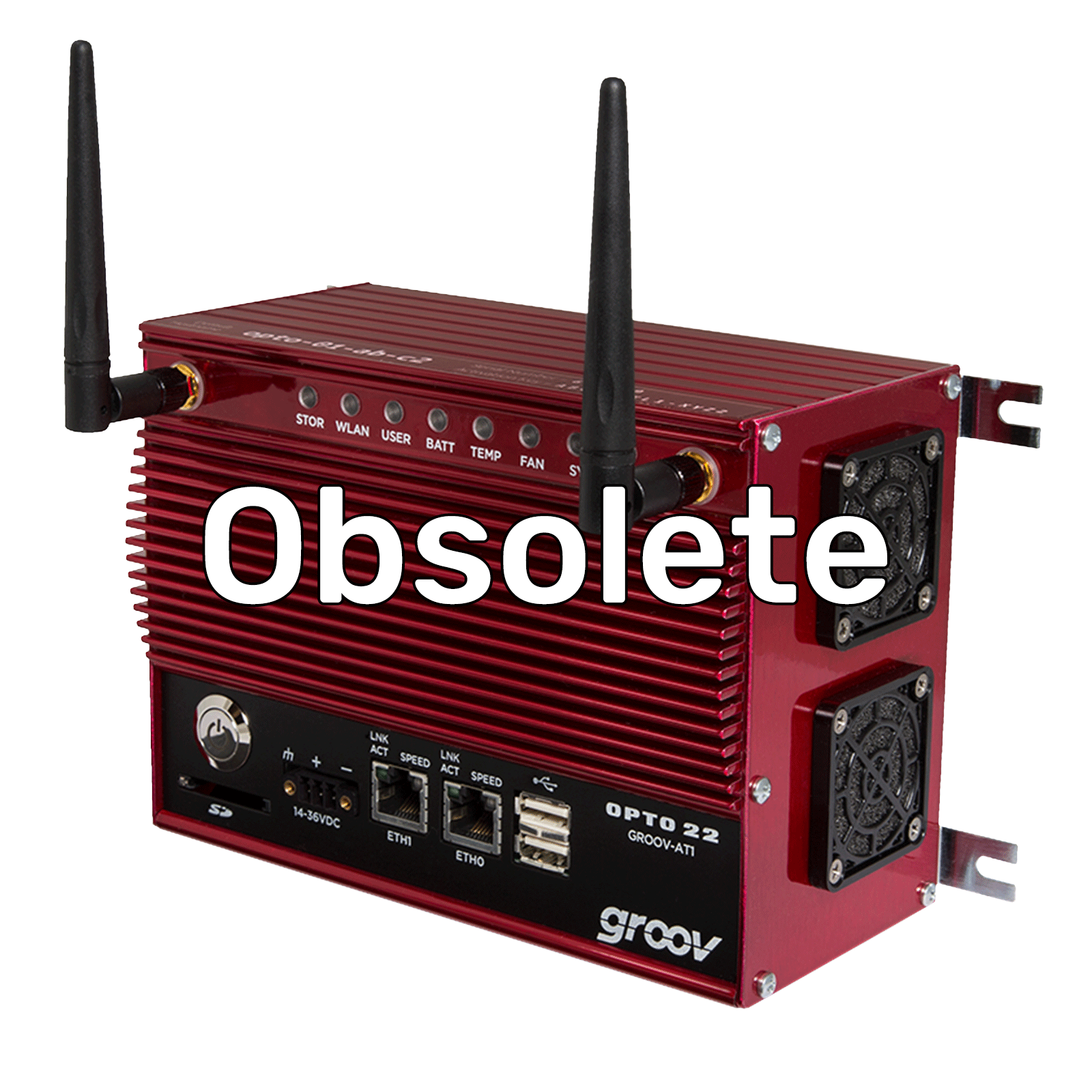

GROOV-AT1-SNAP

Availability: Obsolete
OBSOLETE groov Box for Modbus/TCP and SNAP PAC
Data Sheet User's Guide

Production Specification

*** This part number is obsolete. It was replaced with part numbers GROOV-AR1-BASE and GROOV-LIC-PLUS.
For new installations, we recommend groov EPIC, which includes groov View and adds many other software and security options for industrial internet of things applications. ***

NOTE: If you need to replace fans on the GROOV-AT1, see GROOV-AT1 FAN KIT.

IMPORTANT: groov View 4.4 will be the last major release to support GROOV-AT1 products. It is also the last release to support:

  • Internet Explorer for creating HMIs in Build mode (You will still be able to view HMIs with Internet Explorer.)
  • Microsoft Edge prior to version 79 in Build Mode (You will still be able to view HMIs with Edge versions lower than 79.)

Ethernet Communication (wired)

Two independent 10/100/1000 Mbps RJ-45 connectors, each with a separate IP address (separate subnets). Supports Auto MDI-X (crossover cable not needed).

Ethernet Comm (wireless)

802.11 b/g/n

Security (wireless)

WEP (64-bit and 128-bit)
WPA PSK (also known as WPA Personal)
WPA2 PSK (also known as WPA2 Personal)

Antenna Connector

Reverse polarity SMA (RP-SMA or RSMA)

Power Consumption

14-36 VDC, 24 VDC @ 1 amp (Power supply included; input 100-240 VAC. Use international adapter if needed.)

Enclosure

Sturdy metal case

USB

USB 2.0 (two)

Indicators

Ethernet interfaces (2): Link/Activity and Speed
System: STOR, WLAN, USER, BATT, TEMP, FAN, SYS, & PWR

Operating Temperature

0 to 50 °C (32 to 122° F)

Storage Temperature

-20 to 60 °C (-4 to 140° F)

Operating Humidity

10% to 90% relative humidity, non-condensing

Storage Humidity

5% to 95% relative humidity, non-condensing

Agency Approvals

CE, RoHS, DFARS
Wireless: U.S., FCC Part 15 Subpart C; Canada, IC RSS-210

Warranty

30 months

2077

groov Box User's Guide for GROOV-AT1

** These groov Box part numbers are obsolete and no longer supported in groov View versions higher than R4.4x. **

This user's guide shows you how to set up and configure groov Box part numbers GROOV-AT1 or GROOV-AT1-SNAP, and the GROOV-AT1 FAN KIT.

Note: If you have the newer groov Box (part numbers GROOV-AR1-BASE, GROOV-AR1, or GROOV-AR1-SNAP), do not use this guide. Instead, see Form 2104, groov Box User's Guide for GROOV AR1.

View

2063

groov Quick Start Guide for GROOV-AT1

NOTE: This quick start is for groov Box part numbers GROOV-AT1 and GROOV-AT1-SNAP.  These part numbers are obsolete and no longer supported in groov View versions higher than R4.4x.

If you have a GROOV-AR1 Box, see Form 2103, groov Quick Start Guide for GROOV-AR1 instead.

View

2371

UKCA Declaration of Conformity (EMC, LVD, RED, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2120

Updates to Opto 22's groov Improve Interface Development and Expand Mobile Device Support

Press release announcing Opto 22's groov 2.2

View

2109

New Updates to Opto 22's groov Provide Faster Interface Development and Improved Mobile Communications

Press release announcing Opto 22's groov 2.1.

View

2082

CE Declaration: R&TTE

This declaration of conformity applies to the R&TTE Directive of the European Union (1999/5/EC).

View

0892

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View

0891

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View

CAD 3D Drawing: GROOV-AT1

This CAD file contains a 3-dimensional drawing of the GROOV-AT1 groov Box, which contains all groov software. With groov, you can easily build effective operator interfaces for your control system and view them on any device with a modern web browser—computers, tablets, smartphones, even an HDTV—any screen size, any manufacturer.

For more information, see groov System.

View

CAD Drawing: GROOV-AT1

This CAD file contains a two-dimensional drawing of the GROOV-AT1 groov Box, which contains all groov software. With groov, you can easily build effective operator interfaces for your control system and view them on any device with a modern web browser—computers, tablets, smartphones, even an HDTV—any screen size, any manufacturer.

For more information, see groov System.

View
