GRV-EPIC-CHS8
Hover over image to zoom in

GRV-EPIC-CHS8

$289.00 (USA and Canada only)

Availability: In stock
8-module groov EPIC analog/discrete/serial mounting chassis
Data Sheet

Production Specification

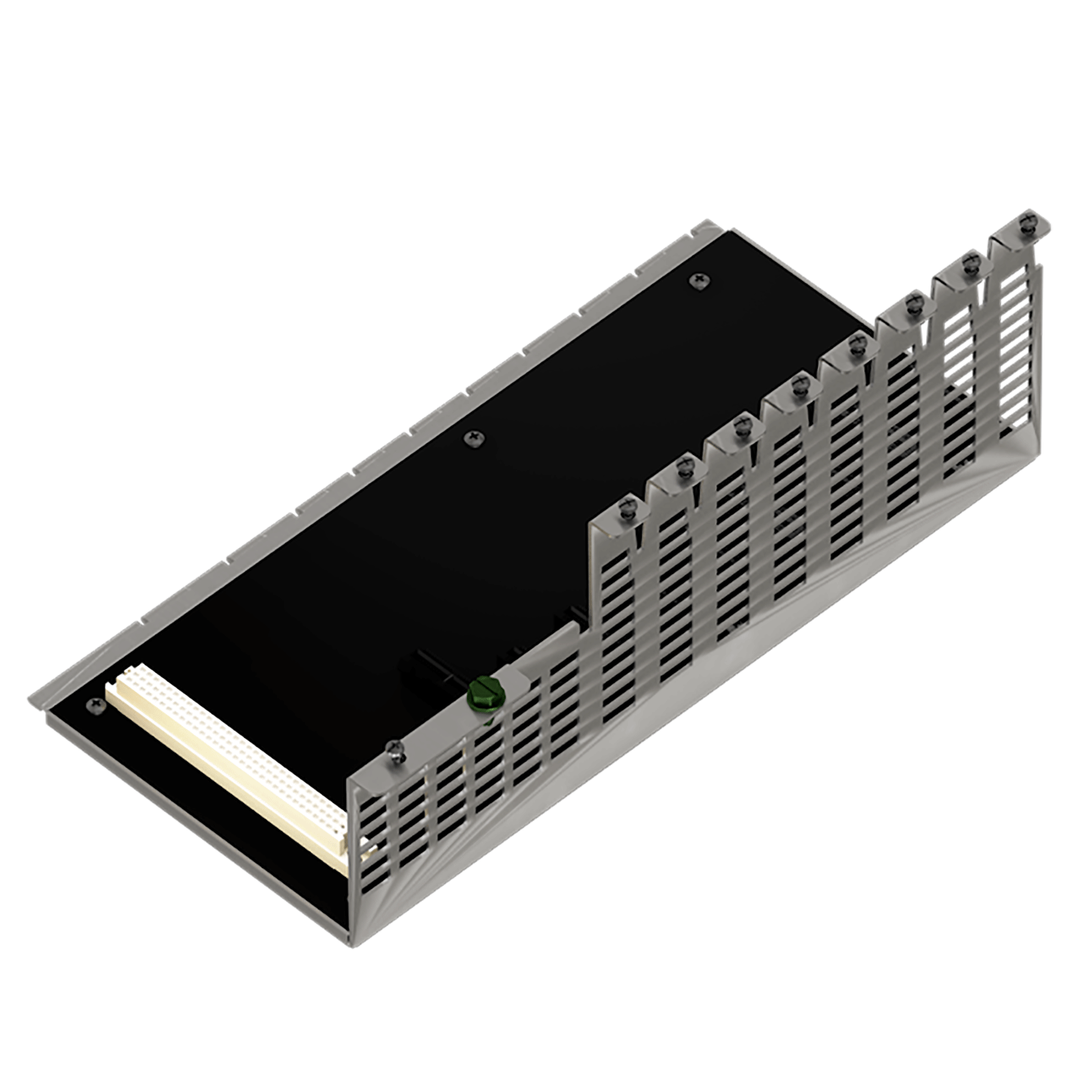

Part of the groov EPIC® system, the GRV-EPIC-CHS8 mounting chassis is designed to hold an intelligent GRV-EPIC-PR1 or GRV-EPIC-PR2 processor, a groov EPIC power supply, and up to 8 groov I/O modules.

Since groov analog, discrete, and serial I/O modules all have the same footprint, you can mix all these modules on the same chassis. Field devices are wired directly to the top-mounted connectors on the modules. The module and chassis design allows modules to rock into a specific mounting point on the chassis.

NOTE: If you need more or fewer modules, see the 16-module GRV-EPIC-CHS16 or the 4-module GRV-EPIC-CHS4.
Specification GRV-EPIC-CHS16 GRV-EPIC-CHS8 GRV-EPIC-CHS4 GRV-EPIC-CHS0
Number of module slots 16 8 4 0
Maximum Power Rating 60 W with GRV-EPIC-PSAC
50 W with GRV-EPIC-PSDC
108 W with GRV-EPIC-PSPT
Temperature (operating) -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C
Relative Humidity (non-condensing) 5-95%
Agency Approvals UL/cUL (Class 1 Div. 2)a; CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme, UKCA
Warranty 30 months

a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).


2247

groov EPIC Chassis Data Sheet

The groov EPIC® chassis is designed to hold a groov EPIC processor and power supply, with models available to hold several groov® I/O modules.

This data sheet includes information, specifications, and dimensional diagrams for the four models of chassis:

View

2370

UKCA Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2330

ATEX Letter of Conformity for groov EPIC

This ATEX Letter of Conformity is provided to support CE Declaration of Conformity (groov EPIC and groov RIO), form 2261.

View

2261

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

CAD Drawings: groov EPIC System

This ZIP file contains drawings in a variety of file formats for groov EPIC products, including the groov EPIC processor, chassis, groov I/O modules, power supplies, and more, all in one download.

NOTE: This is a very large file (55+ MB) and may take awhile to download. If this file is too large or you need drawings only for a specific product, you may prefer the following:

View
No videos or demos are available for this product.
