GRV-IDCIFQ-12
Hover over image to zoom in

GRV-IDCIFQ-12

$485.00 (USA and Canada only)

Availability: In stock

DC discrete input, 12 channels, 2.5-30 VDC, channel-to-channel isolation, high speed, quadrature

Data Sheet

Production Specification

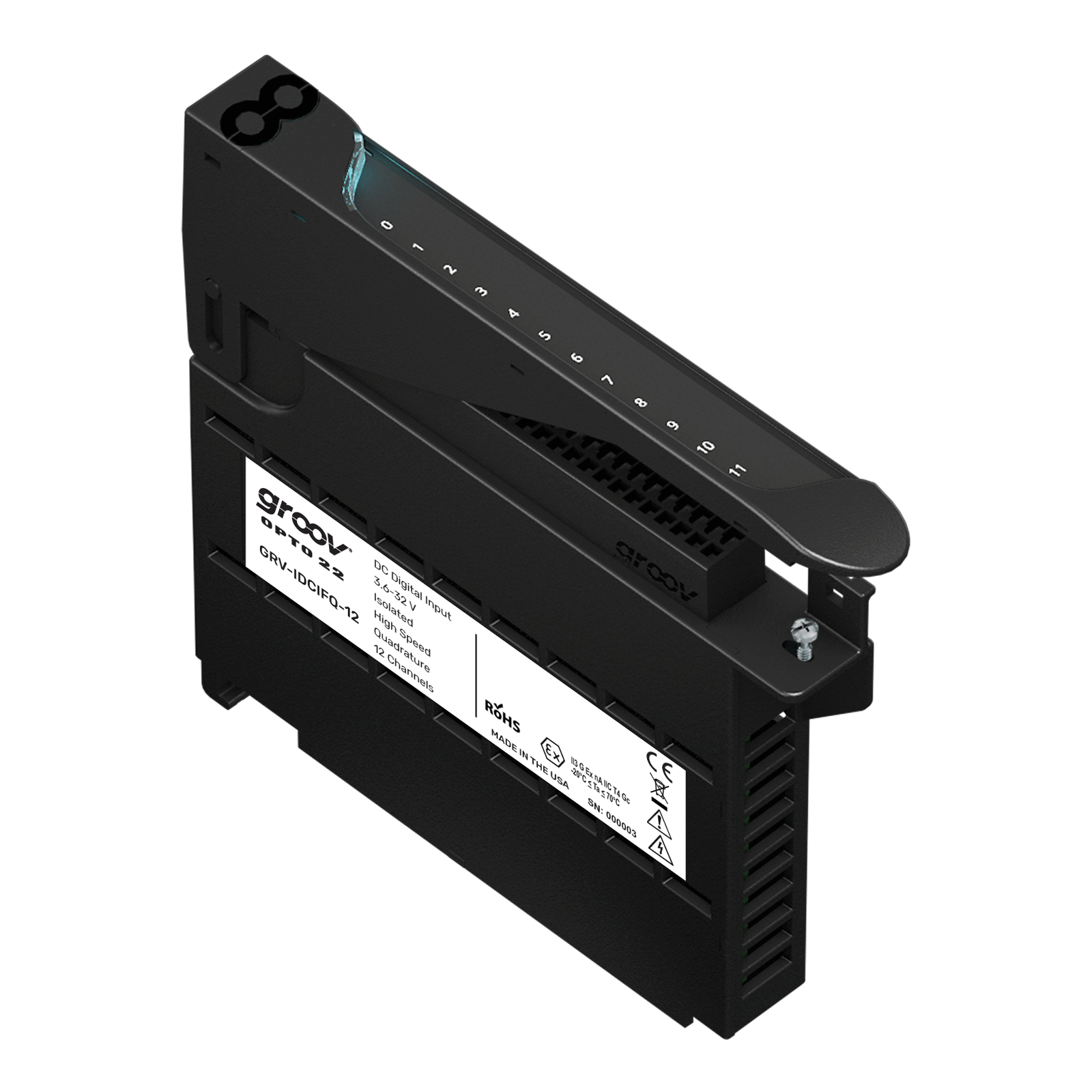

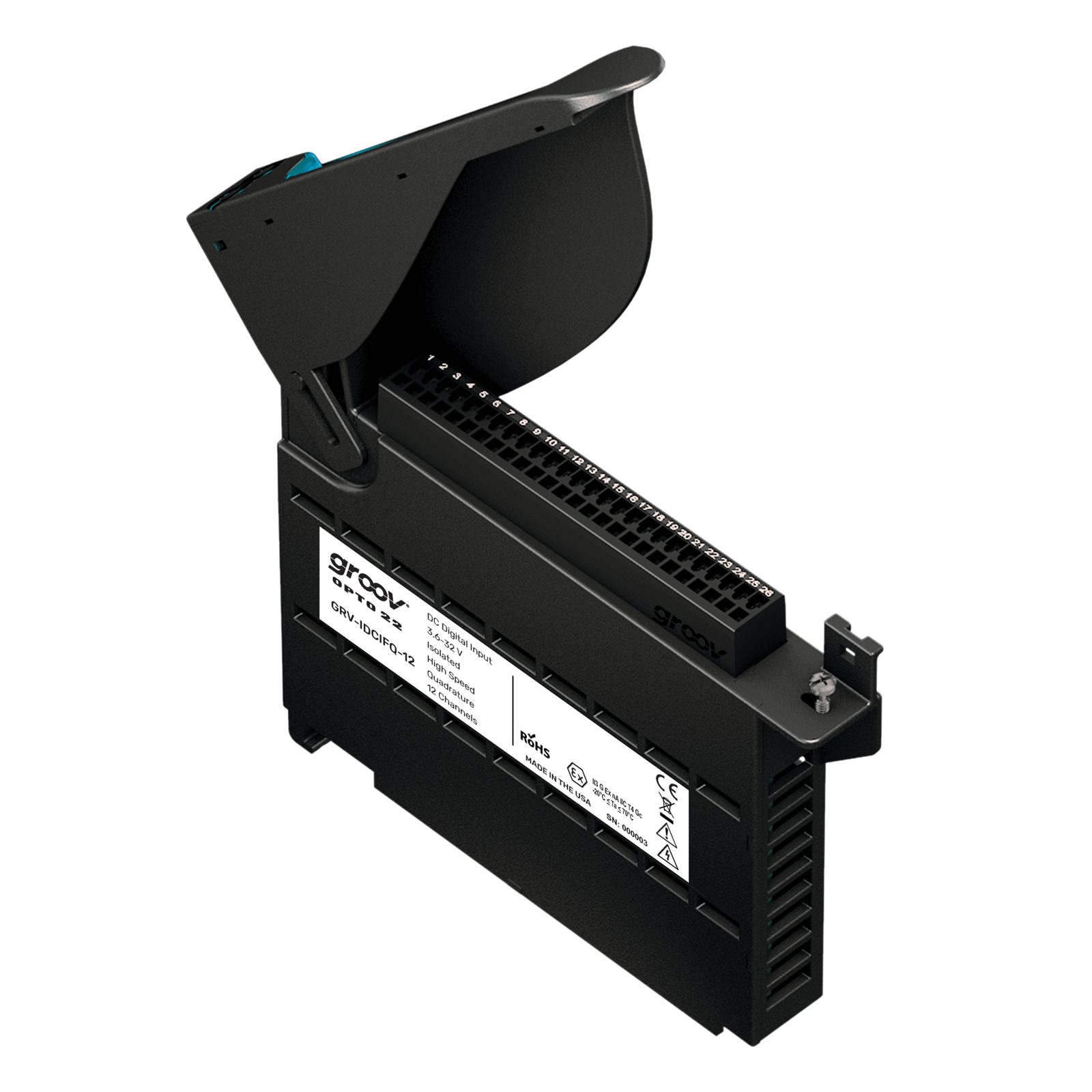

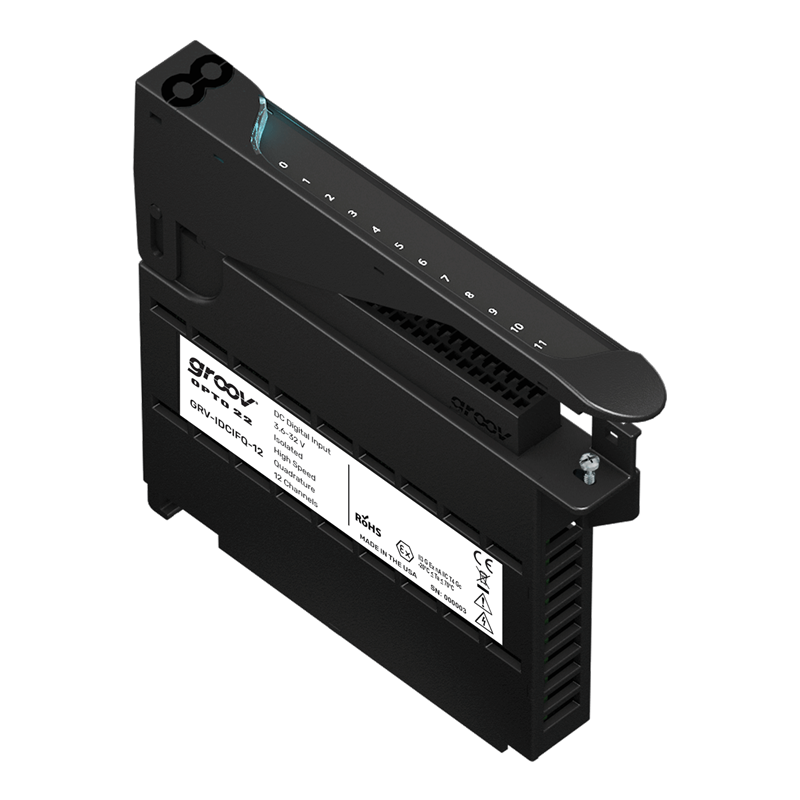

Part of the groov EPIC® system, the GRV-IDCIFQ-12 DC discrete input module senses the on or off status for 2.5–30 VDC input devices such as proximity switches, push buttons, and auxiliary contacts. The module's 12 high-speed digital input channels are capable of measuring frequencies up to 200 kHz when wired for basic counting. It provides channel-to-channel isolation. The input channels can be configured to provide up to 4 axes of quadrature input with an index signal for each axis, running at up to 50 kHz. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

The GRV-IDCIFQ-12 module offers a full set of features, including:

  • On/off state
  • On/off latching
  • On/off totalization
  • Counting
  • Frequency measurement
  • Period measurement
  • Pulse measurement
  • Quadrature

The GRV-IDCIFQ-12 module mounts on a groov EPIC® chassis with a GRV-EPIC-PR1 processor and assorted discrete, analog, and serial groov I/O modules.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.

Opto Products, like GRV-IDCIFQ-12, are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.

Feature

GRV-IDC-24

GRV-IDCS-24

GRV-IDCSW-12

GRV-IDCI-12

GRV-IDCIS-12

GRV-IDCIFQ-12
Number of Channels
24
24
12
12
12
12
Channel-to-Channel Isolation
⬤
⬤
⬤
Counting ⬤   ⬤ ⬤   ⬤
Frequency Measurement
⬤

⬤
⬤

⬤
On/Off Latching
⬤

⬤
⬤

⬤
On/Off State
⬤
⬤
⬤
⬤
⬤
⬤
On/Off Totalization
⬤

⬤
⬤

⬤
Period Measurement
⬤

⬤
⬤

⬤
Pulse Measurement
⬤

⬤
⬤

⬤
Quadrature
⬤
Quality Indication

Specification GRV-IDC-24 GRV-IDCS-24 GRV-IDCI-12 GRV-IDCIS-12 GRV-IDCIFQ-12
Input Voltage 15–30 VDC 15–30 VDC 10–30 VDC
10–25 VAC		 10–30 VDC 2.5–30 VDC
IEC Input Type Type I Type I Type III Type III N/A
Turn ON Characteristic 15 V, > 2 mA 15 V, > 2 mA 10 V, > 2 mA 10 V, > 2 mA 2.5 V
Turn OFF Characteristic 5 V, < 0.5 mA 5 V, < 0.5 mA 5 V, < 1.5 mA 5 V, < 1.5 mA 1.8 V
Input Impedance (± 5%) See Notea See Notea See Notea See Notea 1.1 K at 5 V,
2.2 K at 12 V,
3.5 K at 24 V
Max. On/Off Freq. (DC Input, 50% square wave) 1000 Hz (24 Vp-p) 1000 Hz (24 Vp-p) 1000 Hz (24 Vp-p) 1000 Hz (24 Vp-p) Counting: 200 kHz, Quadrature: 50 kHz
Max. On/Off Freq. (AC Input, 24 VAC, 60 Hz) N/A N/A 10 Hz N/A N/A
Operating Frequency for AC Input N/A N/A 45–100 Hz N/A N/A
Isolation (field-to-logic) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel) None None 300 V working 300 V working 300 V working
Number of Channels 24 24 12 12 12
Chassis Power Consumption 1.2 W 1.2 W 1.2 W 1.2 W 1.0 W
Minimum groov EPIC Firmware Version 1.0.0 1.0.0 1.0.0 (3.3.0 for VAC input) 1.0.0 1.3.0
Minimum PAC Project Version 10.0000 10.0000 10.0000 (10.4000 for VAC input) 10.0000 10.2000
Minimum Library Package for CODESYS Version 1.0.0.0 1.0.0.0 1.0.0.0 (2.0.3.0 for VAC input) 1.0.0.0 1.0.0.0 (2.0.1.0 for quadrature)
Wire Size 28–14 AWG 28–14 AWG 28–14 AWG 28–14 AWG 28–14 AWG
Wire Strip Length 0.315-0.354 inches (8-9mm) 0.315-0.354 inches (8-9mm) 0.315-0.354 inches (8-9mm) 0.315-0.354 inches (8-9mm) 0.315-0.354 inches (8-9mm)
Torque, connector screw 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
Torque, hold-down screw 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m)
Temperature (operating) -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C
Relative Humidity (non-condensing) 5–95% 5–95% 5–95% 5–95% 5–95%
MTBF (minimum, 25°C) 1.2 Mhrs 1.2Mhrs 1.2 Mhrs 1.2 Mhrs 1.2 Mhrs
Agency Approvals UL/cUL (Class 1, Div 2)b; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA
Warranty Lifetime Lifetime Lifetime Lifetime Lifetime

a. IEC inputs have non-linear impedance. See the tables in the data sheet for typical V-I curves.
b. For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).

Opto Products are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.

2236

groov 10–30 VDC Input Modules Data Sheet

groov 10–30 VDC and 10-25 VAC input modules are part of Opto 22's groov EPIC® System. This document includes descriptions, specifications, and wiring and dimensional diagrams for the following part numbers:

View

RM_GROOV_IO

groov I/O Modules Firmware Release Notes

This document lists the latest updates to the firmware for groov I/O modules. It includes information on new features, enhancements, and bug fixes.

List of groov I/O module firmware download pages

Note: This document was formerly called a readme. The name was changed to more accurately describe its content.

View

2370

UKCA Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for groov EPIC and groov RIO and their accessories, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2330

ATEX Letter of Conformity for groov EPIC

This ATEX Letter of Conformity is provided to support CE Declaration of Conformity (groov EPIC and groov RIO), form 2261.

View

2261

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

CAD Drawing: groov I/O Module

This ZIP file includes drawings in a variety of file formats (pdf, dwg, stp) that apply to all groov I/O modules.

Note: These drawings do not apply to groov RIO modules.

View

CAD Drawings: groov EPIC and groov RIO I/O wiring

This ZIP file contains I/O wiring diagrams for groov EPIC I/O modules and groov RIO models, in DWG format.

View

GRV-IDCIFQ-12 Module Firmware

This download contains current firmware for the GRV-IDCIFQ-12 module. For a list of bug fixes and enhancements included in this firmware, see the groov I/O Modules Firmware Release Notes.

You can download the previous version of the firmware by clicking on this link: 1.3d, 1.3c, 1.3b, 1.3a

View
