Analog input, temperature/thermistor or resistance, 12 channels

Production Specification

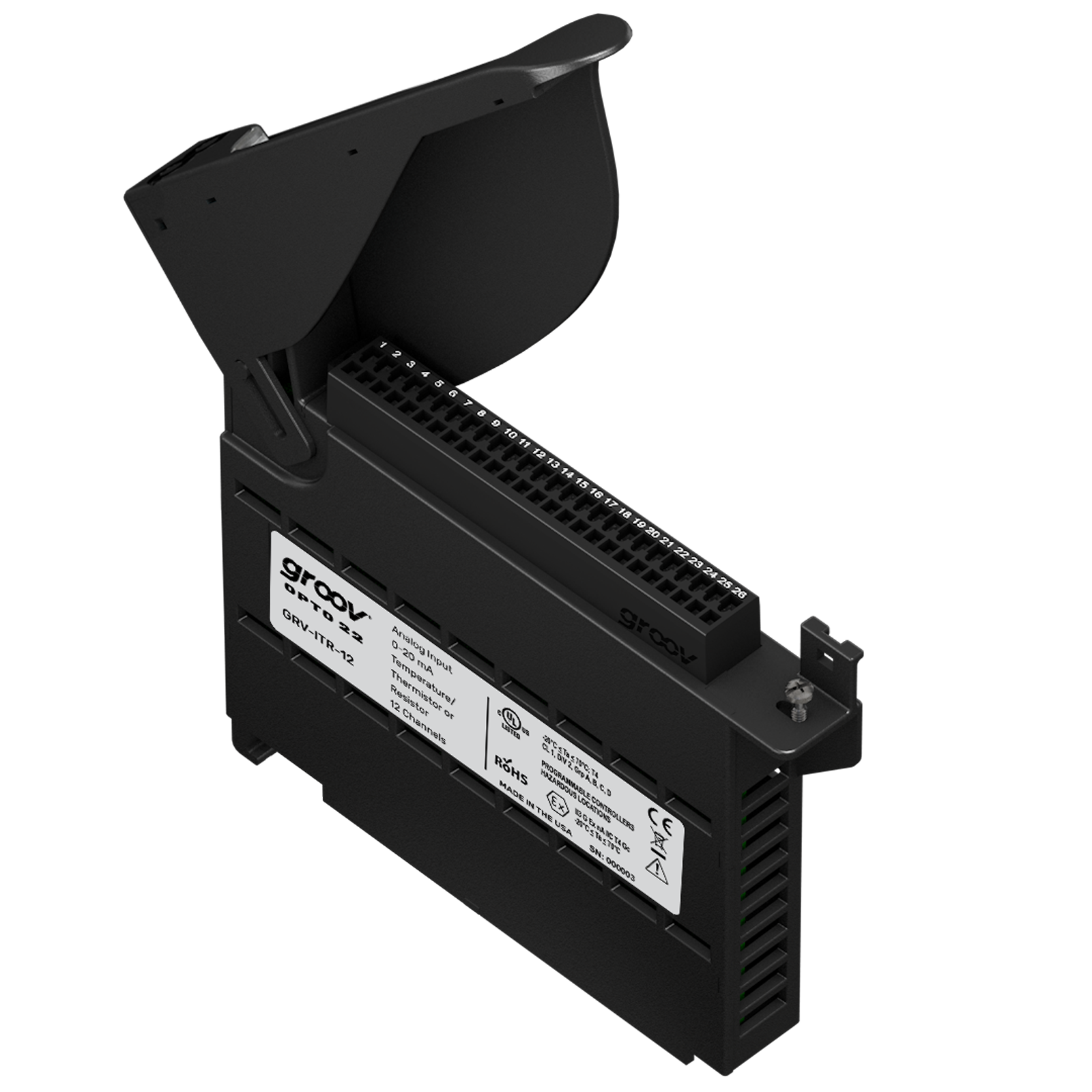

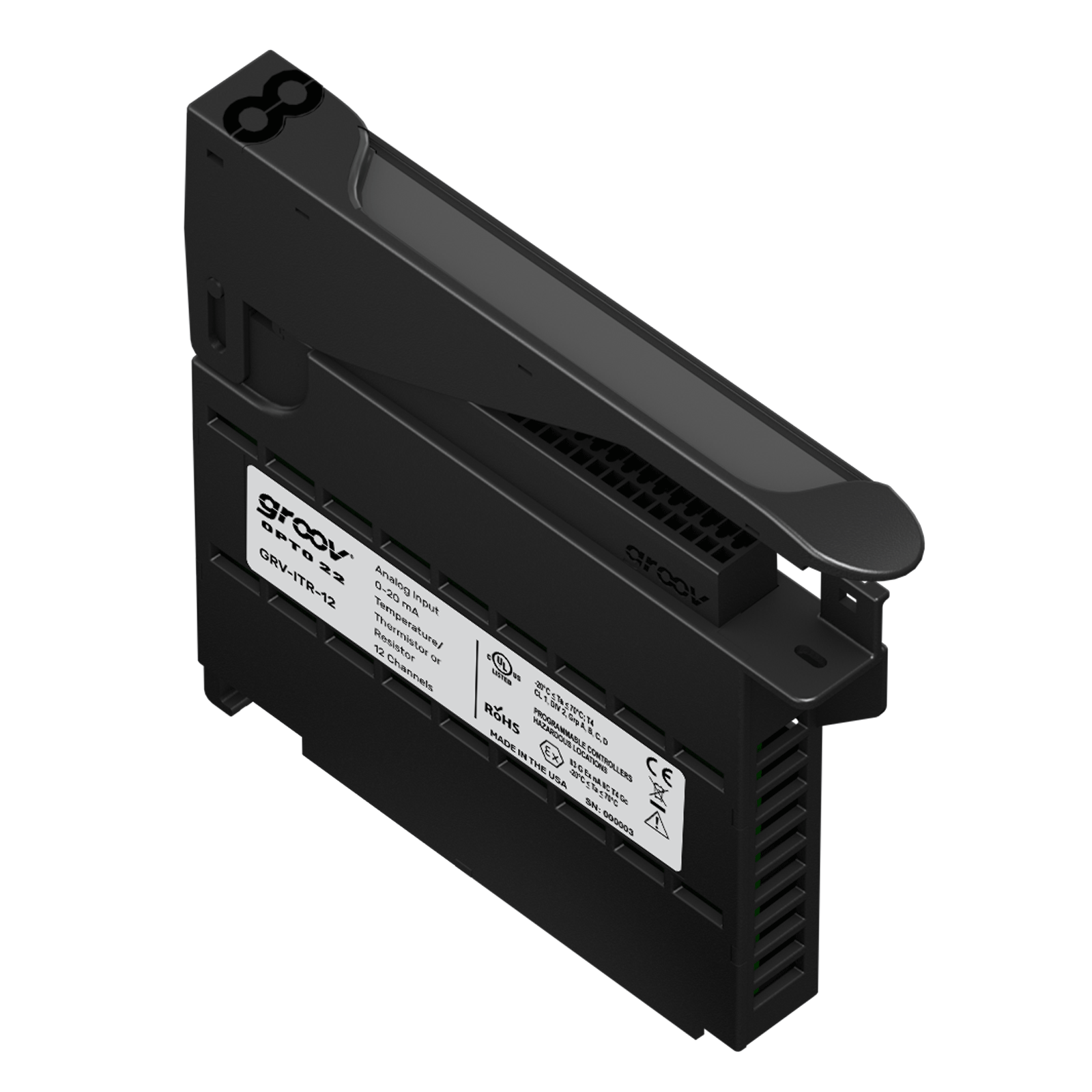

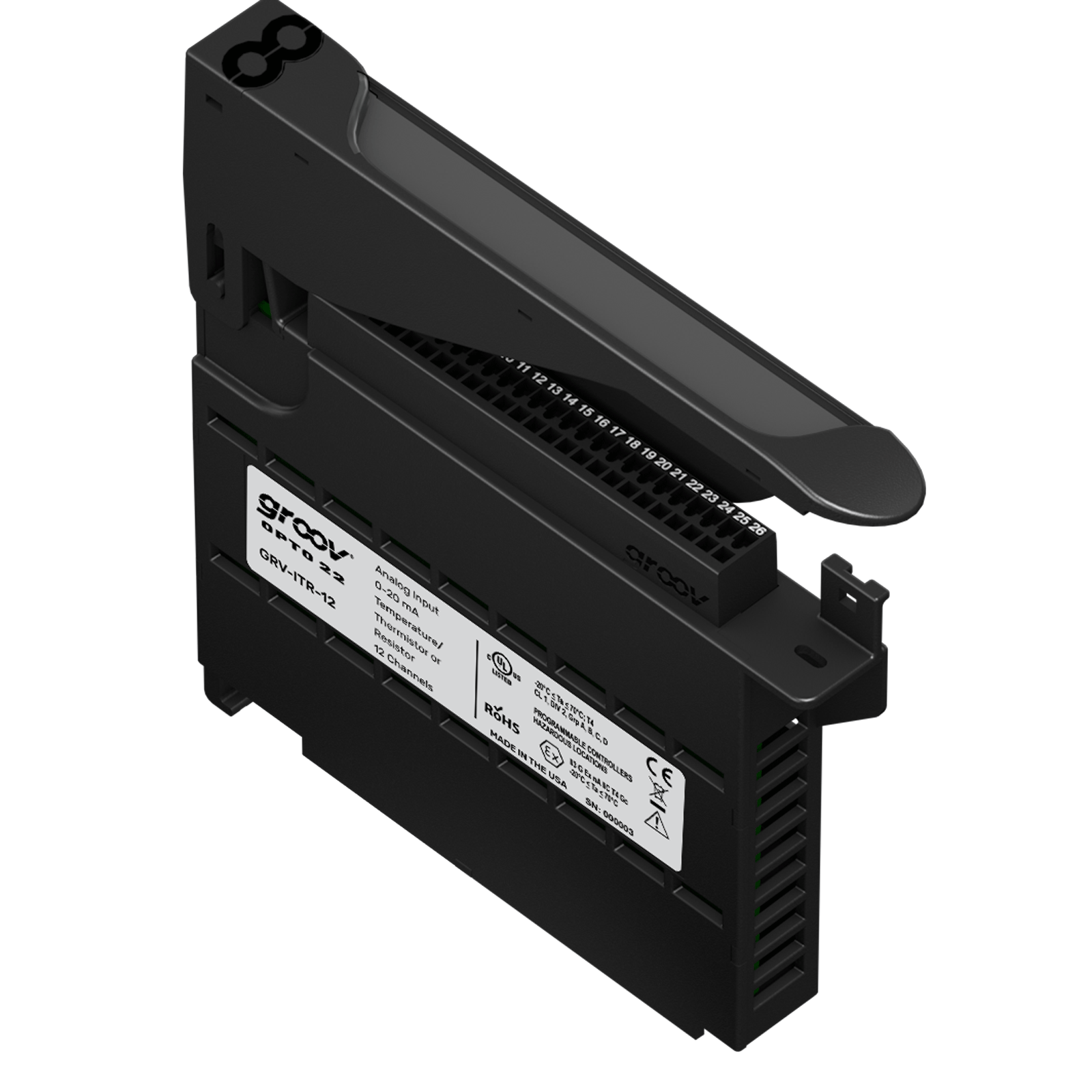

Part of the groov EPIC® system, the GRV-ITR-12 module has 12 channels of analog to digital conversion that convert resistance to temperature or to Ohms.

The module is ideal for NTC thermistors commonly used in HVAC, refrigeration, and process control applications. It may also be used with PTC thermistors in resistance sensing applications. The module has 12 channels of analog to digital conversion that convert resistance to temperature or to Ohms. The module reads variable resistance type transducers, with input ranges from 500 Ohms to 400 K Ohms, plus Autorange. You can also select from predefined curves for popular thermistors, as well as create custom curves.

The module also offers  options to decrease data refresh time and step input response time. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

The GRV-ITR-12 module mounts on a groov EPIC® chassis with a GRV-EPIC-PR1 processor and assorted discrete, analog, and serial groov I/O modules.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.

Opto Products, like GRV-ITR-12, are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.

Features

GRV-IRTD-8

GRV-ITR-12

Number of Channels

8

12

Channel-to-Channel Isolation





Analog Totalizing

Average Filter Weight

Fast ADC Modea



Minimum/Maximum Values

Offset and Gain

Quality Indication

Scaling

Simple Moving Average (SMA)

a Select any "FastADC" channel type on channel 0.


Specification

GRV-ITR-12

Input Ranges (Ohms)

400 k, 200 k, 100 k, 50 k, 40 k, 20 k, 10 k, 5 k, 4 k, 2 k, 1 k, 500 and Autorange

Accuracy, normal mode (Ohms @ Range)

0.1%; specific values for indicated range:
400@400 k, 200@200 k, 100@100 k, 50@50 k, 40@40 k, 20@20 k, 10@10 k, 5@5 k, 4@4 k, 2@2 k, 1@1 k, 0.5@500

Accuracy, fast ADC mode (Ohms @ Range)

0.5%; specific values for indicated range:
2000@400 k, 1000@200 k, 500@100 k, 250@50 k, 200@40 k, 100@20 k, 50@10 k, 25@5 k, 20@4 k, 10@2 k, 5@1 k, 2.5@500

Excitation Current (Range & Load Watts Dissipated)

>7.9 µA (400 K & 25 µW), (200 K & 12.4 µW), (100 K & 6.2 µW), (50 K & 3.1 µW),
>84.7 µA (40 K & 287 µW), (20 K & 144 µW), (10 K & 72 µW), (5 K & 36 µW),
>169.2 µA (4 K & 115 µW), (2 K & 57 µW), (1 K & 29 µW), (500 & 14 µW)

Analog Data Filtering

-3 dB @ 2.4 Hz
-25 dB @ 60 Hz

Software Data Filtering:

  • Simple Moving Average (SMA)

  • Weighted Average

  • 1 to 32 readings

  • 1 to 4096

Data Refresh Time (normal mode)

900 ms

Data Refresh Time (fast ADC mode)

450 ms

Step Input Response Time (normal mode)

900 ms x SMA value (for example, 28.8 s @ 32 SMA, Default SMA = 4)

Step Input Response Time (fast ADC mode)

450 ms x SMA value (for example, 14.4 s @ 32 SMA, Default SMA = 4)

Quaility Indications

out of range

Isolation (field-to-logic)

300 V working, 1500 V transient (1 minute)

Isolation (channel-to-channel)

300 V between channel group 0–5 & channel group 6–11. None within a group.

Number of Channels

12

Chassis Power Consumption

1.3 W

Minimum groov EPIC Firmware Version

1.3.0

Minimum PAC Project Version

10.2000

Minimum Library Package for CODESYS Version

1.0.0.0

Wire Size

28–14 AWG

Wire Strip Length

 0.315–0.354 inches (8–9 mm)

Torque, connector screw

2.5 in-lb (0.28 N-m)

Torque, hold-down screw

3.5 in-lb (0.4 N-m)

Temperature (operating)

-20 °C to +70 °C

Temperature (storage)

-40 °C to +85 °C

Relative Humidity (non-condensing)

5–95%

MTBF (minimum, 25 °C)

1.2 Mhrs

Agency Approvals

UL/cUL (Class 1, Div 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA

Warranty

Lifetime


a  For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).

Opto Products are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.

groov Thermistor Resistor Input Modules Data Sheet

groov analog input modules are part of Opto 22's groov EPIC® System. This document includes descriptions, specifications, and wiring and dimensional diagrams for groov thermistor/resistor analog input modules, part numbers GRV-IRTD-8 and GRV-ITR-12.

groov I/O Modules Firmware Release Notes

This document lists the latest updates to the firmware for groov I/O modules. It includes information on new features, enhancements, and bug fixes.

List of groov I/O module firmware download pages

Note: This document was formerly called a readme. The name was changed to more accurately describe its content.

UKCA Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for groov EPIC and groov RIO and their accessories, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

ATEX Letter of Conformity for groov EPIC

This ATEX Letter of Conformity is provided to support CE Declaration of Conformity (groov EPIC and groov RIO), form 2261.

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

GRV-ITR-12 Module Firmware

This download contains current firmware for the GRV-ITR-12 module. For a list of bug fixes and enhancements included in this firmware, see the groov I/O Modules Firmware Release Notes.
