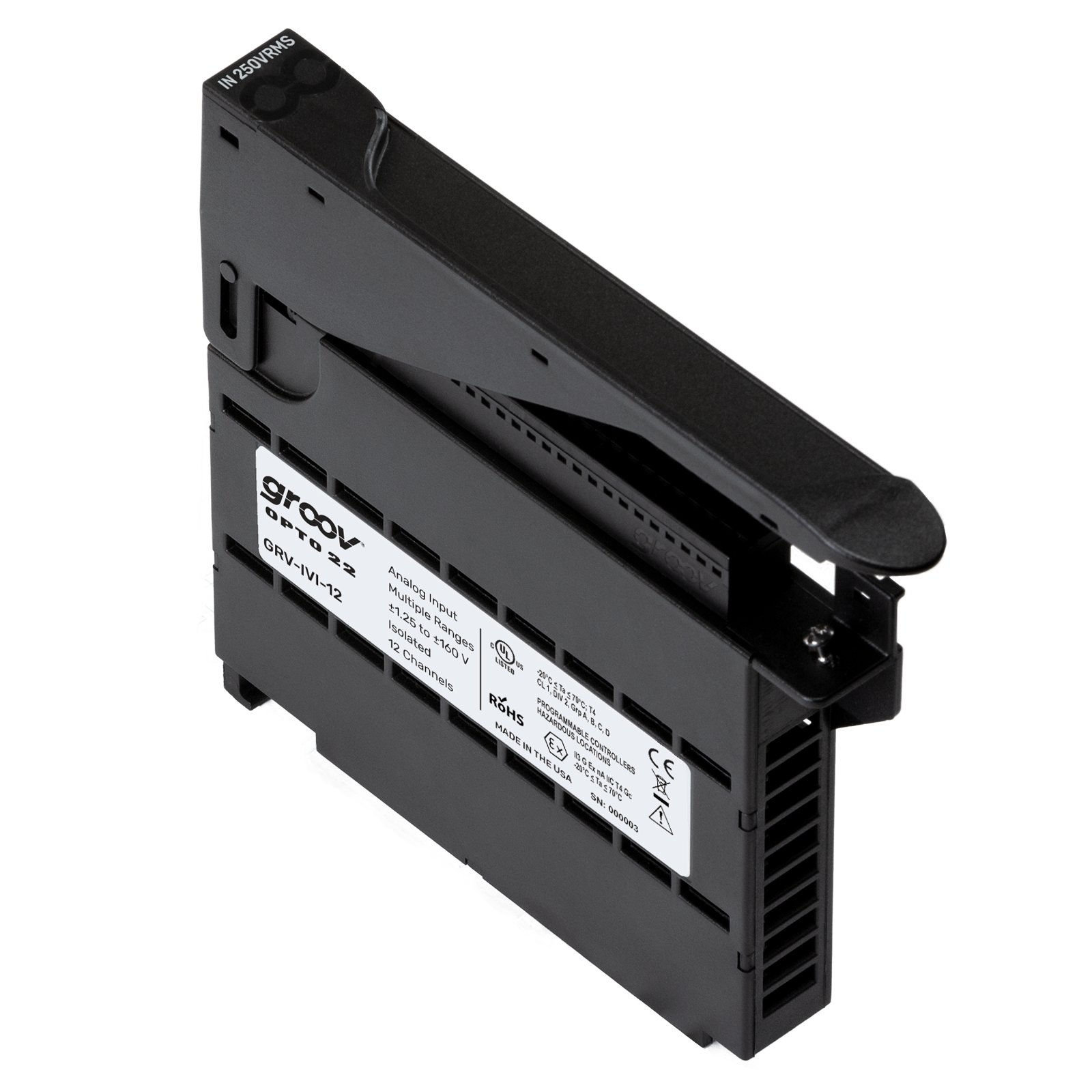

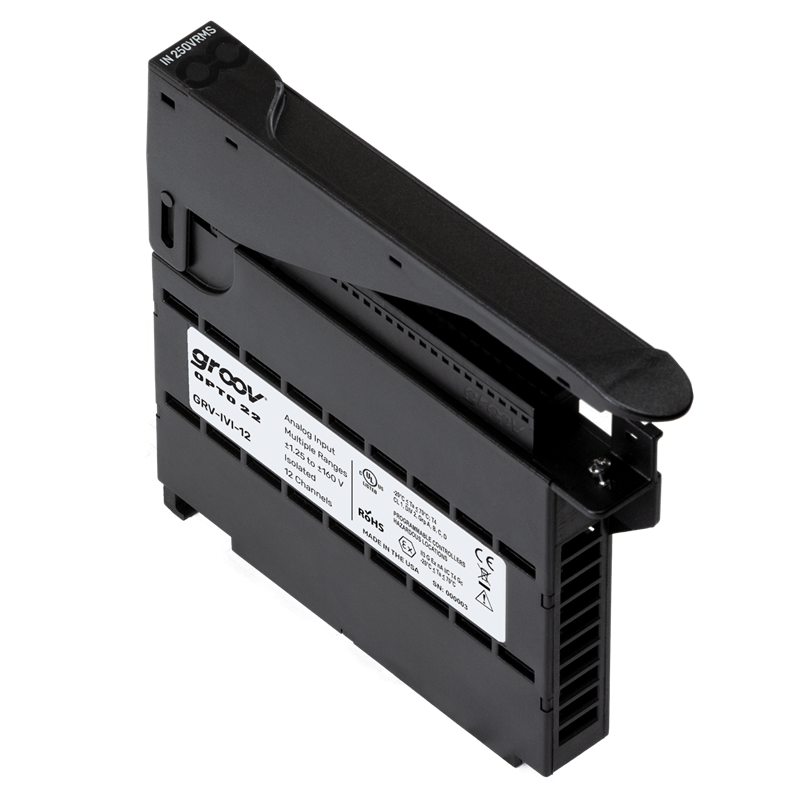

GRV-IVI-12
Hover over image to zoom in

GRV-IVI-12

$1,195.00 (USA and Canada only)

Availability: In stock
Analog voltage input, 12 channels, 8 configurable input ranges from ±1.25 to ±160 V, channel-to-channel isolation

Production Specification

Part of the groov EPIC® system, the GRV-IVI-12 analog module is similar to the GRV-IV-24. The GRV-IVI-12 analog module can be configured for any one of the following eight input ranges on each of its 12 input channels:
  • ±160.0 VDC
  • ±80.0 VDC
  • ±40.0 VDC
  • ±20.0 VDC
  • ±10.0 VDC
  • ±5.0 VDC
  • ±2.5 VDC
  • ±1.25 VDC

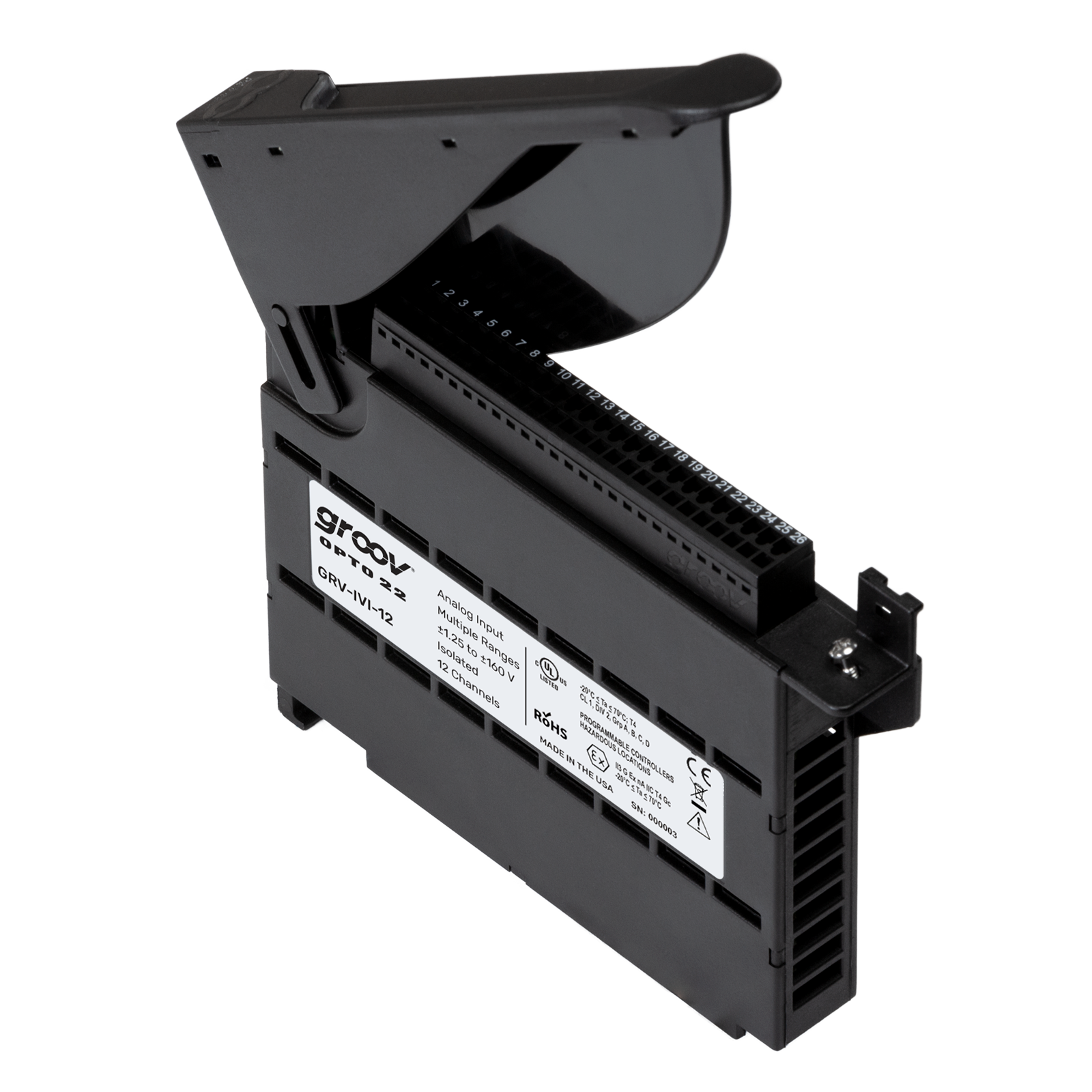

The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

The GRV-IVI-12 module mounts on a groov EPIC® chassis with a GRV-EPIC-PR1  processor and assorted discrete, analog, and serial groov I/O modules.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.
Feature
 GRV-IV-24
 GRV-IVI-12
 GRV-IVIRMS-10
Number of Channels
24
12
10
Channel-to-Channel Isolation

Analog Totalizing
Average Filter Weight

Minimum/Maximum Values
Offset and Gain
Quality Indication
Scaling
Simple Moving Average


Specification

GRV-IV-24

GRV-IVI-12

GRV-IVIRMS-10

Input Ranges

±160.0 VDC ±80.0 VDC
±40.0 VDC ±20.0 VDC
±10.0 VDC ±5.0 VDC
±2.5 VDC ±1.25 VDC

±160.0 VDC ±80.0 VDC
±40.0 VDC ±20.0 VDC
±10.0 VDC ±5.0 VDC
±2.5 VDC ±1.25 VDC

300.0 V rmsAC/DC 150.0 V rms AC/DC
60.0 V rms AC/DC 30.0 V rms AC/DC
20.0 V rms AC/DC 10.0 V rms AC/DC
5.0 V rms AC/DC 1.0 V rms AC/DC
0.5 V rms AC/DC

Over-range Limits

±176.0 VDC ±88.0 VDC
±44.0 VDC ±22.0 VDC
±11.0 VDC ±5.5 VDC
±2.75 VDC ±1.375 VDC

±176.0 VDC ±88.0 VDC
±44.0 VDC ±22.0 VDC
±11.0 VDC ±5.5 VDC
±2.75 VDC ±1.375 VDC

333.0 V rms AC/DC 165.0 V rms AC/DC
66.0 V rms AC/DC 33.0 V rms AC/DC
22.0 V rms AC/DC 11.0 V rms AC/DC
5.5 V rms AC/DC 1.1 V rms AC/DC
0.55 V rms AC/DC

Resolution

Range / 1,048,576 (20-bits)

Range / 1,048,576 (20-bits)

Range / 1,048,576 (20-bits)

Accuracy ±0.1% of Full Scale

±160 mV ±80 mV ±40 mV
±20 mV ±10 mV ±5 mV
±2.5 mV ±1.25 mV

±160 mV ±80 mV ±40 mV
±20 mV ±10 mV ±5 mV
±2.5 mV ±1.25 mV

N/A

Accuracy @ 50-60 Hz

N/A

N/A

±200 mV and ±0.2% of reading

Accuracy @ 60-400 Hz

N/A

N/A

±200 mV and ±0.3% of reading

Input Impedance Nominal

9.7 megohms

9.7 megohms

9.5 megohms

Input Filter

-3 dB at 46 HZ

-3 dB at 46 HZ

N/A

DC Reversal

N/A

N/A

1% of Range

Analog Data Filtering

-3 dB @ 2.4 Hz
-25 dB @ 60 Hz

-3 dB @ 46 Hz
-5 dB @ 60 Hz

N/A

Software Data Filtering:

  • Simple Moving Average (SMA)

  • Weighted Average



  • 1 to 32 readings

  • 1 to 4096



  • 1 to 32 readings

  • 1 to 4096



  • 1 to 32 readings

  • 1 to 4096

Data Refresh Time

450 ms

15.5 ms

50 ms

Step Input Response Time

450 ms x SMA value
(14.4 s @ 32 SMA, Default SMA = 4)

16.5 ms x SMA value
(0.53 s @ 32 SMA, Default SMA = 4)

  • 250 ms x SMA value (1 s @ SMA = 4)

  • 100 to 0%: 1,100 ms x SMA value (4.4 s @ SMA = 4)

Common Mode Rejection

> -120 dB

> -120 dB

> -120 dB

Max. Survivable Input

300 V

300 V

330 V

Max. Operating Common
Mode Voltage

250 V

250 V

300 V

Quality Indications

out of range

out of range

out of range

Isolation (field-to-logic)

300 V working,
1500 V transient (1 minute)

300 V working,
1500 V transient (1 minute)

300 V working,
1500 V transient (1 minute)

Isolation (channel-to-channel)

300 V between
channel group 0-11 & group 12-23

300 V working,
1500 V transient (1 minute)

300V working,
1500 V transient

Number of Channels

24

12

10

Chassis Power Consumption

1.0 W

2.2 W

1.5 W

Minimum groov EPIC
Firmware Version

1.0.0

1.4.2

1.5.0

Minimum PAC Project Version

10.0000

10.2003

10.2005

Minimum Library Package for CODESYS Version

1.0.0.0

1.0.2.0

1.0.3.0

Wire Size

28-14 AWG

28-14 AWG

28-14 AWG

Wire Strip Length

0.315–0.354 inches (8–9 mm)

0.315–0.354 inches (8–9 mm)

0.315–0.354 inches (8–9 mm)

Torque, connector screw

2.5 in-lb (0.28 N-m)

2.5 in-lb (0.28 N-m)

2.5 in-lb (0.28 N-m)

Torque, hold-down screw

3.5 in-lb (0.4 N-m)

3.5 in-lb (0.4 N-m)

3.5 in-lb (0.4 N-m)

Temperature (operating)

-20 °C to +70 °C

-20 °C to +70 °C

-20 °C to +70 °C

Temperature (storage)

-40 °C to +85 °C

-40 °C to +85 °C

-40 °C to +85 °C

Relative Humidity
(non-condensing)

5-95%

5-95%

5-95%

MTBF (minimum, 25 °C)

1.2 Mhrs

1.2 Mhrs

1.2 Mhrs

Agency Approvals

UL/cUL (Class 1, Div 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA

Warranty

Lifetime

Lifetime

Lifetime

a. For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
