GRV-OVMAILP-8
Hover over image to zoom in

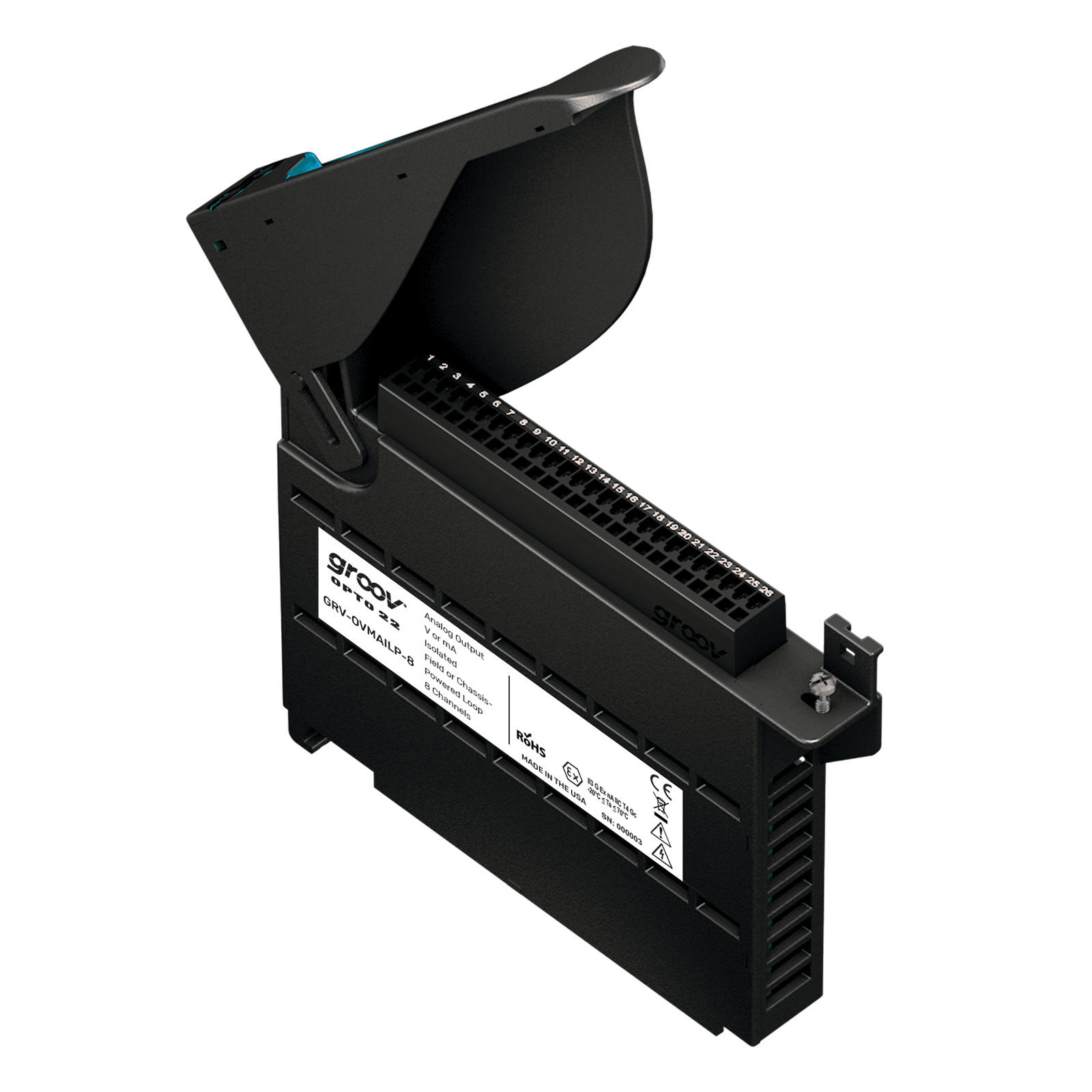

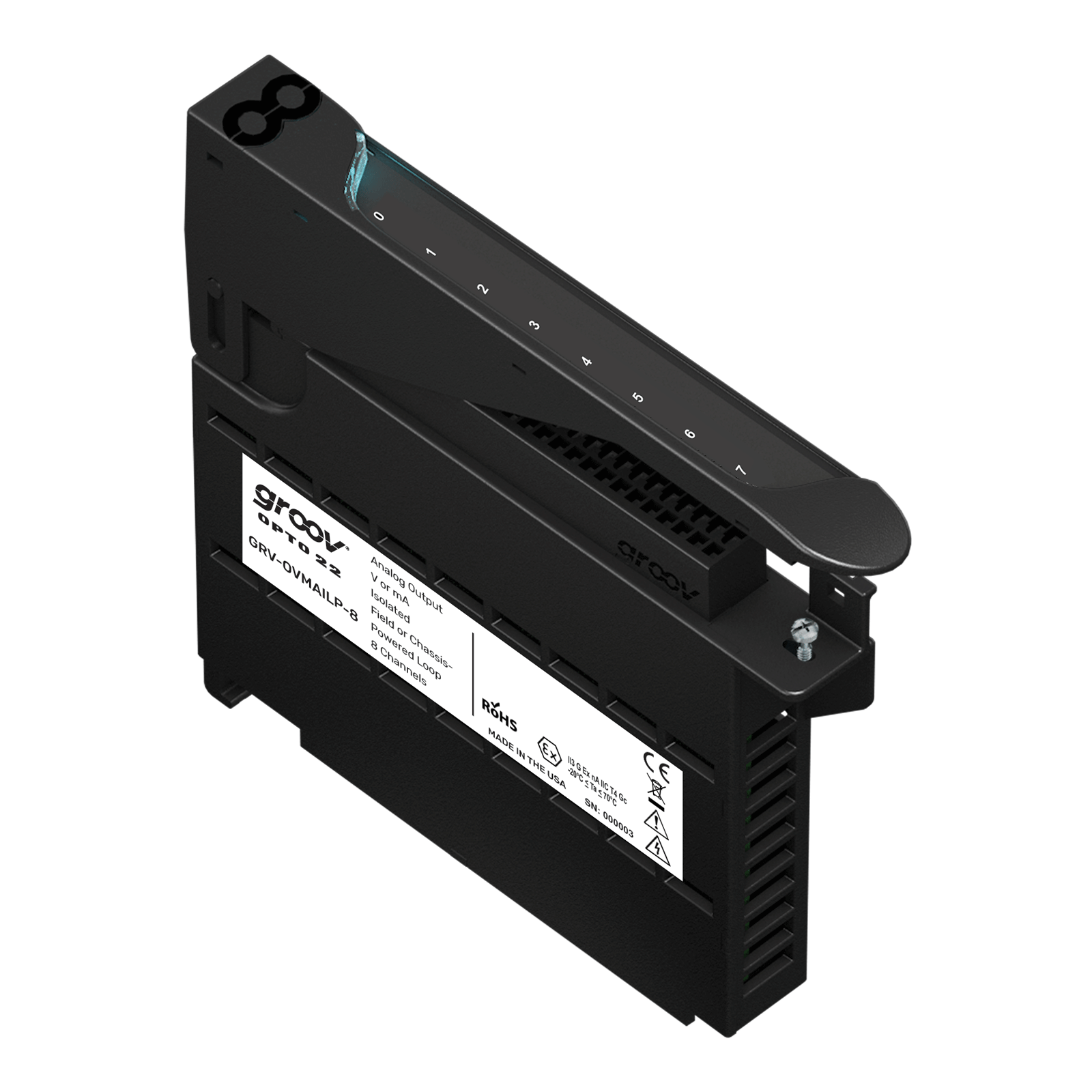

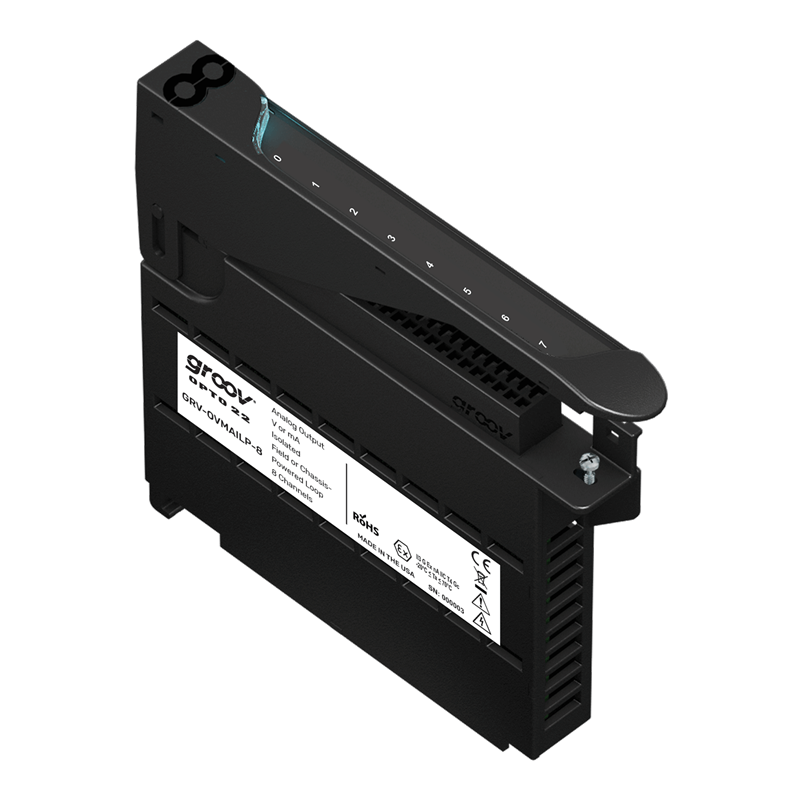

GRV-OVMAILP-8

$1,135.00 (USA and Canada only)

Availability: In stock
Analog output, 8 channels, voltage or current, channel-to-channel isolation, field or chassis-powered loop
Data Sheet

Production Specification

Part of the groov EPIC® system, the GRV-OVMAILP-8 analog output module has 8 channels, individually configurable for any one of five voltage or current output ranges:
  • 0 to 5 VDC
  • 0 to 10 VDC
  • 0 to 22 mA
  • 4 to 20 mA
  • 0 to 20 mA
This module provides channel-to-channel isolation. Each range has 4096 counts (12 bits) of resolution. See the Specifications tab for more information.

The GRV-OVMAILP-8 can power current loops from an internal isolated loop supply powered from the chassis or, on a channel-by-channel basis, from an externally connected loop supply of 22-32 VDC. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

the GRV-OVMAILP-8 mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and other analog, discrete, and serial groov I/O modules, to give you the mix of signals you need.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.

Opto Products, like GRV-OVMAILP-8, are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.
Features   GRV-OVMALC-8     GRV-OVMAILP-8
Number of Channels 8 8
Channel-to-Channel Isolation   ⬤
Clamping ⬤ ⬤
Quality Indication ⬤ ⬤
Ramping ⬤ ⬤
Scaling ⬤ ⬤
Watchdog Timeout ⬤ ⬤

Specification GRV-OVMALC-8 GRV-OVMAILP-8
Output Ranges (Resolution) Voltage
0 to 5 VDC (1.22 mV)
0 to 10 VDC (2.44 mV)
-5 to +5 VDC (2.44 mV)
-10 to +10 VDC (4.88 mV)

Current
4 to 20 mA (4 microamps)
0 to 20 mA (5 microamps)
0 to 22 mA (6 microamps)		 Voltage
0 to 5 VDC (1.22 mV)
0 to 10 VDC (2.44 mV)



Current
4 to 20 mA (4 microamps)
0 to 20 mA (5 microamps)
​0 to 24 mA (6 microamps)
Resolution Range / 4096 (12-bits) Range / 4096 (12-bits)
Accuracy ± 0.1% of span ± 0.1% of span
Max Current for Voltage Output 10 mA 10 mA
Voltage Output Impedance 280 Ohms 280 Ohms
External Current Loop Power N/A, internal loop power only 20–32 VDC, (under 20 VDC switches to
internal loop power)
Maximum Loop Resistance 750 Ohms 500 Ohms @ 20 mA, 400 Ohms @ 24 mA
Minimum Loop Resistance 50 Ohms 50 Ohms
Data Refresh Time 10 ms 10 ms
Quality Indications Current outputs: Open circuit
Voltage outputs: Over-current		 Current outputs: Open circuit
Voltage outputs: None
Isolation (field-to-logic) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel) None 300 V working, 1500 V transient (1 minute)
Number of Channels 8 8
Chassis Power Consumption 1.8 W all voltage outputs
6.2 W all current outputs		 1.8 W all voltage outputs
6 W all current outputs with chassis-powered loops
Minimum groov EPIC Firmware Version 1.0.0 1.3.0
Minimum PAC Project Version 10.0000 10.2000
Minimum Library Package for CODESYS Version 1.0.0.0 1.0.0.0
Wire Size 28–14 AWG 28–14 AWG
Wire Strip Length 0.315–0.354 inches (8–9 mm) 0.315–0.354 inches (8–9 mm)
Torque, connector screw 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
Torque, hold-down screw 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m)
Temperature (operating) -20 °C to +70 °C 20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C 40 °C to +85 °C
Relative Humidity (non-condensing) 5–95% 5–95%
MTBF (minimum, 25 °C) 1.2 Mhrs 1.2 Mhrs
Agency Approvals UL/cUL (Class 1 Div. 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA
Warranty Lifetime Lifetime

a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).

Opto Products are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.

2244

groov Analog Voltage and Current Output Module Data Sheet

groov® analog voltage and current output modules are part of Opto 22's groov EPIC® System. This document includes descriptions, specifications, and wiring and dimensional diagrams for part numbers GRV-OVMAILP-8 and GRV-OVMALC-8.
